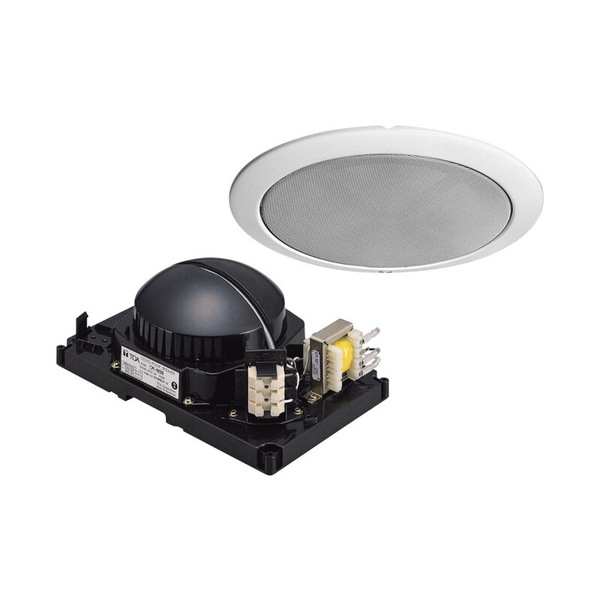

CM760/CP77 TOA 12Cm 6W 100V Speaker W/ Grille TOA Ceiling Speaker Speaker: Cm760 12cm
,gravity=Center,allowExpansion)
The CM-760 speaker allows selection of most suitablefront panel out of the CP-70 series panels (optional) depending on the installation place.
Thanks to its coil spring catch method, the panel can be easily attached to the speaker.
The CM-760 comes with a push-in connector which permits instant wire connection for bridging and branch wiring.
The speaker is protected by a hard speaker cover.
Rated Input | 6 W |
---|---|
Rated Impedance | 1.7 k (6 W), 3.3 k (3 W), (6.7 k (1.5 W), 13 k (0.8 W): Internalwiring must be changed) |
Sound Pressure Level | 90 dB (1 W, 1 m) |
Frequency Response | 100 - 16,000 Hz |
Speaker Component | 12 cm dynamic cone-type speaker |
Dimensions for Fixing Hole | Φ150 (mounting hole) × 50 (ceiling thickness) mm |
Speaker Mounting Method | Spring catch |
Applicable Cables | 600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: Φ0.8 - Φ1.2 mm 7-core twisted copper wire: 0.75 - 1.25 m? |
Connection | Push-in connector (Bridging and branch connectionspossible.) |
Finish | Grille: Fire-resistant, high-impact styrene resin (resin material grade: UL94 V-O or its equivalent), black |
Dimensions | 215 (W) × 134 (H) × 89 (D) mm |
Weight | 630 g |
Applicable Panel | CP-77 |
The CP-77 grille can easily be attached to the CM-760 speaker by means of coil springs.
Because it is thin in thickness and white in color, it blends with any ceiling.
In addition, cleaning is easy because the net is painted metal.
Speaker Mounting Method | Spring catch |
---|---|
Finish | Frame, net: Aluminum, off-white, paint |
Dimensions | Φ180 × 11 (D) (exposed section) mm |
Weight | 70 g |
Applicable Speaker | CM-760, |
