Convotherm 6 Tray GN 2/3 Electric Combi Direct Steamer Oven CMINIPRO6.06-B

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 4 items left!
$18169

Collect 18169 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Commercial Kitchen Store
Secure ways to pay at checkout

Convotherm mini pro easyTouch Combi Steamer CMINIPRO6.06-B ELECTRIC DIRECT STEAM 6 X 2/3 GN

• Direct steam system

• Cooking methods: Steam, Combi-steam, Convection

• Extra functions:

– Crisp&Tasty - 5 moisture removal settings

– HumidiftyPro - 5 humidity settings

– BakePro - 5 levels of traditional baking

– Controllable fan - 5 speed settings

– AirFry mode

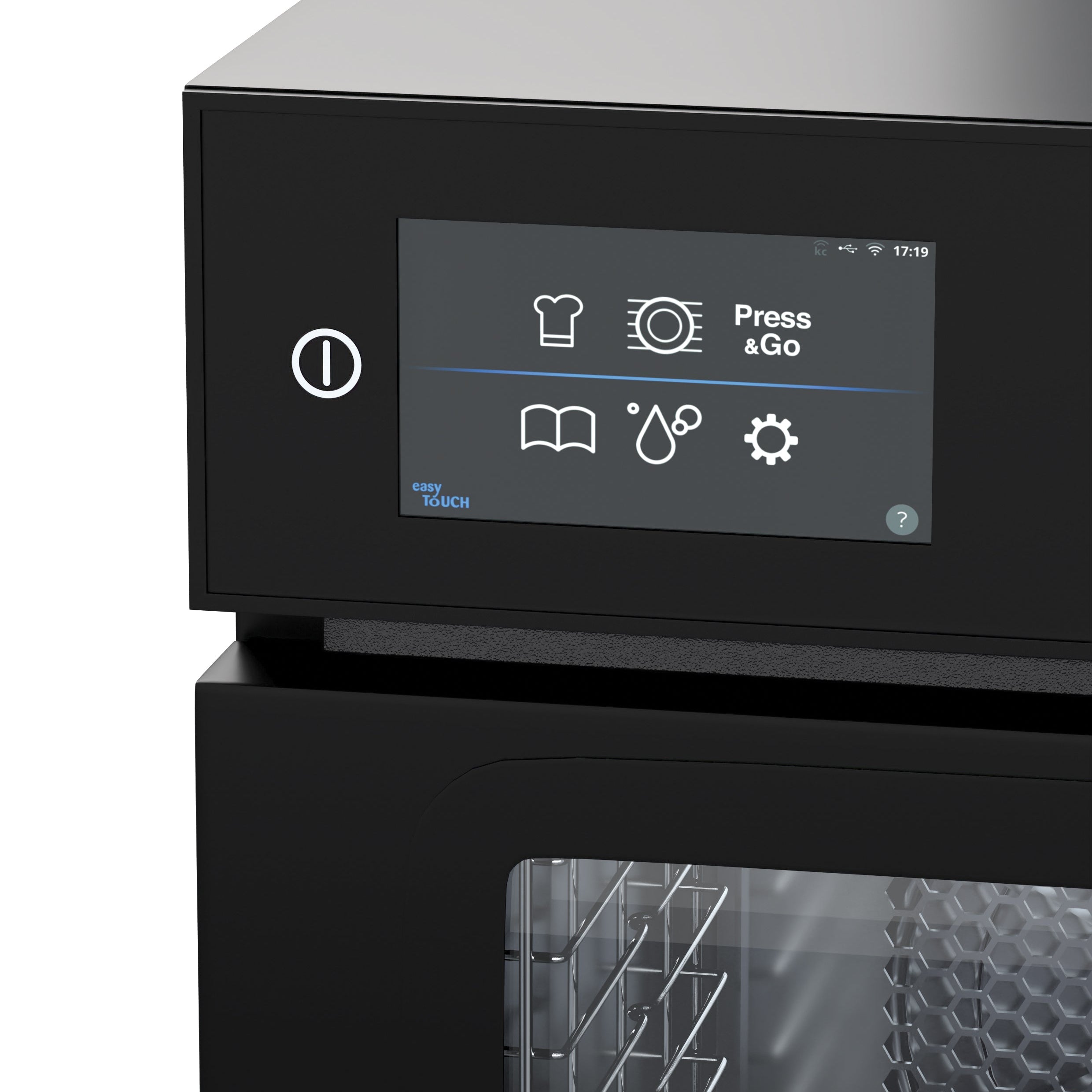

• easyTouch 7” TFT HiRes glass touch display (capacitive)

• ConvoClean S2L integrated cleaning system

• HygieniCare

• EasyStack - seamless stacking of two appliances

• MaxiCavity - best ratio for cooking chamber volume to appliance size

• Ethernet interface (LAN) and WiFi module (accessory)

• Multipoint core temperature probe

• LED lighting in oven cavity

• Triple glass appliance door and safety catch

• Integrated recoil hand shower

• Right-hinged appliance door



Standard Features

• Cooking methods:

– Steam (30-130°C) with guaranteed steam saturation

– Combi-steam (30-250 °C) with automatic moisture control

– Convection (30-250 °C) with optimised heat transfer

• Operation of easyTouch user interface:

– 7” TFT HiRes glass touch display (capacitive)

– Intuitive, image-based user guidance

– TriColor indicator ring - indicates the current operating status

– Smooth-action, quick reacting scrolling function

• Climate Management

 – Intelligent Steam Management, HumidityPro, Crisp&Tasty, AirFlowPro

• Quality Management

– BakePro, AirFry Mode

– Preheat and cool down function

• Production Management

– Automatic cooking with Press&Go with up to 399 cooking profiles

– Integrated cookbook with 7 different categories

– TrayTimer – load management for different products at the same

time

– TrayView – load management for automatic cooking of different

products using Press&Go

– Favourites management

– HACCP data storage

– ecoCooking – energy-save function

– LT cooking (low temperature cooking) / Delta-T cooking

– Cook&Hold – cook and hold in one process

– Autostart – start time preselection

– Add steam

– Regenerate - flexible multi-mode rethermalisation function with

preselect

– Manager and crew mode with password protection

– Energy and water consumption display



DIMENSIONS

Width 498 mm

Depth 615 mm

Height 694 mm

Weight 64 kg

PACKED DIMENSIONS

Width 580 mm

Depth 730 mm

Height 890 mm

Weight 75 kg

Safety clearances*

Right 50 mm

Left 50 mm

Top (for ventilation)** 500 mm

*Heat sources must lie at a minimum distance of 500mm from the appliance.

** Depends on type of air ventilation system and nature of ceiling.

INSTALLATION REQUIREMENTS

For precise installation instructions please refer to the units installation manual

LOADING CAPACITY

Shelf distance 67mm

GN 2/3 flat 6

GN 2/3 (40-65mm deep) 5 Plates max. Ø26cm 5

Max. loading weight

Per combi steamer 15 kg

Per shelf 5 kg

ELECTRICAL SUPPLY

3N~400-415V ~50/60Hz (3P+N+E)

Connected load 6.1 kW

Rated current 8.4A

Fuse 16A

RCD (GFCI), frequency converter Type A

Special voltage options available on request. Connection to an energy optimisation system as standard

WATER CONNECTION

Water supply

G 3/4’’ permenent connection.

Flow pressure 150 - 600 kPa (1.5 - 6 bar)

Appliance drain

Drain version Permanent connection (recommended) or funnel waste trap

Type DN40 (Ø40mm)

Slope for waste-water pipe min. 5% (3°)

Water consumption

Ø Consumption for cooking 0-20l/h

Max. water flow rate 7 l/min

WATER QUALITY

Drinking water

(install water treatment system if necessary). Treated tap water for water injection. Untreated tap water for cleaning, recoil hand shower

Overall hardness 4 - 20 °dh / 70 - 360 ppm / 7 - 35 °TH /5 - 25 °e

Properties

pH 6.5 - 8.5

Cl- (chloride) max. 60 mg/l

Cl2 (free chlorine) max. 0.2 mg/l

SO4²- (sulphate) max. 150 mg/l

Fe (iron) max. 0.1 mg/l

Electrical conductivity min 20 μS/cm

SiO₂ (silicate) max. 13 mg/l

NH₂Cl (monochloramine) max. 0.2 mg/l

Temperature max. 40°C



SKU: CMINIPRO6.06-B
