Cooler Master V 650W 80Plus Gold Full Modular Power Supply,Semi-Fanless mode with Hybrid Switch 10 Years warranty

Cooler Master V 650W 80Plus Gold Full Modular Power Supply,Semi-Fanless mode with Hybrid Switch 10 Years warranty


Cooler Master V 650W 80Plus Gold Full Modular Power Supply,Semi-Fanless mode with Hybrid Switch 10 Years warranty

Power Up
The V Gold series delivers a top-shelf power supply unit in 550, 650, 750, and 850 wattage levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation with a hardware based hybrid switch, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. This series has brought together a number of innovations and improvements from past products to form a PSU that meets all your needs. The 100% Japanese capacitors, half-bridge LLC resonant converter, and DC-DC circuitry work together, resulting in a product that even the pros can respect.
80 Plus Gold And ETA-A Certified
The efficiency of your power supply unit is important because it directly affects you system’s performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit’s ability to move power from the wall to your components. The higher a PSU’s efficiency is, the lower the total amount of power it needs to power your system. The V Gold series has an 80 PLUS Gold efficiency rating as well as an ETA-A certification from Cybernetics, meaning it has a guaranteed typical efficiency of 90%.

Performance Driven Topology

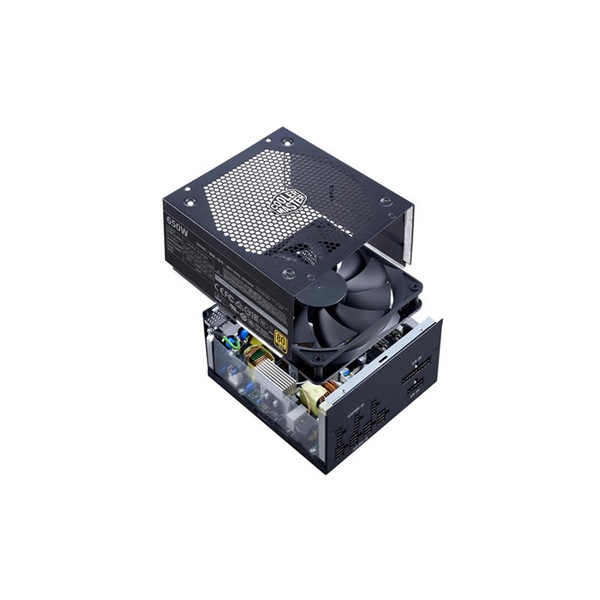

The V Gold is a professional grade power supply unit made for everyday use. It’s more than just the 80 PLUS Gold efficiency rating. It’s the performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The half-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

Control Your Cooling

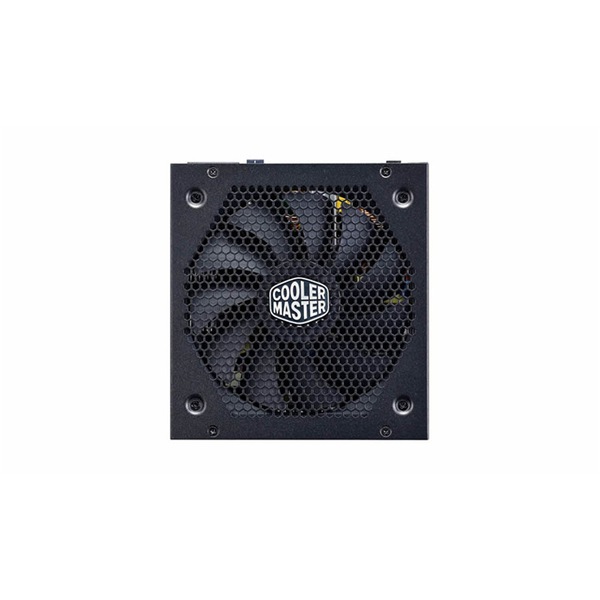

The V Gold keeps cool under pressure. The fluid dynamic fan bearing creates less friction, making it great for low RPM operations. This technology, combined with a larger 135mm fan, keeps the fan running smoothly and efficiently for longer, keeping the noise level down and extending the lifespan of the PSU.

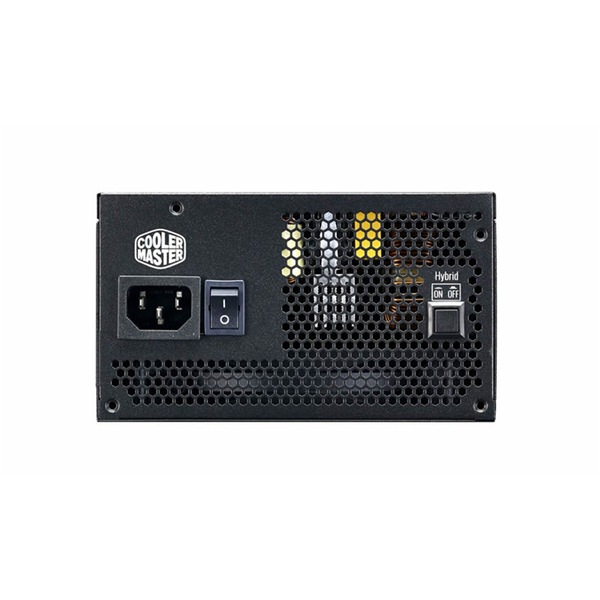

The cooling system isn’t just bigger, it’s better. And when you aren’t pushing your system too hard, the semi-fanless mode will keep the unit completely silent when under 40% maximum load. The built in analog hybrid switch allows you to disengage fanless mode at any time with a simple button press for testing, debugging, or simply achieving maximum cooling at all times.

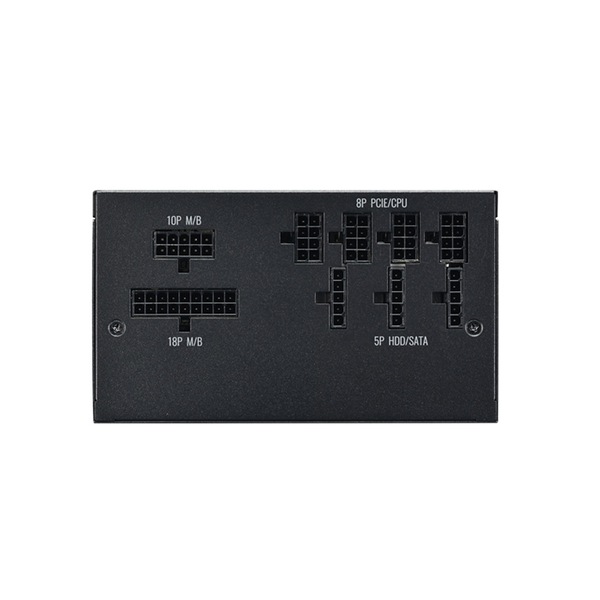

Full-Modular Cabling
Cabling is often the most troublesome part of building a PC. The V Gold can’t solve all your cabling problems but it’s an excellent place to start. With full control and customization of your cables, you don’t have to have excess cables cluttering your PC. This level of control can reduce cable bulk which can increase airflow and make your system look as great as it runs. And with the included 16AWG PCIe cables, you’ll get increases to both efficiency and style.

Improved PCIE Cable Conductivity
The V Gold series comes with 16AWG PCIe cables. These are thicker than current industry standard 18AWG cables, meaning less heat resistance during use. The reduction in heat resistance improves efficiency and stability so your components can get the most out of that 80 PLUS Gold rating. As an added bonus, the lower resistance means less ambient heat in your case being expelled from your cables, making your entire system safer and cooler than the same setup with standard issue cables.

10 Year Warranty
The V Gold series offers top quality power supply units that can and will deliver professional grade performance at normal use wattage levels. Just because you don’t need 1000 watts of power doesn’t mean you shouldn’t get the quality that goes with it. You can trust this PSU for all your computing needs, whether it’s casual work or hefty, continuous sessions. Just in case you aren’t sure, all V Gold series models come with a 10 year warranty. Chances are you’ll be changing homes before you need to change this power supply.

Cable Length

Output Rating

Model
Mpy-6501-afaagv
Atx version
Atx 12v
PFC
Active PFC
Input voltage
100-240v
Input current
9-4.5a
Input frequency
50-60hz
Dimensions
160(l) x 150(b) x 86(h)mm
Fan size
135mm
Fan bearing
FCB
Fan speed
1500 rpm
Noise level @ 20%
0 dba
Noise level @ 50%
18.3 dba
Noise level @ 100%
32.1 dba
Efficiency
90% @ typical load
80 plus rating
80 plus gold
Erp 2014 lot 3
Yes
Operating temperature
0-50°c
Power good signal
100-500ms
Hold up time
17ms
Mtbf
>100,000 hours
Protections
OVP, OPP, SCP, OCP, UVP, OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Atx 24-pin connectors
1
Eps 8 pin connector
1
Sata connectors
8
Peripheral 4-pin connectors
4
Fdd connector
1
Pci-e 6+2 pin connectors
4
Series
V series
Wattage
Above 750w
80 plus
Gold
Modular
Full modular
GTIN: 884102041242
