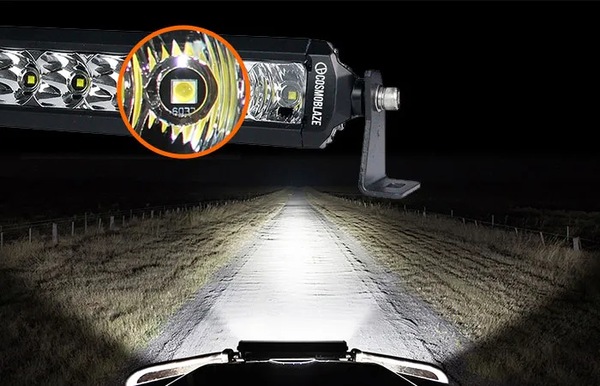

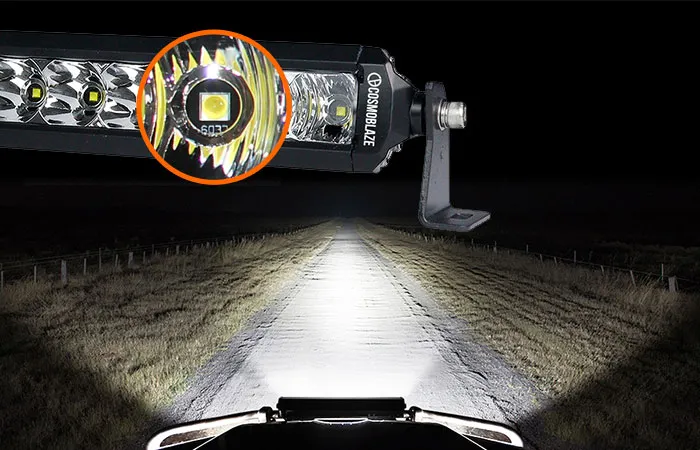

High Intensity LED Chips

• New Cosmoblaze Light bars comes with Orsam chips, one of the leading LED chip manufacturers in the world. With high intensity LEDs to provide best results. Spot beam pattern for long distance and side Flood pattern for wide viewing

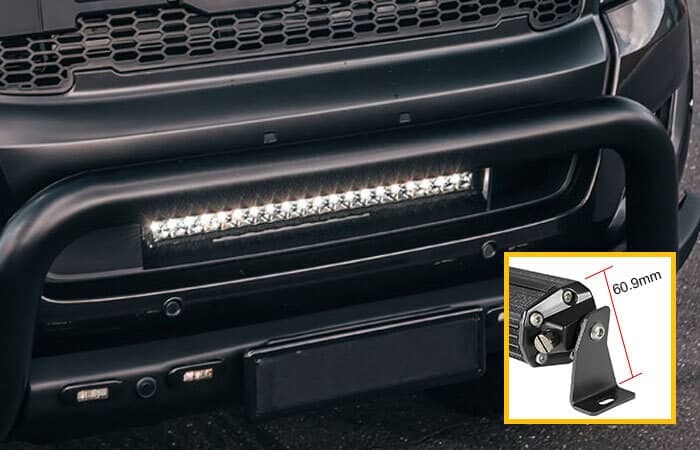

Slim Design

• This new Cosmoblaze light bar is designed to bring a large amount of light to fit in a small amount of space. With its slim design with height of just 60.9mm total height with the side brackets attached, you will be able to mount in locations like your front bar and grill whilst maintaining the factory look of your vehicle.

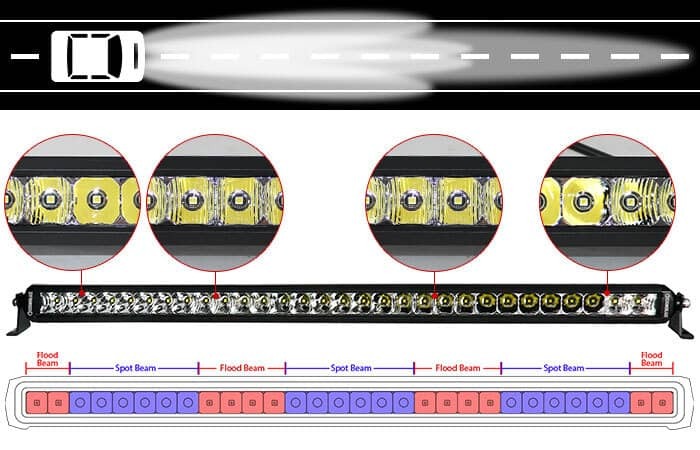

Flood Spot Interchanged Combo Beam

• With high quality engineered flood and spot reflectors it provides denser illumination, further distance and wider coverage. Strong penetrating beam with 600m at 1 LUX and 50m out to the shoulders of the road with flood beam. Advanced optics offer Spot and Flood Combo in the same light. That means the edges and center emit different light beams giving you better overall coverage.

IP68 Waterproof

• This lightbar is waterproof up to 3 meters and proven dust & particle tight. Protects against water ingress, dust & contaminants. shockproof and anti-corrosion in the extreme weather conditions.

6063 Extruded Aluminum Housing

• Provides structural integrity, ensuring that the light bar can perform well even under extreme conditions.

Easy to Install

• Comes with side brackets, DT Plug and DT wiring harness

Deutsch® DT Connectors

• Installing LED lighting has never been easier with Deutsch DT Connectors. Safe and secured connection to protect your led light bar. Lightbar comes pre-wired with Deutsch plugs, meaning that it is fully compatible with the included DT wiring harnesses.

Dupont Painted

• This New Cosmoblaze led light bars are powder coated with Dupont paint in a glossy marine black finish to resist UV radiation and even salt water.

Wide Operating Voltage

• This light can run on any voltage from 9 to 36 volts and provides an extremely rugged lighting solution for off-roading.
• This is also ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting, vehicle lighting and mining operations.

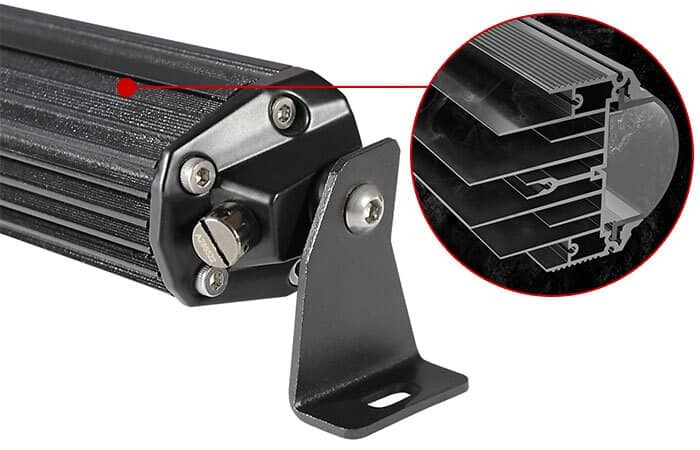

Heat Management

• This new Cosmoblaze LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power.

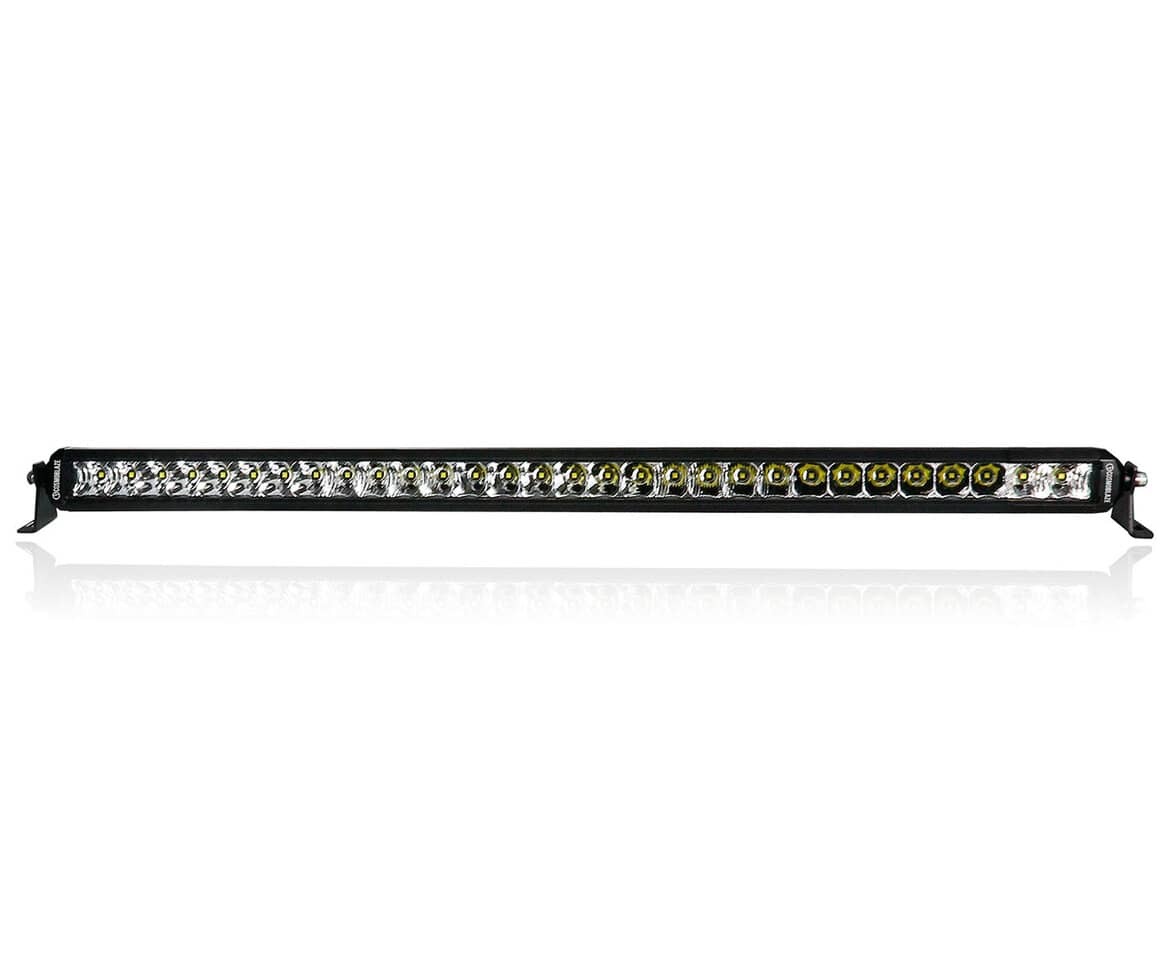

Product Views

Military Breather

• This new Cosmoblaze LED light bar has military grade waterproof breather to prevent moisture building up inside.

Product Dimensions

Theoretical Lumen Output

• High Intensity LED Chips
  • New Cosmoblaze Light bars comes with Orsam chips, one of the leading LED chip manufacturers in the world. With high intensity LEDs to provide best results. Spot beam pattern for long distance and side Flood pattern for wide viewing
• Slim Design
  • This new Cosmoblaze light bar is designed to bring a large amount of light to fit in a small amount of space. With its slim design with height of just 60.9mm total height with the side brackets attached, you will be able to mount in locations like your front bar and grill whilst maintaining the factory look of your vehicle.
• Flood Spot Combo Beam
  • With high quality engineered flood and spot reflectors it provides denser illumination, further distance and wider coverage. Strong penetrating beam with 600m at 1 LUX and 50m out to the shoulders of the road with flood beam. Advanced optics offer Spot and Flood Combo in the same light. That means the edges and center emit different light beams giving you better overall coverage.
• IP68 Waterproof
  • This lightbar is waterproof up to 3 meters and proven dust & particle tight. Protects against water ingress, dust & contaminants. shockproof and anti-corrosion in the extreme weather conditions.
• 6063 Extruded Aluminum Housing
  • Provides structural integrity, ensuring that the light bar can perform well even under extreme conditions.
• Easy to install
  • Comes with side brackets, DT Plug and DT wiring harness
• Deutsch® DT Connectors
  • Installing LED lighting has never been easier with Deutsch DT Connectors. Safe and secured connection to protect your led light bar. Lightbar comes pre-wired with Deutsch plugs, meaning that it is fully compatible with the included DT wiring harnesses.
• Dupont Painted
  • This New Cosmoblaze LED light bars are powder coated with Dupont paint in a glossy marine black finish to resist UV radiation and even salt water.
• Wide Operating Voltage
  • This light can run on any voltage from 9 to 36 volts and provides an extremely rugged lighting solution for off-roading.
  • This is also ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting, vehicle lighting and mining operations.
• Heat Management
  • This new Cosmoblaze LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power.
• Military Breather
  • This new Cosmoblaze LED light bar has military grade waterproof breather to prevent moisture building up inside.

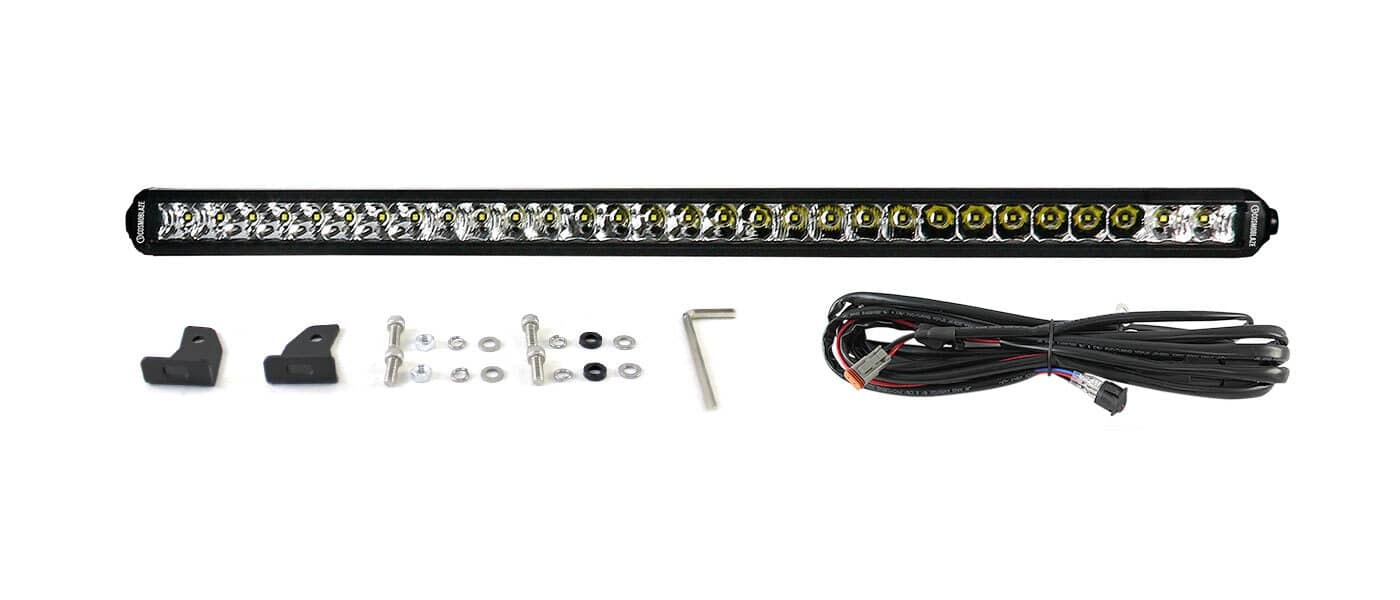

ITEM DESCRIPTION

1. 1x 30" Cosmoblaze LED Light Bar

2. 2x Mounting Brackets

3. 1x DT Wiring Harness
