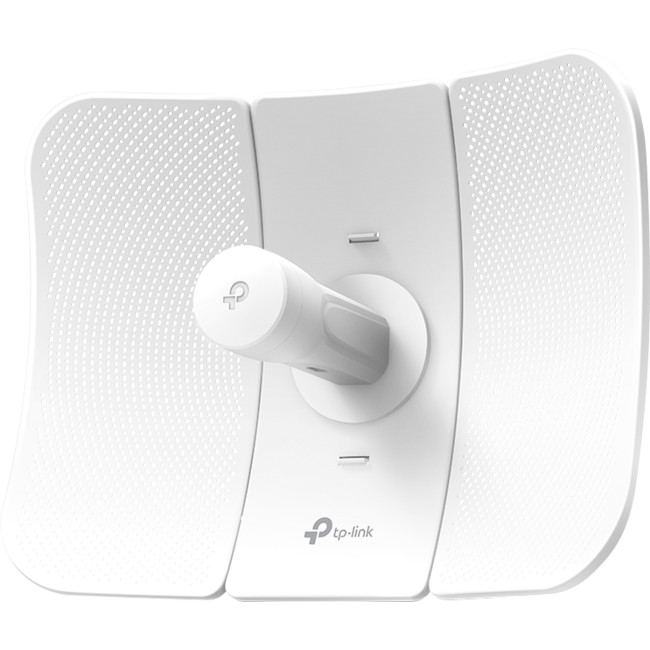

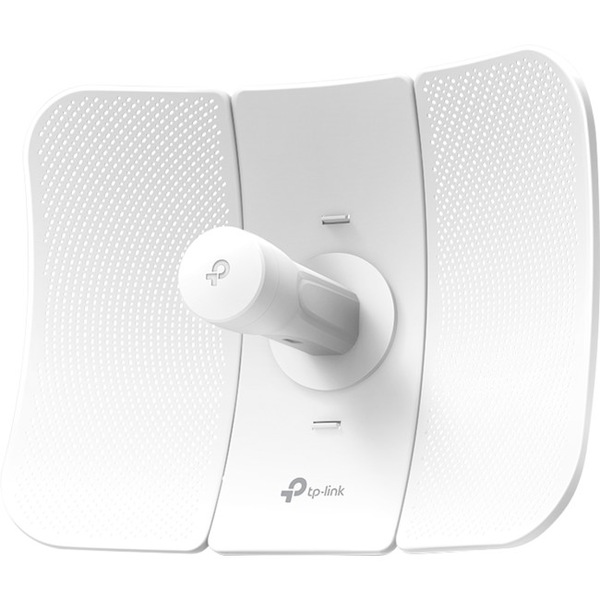

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE
Equipment suppliers of products like this one often recommend or require the use of shielded data cables (F/UTP,S/UTP, or similar) when their products are used outdoors. Electro-Static Discharge (ESD) can kill outdoor products quickly and without warning. Please read your manual carefully and choose appropriate cabling.
  • Up to 300Mbps on 5GHz wireless data rates
  • Excellent beam directivity, improved latency and noisecancellation
  • Pharos Control gives administrators a free, centralized management system
  • AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE supports to allow flexible deployment and convenient installation

2×2 MIMO MAXtream TDMA
  • 23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
  • With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

Stable Structural Design and Flexible Installation

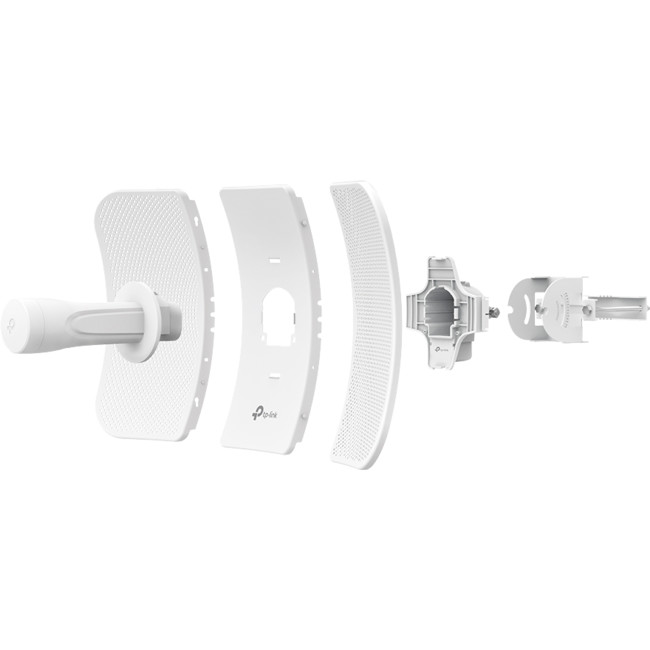

  • Snap-lock parts make assembly simple and convenient

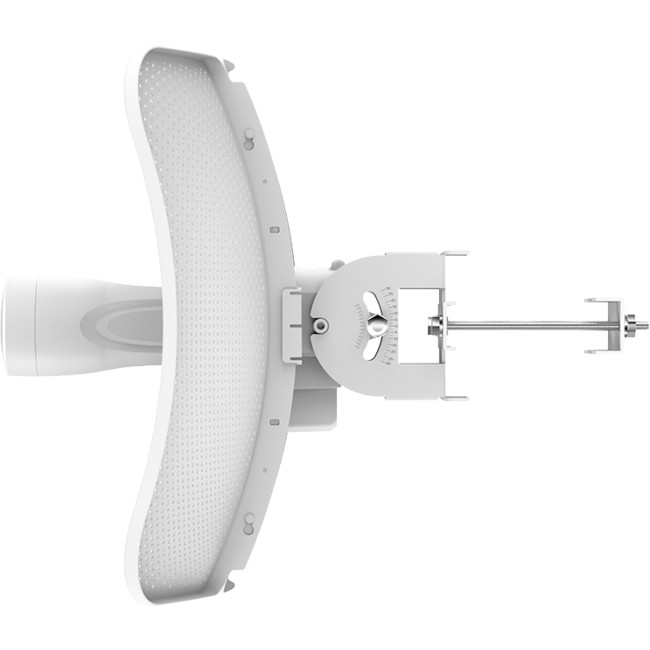

  • Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
  • Sturdy design ensures stability in windy conditions

Compact and Lightweight Packaging
  • Small and lightweight boxes
  • benefit , logistics and retail.

Pharos Control - Centralized Management System
  • CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devicesin their network from a single PC. Functions include device iscovery, status monitoring, firmware upgrading, and networkmaintenance. An intuitive web-based interface - PharOS - provides an alternative management method, and allows professionals to access more detailed configurations.
Specifications
Specifications

HARDWARE FEATURES Processor Qualcomm 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface
  • 1 × 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
  • 1 × Reset Button
Power Supply
  • Passive Power over Ethernet via LAN (+4, 5 pins; −7, 8 pins)
  • Voltage range: 16-27V DC
Dimensions (No Mount) 360mm × 280mm × 207mm (14.4″ × 11.0″ × 8.1″)
Antenna Gain 23dBi
Antenna Beamwidth 9° (Azimuth), 7° (Elevation)
Protection
  • 15KV ESD Protection
  • 6KV Lightning Protection
Enclosure
  • Material: Outdoor PC stabilized plastic
  • Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
  • Up to 300Mbps (40MHz, Dynamic)
  • Up to 144.4Mbps (20MHz, Dynamic)
  • Up to 72.2Mbps (10MHz, Dynamic)
  • Up to 36.1Mbps (5MHz, Dynamic)
Frequency 5.15~5.85GHz
Transmit Power Max. 29dBm/790mW (Adjustable power by 1dBm)
SOFTWARE FEATURES Operating Modes AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client)
Network Configuration
  • WAN: Static/Dynamic/PPPoE/L2TP/PPTP
  • LAN: Static/Dynamic/DHCP
  • Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger
  • Security: SPI Firewall/ Ping Forbidden/VPN/DoS Protection
  • Access Control
  • Static Routing
  • Bandwidth Control
  • IP & MAC Binding
Wireless Configurations
  • Pharos MAXtream TDMA Technology
  • Selectable Channel Width: 5/10/20/40MHz
  • Auto Channel Selection
  • Transmit Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging(AP Mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
System Tools
  • Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyser
  • Speed Test
  • Ping
  • Traceroute
System-level Optimisations
  • Optimised IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog
ENVIRONMENT Operating Temperature −40°C ~ 70°C (−40°F ~ 158°F)
Storage Temperature −40°C ~ 70°C (−40°F ~ 158°F)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~95% non-condensing
OTHERS Certification CE, FCC, RoHS, IP65
Package Contents
  • Outdoor Wireless CPE
  • 24V 0.5A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide
System Requirements
  • Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Webbrowsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
