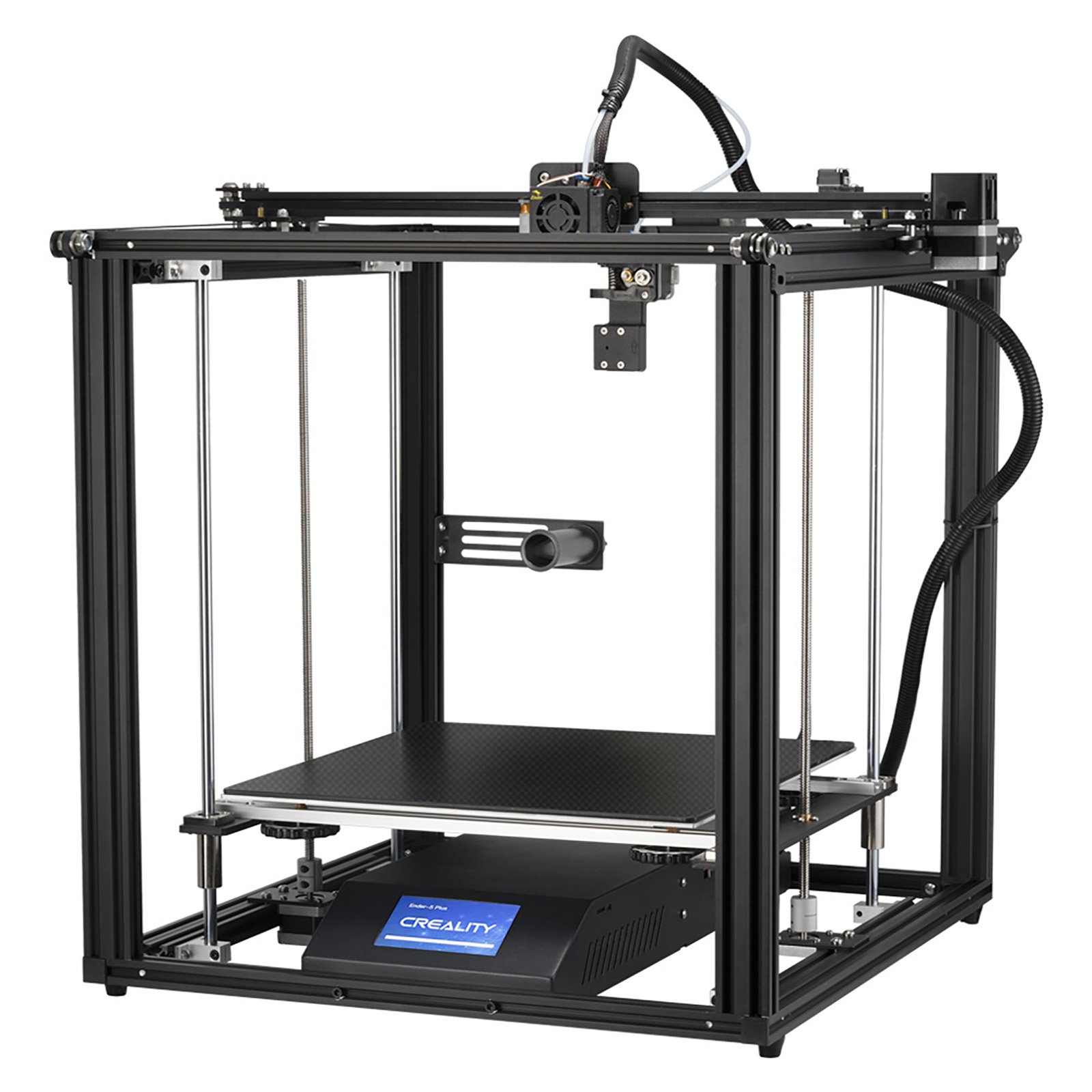

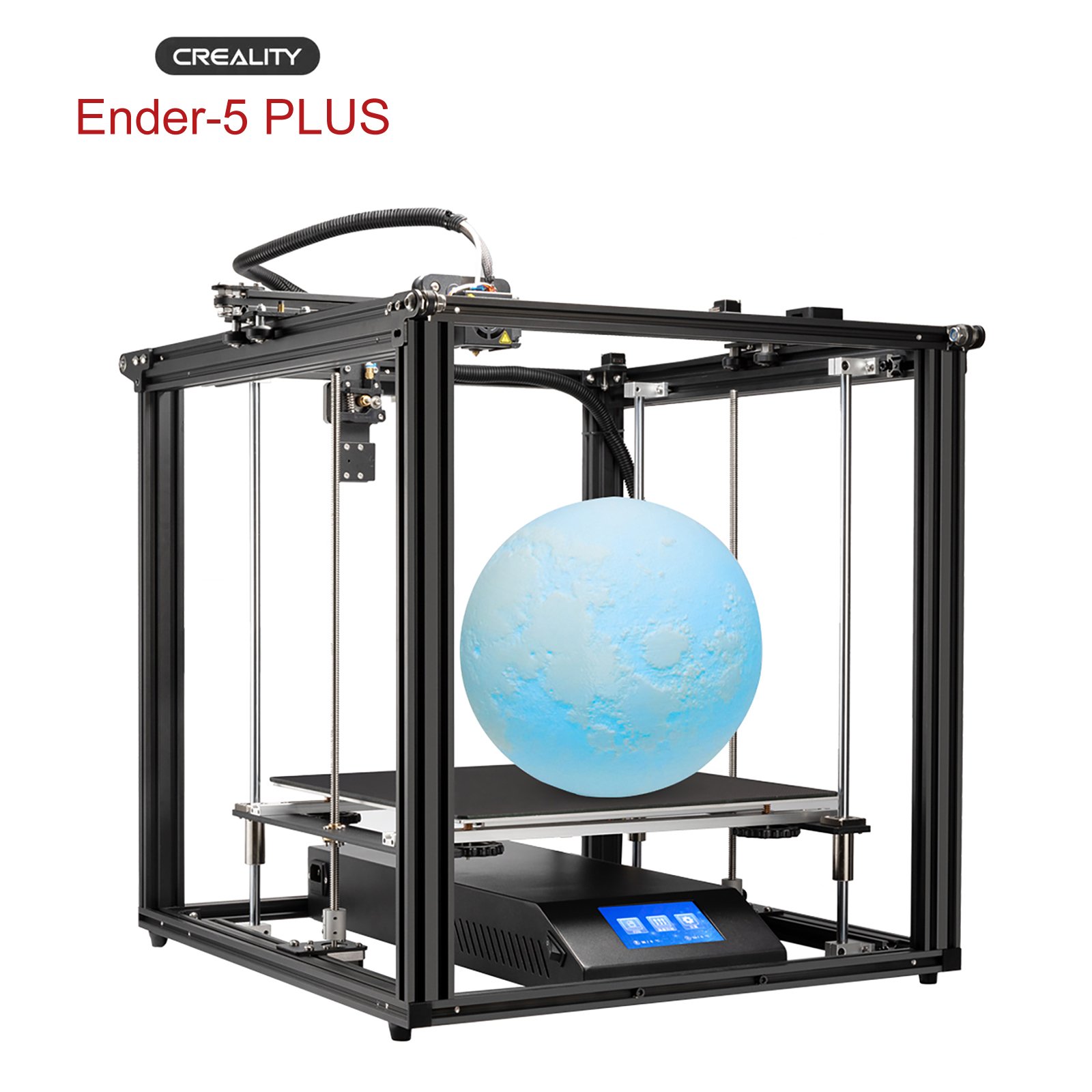

Creality 3D Ender-5 PLUS DIY 3D Printer Kit Machine Large Print High Accuracy
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Features:
Cube Frame 3D Printer:

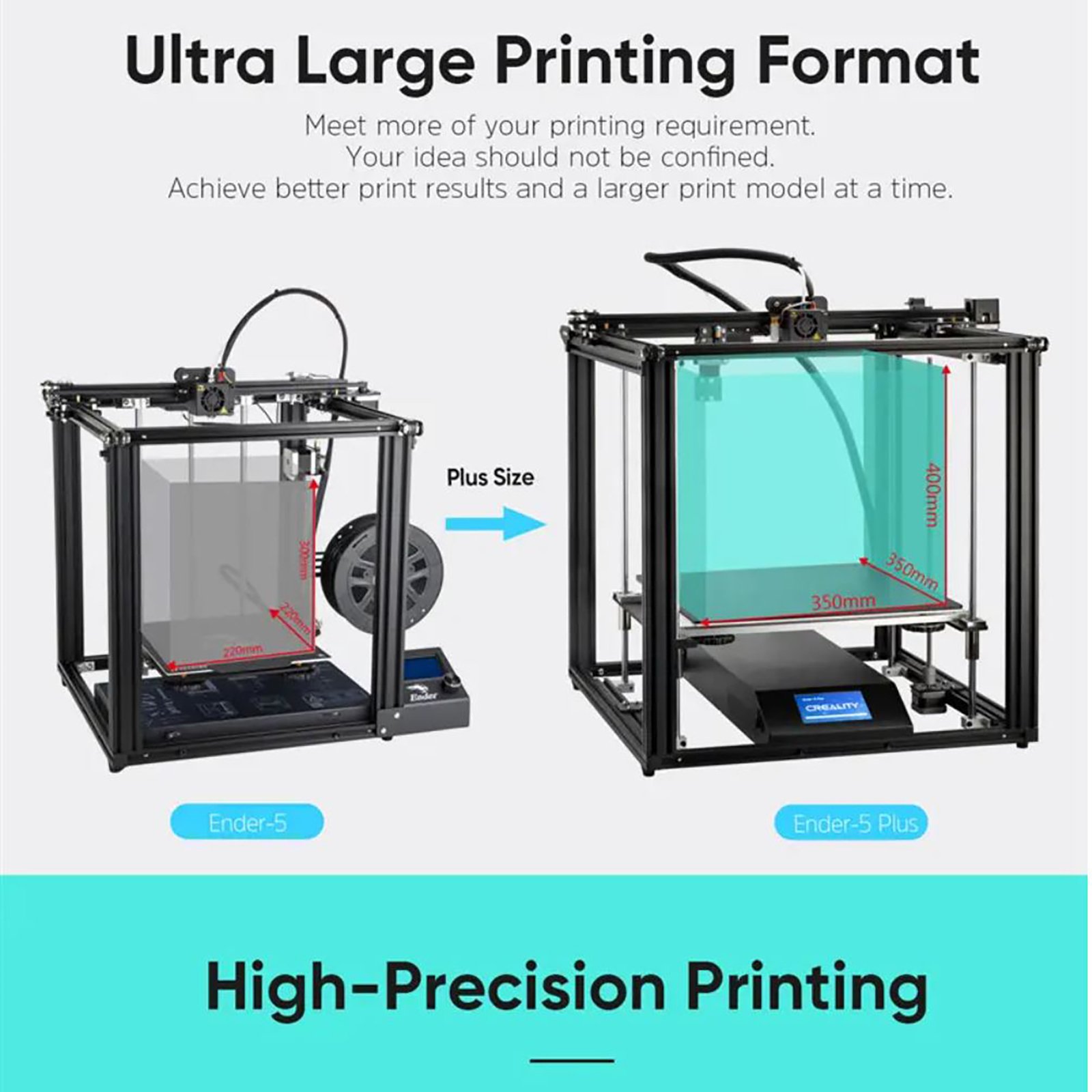

The oversized Printing Format: 350X350X400mm print size.

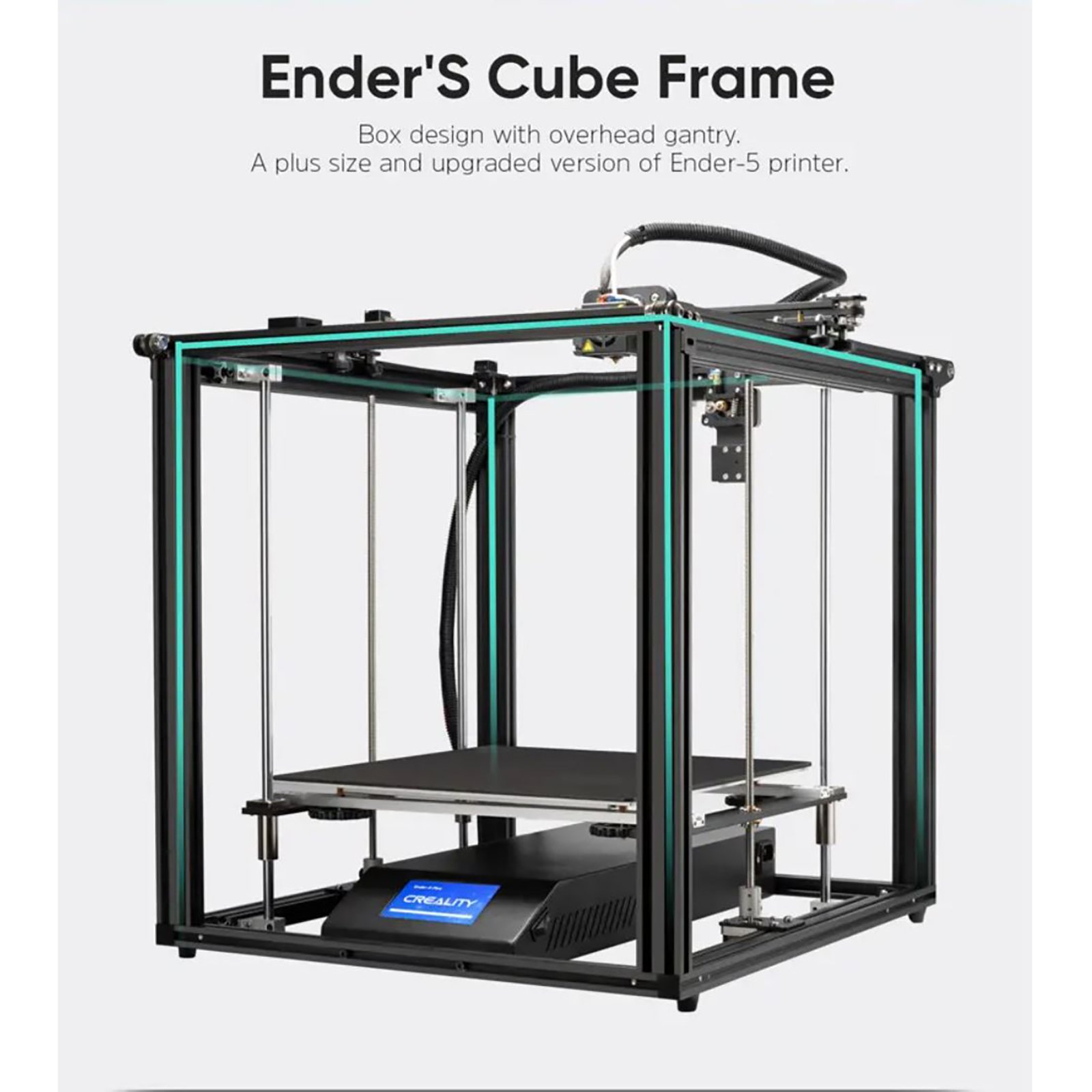

Cube Frame 3D Printer: Very solid cube frame. Box Design with Overhead Gantry.

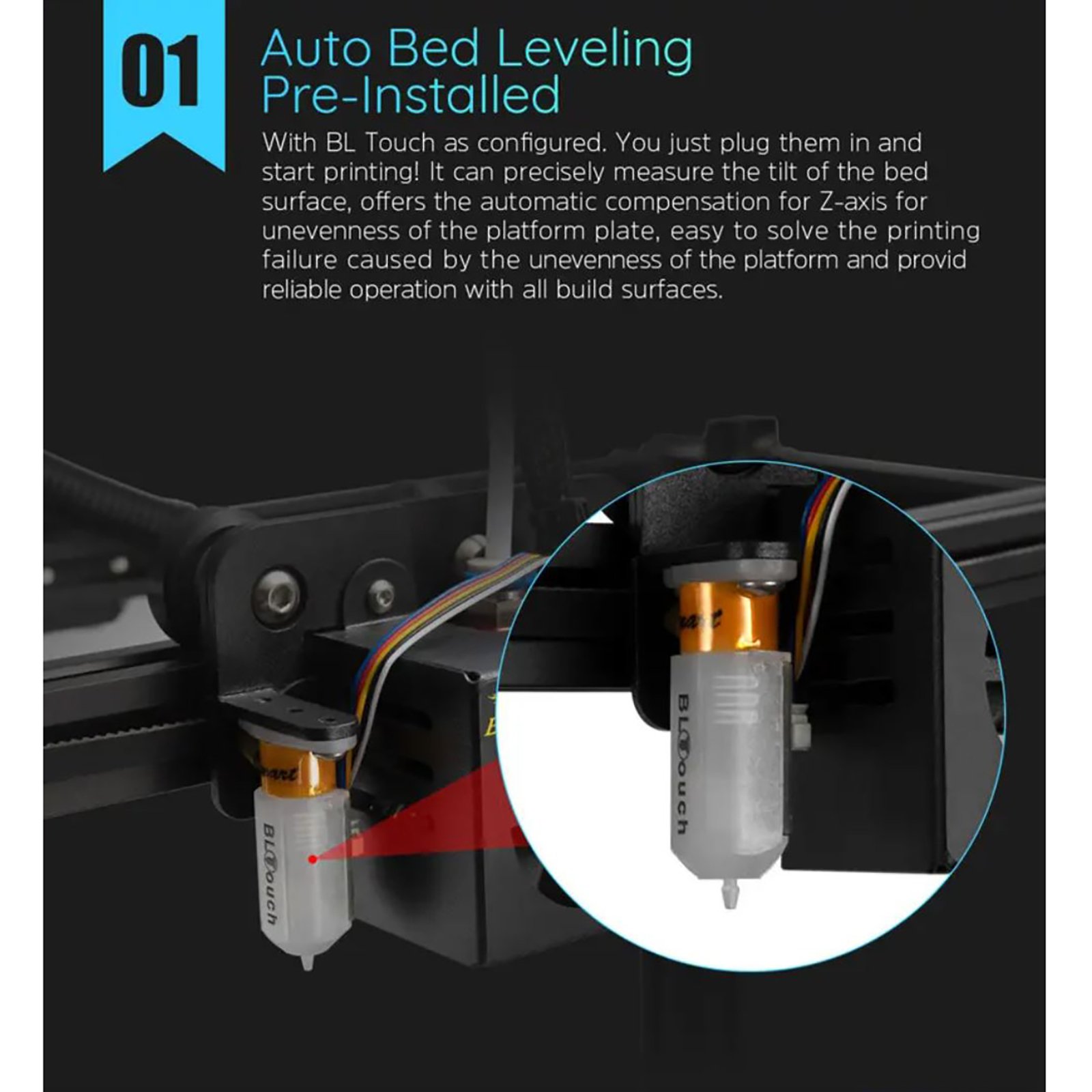

Standard Function : Auto Bed Leveling Pre-Installed: With BL Touch as configured. You just plug them in and start printing! it can precisely measure the tilt of the Bed surface. It offers automatic compensation for Z-axis for unevenness of the platform plate.

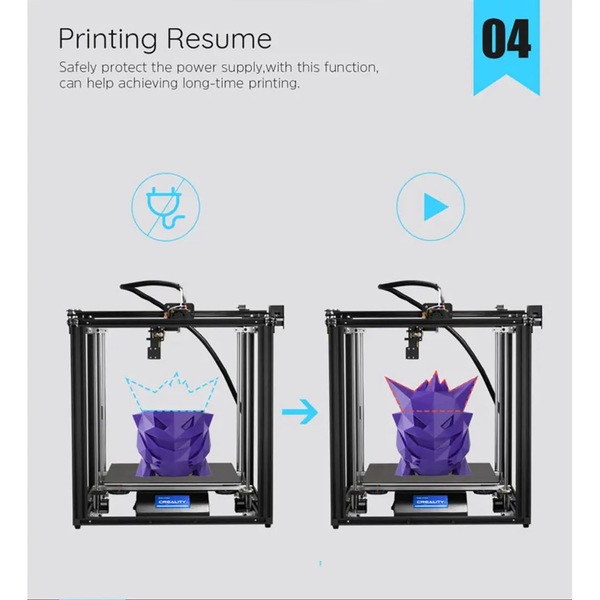

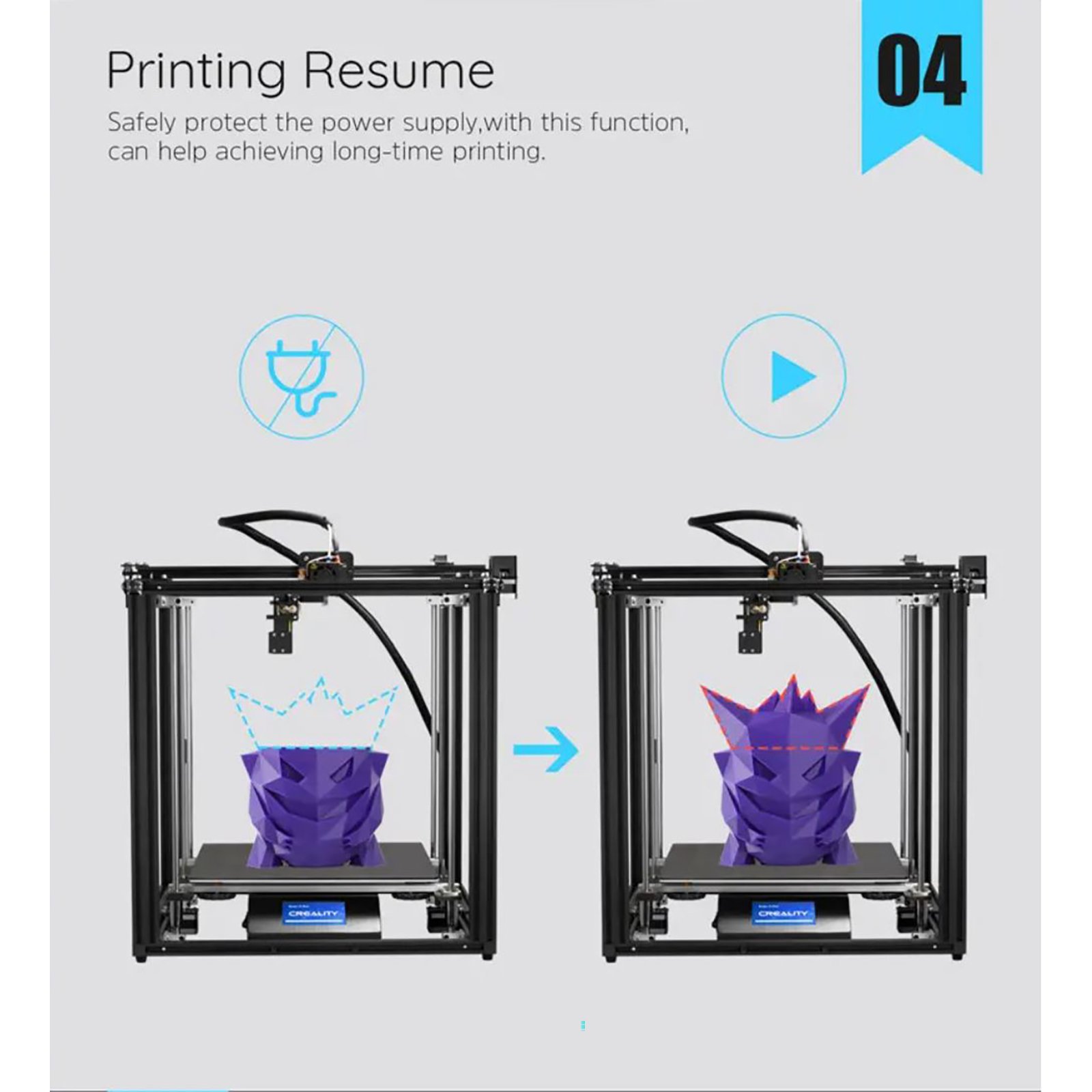

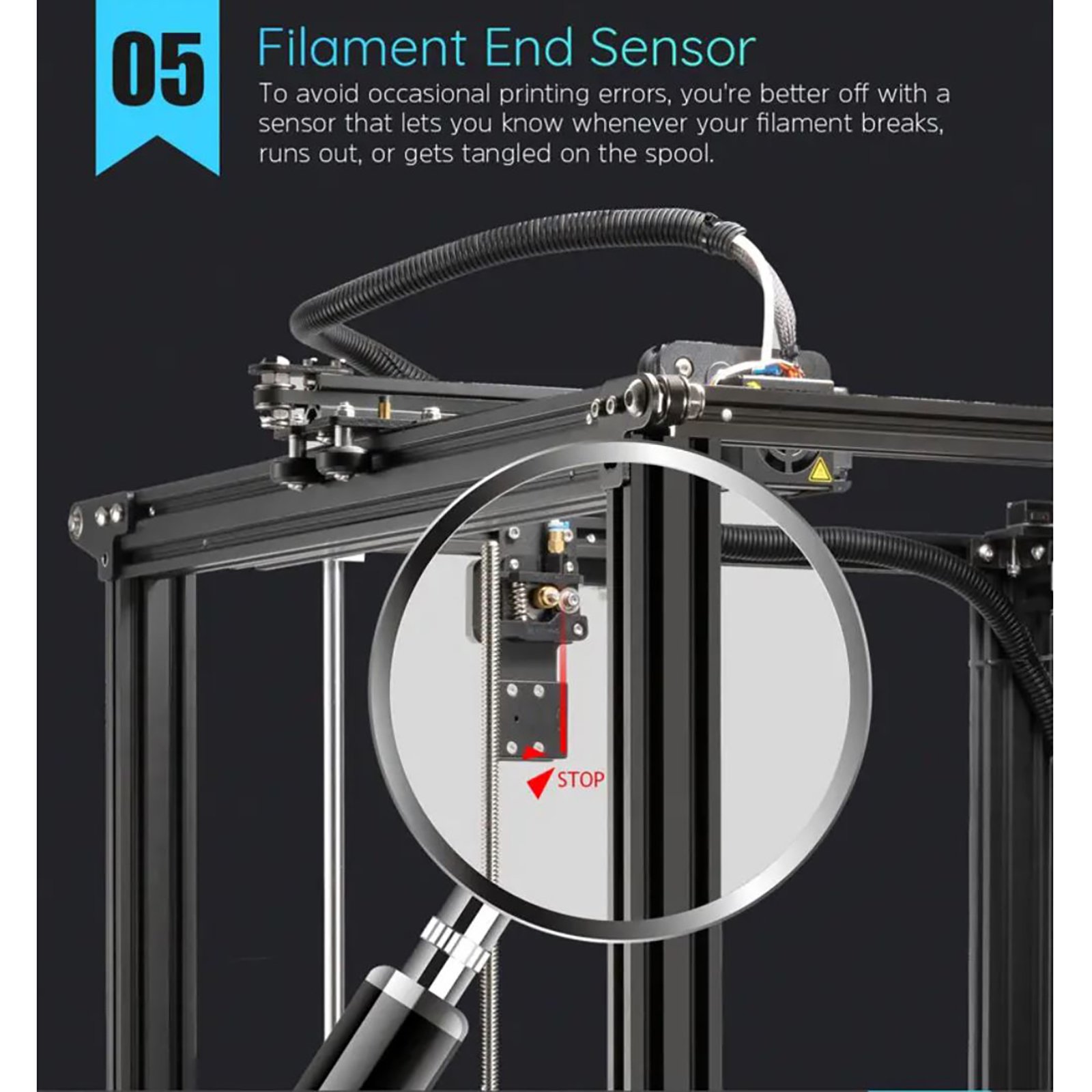

Standard power-off resume print and filament run-out detection function to avoid printing failure caused by power failure or material cut.

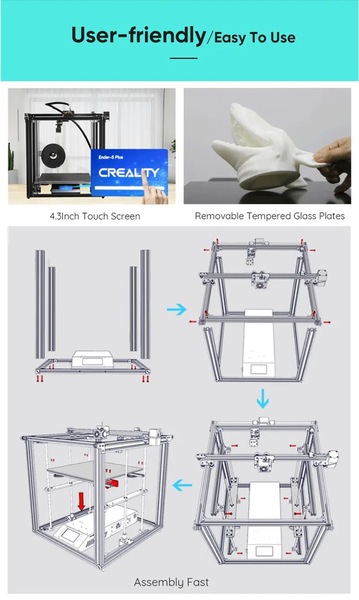

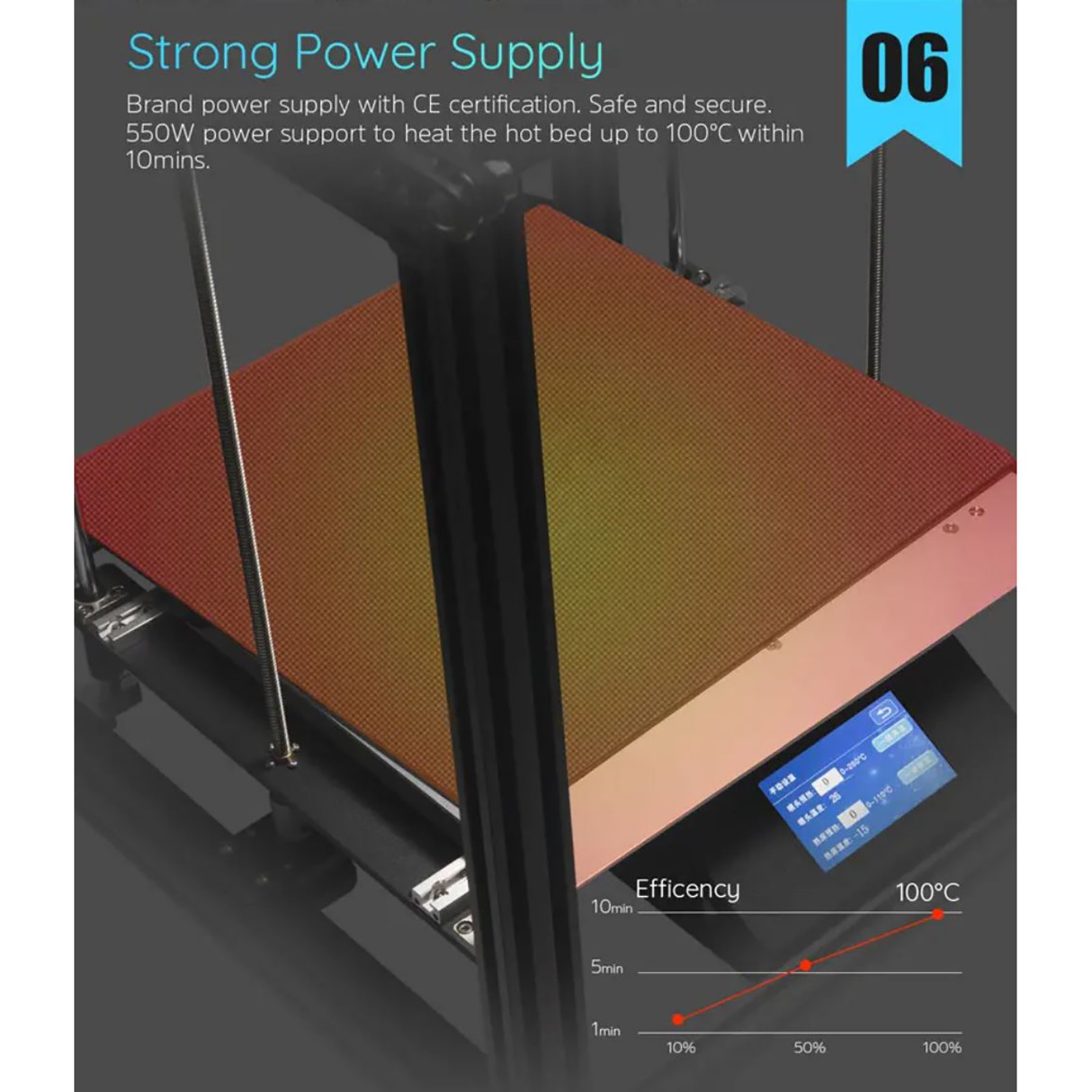

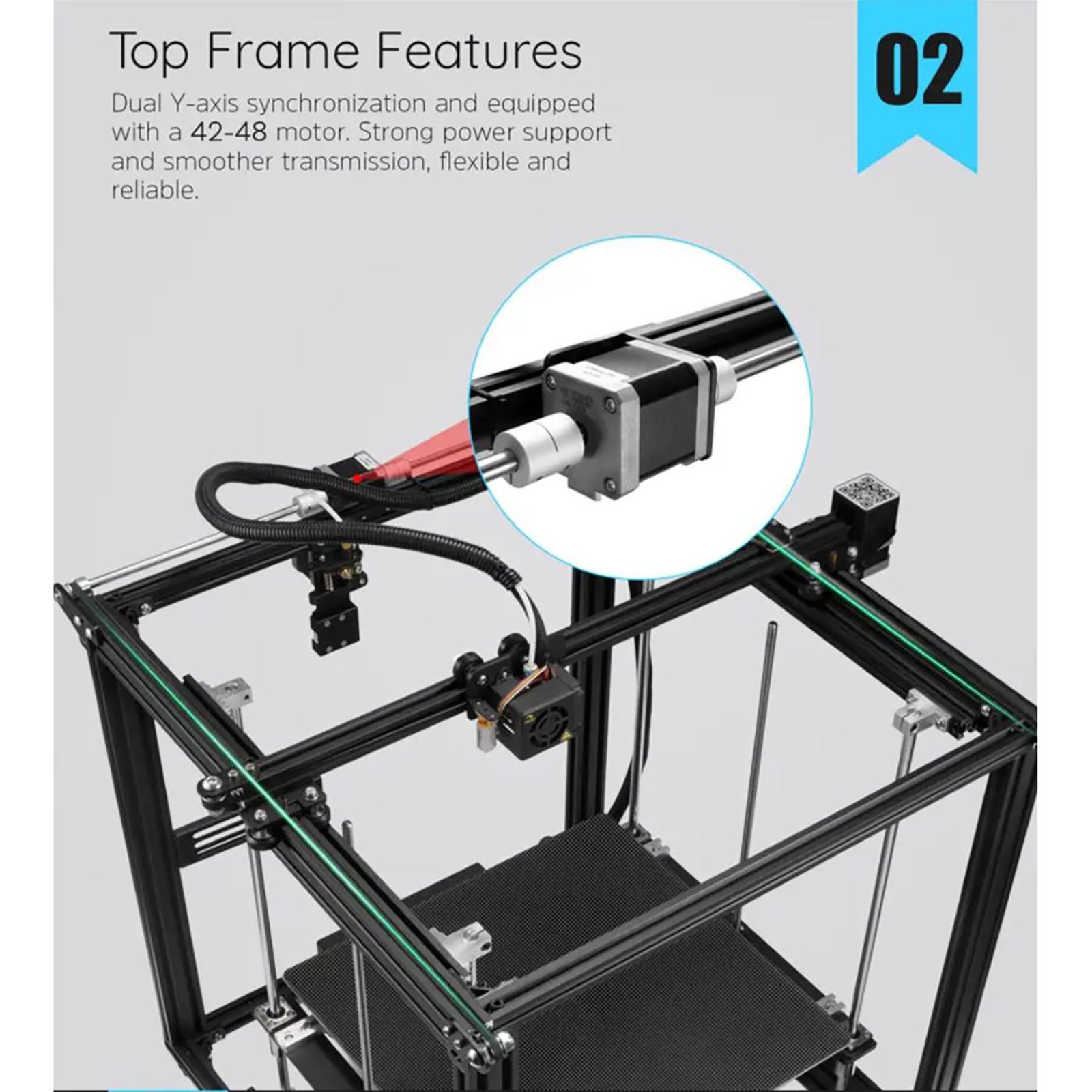

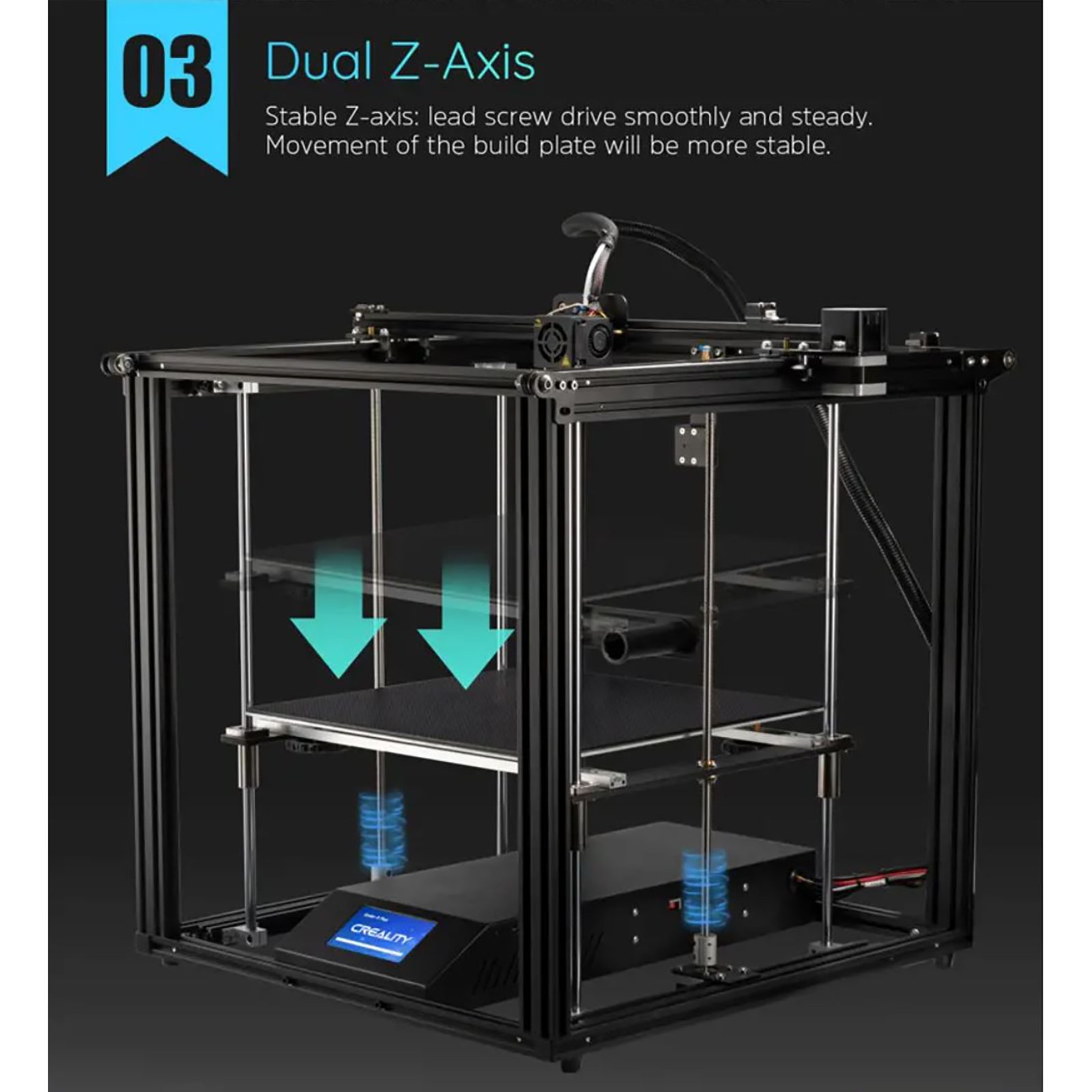

Upgraded Accessories meet your need: 4.3inch Display: Touch screen human-computer interaction, friendly and intuitive. Dual Z-Axis: Precision Z-axis Lead screw drive smoothly. Movement of the build plate will be more stable. Y-axis configuration 42-48 dual-axis motor, strong power, smooth transmission. The hot bed is heated to 100oC in 10min. Extended Ender-5 simple frame installation

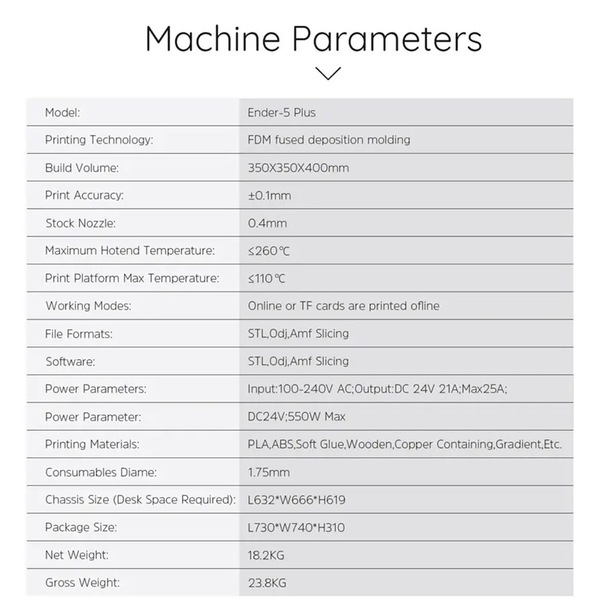

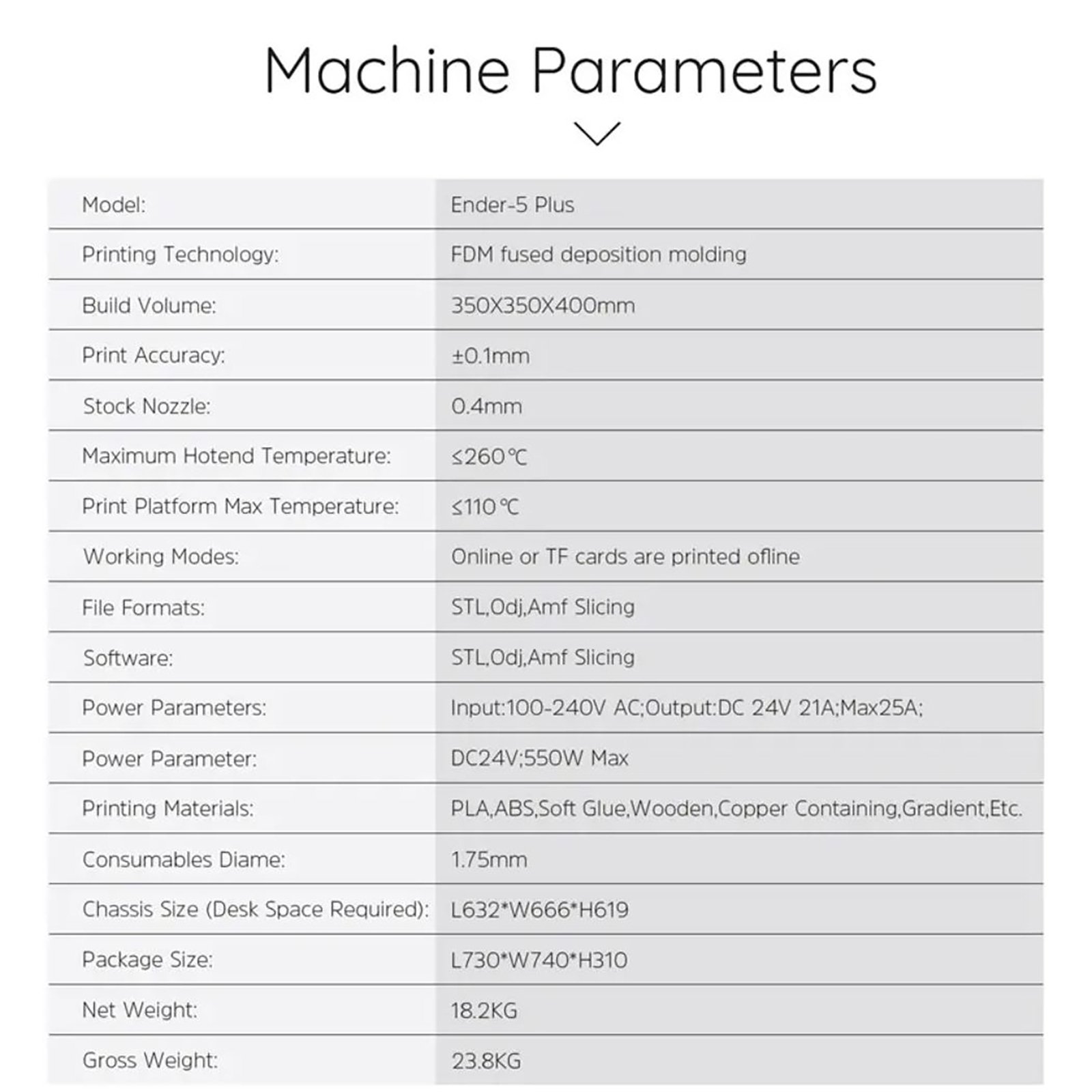

| Specifications | |
| Brand | Creality |
| Model | Ender-5 Plus |
| Printing Method | FDM |
| Printing accuracy | 0.1mm |
| Layer thickness | 0.1-0.4mm |
| Nozzle diameter | 0.4mm |
| XY axis positioning accuracy | 0.012mm |
| Z-axis positioning accuracy | 0.001mm |
| Number of nozzles | 1 |
| Nozzle temperature | ≤260 |
| Hot bed temperature | ≤110 |
| Operating mode | online or TF cards are printed ofline |
| file format | STL,OBJ,amf |
| Slicing software | Creality Slicer/Cura/Repetier-Host/Simplify3D |
| Power parameter | Input:100-240V AC;Output:DC 24V 21A;Max25A |
| Power Supply | Plug EU Standard |
| Machine power | 550W Max |
| Print material | PLA/ABS/Soft Glue/Wooden/ Copper Containing/Gradient filament, etc. |
| Consumable diameter | 1.75mm |
| Rated voltage | 115V/230V 50/60Hz |
| Power output voltage | 24V |
| Hot bed power | 460W |
| Control panel type | 2560 |
| Motor parameters | 42-40 stepper motor, 42-34 stepper motor, step angle 1.8o |
| motor driven | A4988 16 subdivision |
| Display | 4.3inch touch screen |
| Computer operating system | Windows XP/Vista/7/10 MAC Linux |
| Machine size | Length 632 width 666 height 619 |
| Package dimensions | Outer size L730*W740*H310 |
| Machine gross weight | 23.8KG |
| Machine net weight | 18.2KG |
| Power Supply | Plug EU Standard(Default) |

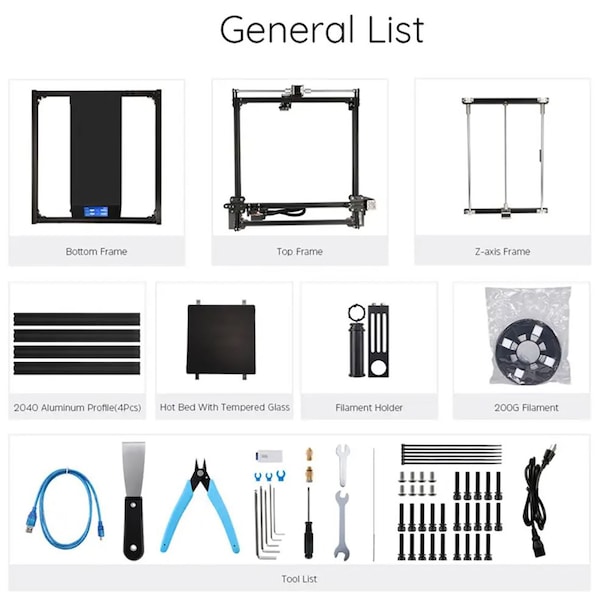

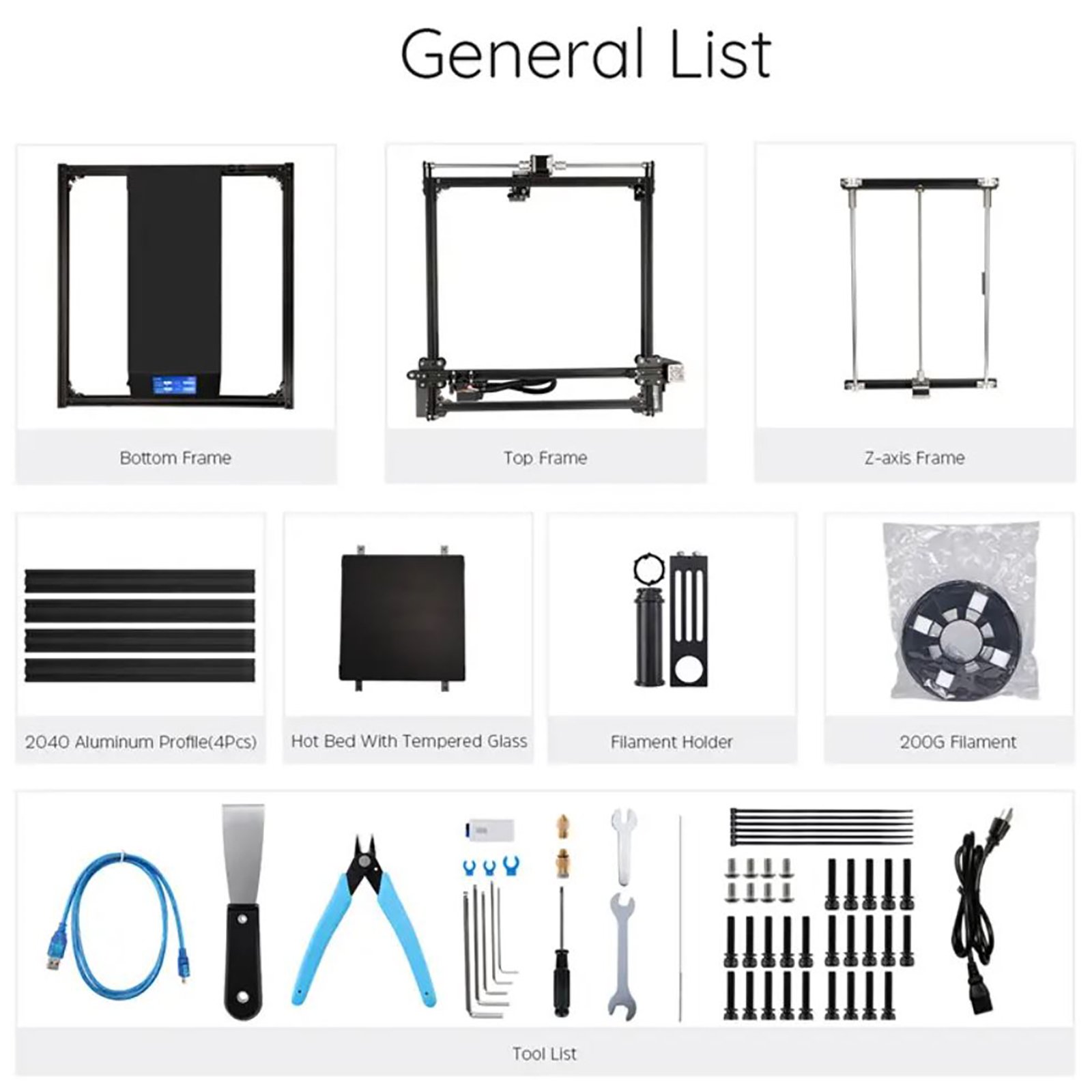

Package Includes:
1 x Ender-5 Plus 3D Printer Kit and all accessories.
