Creality 3D Scanner CR-Scan Raptor Blue 7-Line Laser & NIR 3D Imaging Camera Resolution: 1920 x 1200, High-Speed Scanning, 24-Bit Full-Colour Scanning, Anti-Shaking

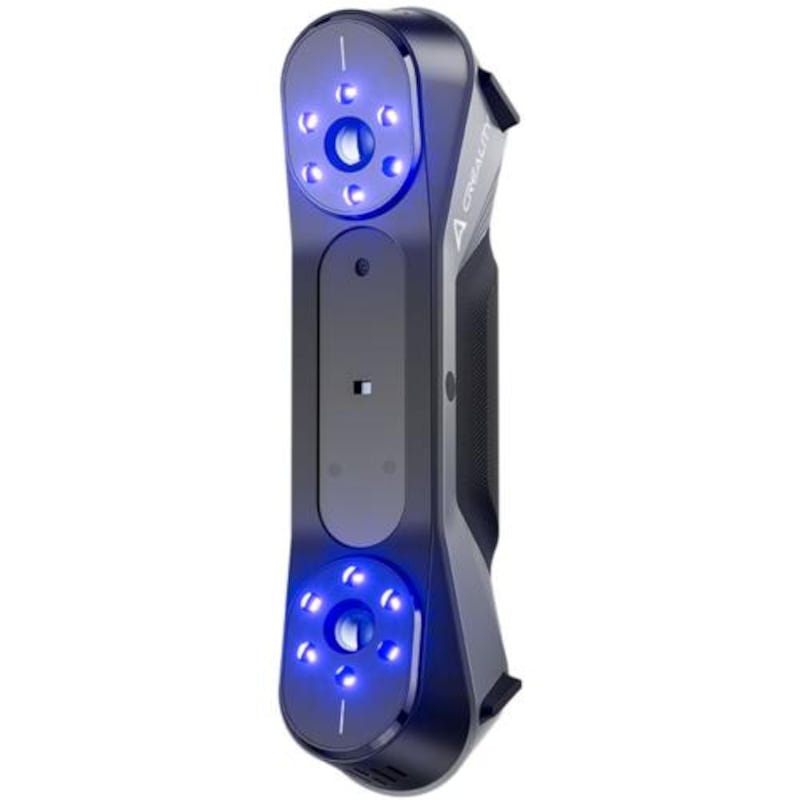

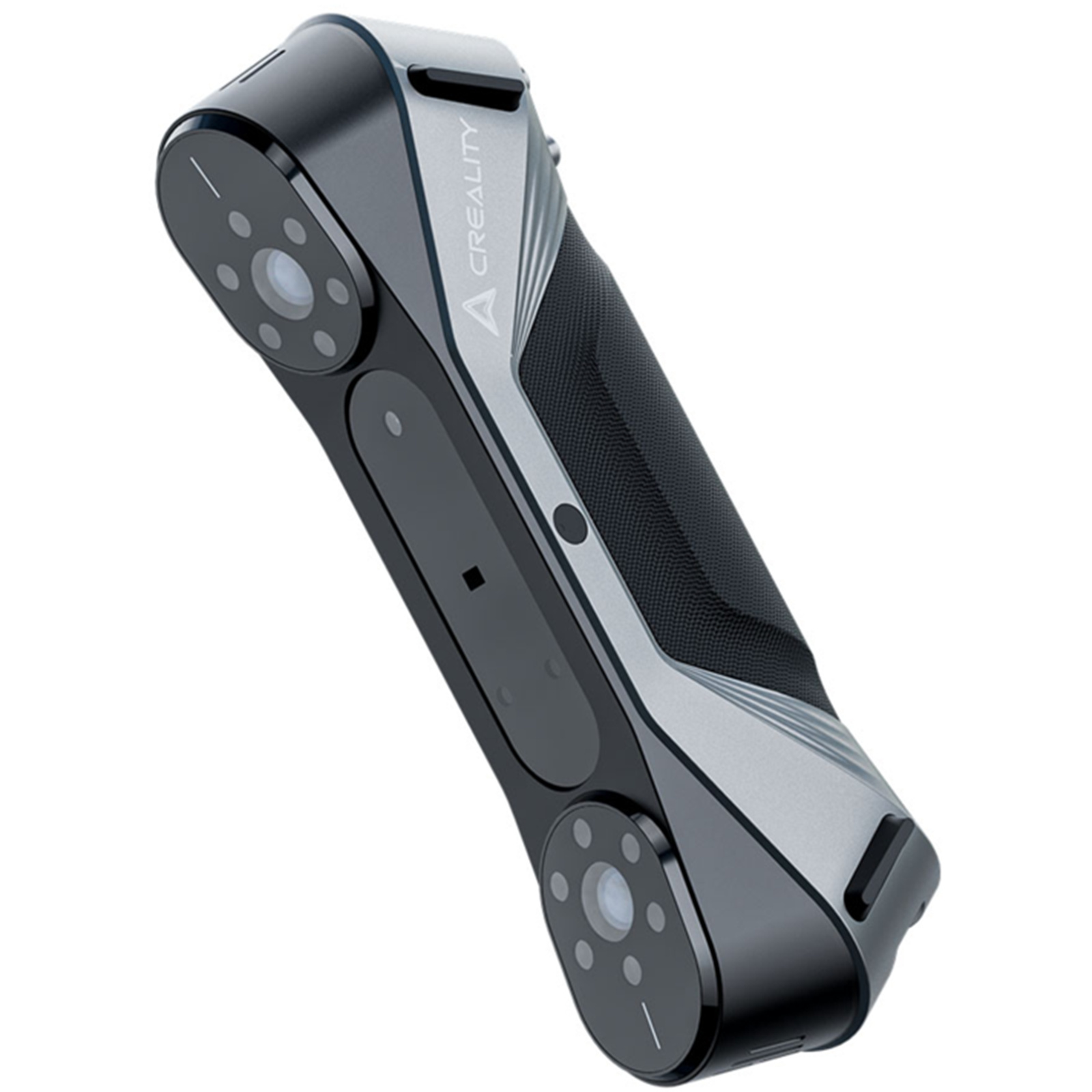

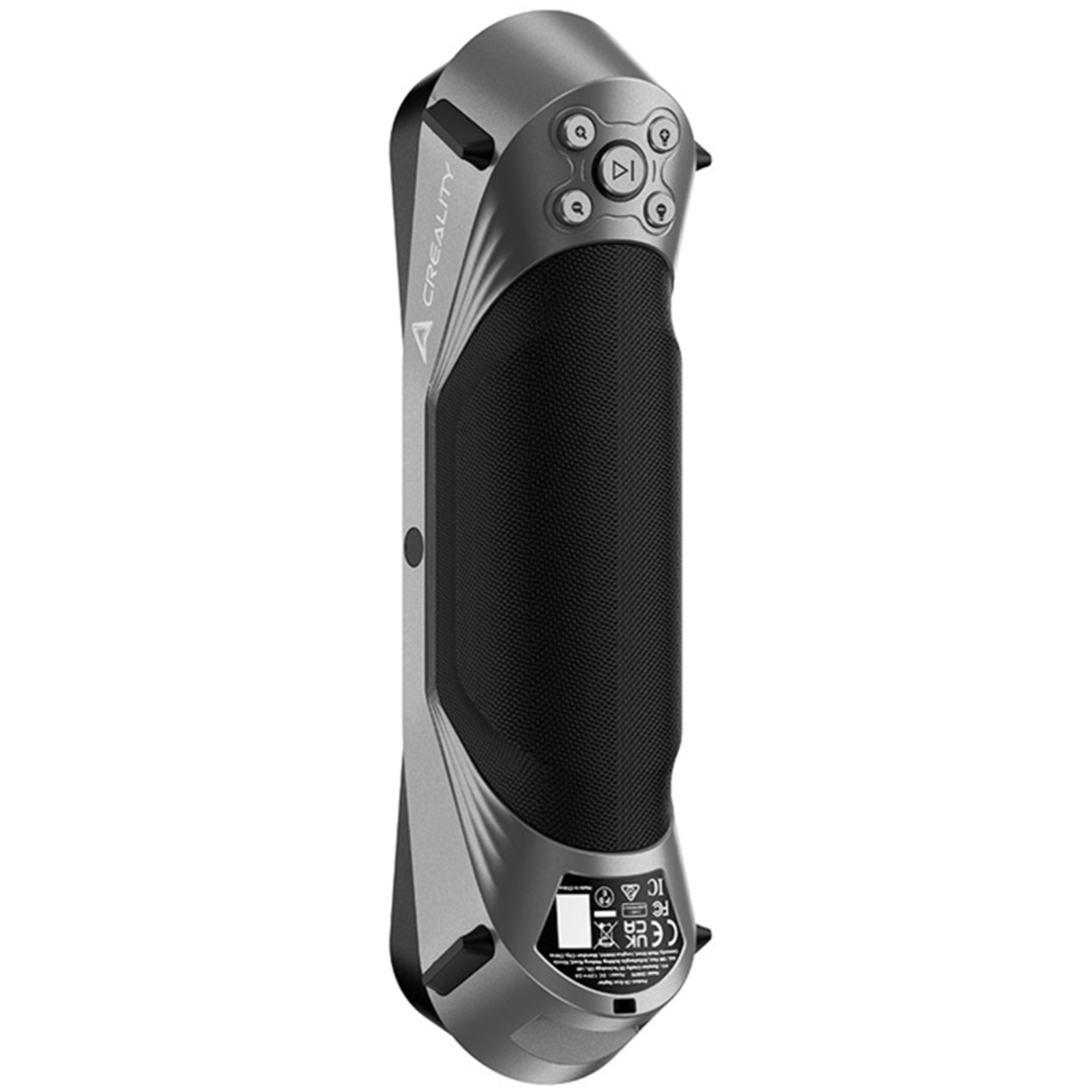

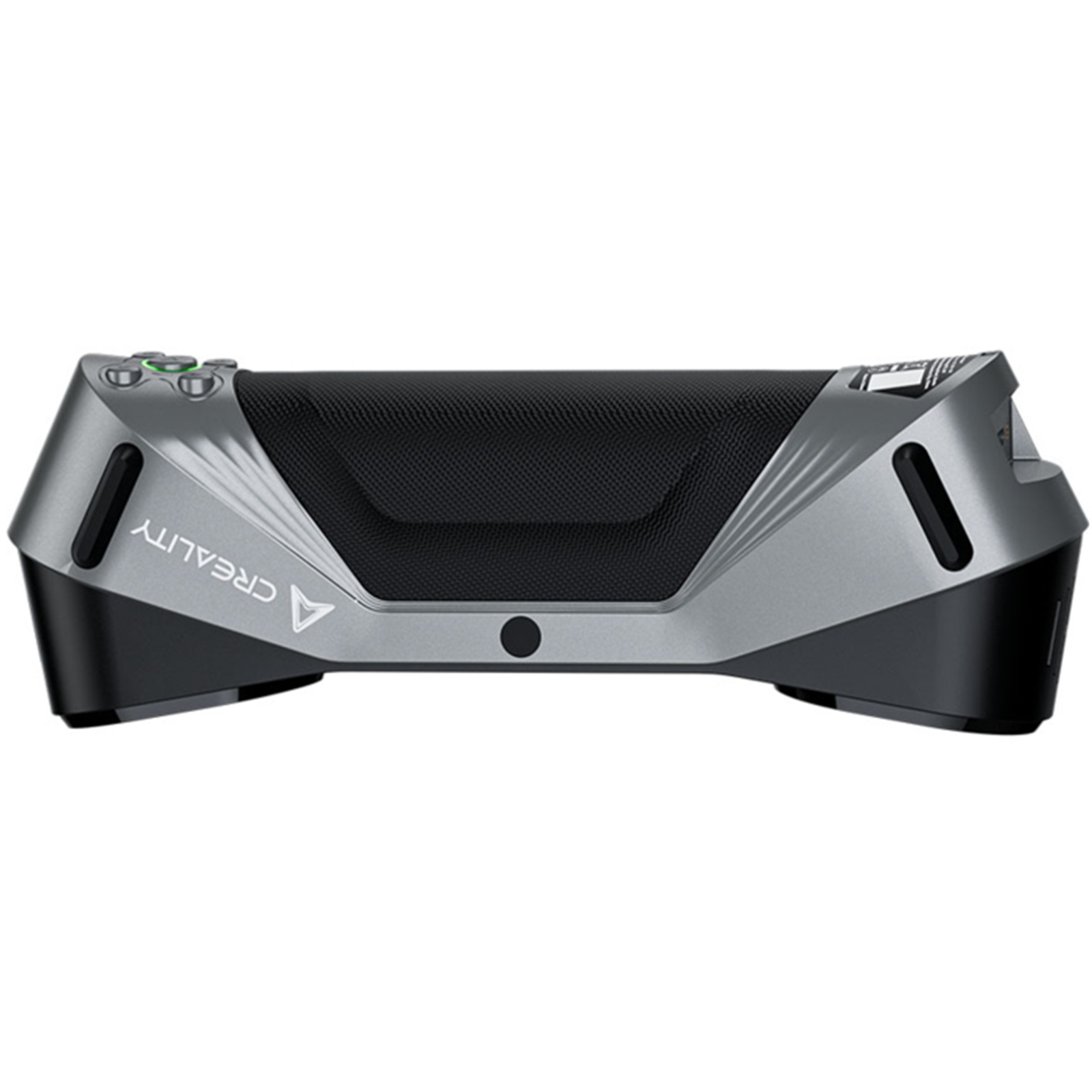

CR-Scan Raptor is a 3D scanner with metrology-grade accuracy, with a maximum accuracy of 0.02mm. Using a blue parallel 7-line laser and infrared structured light for scanning. It produces richer details, sharper edges, and restores the 3D shape of the object accurately.

Scanning Mode:
Blue Light(Blue 7-line laser)
Accuracy:
Up to 0.02mm @ 100mm [1]
3D Resolution:
0.02-2mm
Scanning Speed:
Up to 60fps
Min. scanvolume:
5mm x 5mm x 5mm
Single Capture Range:
270mmx170mm @300mm
Working distance:
150mm-400mm
Color Mapping:
Yes
Alignment mode:
Marker
3D imaging camera resolution:
1920x1200
Color Supplemental Light:
12 white LEDs
Marker Recognition Enhancement:
12 blue LEDs
Laser Safety:
Class I (eye safe)
Button:
Mechanical
IMU:
Yes
Output format:
OBJ/STL/PLY
Input Power:
12V 2A
Data interface:
TypeC/USB3.0
Device Dimensions:
215mmx50mmx74mm
Device Weight:
372g
Calibration board:
High-precision glass calibration board
System Support:
Windows 10/11 (64 bit): i7-Gen7, Nvidia graphics card (6GB video memory), 160B memory or higher
macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB or higher
Wireless Scanning:
Supported in conjunction with future wireless scanning accessories
Operating temperature:
-10C to 40C
Operating humidity:
0-90%RH
Note
[1] Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
- MPN: 4008050049

GTIN: 6971636400189
