Creality 3D Scanner CR-Scan Raptor X Portable Wireless Scanner 34+7 Blue Laser Lines Fast Wi-Fi 6 Data Transmission, Objects between 5-4000mm [4008050054]

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 1 items left!
$5757.74

Collect 5757 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

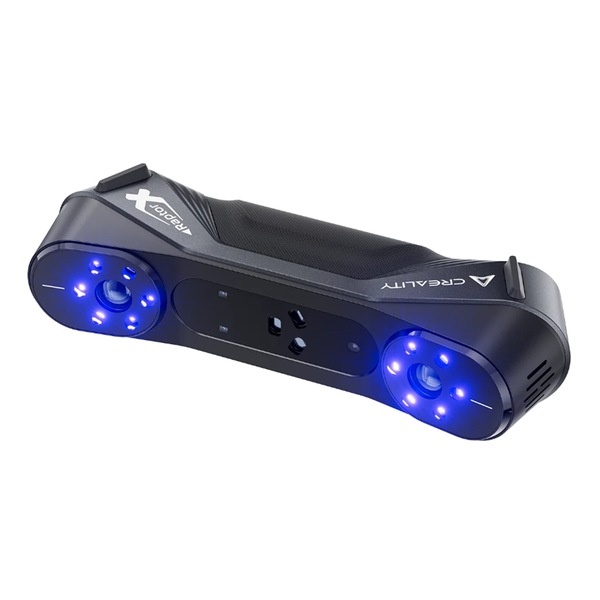

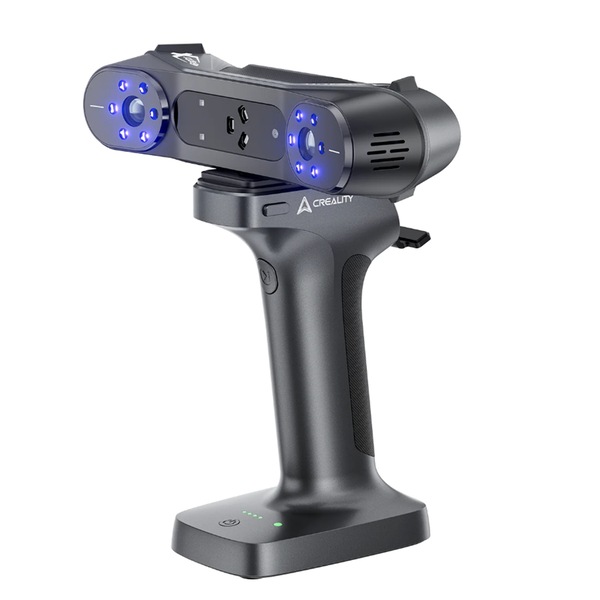

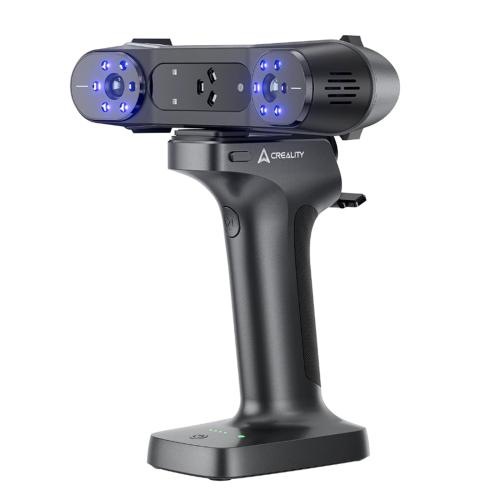

Creality 3D Scanner CR-Scan Raptor X Portable Wireless Scanner 34+7 Blue Laser Lines Fast Wi-Fi 6 Data Transmission, Objects between 5-4000mm

Creality RaptorX

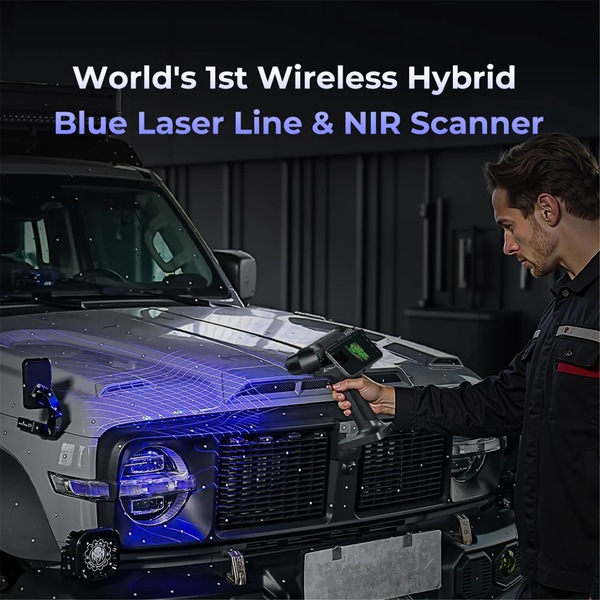

World's 1st Wireless Hybrid Blue Laser & NIR Scanner
- 34+7 Blue Laser Lines
- Portable Wireless Scanner
- Metrology-grade Accuracy up to 0.02mm
- Objects between 5-4000mm
- Fast Wi-Fi 6 Data Transmission

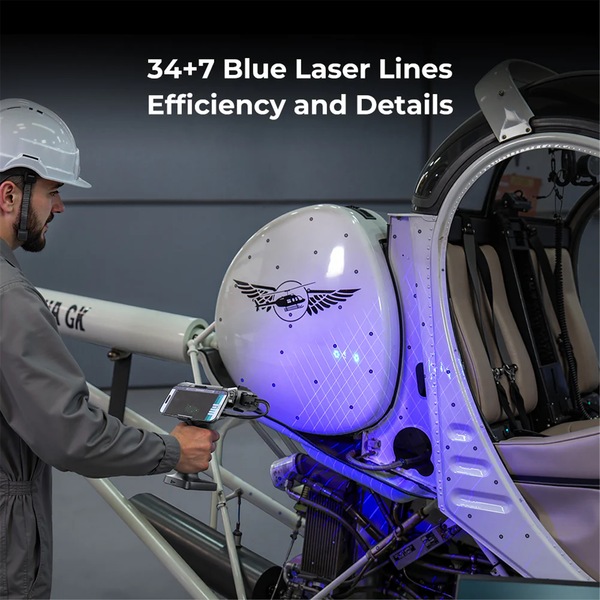

34+7 Blue Laser Lines Efficiency and Details
34 cross laser lines for scanning medium to large objects quickly , with the advanced laser line encoding and decoding algorithm to handle denser multi-beam lasers. 7 parallel laser lines for partial HD scanning , improves both the efficiency and details of 3D Scanning.

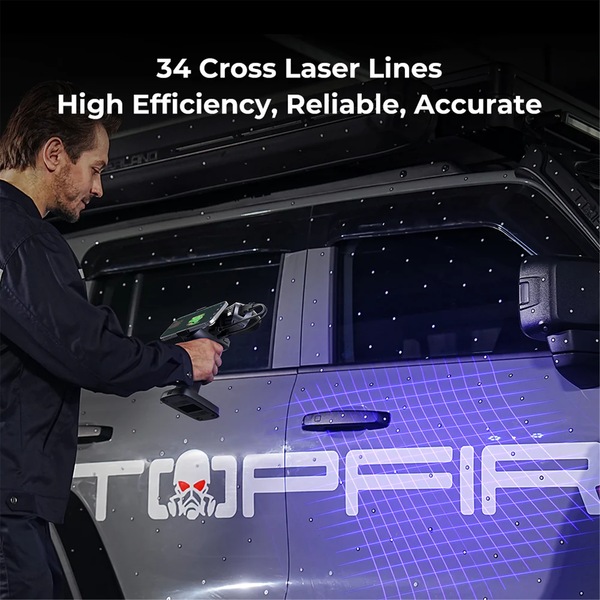

34 Cross Laser Lines - High Efficiency, Reliable, Accurate
Easily and Quickly Scan Medium to Large Objects with reliable accuracy.Scanning a whole car in One Go.
The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.


High-quality 1,020,000 points/s Fast Scan Speed
The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.


7 Laser Lines for Partial HD Scanning
Each laser line is as fine as 0.1mm, capturing sharper edges and richer details . Equipped with a 2.3-megapixel 3D imaging camera, it scans and restores fine details with high accuracy.


Volumetric Accuracy
0.02mm+0.06mm/m


High-speed Scanning Beyond Your Imagination
- Laser Line Scanning: Achieve scan frame rates of up to 60fps
- Infrared Structured Light Scanning: Scan at frame rates of up to 30fps

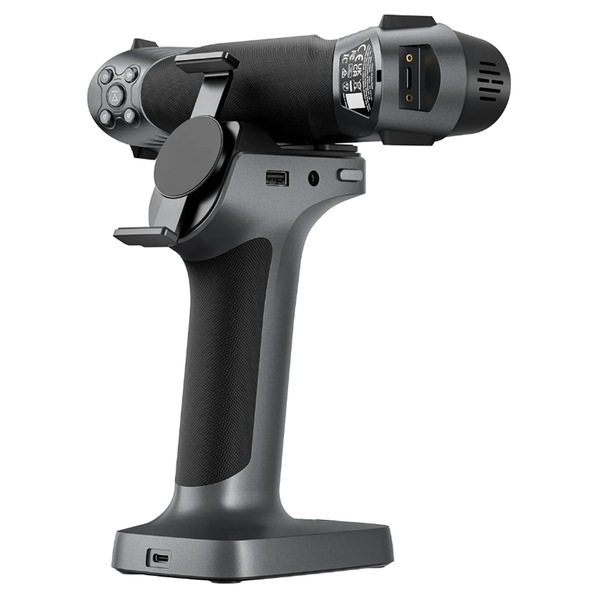

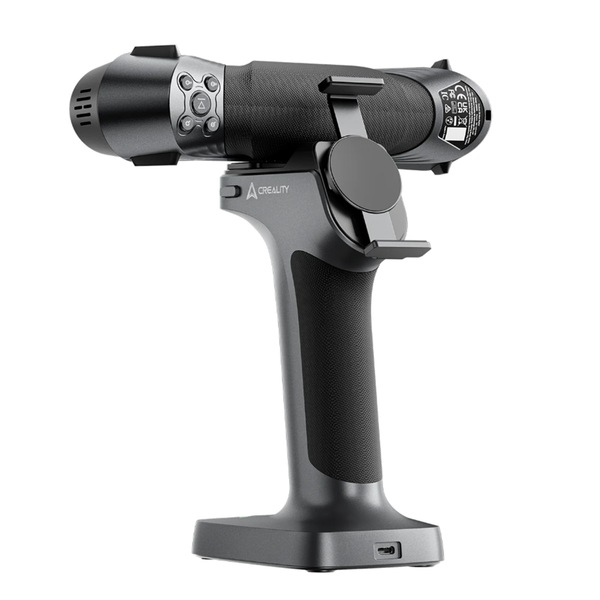

Portable Wireless Scanner
RaptorX features a wireless handle seamless data transmission, redefining portability in blue laser 3D scanning.

*Note: With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.

Wi-Fi 6 AX6000 Fast Data Transmission
Equipped With advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to the your computer.
- Low latency: 10ms
- Transmission rate: 4.7Gbps


Large Capacity & Fast Charging
Charges to 80% in just 1.5 hours, making outdoor scanning more convenient and worry-free. Large capacity 35400mWh battery (Airplane Safe).


NIR Structured Light Scanning
Equipped with One-Shot 3D imaging technology, the Creality RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.


High Performance Structure, Details Revealed
Advanced temperature compensation algorithm, it can improve temperature stability and ensure accuracy.
- 2.3 Million Pixel 3D Imaging Camera
- Low distortion lens, less than 5‰
- 20mm large depth of field lens
- 9-elements glass lens
- Metal lens barrel and holder


Objects between 0.2-157"/ 5-4000mm
Combining blue laser lines with infrared structured light, RaptorX can scan objects ranging in size from 5*5*5 mm³-4000*4000*4000 mm³. Effortlessly scanning engineering parts, molds, human bodies, automobile components, and more.
Laser Line Scanning
Minimum scan size: 5*5*5 mm³, Maximum scan size: 4000*4000*4000 mm³.
NIR Structured Light Scanning
Scanning objects ranging from 150*150*150mm³-2000*2000*2000mm³.


Wider Applications, Better Performance
- Outdoor Scanning: Blue Laser with strong environmental resistance, delivers outstanding performance even in outdoor environments.
- Scan without Sprays: With strong material adaptability, you can scan black/metal objects without sprays.
- Ant: Equipped with One-Shot 3D imaging technology,RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.


24-bit Full-Color Scanning


Lightweight and Portable
Weighs only 405g


New Intuitive Software with Powerful Features
CrealityScan is a professional 3D scanning software designed for exceptional user-friendliness and robust image and point cloud processing capabilities. With step-by-step tutorials, one-click model processing, and advanced editing features, it simplifies your scanning journey from start to finish.

*Note: In December. 2024, RaptorX connection to smart phone compatibility will be supported.

Seamless Integration to Inspection, Design, 3D Printing Softwares
The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the workflow efficiency.


- Geomagic Control X
- Creality Print


Applications

Model
Raptor X
Scanning Mode
7 blue parallel laser lines
34 blue parallel laser lines (cross)
NIR(infrared binocular structured light)
Accuracy up to
7 blue parallel laser lines: 0.02mm
34 blue parallel laser lines (cross): 0.02mm
NIR(infrared binocular structured light): 0.05mm
Volumetric Accuracy
7 blue parallel laser lines: 0.02mm+0.06mm/m
34 blue parallel laser lines (cross): 0.02mm+0.06mm/m
NIR(infrared binocular structured light): 0.05mm +0.1mm/m
Scanning rate
7 blue parallel laser lines: 420,000 measurements/s
34 blue parallel laser lines (cross): 1,020,000 measurements/s
NIR(infrared binocular structured light): 3,580,000 measurements/s
Single Capture Range
7 blue parallel laser lines: 270mmx170mm @ 300mm
34 blue parallel laser lines (cross): 270mmx170mm @ 300mm
NIR(infrared binocular structured light): 665mm×574mm @ 1000mm
Working distance
7 blue parallel laser lines: 150-400mm
34 blue parallel laser lines (cross): 200-600mm
NIR(infrared binocular structured light): 170-1000mm
Outdoor Scanning
7 blue parallel laser lines: = 50,000 lux
34 blue parallel laser lines (cross): =100,000 lux
NIR(infrared binocular structured light): = 30,000 lux
System Support
Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above
Minimum:i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory
macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above
Wireless Scanning
7 blue parallel laser lines: Support
34 blue parallel laser lines (cross): Support
NIR(infrared binocular structured light): Support
- MPN: 4008050054

GTIN: 6971636405283
