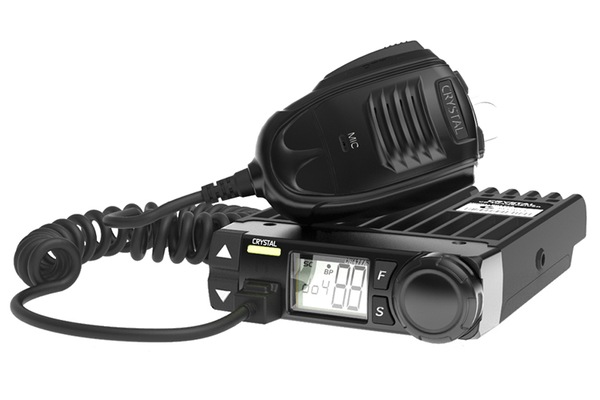

Crystal DB477A Compact 80 Channel 5W In-Car UHF CB Radio

Image 1
Hurry! 4 items left!
$135

Collect 135 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout
Compact 80 Channel 5-Watts In-Car UHF CB radio


Ultra-compact UHF CB radio with 80 narrow band channels, automatic squelch controls and crystal clear sound for your vehicle. 100% aluminium die cast chassis with large multicolour backlit display and mute-out capability onto your car’s stereo when receiving. This radio is suitable for common logistic purposes.

Uses duplex range extender and capable of automatic scan.
Frequency Range

RX: 476.4250 ~ 477.4125MHz, TX: 476.4250 ~ 477.4125MHz

Number Of Channels

Max. 80

Operation Mode

8K5φF3E

Channel Spacing

12.5kHz

Antenna Impedance

50Ω

Working Temperature

–20℃ ~ 60℃

Power Supply

13.8V DC±15% (11.7~15.8V)

Grounding Method

Negative ground

Current Drain

Less than 150mA on standby, less than 350mA on receive, less than 1.5A on transmit

Frequency Stability

±2.5ppm

Dimensions

(W x H x D) 112 x 30 x 155 mm (Dimensions are including protrusions)

Weight:

Approx. 0.8kg (including microphone)

Transmitter RF Power Output

5Watts

Spurious And Harmonics

60dB

Adjacent Channel Power

60dB

FM Noise

40 dB

Audio Distortion

Less than 5%

Receiver Sensitivity EIA 12dB SINAD

0.28μV

Adjacent Channel Selectivity

60dB

Intermodulation

60dB

Audio Output Impedance

8Ω

Audio Output At 8Ω

0.5W or higher (10% distortion)

GTIN: 9317114912695
