ATEN CS1784A 4 Port USB 2.0 / DVI Kvm Desktop Switch With Audio One USB Console Controls Four

ATEN CS1784A 4 Port USB 2.0 / DVI Kvm Desktop Switch With Audio One USB Console Controls Four

Hurry! 2 items left!

Price	$502
	Earn 5x points and collect 2510 Everyday Rewards points. Promotion ends 25/04/2024. Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

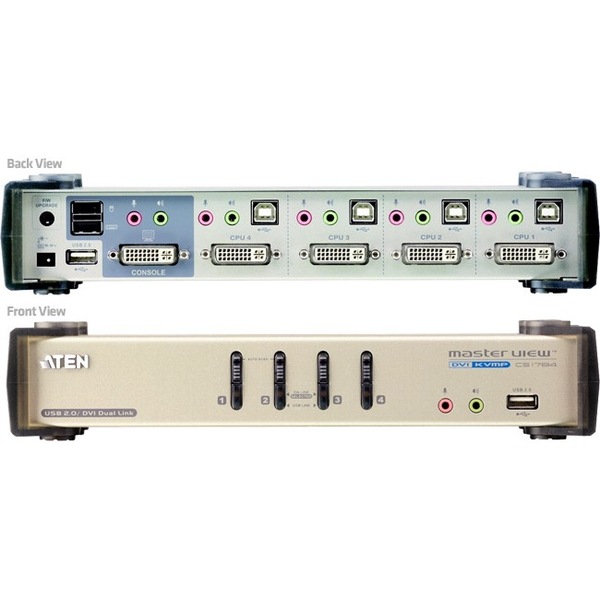

4-Port USB 2.0 DVI KVMP Switch - ATEN

The CS1784 DVI KVMP Switch charts a revolutionary new direction in KVM switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as providing an interface for a DVI monitor and audio support.

FEATURES:

One USB console controls four computers and two additional USB devices
2-port USB 2.0 hub built in
USB 2.0 compliant
Full bass response provides a rich experience for 2.1channel surround sound systems
Console audio ports on front panel for easy access ideal for IP phone users
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support fully compliant with the DVI specifications; also HDCP compliant
Superior video quality - 2560 x 1600 (DVI Dual Link);1920 x 1200; DDC2B (DVI Single Link)*
Supports widescreen resolutions
Computer selection via front panel pushbuttons and hotkeys
Multiplatform support - Windows , Mac, and Sun
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
HDCP compliant
Complete keyboard emulation for error-free booting
Sun/Mac keyboard support and emulation**
Auto Scan Mode for monitoring all computers
Firmware upgradeable

*2560x1600@60Hz (DVI Dual Link);3840x2400@13Hz (DVI Single Link) only supports specific monitor resolution

**1. PC keyboard combinations emulate Sun/Mac keyboards 2. Sun/Mac keyboards only work with their own computers

Package Content:

1x USB 2.0 DVI KVMP Switch
4x Custom KVM Cable Sets (DVI-D)
1x USB-to-PS/2 Converter
1x Firmware Upgrade Cable
1x Power Adapter
1x User Manual
1x Quick Start Guide

SPECIFICATIONS:

Computer Connections	4
Port Selection	Hotkey, Pushbutton
Connectors	Console Ports	Keyboard	1 x USB Type A Female (Black)
Video	1 x DVI Female (White)
Mouse	1 x USB Type A Female (Black)
Speaker	2 x Mini Stereo Jack Female (Green)
Microphone	2 x Mini Stereo Jack Female (Pink)
Computer Connectors	Video	4 x DVI Female (White)
Keyboard / Mouse	4 x USB Type B Female (White)
Speaker	4 x Mini Stereo Jack Female (Green)
Microphone	4 x Mini Stereo Jack Female (Pink)
USB Hub	2 x USB Type A Female (White)
F/W upgrade	1 x 4-conductor 3.5mm Jack(Black)
Power	1 x DC Jack
Switches	Port	4 x Pushbutton
LEDs	USB Link	4 (Green)
On Line/Selected	4 (Orange)
Emulation	Keyboard/Mouse	USB
Video	DVI-D: 2560 x 1600 @60Hz (Dual Link); 1920 x 1200 @60Hz (Single Link) DVI-A: 2048 x 1536; DDC2B
Scan Interval	1-99 seconds (5 secs. default)
Power Consumption	DC5.3V, 9W, 1.7A
Environment	Operating Temp.	0 -50˚C
Storage Temp.	-20-60˚C
Humidity	0~80% RH, Non-condensing
Physical Properties	Housing	Metal
Weight	0.94 kg
Dimensions ( L x W x H )	27.00 x 8.70 x 5.50 cm

Weight: 2.57
