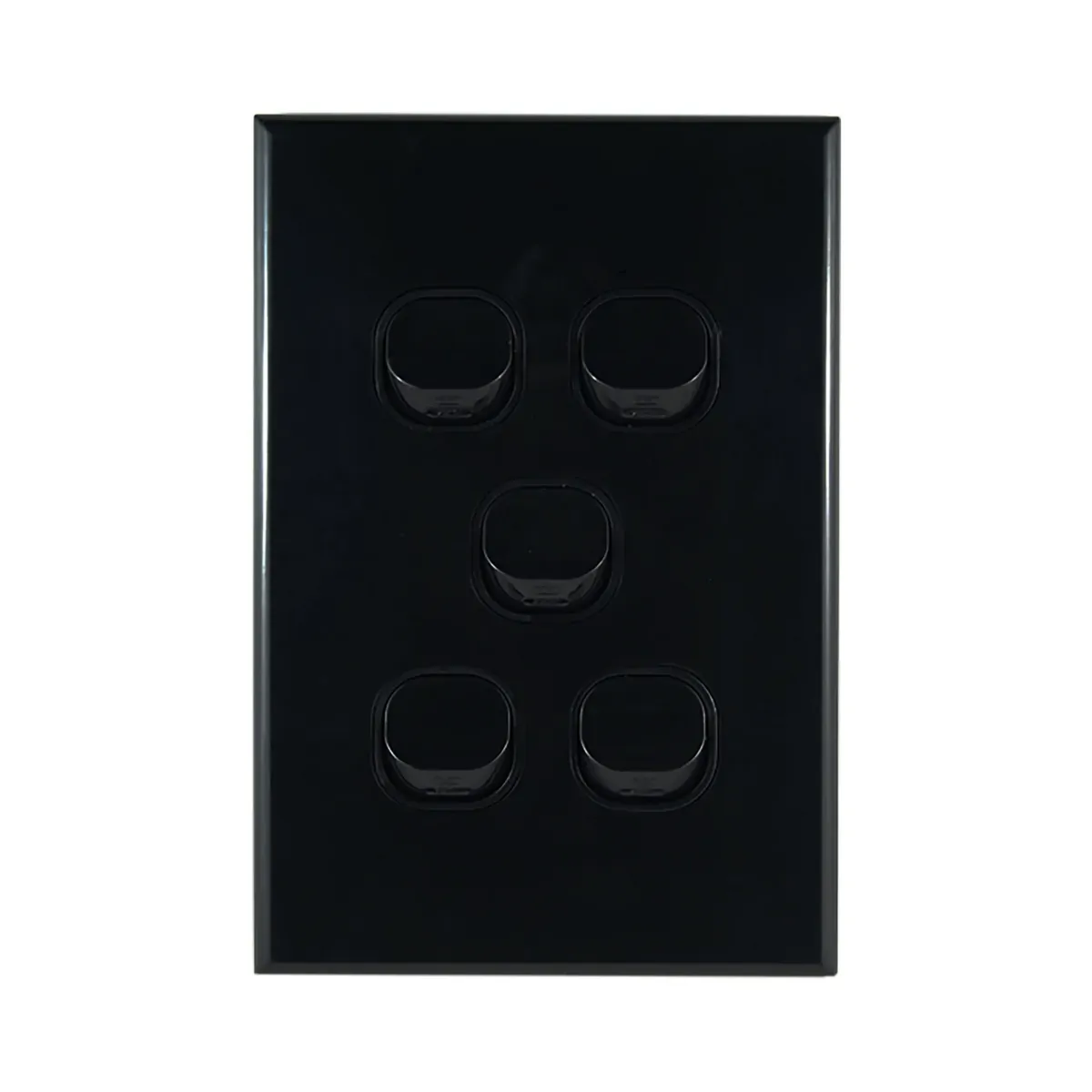

The CSG LS105VB-L is a 5 gang vertical switch from the GEO slimline series, designed for controlling multiple lighting circuits with a clean, contemporary style. Its 6.5mm ultra-slim profile and gloss black finish complement modern interiors while delivering reliable performance.

Rated at 10AX, 250V AC, the switch features silver nickel contacts, phosphor bronze springs, and brass terminal screws for durability and electrical integrity. The UV-stabilised virgin polycarbonate faceplate ensures the finish stays sharp and fade-resistant over time.

Each gang supports two-way switching, and the unit is fully compliant with AS/NZS 3100:2017+A1-3 and AS/NZS 3133:2013+A1-2, providing installers and homeowners peace of mind for residential and light commercial applications.

CSG LS105VB-L Features

• 5 gang slimline plate: Minimal 6.5mm thick profile with gloss black finish.
• 10AX 250V AC rated: Built for general and two-way lighting control.
• Silver nickel and bronze internals: Provides long-lasting, reliable contact.
• Brass screws and terminals: Durable, corrosion-resistant components.
• Two-way switching compatible: Ideal for hallways and multi-point access.
• Australian Standards certified: Complies with AS/NZS 3100 and AS/NZS 3133.

LS105VB-L FAQ
Q: Can each gang be wired in a two-way setup?
A: Yes, all five switches support two-way switching.

Q: What size is the faceplate?
A: 115mm x 77mm with a cut-out size of 76mm x 55mm.

Q: What ensures long-term durability?
A: The internal mechanism uses silver nickel contacts and phosphor bronze springs, and the gloss finish is UV-stabilised to resist fading.
