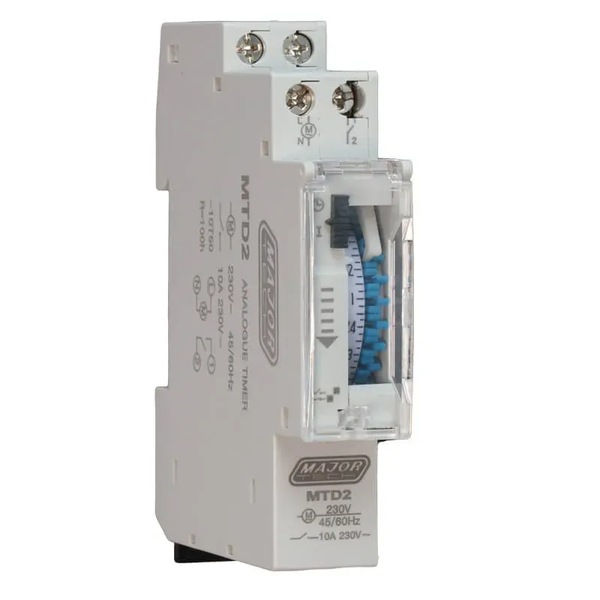

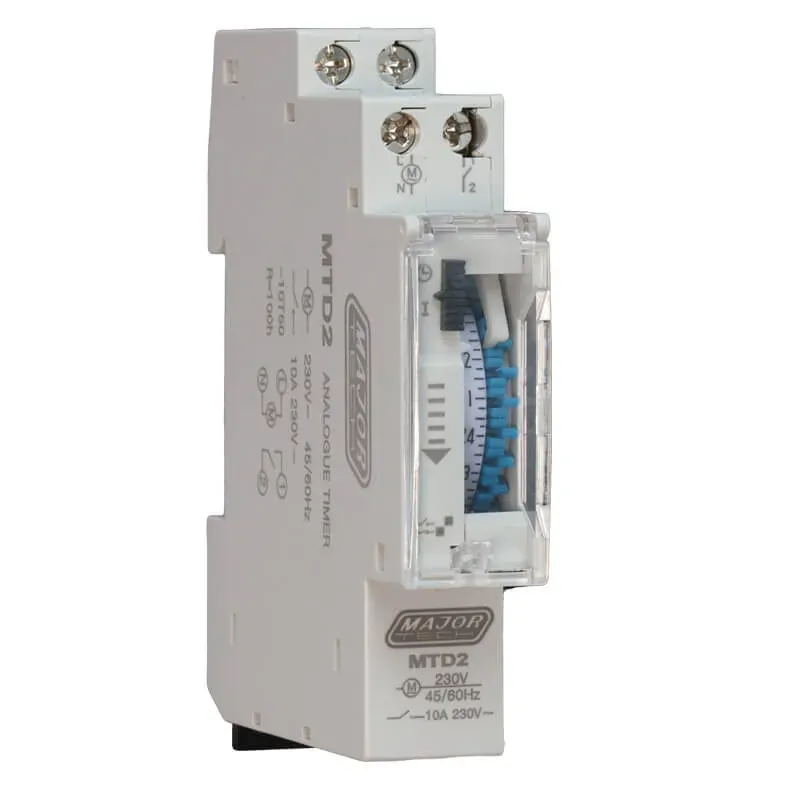

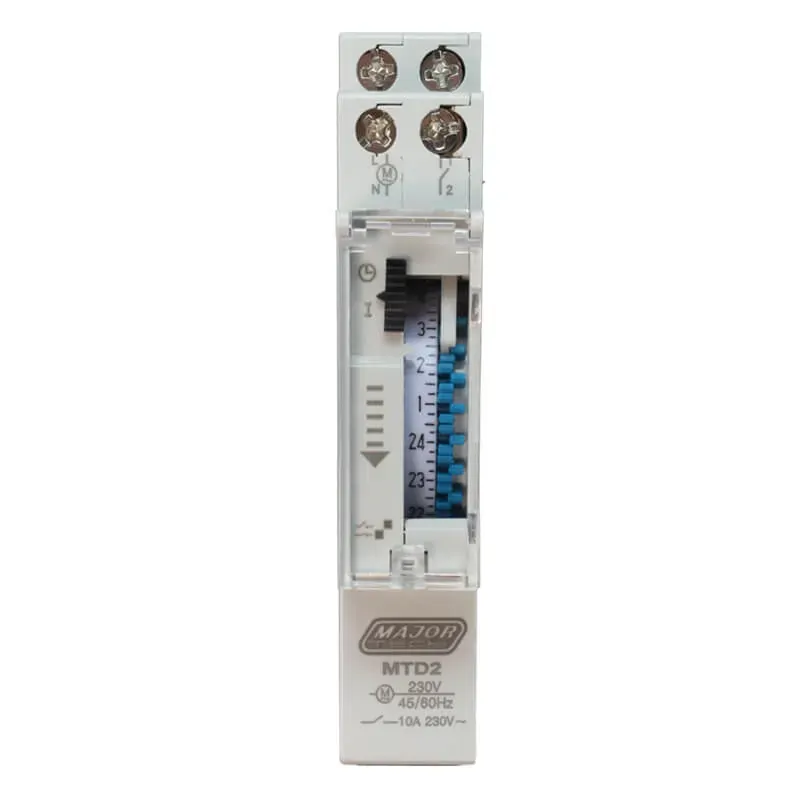

The MTD2 is a compact 24-hour analogue timer for simple and reliable load control in lighting, heating, pumps, and general automation. It features 96 programmable segments for 15-minute switching intervals and is rated for 16A resistive or 4A inductive loads at 230V AC.

Designed for DIN rail mounting, it includes a 100-hour battery backup, manual override switch, and ultra-low 0.5W standby power draw. Ideal for indoor installations in switchboards, pool systems, or geyser control, it delivers day-to-day performance with ±1 sec/day accuracy and quiet mechanical operation.

MTD2 Features

• Switching Capacity: 16A resistive / 4A inductive at 230V AC
• Programmable Segments: 96 pins with 15-minute interval control
• Battery Backup: 100-hour reserve to retain settings
• Manual Override: Switches between automatic and permanent on/off
• Compact Design: 90 x 66 x 17.5mm for tight switchboard installs
• Low Power Use: Only 0.5W in standby, IP20 rated for indoor use

MTD2 FAQ

Q: Will it keep time during a blackout?
A: Yes, the 100-hour battery backup preserves all settings.

Q: Can I manually switch loads without changing the timer?
A: Yes, the override lets you switch between automatic and manual modes instantly.

Q: Is it suitable for inductive loads like motors?
A: Yes, it supports up to 920W constant inductive loads at 230V AC.
