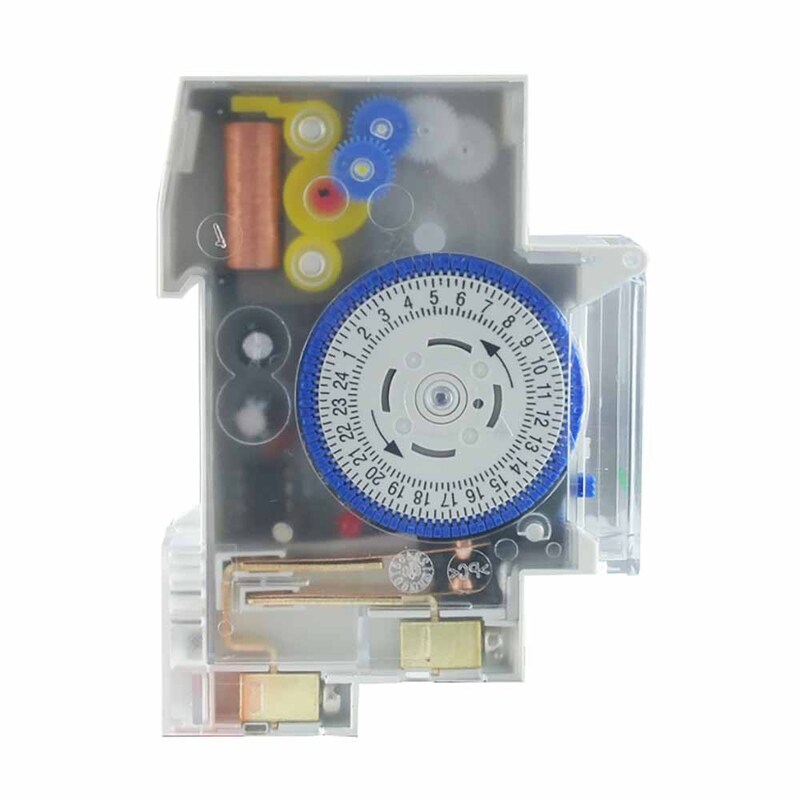

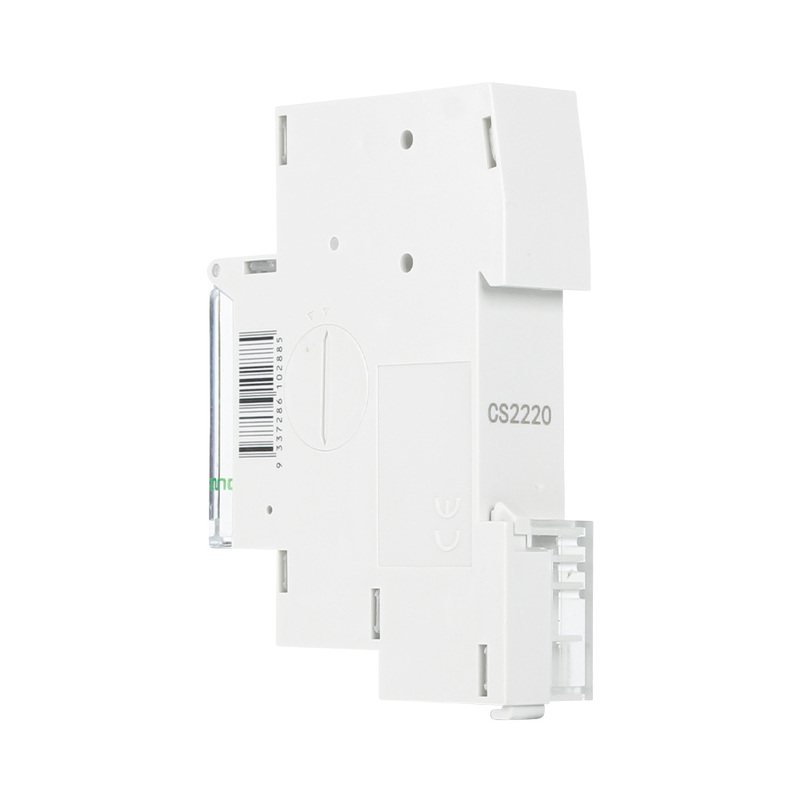

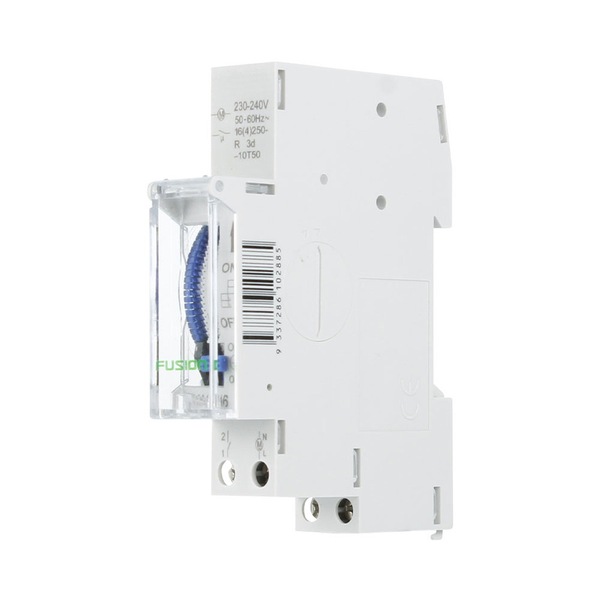

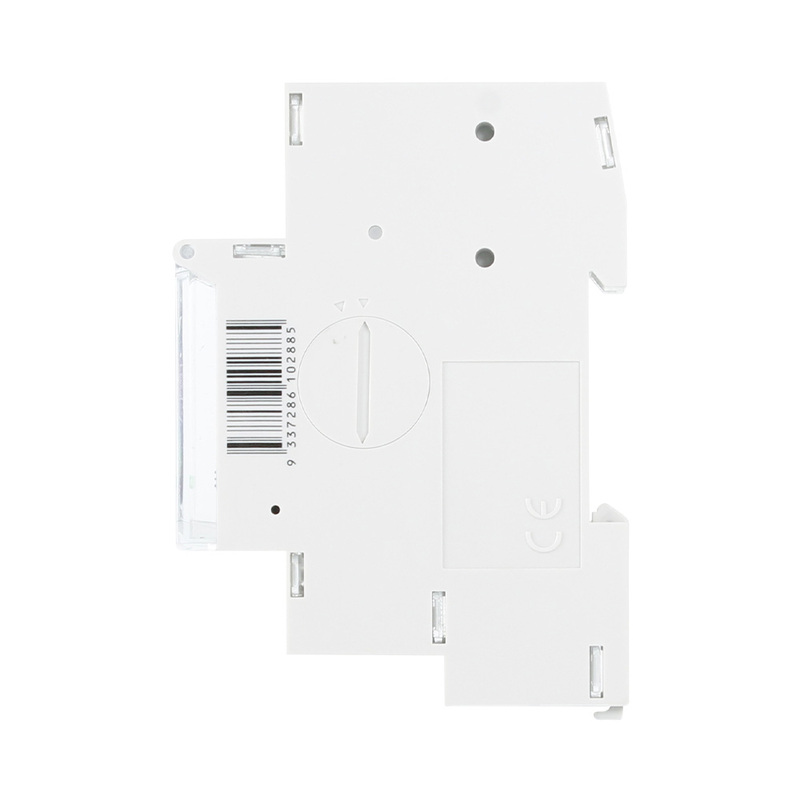

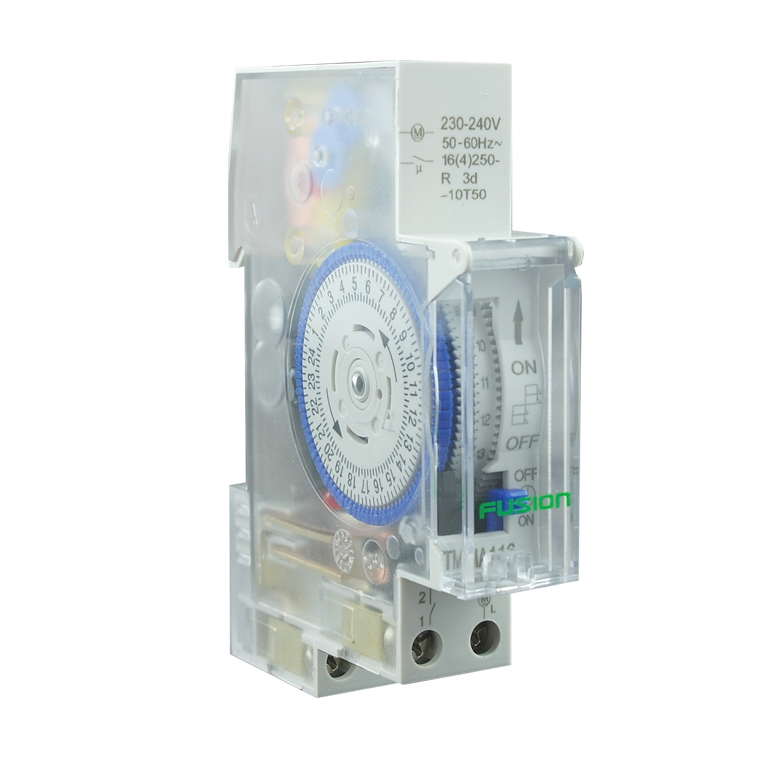

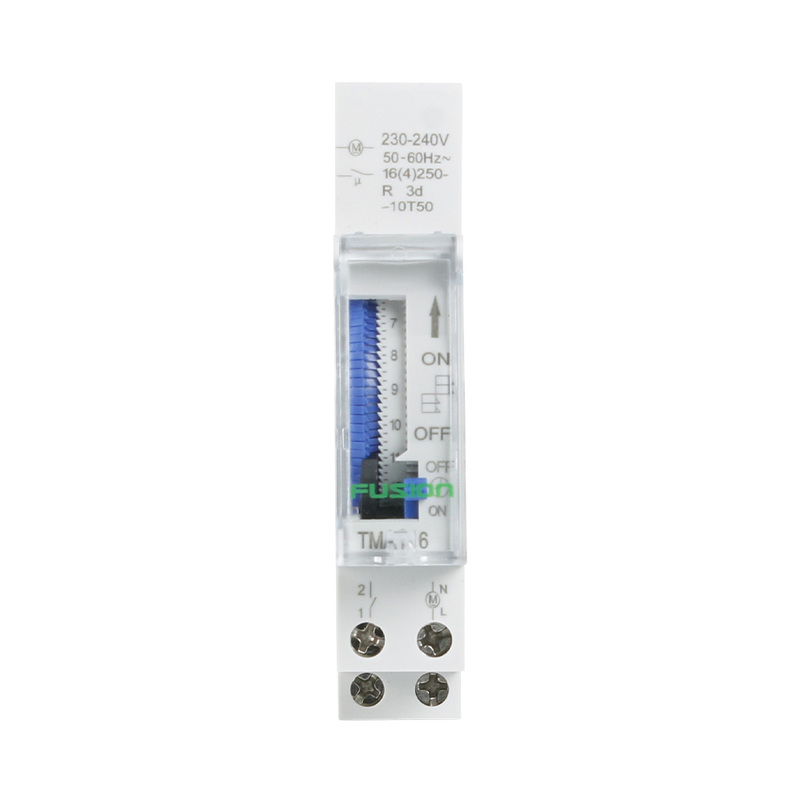

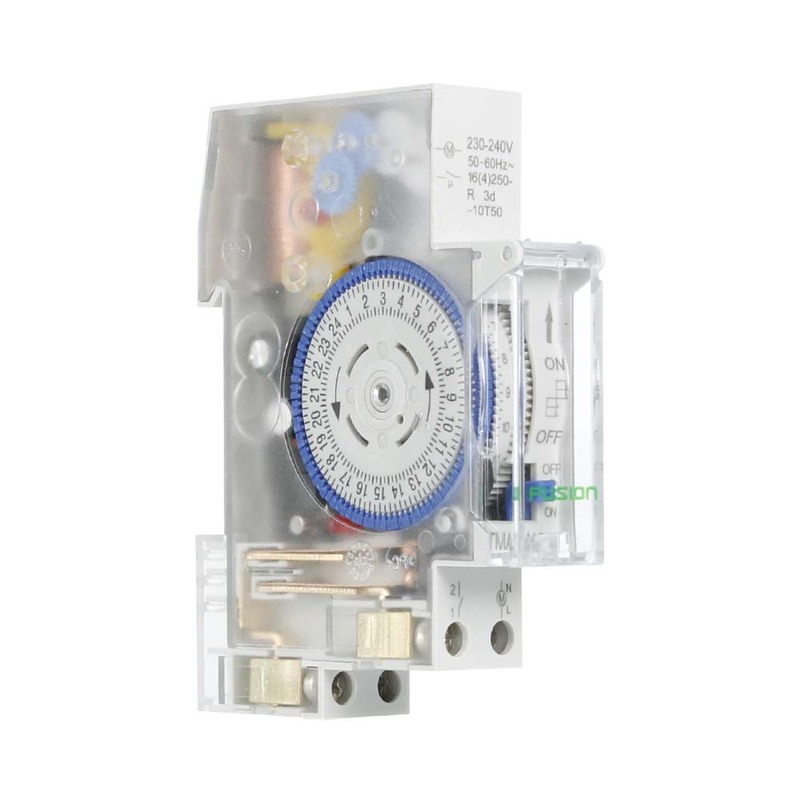

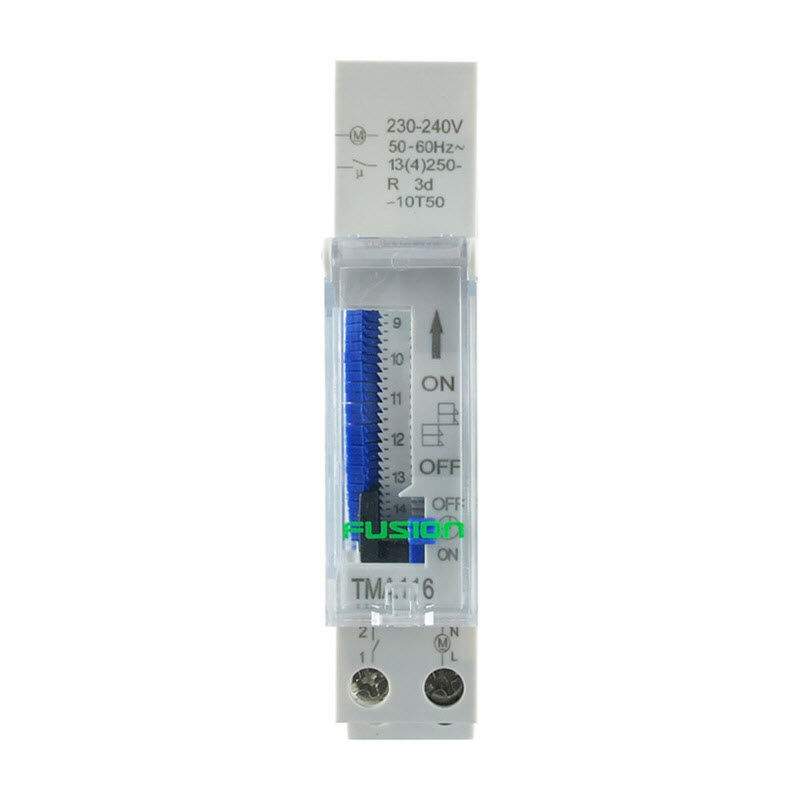

24 Hour Analogue Timer 1 Pole 16(4)A 240V with Battery Backup

Connected Switchgears’ 24-hour analogue timer is ideal for residential and commercial applications. Say goodbye to expensive electricity bills by programming the timer to turn your electricity on when it’s required and turn it off when it’s not. The 15-minute time intervals allow for flexibility in programming times. The single pole width means more space on the DIN rail if you install multiple timers for different loads.

Features include:

• Analogue
• Quartz Controlled
• Battery Backup
• 1 Pole DIN Rail Mount
• 24 Hour Cycle
• 15 Minute Increment ON/OFF Program Setting

Loads the timer can control without a contactor Fluorescent bulbs control  Compact fluorescent lamps max. 100 W Incandescent bulbs control:  230 V incandescent lamps and halogen lamps: max. 900 W

On inductive loads like hotwater elements, always install a contactor so you do not burn out the timer, especially if you are controlling motors or elements.

Specifications

Voltage (V) 240V AC

Accuracy ≤+/- 2 sec/day (20°C) Pulse Output 1 sec – 99 secs Count Down 1 sec – 99 mins 59 secs Power Consumption 3VA Weight 90g Mechanical Life 100,000 Cycles Contact Type Normally Open + 1 Changeover Contact Load Rating i. Resistive Loads 240V AC 16A ii. Capacitive/Inductive cos = 0.4 240V AC 4A iii. Lamp 1000W iv. Battery CR2032 v. Ambient Work Temp -10~+50°C vi. Ambient Work Humidity 35~85%

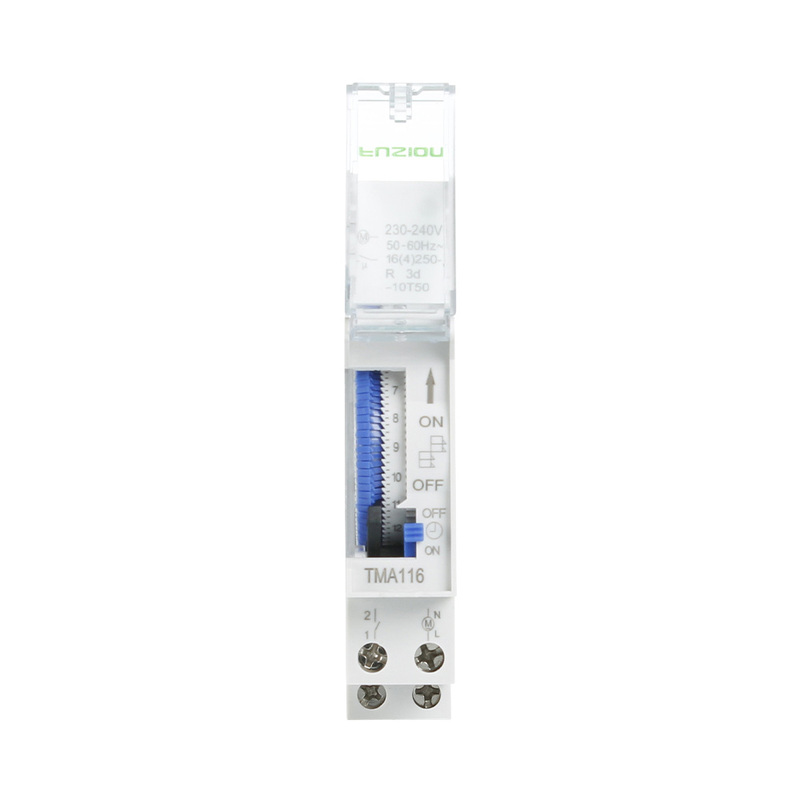

This 24-hour analogue timer (TMA116) comes with a 5 Year In House Warranty. That’s right, five years! This is so that you can have peace of mind knowing that if a fault arises within a five-year period, we will cover the cost of replacing the product and its installation by an authorised electrician. In other words, we’ve got your back.
