This type of protection is great for every tradesperson as it can easily protect all their equipment in their office, man cave, workshop and home theatre.

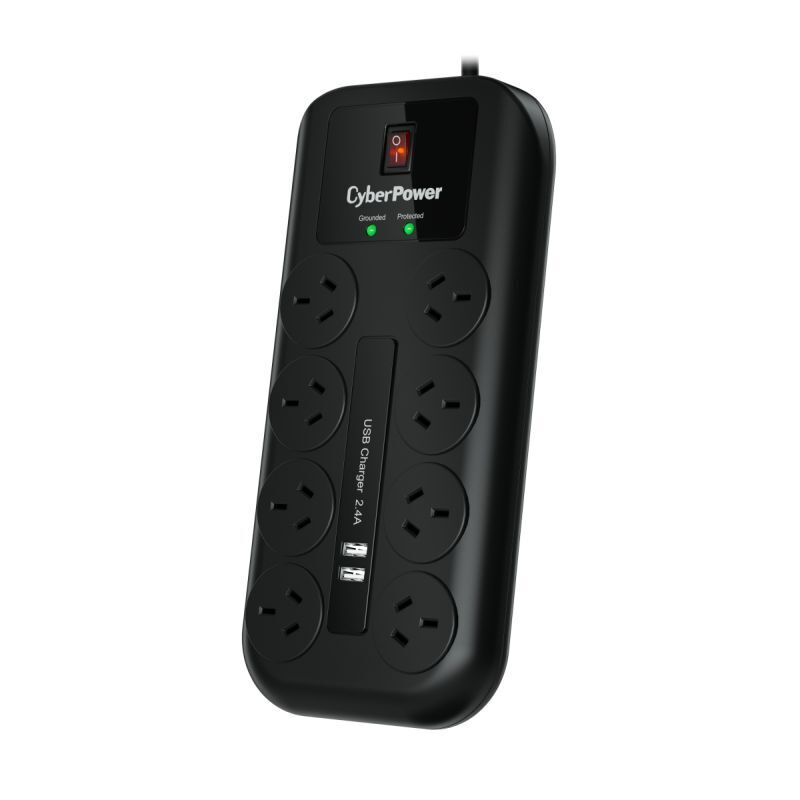

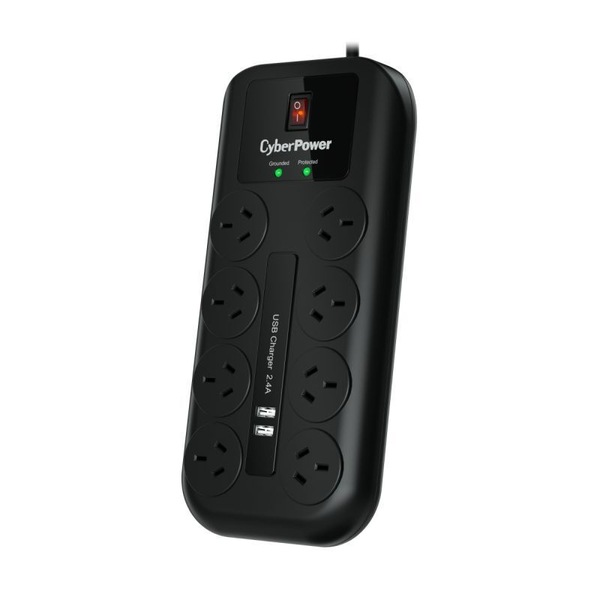

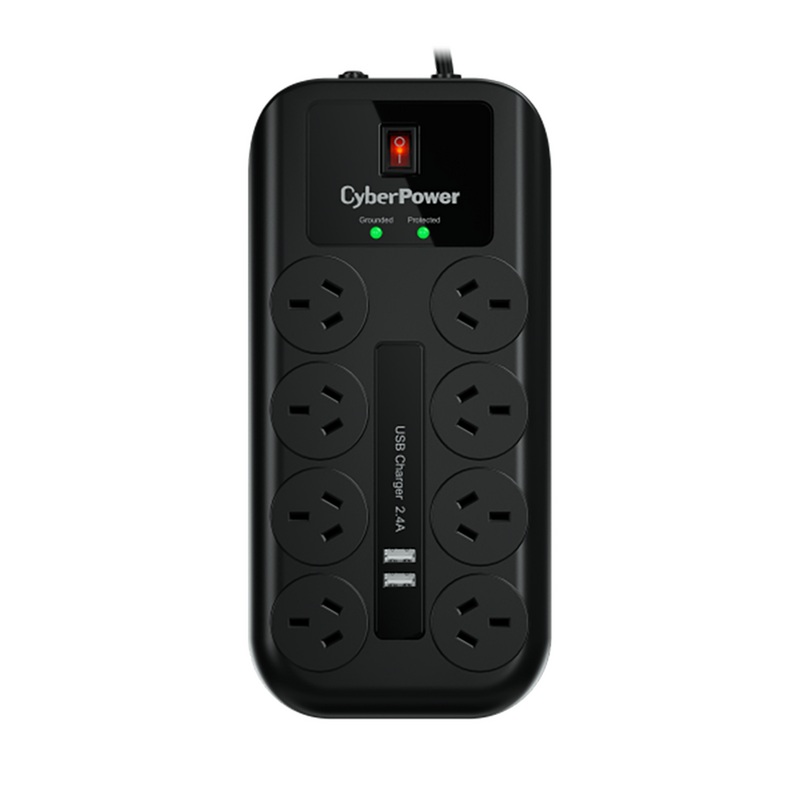

CyberPower CPSURGE08USB-ANZ is ideal for expensive home theatre systems and audio/video devices protections. The MOV technology guards the surge suppressor and connected electronics such as phones, networks, and communication equipment against surge/spikes and other power abnormalities.
EMI/RFI noise filtering helps reduce frequency interference. The one-in/one-out gold plated coaxial connector protects cable/satellite TV receivers and broadband modems.
Features:
Specifications:
General | |
Product Category | Professional |
Input | |
Input Voltage Range ( Vac ) | 240 |
Input Frequency ( Hz ) | 50 |
Maximum Input Current ( A ) | 10 |
Input Connector Type | AU |
Plug Style | Straight |
Power Cord Length (m.) | 2 |
Power On/Off Switch | Yes |
Output | |
Overload Protection | Circuit Breaker |
Over Current Protection ( A ) | 10 |
Outlet(s) - Total | 8 |
Outlet Type | AU x 8 |
USB Charging Port(s) | 2 |
USB Charging Current ( A ) | 2.4 |
Surge Protection & Filtering | |
Surge Suppression ( Joules ) | 2750 |
Maximum Surge Voltage ( V ) | 6000 |
Maximum Surge Current ( A ) | 67500 |
Maximum Surge Current (L-N, L-G, N-G) ( A ) | Line to Neutral (L-N): 37500 |
Line to Ground (L-G): 15000 | |
Neutral to Ground (N-G): 15000 | |
Response Time ( ns ) | < 1 |
EMI/RFI Filtration ( Hz ) | 150KHz ~ 100MHz |
Attenuation ( dB ) | Up to 32 dB |
LED Indicators | |
LED Indicators | Surge Protected, Grounded |
Physical | |
Form Factor | Strip |
Enclosure Construction | Plastic - PP |
Enclosure Fire-resistance | Yes |
Color | Black |
Keyhole Mounting Slots | Yes |
Physical Size | |
Dimensions (WxHxD) (mm.) | 276 x 130 x 32 |
Weight (kg.) | 0.612 |
Environmental | |
Operating Temperature (°F) | 32 ~ 95 |
Operating Temperature (°C) | 0 ~ 35 |
Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
Operating Elevation ( feet/meters ) | 0-10,000 feet (0-3,000 meters) |
Storage Temperature (°F) | 5 ~ 113 |
Storage Temperature (°C) | -15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
Storage Elevation ( feet/meters ) | 0-50,000 feet (0-15,000 meters) |
Certifications | |
Certifications | RCM |
RoHS | Yes |
Warranty | |
Product Warranty Period (Year) | 5 |
Warranty starts from Invoice Date
Domestic Use: 5 Year
Commercial Use: 5 Year
Warranty Method: Return to Sparky Direct
