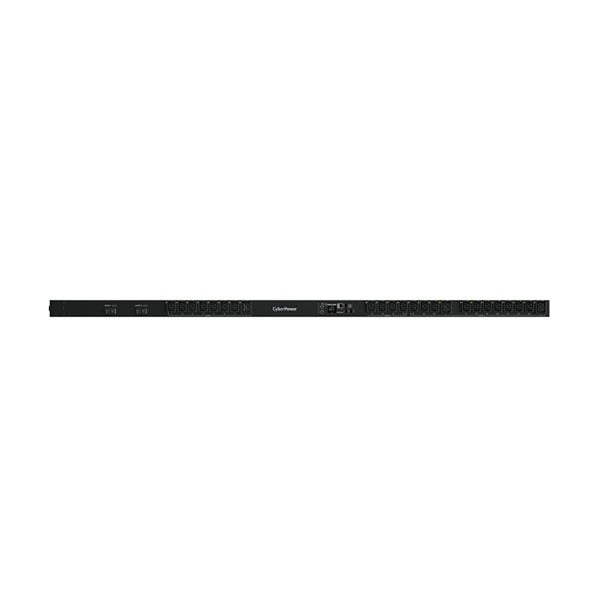

CYBERPOWER SWITCHED POWER DISTRIBUTION UNIT 32 AMP
FEATURES
Real-time Local/Remote Monitoring and Switching
Overload Protection
Ultra Low Power Consumption
Digital Real-time Load Display
Hot-swappable LCD Design
LED Status Indicator
Support ENVIROSENSOR
PowerPanel Management Software
Cord Retention Tray
Controllable Receptacles with Power Sequencing
Work under High Temperature
Industrial-grade Metal Housing
User Configurable Color LCD
Rotatable LCD for Proper Display Orientation
Firmware Upgrade via USB
User-upgradeable Firmware
Adjustable Mounting Brackets
IEC Receptacle Locking
SPECIFICATIONS
Phase: Single Phase
Nominal Input Voltage ( Vac ): 200 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 32 (CE)
Input Connector Type: IEC 60309 32A x 1 ?
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) ( A ): 20
Idle Power Consumption ( W ): < 5
Outlets - # of Bank(s): 2
Outlet(s) - Total: 24
Outlet(s) - Front: 24
Outlet Type: IEC C13 x 21 | IEC C19 x 3
Remote Individual Outlet Control: Yes
LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
Hot-swappable LCD Module: Yes
Auto LCD Orientation: Yes
LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Tx/Rx | Link | Outlet
A-type USB Port: Yes
Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
User-upgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
Authentication: RADIUS | LDAP | LDAPS | Windows AD
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
Adjustable Mounting Brackets: 1 Set
Dimensions: 56 x 1665 x 48mm
Weight: 8.0kg
Certifications: CE | EN 55032 Class A | RoHS
PACKAGE CONTENTS
1 x PDU41405
1 x User Manual
1 x Product Registration Card
1 x Cord Retention Tray
1 x Mounting Brackets
1 x Cable Ties
1 x Screw Kit
