D-Link Cat6 UTP Solid Networking Cable - 305m - Grey Full Copper - 250MHz - 23AWGx4P [NCB-C6UGRYR-305-23]

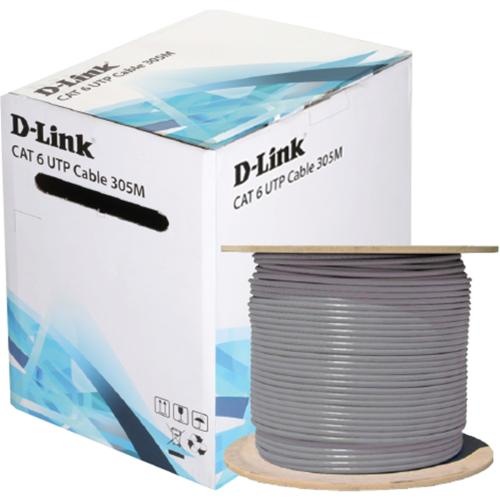

Image 1
Shop More Products
D-Link Cat6 UTP Solid Networking Cable - 305m - Grey Full Copper - 250MHz - 23AWGx4P

Professional Series CAT6 (UTP) 23AWG Grey Color, Easy Pull Box, 305m Box cable
- Category 6 Compliant TIA/EIA 568-C.2EN50173ISO IEC 11801
- Bare Copper
- Carton Packaging/Wooden Reel
- PVC
- Length 100M/305M/500M
- Unscreened Construction Specified to 250Mhz
D-Link provides the highest quality cable to transmit data through a local area network (LAN). This cable has exceeded the performance requirements specified by the TIA / EIA-568C.2, 568-D.2, EN50173 and ISO IEC 11801 standards. Using carton packaging / wooden reel making it an environmentally friendly product.
Streaming video and multimedia over LAN is increasingly popular, users are demanding faster data transfers and short waiting times. D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. Providing better reliability for current applications and higher data rates for future applications.
CAT 5E and Cat 6 cables reduce crosstalk interference and system noise levels with insulation for copper cables will increase performance. Can transmit data at 1000 Mbps (~ 1 Gigabit per second) suitable for Fast Ethernet and Gigabit Ethernet) applications. CAT 6A support transmit data 10 Gb/s make it suitable for high speed network link such as data center or server connections. CAT 5E and CAT 6 Cable conductor material made from solid bare copper and jacket material from PVC by insulation HDPE. CAT 6A cable jacket support LSZH that contain the flame-retardant compound.

Conductor

Size

23AWG

Material

Solid Bare Copper

Nom. O.D/mm

0.540 ± 0.02 mm

Insulation

Material HDPE

Nom. O.D/mm 0.96± 0.05 mm

Minimum Thickness

0.21 mm(REF)

Color

1P. White & Brown / Brown
2P. White & Blue / Blue
3P. White & Orange / Orange
4P. White & Green / Green

Filler

Material

RIP CORD

Construction

3*250D

Central Element

O.D

4.80 (REF)+CROSS

Jacket
Outer Sheath

PVC

Average Thickness

0.50± 0.05 mm

Overall Diameter

5.80± 0.20 mm

Color

Grey
- MPN: NCB-C6UGRYR-305-23

GTIN: 790069357145

Reference ID: 11356135
