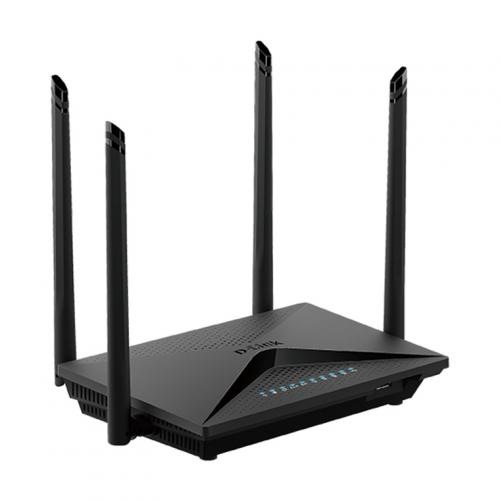

D-Link DIR-853 Gigabite Wi-Fi Router, MU-MIMO, Dual-Band Wireless-AC1300, 4 x GLAN, 1 x WAN, 1 x USB3.0
USB Port
The router is equipped with a USB port for connecting a USB modem, which can be used to establish connection to the Internet. In addition, to the USB port of the router you can connect a USB storage device, which will be used as a network drive, or a printer.
Wireless Interface
Using the DIR-853 device, you are able to quickly create a high-speed wireless network at home or in your office, which lets computers and mobile devices access the Internet virtually anywhere (within the operational range of your wireless network). Simultaneous activity of 2.4GHz band and 5GHz band allows performing a wide range of tasks. The router can operate as a base station for connecting wireless devices of the standards 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac (at the wireless connection rate up to 1300Mbps ).
Secure Wireless Connection
The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, WPS, WMM.
In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home, you can easily switch the router's WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.
Advanced Capabilities of Wireless Network
Multi-user MIMO technology allows to distribute the router's resources to let multiple wireless clients use the Wi-Fi network efficiently, keeping high rates for HD media streaming, lag-free gaming, and fast transfer of large files.
Transmit Beamforming technology allows to flexibly change the antennas' radiation pattern and to redistribute the signal directly to wireless devices connected to the router.
Smart adjustment of Wi-Fi clients is useful for networks based on several D-Link access points or routers - when the smart adjustment function is configured on each of them, a client always connects to the access point (router) with the highest signal level.
Support of guest Wi-Fi network allows you to create a separate wireless network with individual security settings. Devices connected to the guest network will be able to access the Internet, but will be isolated from the devices and resources of the router's LAN.
Security
The wireless router DIR-853 includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.
In addition, the router supports IPsec and allows to create secure VPN tunnels.
Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block access to adult content on children's devices.
Easy configuration and update
You can configure the settings of the wireless router DIR-853 via the user-friendly web-based interface (the interface is available in two languages - in Russian and in English).
The configuration wizard allows you to quickly switch DIR-853 to one of the following modes: router (for connection to a wired or wireless ISP), access point, repeater, or client, and then configure all needed setting for operation in the selected mode in several simple steps.
Also DIR-853 supports configuration and management via D-Link Click'n'Connect mobile application for Android smartphones.
You can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.
Hardware
Processor
MT7621A (880MHz, dual core)
RAM
128MB, DDR3
Flash
16MB, SPI
Interfaces
10/100/1000BASE-T WAN port
4 10/100/1000BASE-T LAN ports
USB 3.0 port
LEDs
POWER
INTERNET
WPS
WLAN 2.4G
WLAN 5G
4 LAN LEDs
USB
Buttons
POWER button to power on/power off
WiFi button to enable/disable wireless network
WPS button to set up wireless connection
RESET button to restore factory default settings
Antenna
Four external non-detachable antennas 5dBi gain
MIMO
2 x 2
Power connector
Power input connector (DC)
Wireless Module Parameters
Standards
IEEE 802.11a/n/ac
IEEE 802.11b/g/n
Frequency range
2400 ~ 2483.5MHz
5150 ~ 5350MHz
5650 ~ 5725MHz
Wireless connection security
WEP
WPA/WPA2 (Personal/Enterprise)
??? filter
WPS (PBC/PIN)
Advanced functions
Support of client mode
WMM (Wi-Fi QoS)
Information on connected Wi-Fi clients
Advanced settings
Smart adjustment of Wi-Fi clients
Guest Wi-Fi / support of MBSSID
Periodic scan of channels, automatic switch to least loaded channel
Support of 802.11ac (5GHz) and 802.11n (2.4GHz) TX Beamforming
Wireless connection rate2
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
IEEE 802.11b: 1, 2, 5.5, and 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
IEEE 802.11n (2.4GHz): 6,5-300Mbps (MCS0-MCS15) to 400Mbps (QAM256)
IEEE 802.11n (5GHz): from 6,5 to 300Mbps (from MCS0 to MCS15)
IEEE 802.11ac (5GHz): from 6,5 to 867Mbps (from MCS0 to MSC9)
Transmitter output power
802.11a (typical at room temperature 25 °C)
15dBm at 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b (typical at room temperature 25 °C)
15dBm at 1, 2, 5.5, 11Mbps
802.11g (typical at room temperature 25 °C)
15dBm at 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n (typical at room temperature 25 °C)
2.4GHz
15dBm at MCS0~7
5GHz
15dBm at MCS0~7
802.11ac (typical at room temperature 25 °C)
15dBm at MCS0~9
Physical Parameters
Dimensions (L x W x H)
213 x 140 x 33 mm (8.39 x 5.51 x 1.3 in)
Weight
350 g (0.77 lb)
Operating Environment
Power
Output: 12V DC, 1.5A
Temperature
Operating: from 0 to 40 °C
Storage: from -20 to 65 °C
Humidity
Operating: from 10% to 90% (non-condensing)
Storage: from 5% to 95% (non-condensing)
- MPN: DIR-853
