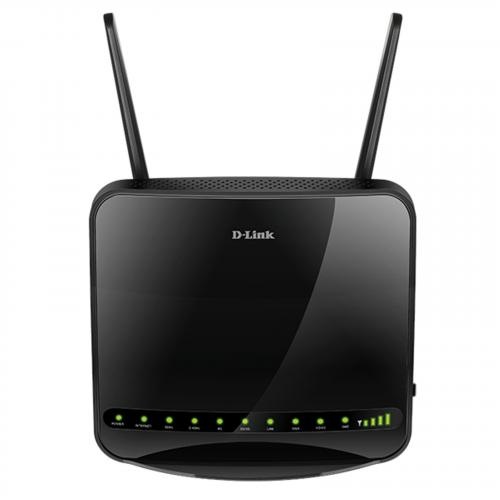

D-Link DWR-956 4G LTE CAT6 Cellular Router with Signal Standard-SIM Slot, Wi-Fi Dual-Band AC1200, 4 x Gigabit LAN, 1 x Gigabit WAN, 1 x FXS for VOIP

D-Link DWR-956 4G LTE CAT6 Cellular Router with Signal Standard-SIM Slot, Wi-Fi Dual-Band AC1200, 4 x Gigabit LAN, 1 x Gigabit WAN, 1 x FXS for VOIP

1 Review 5 1 Review
SOLD OUT

D-Link DWR-956 4G LTE CAT6 Cellular Router with Signal Standard-SIM Slot, Wi-Fi Dual-Band AC1200, 4 x Gigabit LAN, 1 x Gigabit WAN, 1 x FXS for VOIP


Stay connected. Even when your internet goes down.

The DWR-956 Wireless AC1200 4G LTE Multi-WAN Router allows you to seamlessly switch to a 4G LTE mobile internet backup network when your broadband internet goes down, with download speeds of up to 150 Mbps1, so you can keep using the internet without interruptions.

Wi-Fi Speed

Speeds of up to 1200 Mbps with AC Wave 2 - 300 Mbps (2.4GHZ) + 900 Mbps (5GHz). Enough bandwidth for internet surfing, video chats, streaming, and social media.

4GX and 4G Plus

Supports Telstra 4GX and Optus 4G Plus Networks


Compatible

Like having two Wi-Fi networks, connect more devices with less congestion.

Failover Mode

Connectivity for wired devices such as media centres, network storage, and games consoles.


VoIP

Connect your phone to the back of the DWR-956 to make VoIP calls over the Internet.


Voice Over IP

The DWR-956 provides Voice over IP technology with advanced communication features, and is compatible with Telstra 4GX and Optus 4G Plus Networks, so you can make and receive calls reliably. Use the FXS phone port on the DWR-956 to connect an ordinary phone set for your VoIP phone calls, and use the Router functions to connect all of your family members or personnel to the Internet for a fast online experience throughout your home or office.


A connection that stays with you.

Share a 4G LTE mobile broadband with multiple devices like smart TVs, games consoles, phones, tablets, and smart home devices with a strong Wi-Fi signal of up to 1200 Mbps1 and 4 Gigabit Ports for wired connections. Simply insert your SIM card, and share your 4G LTE wireless network with your devices.


Failover mode

We've designed this router with a constant internet connection in mind. You can create failover connectivity if either your fixed line or mobile broadband fails.
Simply connect your main broadband to the WAN Port and follow the setup instructions. The Router will instantly switch to the backup mobile internet when you need it most, allowing you to stay connected and enjoy the internet without interruptions so you can maintain your productivity.


Superb speeds

Connect to your 4G LTE mobile connection with throughput speeds of up to 150 Mbps1, giving you the speed you need for fast, responsive internet access.
Using the latest Wireless AC technology, which can provide combined transfer rates of up to 1200 Mbps1, the DWR-956 operates on the 2.4GHz and 5GHz wireless bands at the same time using concurrent dual-band technology.


Two firewalls for superior protection

Includes built-in dual-active firewalls (SPI and NAT) to protect against malicious attacks. The latest WPA/WPA2 wireless encryption helps keep your wireless network secure and your traffic safe, helping stop unauthorised users from accessing your network.

1 Data rates are theoretical. Data transfer rate depends on network capacity, signal strength, and environmental factors.

Hardware
Processor
RTL8685PB (1GHz)
RAM
128MB, DDR2, built in processor
Flash
16MB, SPI
Interfaces
Slot for SIM card (mini-SIM)
10/100/1000BASE-T WAN port
4 10/100/1000BASE-T LAN ports
FXS port
LEDs
POWER
INTERNET
5GHz
2.4GHz
4G
2G/3G
LAN
WAN
VOICE
SMS
SIGNAL STRENGTH
Buttons
ON/OFF button to power on/power off
RESET button to restore factory default settings
WPS button to set up wireless connection
WLAN button to enable/disable wireless network
Antenna
Two detachable LTE/3G antennas (3dBi gain)
Two internal Wi-Fi antennas for 2.4GHz band (3dBi gain)
Two internal Wi-Fi antennas for 5GHz band (3dBi gain)
MIMO
2 x 2
Power connector
Power input connector (DC)
Software
WAN connection types
LTE
PPPoE
IPv6 PPPoE
PPPoE Dual Stack
Static IP / Dynamic IP
Static IPv6 / Dynamic IPv6
PPPoE + Static IP
PPPoE + Dynamic IP
PPTP/L2TP + Static IP
PPTP/L2TP + Dynamic IP
Bridge
Network functions
Support of IEEE 802.1X for Internet connection
DHCP server/relay
Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
DNS relay
Dynamic DNS
Static IP routing
Static IPv6 routing
IGMP Proxy
RIP
Support of UPnP IGD
Support of VLAN
WAN ping respond
Support of SIP ALG
Support of RTSP
WAN failover
LAN/WAN conversion
Firewall functions
Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
IP filter
IPv6 filter
MAC filter
URL filter
DMZ
Prevention of ARP and DDoS attacks
Virtual servers
Built-in Yandex.DNS web content filtering service
VPN
IPsec/PPTP/L2TP/PPPoE pass-through
IPsec tunnels
QoS
Interface grouping
VLAN priority (802.1p)
Management
Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
Multilingual web-based interface for configuration and management
Notification on connection problems and auto redirect to settings
Firmware update via web-based interface
Automatic notification on new firmware version
Saving/restoring configuration to/from file
Support of logging to remote host
Automatic synchronization of system time with NTP server and manual time/date setup
Ping utility
Traceroute utility
TR-069 client
LTE Module Parameters
LTE connection rate
Downlink: up to 150Mbps
Uplink: up to 50Mbps
Supported frequencies
Power Class 3
LTE
Band: TX / RX
B1: 1920~1980MHz / 2110~2170MHz
B2: 1850~1910MHz / 1930~1990MHz
B3: 1710~1785MHz / 1805~1880MHz
B5: 824~849MHz / 869~894MHz
B7: 2500~2570MHz / 2620~2690MHz
B8: 880~915MHz / 925~960MHz
B20: 832~862MHz / 791~821MHz
B38: 2570~2620MHz / 2570~2620MHz
B40: 2300~2400MHz / 2300~2400MHz
UMTS
B1/2/3/5/8 (2100/1900/1800/850/900MHz)
GSM/GPRS
850/900/1800/1900MHz
Functions
Auto connection to available type of supported network (4G/3G/2G)
Auto configuration of connection upon plugging in SIM card
Enabling/disabling PIN code check, changing PIN code
Sending/receiving/reading/removing SMS messages
Support of USSD requests
Wireless Module Parameters
Standards
IEEE 802.11n/ac
IEEE 802.11b/g/n
Frequency range
2400 ~ 2483.5MHz
5150 ~ 5250MHz
5725 ~ 5850MHz
Wireless connection security
WEP
WPA/WPA2 (Personal/Enterprise)
WPS (PBC/PIN)
Advanced functions
WMM (Wi-Fi QoS)
Information on connected Wi-Fi clients
Advanced settings
Guest Wi-Fi / support of MBSSID
Limitation of wireless network rate
Periodic scan of channels, automatic switch to least loaded channel
Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence)
Wireless connection rate
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
IEEE 802.11b: 1, 2, 5.5, and 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
IEEE 802.11n (2.4GHz/5GHz): from 6.5 to 300Mbps (from MCS0 to MCS15)
IEEE 802.11ac (5GHz): from 6.5 to 867Mbps (from MCS0 to MSC9)
Transmitter output power
The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country
802.11b
15dBm (+/-1.5dB)
802.11g
12dBm (+/-1.5dB)
802.11n
HT20
12dBm (+/-1.5dB)
HT40
12dBm (+/-1.5dB)
802.11ac
14dBm
Receiver sensitivity
802.11b
-76dBm at 11Mbps
802.11g
-65dBm at 54Mbps
802.11n
HT20
-64dBm at MCS15
HT40
-61dBm at MCS15
802.11ac
HT20
-56dBm at MCS8
HT40
-53dBm at MCS9
HT80
-51dBm at MCS9
Modulation schemes
802.11b: DSSS/BPSK/QPSK/CCK
802.11g: OFDM/DSSS/BPSK/QPSK/CCK
802.11n: BPSK/QPSK/16 QAM/64 QAM/DBPSK/DQPSK/ CCK
802.11ac: BPSK/QPSK/16 QAM/64 QAM/256 QAM
Phone
General SIP Features
Invite with Challenge
Register by IP address or domain name of SIP server
Backup proxy support
Support of DHCP option 120
RFC3986 SIP URI format support
Outbound proxy support
STUN client
NAT keep-alive
Call types: voice/modem/fax
User programmable Dial Plan
Call Features
Direct IP-to-IP call without SIP proxy (P2P)
Call hold/retrieve
Call awaiting
Forwarding (unconditional, busy, no answer)
Do Not Disturb
Blocking hidden number calls
CLIR
Speed/abbreviated dialing
PIN code before dialing
Hotline
Vertical service codes
Intercom (internal calls without SIP server)
Filtering SIP packets by IP address/domain name
Alarm clock
Logging calls
Sending text messages to VoIP gateways/IP phones
Voice Features
Codecs: G.711 a/µ-law, G.729A, G.726, G.722, G.723.1, GSMFR, ILBC, SPEEX
DTMF detection and generation
In-band DTMF, out-of-band DTMF (RFC2833, SIP-INFO)
Comfort Noise Generation (CNG)
Voice Activity Detection (VAD)
Echo Cancellation (LEC/NLP)
Dynamic Jitter Buffer
Call progress tone generation (FXS)
DTMF/PULSE dial support
Caller ID detection and generation
T.30 FAX bypass to G.711, T.38 Real Time FAX Relay, V.152
Adjustable Flash Time
Advanced call transfer
Volume control (speaker/microphone)
Physical Parameters
Dimensions (L x W x H)
170 x 80 x 180 mm (6.7 x 3.2 x 7.1 in)
Weight
400 g (0.88 lb)
Operating Environment
Power
Output: 12V DC, 2A
Temperature
Operating: from 0 to 40 °C
Storage: from -10 to 70 °C
Humidity
Operating: from 10% to 90% (non-condensing)
Storage: from 0% to 95% (non-condensing)
GTIN: 790069447181
