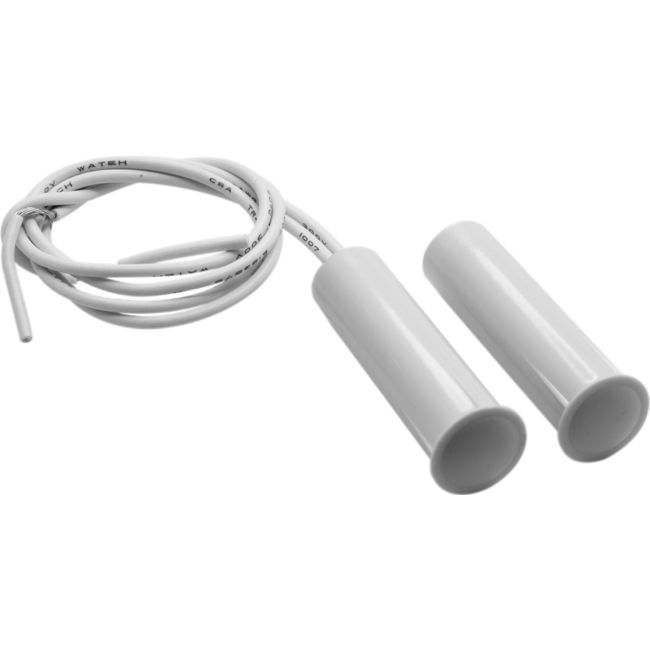

D20 Flush Mount Reed Switch Recessed Magnetic Contact No Push Fits Into 10Mm Drill Hole FLUSH

Image 1
$7.95

Collect 7 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Structure

1.Plastic Case: ABS Resin PA-707
2.Reed Switch: FLEX-14
3.Plastic Molding: Epoxy Resin 9001 A/B
4.Wire: AWG#24 1007 VW-1
5.Plastic Case: Plastic Case
6.Magnet: NdFeB N-35 Rare earth
7.Permeable rod: Ferrite
8.Plastic Molding: Epoxy Resin 9001 A/B

Specification
Switch
  • Loop type: closed-loop
  • Reed Switch Contact Form: FORM A (N.O)
  • Switching voltage (max.): 100v AC/DC
  • Switching current (max.): 0.5A
  • Contact capacity (max.): 10 VA
  • Initial contact resistance: 0.2 Ohm max.
  • Carry current (max.): 1 A
  • Breakdown voltage: 200 VDC
  • Insulation resistance: 100 Mohm min.
  • Switch cycle: 5x 107 cycle at 30.V 0.1ADC
Magnet
  • Material: NdFeB rare earth
  • Residual flux density (BR): 11.8~12.5K Gauss
  • Maximum energy product (BH): 33~36 MG. Oe
  • Curie temp. (TC): 310°C
Gap
  • Sense gap: 16mm min.
Physical characteristic
  • Temperature: -20°C ~ +60°C
  • Vibration: 20G (10~55Hz)
  • Shock: 30G (11 msec)
  • Heat shock: -25°C~+65°C (30min) (30min) 100 cycle
  • Package drop: Drop height 80 cm
  • Humidity: 80°C 95% RH 72 hrs
Dimension in MM:


Weight: 0.004
