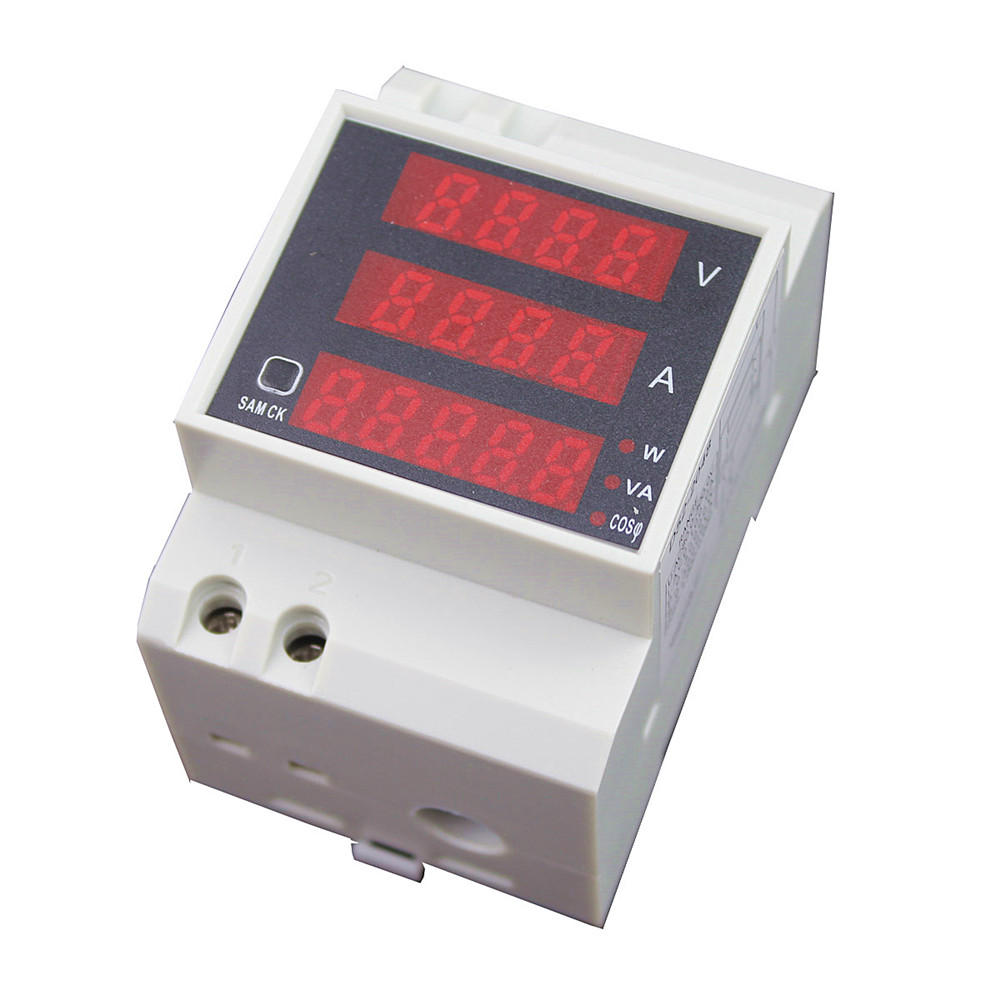

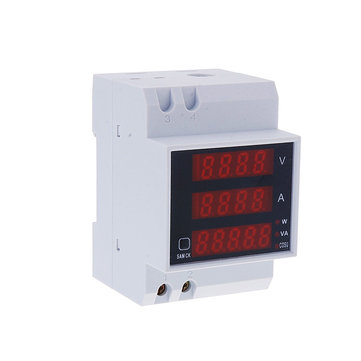

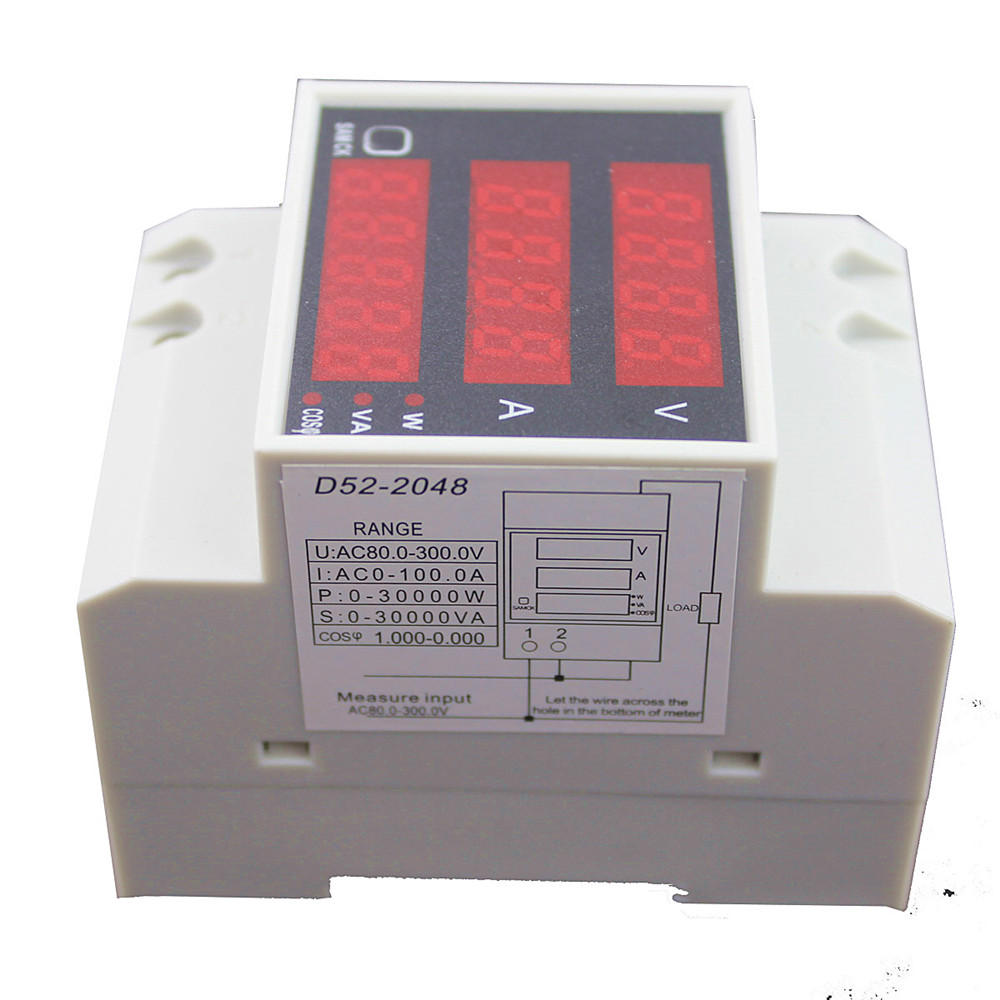

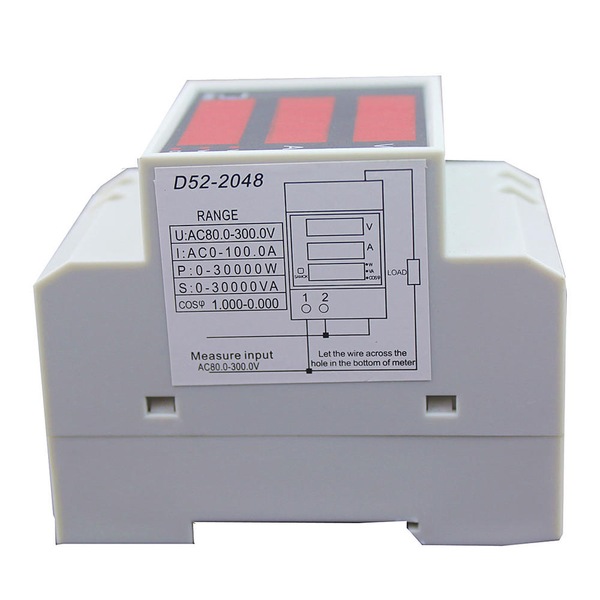

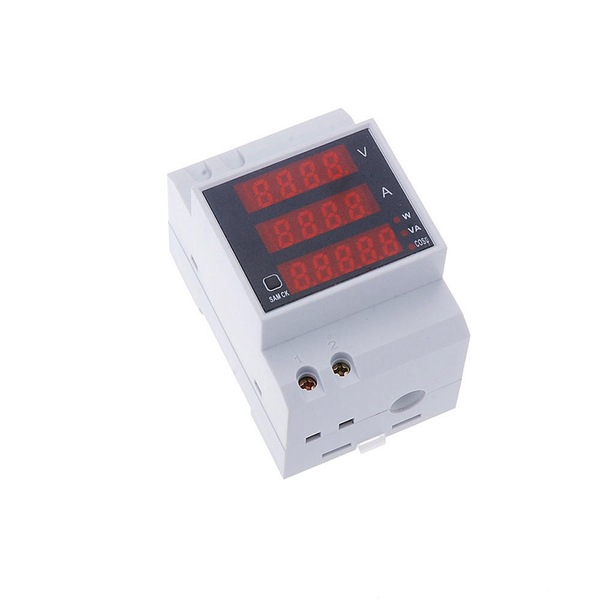

D52-2048 Digital Energy Meter Led Active Power Factor Multi-Functional Voltmeter Ac80-300V 0-100A

Features:

D52-2048 Multi-functional digital-display meter can measure the AC voltage and current, and compute the active power, reactive power and power factor at the same time.

Good stability and high measurement accuracy Appearance in a standard size, easy to install.

Specifications:

Measurement accuracy:1% +/- two words

LED display: AC voltage and currant with 4-digital 0.31 inch LED

Active power, reactive power and power factor with 5-digital 0.31 inch LED

AC Voltage measurement range:AC 80-300V/200-450V(Slect specific type when order)

AC Current measurement range: AC 0-100A(the resolution ratio will change by itself, when input current lower than 100A, the resolution ratio is 0.01A; when input current higher

than 100A, the resolution ratio is 0.1A)

Active power: AC80-300V: 0-30000W

,AC200-450V:0-45000W

Apparent power: AC80-300V: 0-30000VA,

AC200-450V: 0-45000VA

Power factor:1.000-0.000

Measurement speed:about 2 times per second

Size: approx 80mm x 54mm x 64mm

Net Weight: 119g

Package included:

1 x Multi-Functional Meter
1 x English Manual
