Technical Specifications

Features

The DAB E.SYLINE Commercial Range provides a complete modular pumping solution where adding flow is as simple as adding another pumping module. Each pumping module when interconnected increases the available flow out of the system, whilst allowing for each to be easily removed and serviced when required. Simple installations, easy expandability and cost effective servicing.



KIT E.SYQUAD is the evolution of KIT E.SYTWIN, creating a connection between four pumps.

A better, longer life

• KIT E.SYQUAD ensures constant water supply thanks to the BACKUP function.
• The new software algorithms constantly analyses the operation of the system, thus optimizing alternating use of the two units

More power, less space

• KIT E.SYQUAD offers exceptional performance thanks to combined operation with a 50% reduction in size compared to traditional units.

Everything you need

• The wireless interface handles communication between the four units
• Ensures hydraulic connection without the need for additional components for installation and operation
• Group operation visible on every display.
• 11/4 suction and delivery fittings
• 1500L x 358D x 730H

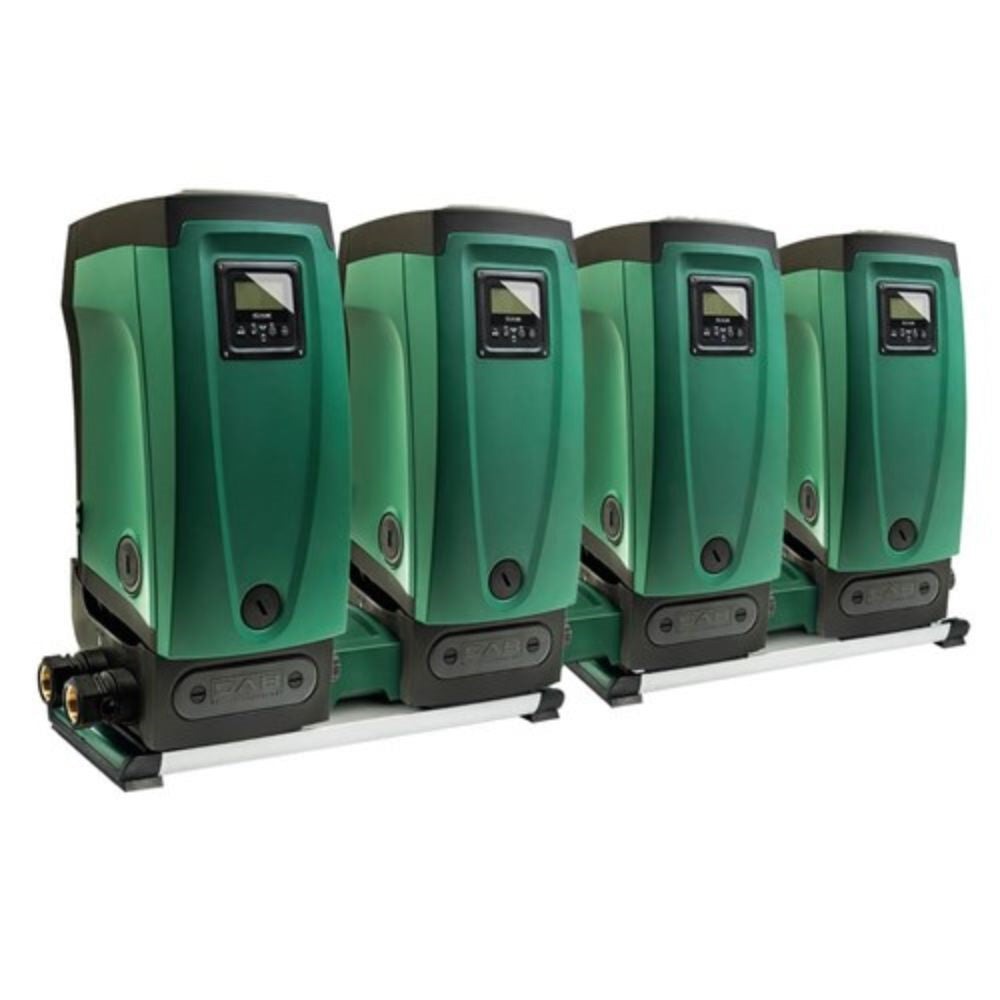

• KIT E.SYQUAD comprises 4 x E.SYBOX, 2 x E.SYTWIN & 1 x SP00001238 MANIFOLD for assembly on site

2 Year DAB Pumps Warranty
