Dab Pump S/S Self Priming Jet Pump With Nxt Pro Adjustable Controller

Dab Pump S/S Self Priming Jet Pump With Nxt Pro Adjustable Controller

From$1155

Collect 1155 Everyday Rewards points

$75.00 Australia-wide (per-item)

Sold & shipped by Sprinklerpros

Secure ways to pay at checkout

(0)

Description

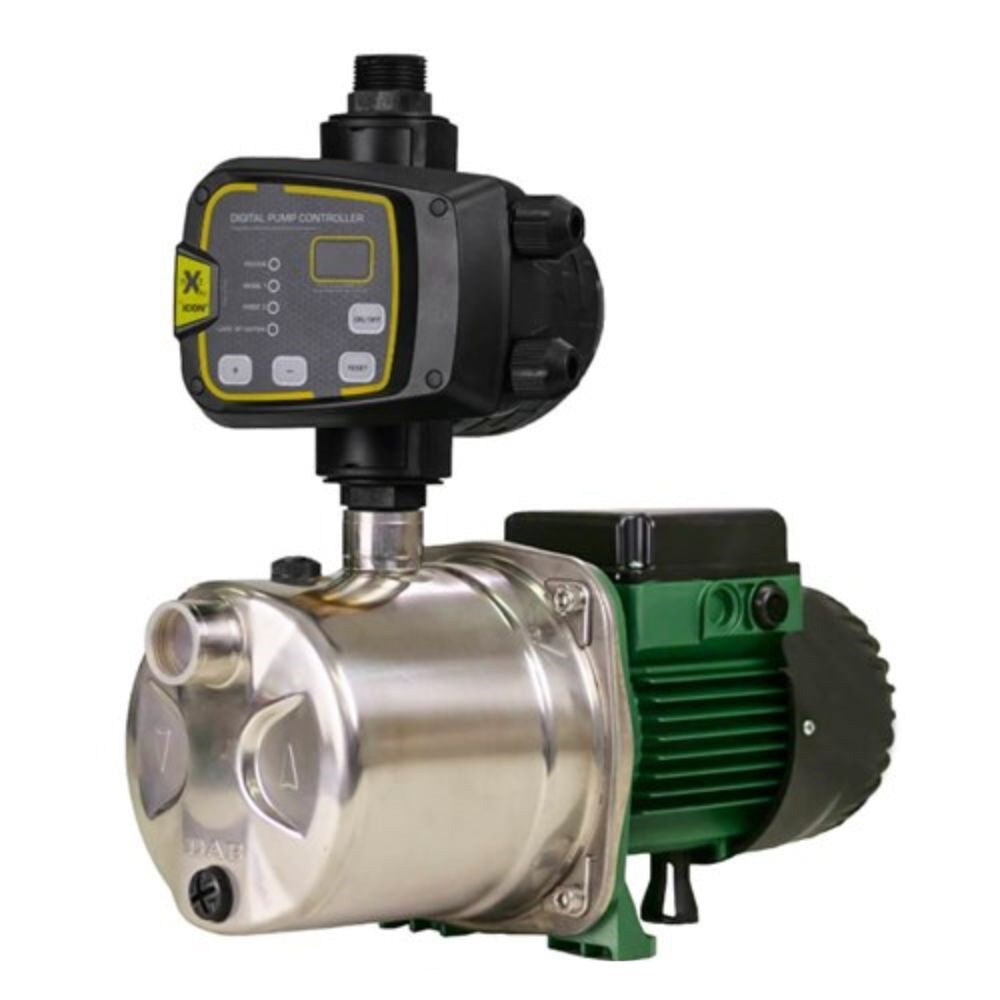

DAB Surface Mounted - Jet Pump

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

Technical Specifications

Pump Model	DAB-JINOX62NXTP	DAB-JINOX82NXTP	DAB-JINOX102NXTP	DAB-JINOX112NXTP	DAB-JINOX132NXTP
Brand	DAB Pumps	DAB Pumps	DAB Pumps	DAB Pumps	DAB Pumps
Product Type	Pressure System	Pressure System	Pressure System	Pressure System	Pressure System
Suitable For	Clean Water	Clean Water	Clean Water	Clean Water	Clean Water
Bar	4.1	4.6	5.3	6	4.7
Approval	Drinking Water Approval	Drinking Water Approval	Drinking Water Approval	Drinking Water Approval	Drinking Water Approval
Amps	3.12	3.8	5.1	6.2	6.6
Flow Range Category	a. 0 - 99 L/min	a. 0 - 99 L/min	a. 0 - 99 L/min	a. 0 - 99 L/min	a. 0 - 99 L/min
Flow Rate (L/min)	45	60	60	60	80
Float	No	No	No	No	No
Hp	0.6	0.8	1	1.36	1.36
kPa	411	460	527	597	470
Kilo Watts	0.44	0.6	0.75	1	1
Max Flow (L/min)	45	60	60	60	80
Head Range Category	b. 40 - 59 m	b. 40 - 59 m	b. 40 - 59 m	c. 60 - 99 m	b. 40 - 59 m
Max Head (m)	42	47	53.8	61	48
Port Size Inlet	1" BSPF inlet	1" BSPF inlet	1" BSPF inlet	1" BSPF inlet	1" BSPF inlet
Port Size Outlet	1" BSPM outlet	1" BSPM outlet	1" BSPM outlet	1" BSPM outlet	1" BSPM outlet
Powered	Electric	Electric	Electric	Electric	Electric
Taps	4	6	6	6	8
Warranty (months)	24	24	24	24	24
Volts	240	240	240	240	240
Watts	440	600	750	1000	1000

Warranty

2 Year DAB Pumps Warranty

Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features

Digital display gives you a real time indication of system pressure
Anti-cycle Protection
Dry run protection with auto restart function that tests for water availability every 24hrs
Anti-seize function if pump has not operated for last 24 hours
Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip
Complies to AS/NZ 4020 drinking water standard
Over pressure protection turns pump off when 10 bar is reached
Overload protection

Controller Modes

Two operational modes:

Mode One - Adjustable cut in pressure setting.
- Controller stops pump when flow drops.
Mode Two - Adjustable cut in and cut out pressure.
- Shut down governed by pressure. Requires pressure tank.

Drinking Water Approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, wont support the growth of micro-organisms and wont change the taste or appearance of your water

The product image shown is for illustration purpose only

Estimated Delivery Time Frame:7-14 business days
