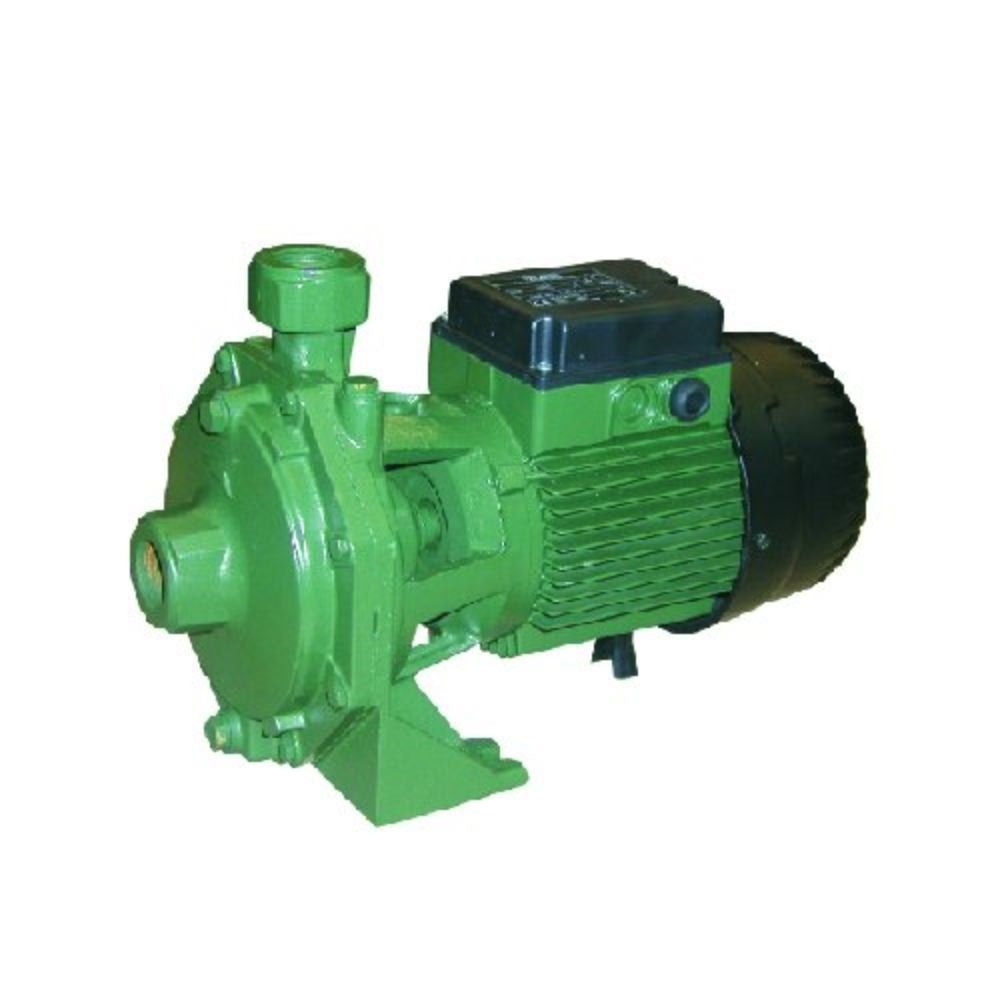

Twin Impeller Centrifugal Pumps Ideal for rivers, tanks, dams and water transfer applications.
Technical Specifications
|
Pump Model |
DAB-K35-40M |
DAB-K45-50M |
DAB-K45-50T |
DAB-K55-50M |
|
Brand |
DAB Pumps |
DAB Pumps |
DAB Pumps |
DAB Pumps |
|
Product Type |
Twin Impeller Cast Iron Pump |
Twin Impeller Cast Iron Pump |
Twin Impeller Cast Iron Pump |
Twin Impeller Cast Iron Pump |
|
Suitable For |
Water Transfer |
Water Transfer |
Water Transfer |
Water Transfer |
|
Bar |
4.35 Bar |
5.1 Bar |
5.1 Bar |
6.2 Bar |
|
Flow Range Category |
a. 0 - 99 L/min |
b. 100 - 199 L/min |
b. 100 - 199 L/min |
b. 100 - 199 L/min |
|
Flow Rate (L/min) |
92 L/min |
110 L/min |
110 L/min |
110 L/min |
|
Hp |
1 Hp |
1.5 Hp |
1.5 Hp |
2.5 Hp |
|
kPa |
441 kPa |
517 kPa |
517 kPa |
628 kPa |
|
Kilo Watts |
0.75 kW |
1.1 kW |
1.1 kW |
1.85 kW |
|
Casing Material |
Cast Iron |
Cast Iron |
Cast Iron |
Cast Iron |
|
Head Range Category |
b. 40 - 59 m |
b. 40 - 59 m |
b. 40 - 59 m |
c. 60 - 99 m |
|
Max Head (m) |
43.5 m |
51 m |
51 m |
62 m |
|
Port Size Inlet |
1" BSPF inlet |
1 1/4" BSPF inlet |
1 1/4" BSPF inlet |
1 1/4" BSPF inlet |
|
Port Size Outlet |
1" BSPF outlet |
1" BSPF outlet |
1" BSPF outlet |
1" BSPF outlet |
|
Powered |
Electric |
Electric |
Electric |
Electric |
|
Warranty (months) |
24 Months |
24 Months |
24 Months |
240 V |
|
Volts |
240 V |
240 V |
415 V |
24 Months |
|
Watts |
750 W |
1100 W |
1100 W |
1850 W |
Â
|
Pump Model |
DAB-K55-50T |
DAB-K66-100T |
DAB-K90-100T |
DAB-K80-300T |
|
Brand |
DAB Pumps |
DAB Pumps |
DAB Pumps |
DAB Pumps |
|
Product Type |
Twin Impeller Cast Iron Pump |
Twin Impeller Cast Iron Pump |
Twin Impeller Cast Iron Pump |
Twin Impeller Cast Iron Pump |
|
Suitable For |
Water Transfer |
Water Transfer |
Water Transfer |
Water Transfer |
|
Bar |
6.2 Bar |
7.3 Bar |
8.35 Bar |
9.5 Bar |
|
Flow Range Category |
b. 100 - 199 L/min |
b. 100 - 199 L/min |
b. 100 - 199 L/min |
e. 400 - 499 L/min |
|
Flow Rate (L/min) |
110 L/min |
160 L/min |
160 L/min |
400 L/min |
|
Hp |
2.5 Hp |
4 Hp |
5.5 Hp |
10 Hp |
|
kPa |
628 kPa |
739 kPa |
846 kPa |
962 kPa |
|
Kilo Watts |
1.85 kW |
3 kW |
4 kW |
7.5 kW |
|
Casing Material |
Cast Iron |
Cast Iron |
Cast Iron |
Cast Iron |
|
Head Range Category |
c. 60 - 99 m |
c. 60 - 99 m |
c. 60 - 99 m |
c. 60 - 99 m |
|
Max Head (m) |
62 m |
73 m |
83.5 m |
95 m |
|
Port Size Inlet |
1 1/4" BSPF inlet |
1 1/2" BSPF inlet |
1 1/2" BSPF inlet |
2" BSPF inlet |
|
Port Size Outlet |
1" BSPF outlet |
1" BSPF outlet |
1" BSPF outlet |
1 1/4" BSPF outlet |
|
Powered |
Electric |
Electric |
Electric |
Electric |
|
Warranty (months) |
415 V |
415 V |
415 V |
415 V |
|
Volts |
24 Months |
24 Months |
24 Months |
24 Months |
|
Watts |
1850 W |
3000 W |
4000 W |
7500 W |
Â
Warranty
2 Year Dab Pumps Warranty
