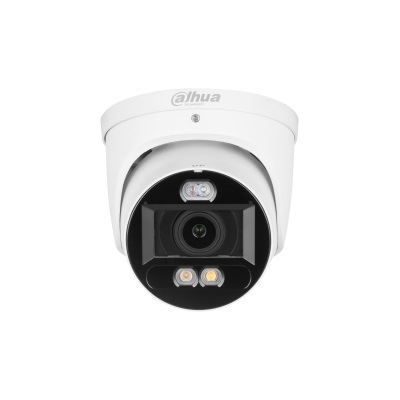

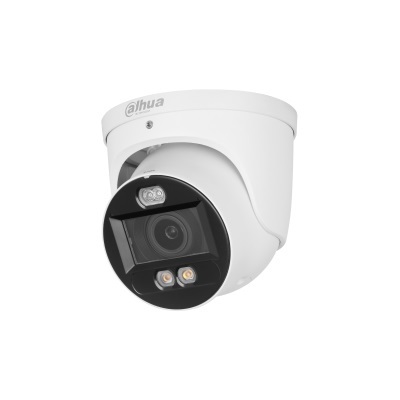

DAHUA DH-IPC-HDW3849H-ZAS-PV-ANZ WIZSENSE HDW3849H 8MP TIOC 2.0 S4 TURRET CAMERA, Motorized
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 650 Everyday Rewards points
Dispatch in 2 business days
Collect 650 Everyday Rewards points
Dispatch in 2 business days
8 MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
> 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-tap arming/disarming through alarm input.
Camera |
|||||
Image Sensor |
1/2.8" CMOS |
||||
Max. Resolution |
3840 (H) × 2160 (V) |
||||
ROM |
128 MB |
||||
RAM |
512 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
Min. Illumination |
0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
||||
S/N Ratio |
﹥ 56 dB |
||||
Illumination Distance |
Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (warm light) |
||||
Illuminator On/Off Control |
Auto; manual |
||||
Illuminator Number |
2 (IR LED) 2 (warm light) |
||||
Angle Adjustment |
Pan: 0°–360° |
||||
Lens |
|||||
Lens Type |
Motorized vari-focal |
||||
Mount Type |
φ16 |
||||
Focal Length |
2.7 mm–13.5 mm |
||||
Field of View |
H: 108°–34° V: 56°–19° D: 130°–39° |
||||
Iris Type |
Fixed |
||||
Close Focus Distance |
1.5 m (4.92 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
W |
89.9 m (294.95 ft) |
36.0 m (118.11 ft) |
18.0 m (59.06 ft) |
9.0 m (29.53 ft) |
|
T |
257.4 m (844.49 ft) |
103.0 m (337.93 ft) |
51.5 m (168.96 ft) |
25.7 m (84.32 ft) |
|
Intelligent |
|||||
IVS (Perimeter Protection) |
Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) |
||||
SMD 4.0 |
Less false alarm, longer detection distance |
||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
||||
Quick Pick |
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
||||
AI SSA |
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
||||
Video |
|||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
||||
Smart Codec |
Smart H.265+; Smart H.264+ |
||||
AI Coding |
AI H.265; AI H.264 |
||||
Video Frame Rate |
Main stream: 3840 × 2160@(1 fps–30 fps) |
||||
Stream Capability |
3 streams |
||||
Resolution |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
Bit Rate Control |
CBR/VBR |
||||
Video Bit Rate |
H.264: 32 kbps–16384 kbps H.265: 32 kbps–16384 kbps |
||||
Day/Night |
Auto (ICR)/Color/B/W |
||||
BLC |
Yes |
||||
HLC |
Yes |
||||
WDR |
120 dB |
||||
Scene Self-adaptation |
Yes |
||||
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
Gain Control |
Auto; manual |
||||
Noise Reduction |
3D NR |
||||
Motion Detection |
OFF/ON (4 areas) |
||||
Region of Interest (RoI) |
Yes (4 areas) |
||||
Image Stabilization |
Electronic Image Stabilization (EIS) |
||||
Smart Illumination |
Yes |
||||
Defog |
Yes |
||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
||||
Mirror |
Yes |
||||
Privacy Masking |
4 areas |
||||
Audio |
|||||
Built-in MIC |
Yes, built-in dual Mic |
||||
Built-in speaker |
Yes, built-in speaker |
||||
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
||||
Alarm |
|||||
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception |
||||
Network |
|||||
Network |
RJ-45 (10/100 Base-T) |
||||
SDK and API |
Yes |
||||
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI |
||||
User/Host |
20 (Total bandwidth: 72 M) |
||||
Storage |
FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
||||
Browser |
IE: IE8/9/11 |
||||
Management Software |
SmartPSS Lite; DSS; DMSS |
||||
Mobile Phone |
iOS; Android |
||||
Certification |
|||||
Certification |
CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
||||
Port |
|||||
Audio Input |
1 channel (RCA port) |
||||
Audio Output |
1 channel (RCA port) |
||||
Alarm Input |
1 channel in: wet contact, 5 mA 3 V–5 VDC |
||||
Alarm Output |
1 channel out: wet contact, 300 mA 12 VDC |
||||
Power |
|||||
Power Supply |
12 VDC/PoE (802.3af) |
||||
Power Consumption |
Basic: 4.8 W (12 VDC); 6 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 8.5 W (DC12 V) 11.6 W (POE) |
||||
Environment |
|||||
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||
Operating Humidity |
≤95% |
||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
Storage Humidity |
≤95% |
||||
Protection Grade |
IP67 |
||||
Structure |
|||||
Casing |
Metal |
||||
Dimensions |
127.6 mm × Φ122.0 mm (5.02" × Φ4.80") |
||||
Net Weight |
885 g (2.0 lb) |
||||
Gross Weight |
1060 g (2.3 lb) |
Manufacturer Warranty: 3 Years Manufacturer Warranty
SKU: IPC-HDW3849H-ZAS-PV-ANZ
