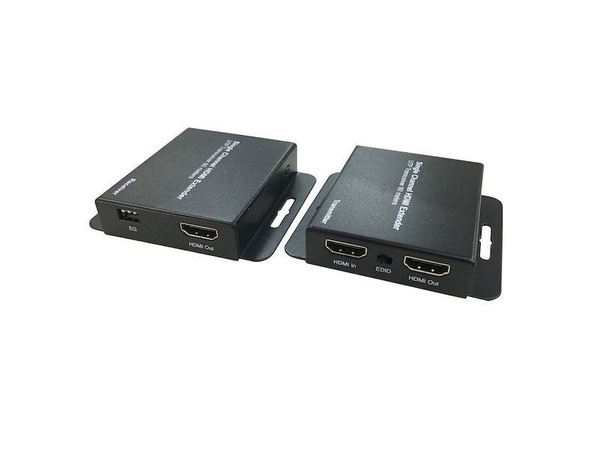

DAHUA PFM700-E PFM700-E HDMI EXTENDER

Image 1
Image 2
Hurry! 10 items left!
$129.28

Collect 129 Everyday Rewards points

Log in to MyDeal to link your card
$12.99 Australia-wide (per-item)
Sold & shipped by Tech Gate Australia
Secure ways to pay at checkout

Popular Products

PFM700-E

HDMI Extender

> Power supply: Input voltage DC5V, only supply for transmitter.
> Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
> Transmission distance: HDMI transmission distance 50m (max.164ft), with CAT6 of pure copper cable(DC impedance is less than 9.5 ohm for every 100 meters(328ft)).
> Infrared function: support to transmit one-way infrared remote control signal.
> Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID.
> Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
> Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install.


Specifications:

Model
PFM700-E
Properties
Transmission Signal
1channel HDMI
Transmission Distance
50m (max.164ft), with CAT6 of pure copper cable (DC impedance is less
than 9.5 ohm for every 100 meters (328ft)).
Video Transmission Properties
Video Signal Input Interface
HDMI interface
Video Input Port
HDMI interface
Twisted-pair Video Transmission Port
RJ45 port
Input Voltage
DC5V
Power
TX<3W, RX<3W
HDCP Version
Support HDCP1.2
HDMI Version
Support 1.3 and lower version
Resolution Output Signal
Resolution
1080P/1080I/720P/576P/576I/480P/480I
Output Voltage
0.5~1.5Vp-p
Impedance
ESD
±6KV(contact discharge)
±8KV(air discharge)
Per: IEC61000-4-2 1995(GB/T 17626.5)
Anti-thunder
±2KV(common mode), ±1KV(differential mode)
Per: IEC61000-4-5 1995(GB/T 17626.5)
Stability
MTBF
>5000h
Physical Properties
Dimension(L*W*H)
Transmitter: 79.5mmx68mmx16.5mm(port length included)
(3.13”x2.68”x0.65”)
Receiver: 79.5mmx68mmx16.5mm(3.13”x2.68”x0.65”)
Shell
Iron
Color
Black
N.W.
Transmitter: 133g(0.29lb)
Receiver: 133g(0.29lb)
Environmental
Working Temperature
-10℃~55℃(14℉~131℉)
Storage Temperature
-20℃~80℃(-4℉~176℉)
Humidity
0~95%(non-condensing)
Certification
Certification
CE/FCC


Manufacturer Warranty: 1 Year Manufacturer Warranty

SKU: PFM700-E

Estimated Delivery Time Frame:3 - 10 business days
