DAHUA WIZMIND DH-IPC-HUM8441-E1-L3 4MP COVE RT PINHOLE CAMERA KIT, FIXED 2.8MM
,gravity=Center,allowExpansion)
Collect 727 Everyday Rewards points
Dispatch in 24-48 hours
Collect 727 Everyday Rewards points
Dispatch in 24-48 hours

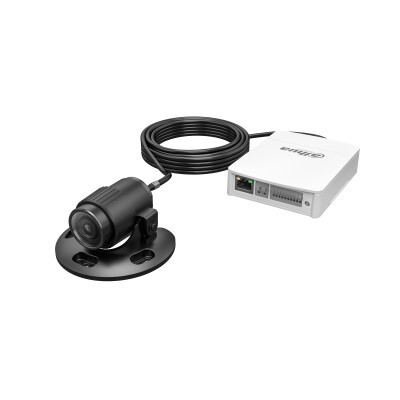

4MP Covert Pinhole Network Camera-KIT
Starlight 4MP 1/2.7″ CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 4MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression ratio, and ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and face detection.
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card space warning, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.
> 12V DC/PoE power supply facilitates installation.
> Power on after connecting the lens to the back-end device; otherwise the device might be damaged.
Camera |
|||||
Image Sensor |
1/2.7" CMOS |
||||
Max. Resolution |
2688 (H) × 1520 (V) |
||||
ROM |
128 MB |
||||
RAM |
1 GB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
Min. Illumination |
0.002 lux@F1.6 (Color, 30 IRE) |
||||
S/N Ratio |
>56 dB |
||||
Lens |
|||||
Lens Type |
Fixed-focal |
||||
Lens Mount |
M12 |
||||
Focal Length |
2.8 mm |
||||
Max. Aperture |
F1.6 |
||||
Field of View |
H: 102°; V: 54°; D: 121° |
||||
Iris Control |
Fixed |
||||
Close Focus Distance |
1.1 m (3.60 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
63.6 m |
25.4 m |
12.7 m |
6.4 m (21.00 ft) |
|
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||
Intelligence |
|||||
IVS (Perimeter Protection) |
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
||||
Smart Object Detection |
Smart abandoned object; smart missing object |
||||
Face Detection |
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||
Video |
|||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
||||
Smart Codec |
Smart H.265+;Smart H.264+ |
||||
Video Frame Rate |
Main stream: 2688 × 1520 @(1–25/30 fps ) |
||||
Stream Capability |
3 streams |
||||
Resolution |
4M (2688 × 1520); 3.6M (2056 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
Bit Rate Control |
CBR/VBR |
||||
Video Bit Rate |
H.264: 3 kbps–20480 kbps; |
||||
Day/Night |
Color/B/W |
||||
BLC |
Yes |
||||
HLC |
Yes |
||||
WDR |
120 dB |
||||
Scene Self-adaptation (SSA) |
Yes |
||||
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
Gain Control |
Auto;Manual |
||||
Noise Reduction |
3D NR |
||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
Region of Interest (RoI) |
Yes (4 areas) |
||||
Defog |
Yes |
||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) |
||||
Mirror |
Yes |
||||
Privacy Masking |
8 areas |
||||
Audio |
|||||
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723; PCM |
||||
Alarm |
|||||
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; security exception |
||||
Network |
|||||
Network Port |
RJ-45 (10/100 Base-T) |
||||
SDK and API |
Yes |
||||
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
||||
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
||||
User/Host |
20 (Total bandwidth: 64 M) |
||||
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
||||
Browser |
IE |
||||
Management Software |
Smart PSS; DSS; DMSS |
||||
Mobile Client |
iOS; Android |
||||
Certification |
|||||
Certifications |
CE-LVD: EN62368-1; |
||||
Port |
|||||
Audio Input |
1 channel (3.5mm JACK port) |
||||
Audio Output |
1 channel (3.5mm JACK port) |
||||
Alarm Input |
2 channels in: 5mA 3V–5V DC |
||||
Alarm Output |
2 channels out: max. 1,000 mA 30 VDC/max. 500 mA 50 VAC |
||||
Power |
|||||
Power Supply |
12 VDC/PoE (802.3af) |
||||
Dual Power Backup |
When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
||||
Power Consumption |
Basic: 2.6 W (12 VDC); 3.7 W (PoE) |
||||
Environment |
|||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
Operating Humidity |
≤95% |
||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
Protection |
IP67 (L3) |
||||
Structure |
|||||
Casing |
Metal |
||||
Product Dimensions |
E1: 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") |
||||
Net Weight |
554 g (1.22 lb) |
||||
Gross Weight |
724 g (1.60 lb) |
Manufacturer Warranty: 3 Years Manufacturer Warranty
GTIN: 6923169703657
