DBPC946B Dual Beam Photoelectric Sensor Digital Pulse Beam 8 Sections Digital Frequency Conversion

Image 1
Image 2
Image 3
Image 4
Hurry! 16 items left!
$136

Collect 136 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

Secure your land and get alerted when anything passes theline! With this Dual-Beam Photoelectric Sensor you will be able to set up a security line and hear a warning sound if any movements are detected. Capable for both indoor and outdoor use. Now with digital display!

Features
  • Wired/BUS compatible, 8 digital frequency range.
  • Dynamic frequency analysis
  • Intelligent alarm linkage links alarm to your existingsecurity system

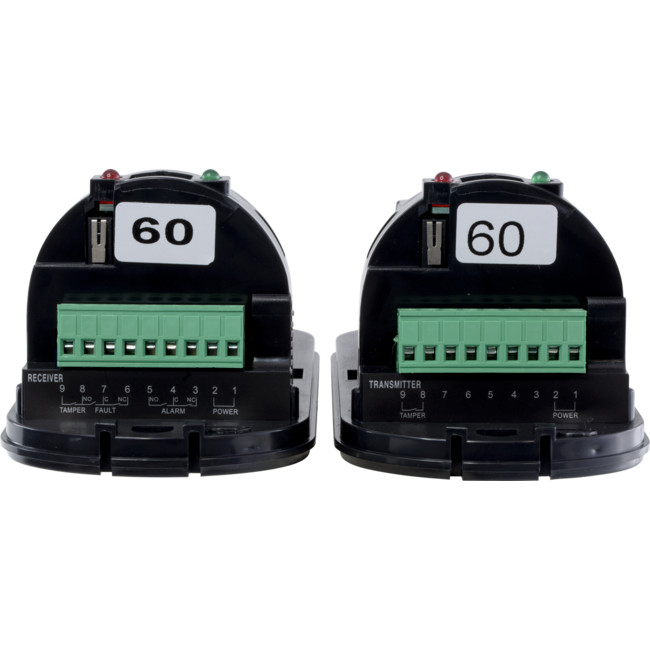

  • Tamper, fault and alarm contact outputs
  • Powerful sensor signal transmission with anti-fog design for the sensors.
  • Adopt coaxial aspherical dual optical focusing lens.
  • Digital display BUS address, signal strength and working frequency.
  • Blocking time adjustment for specific target movement rate detection.
  • Protection range up to 90-180m (Indoor)/ 30-60m (Outdoor)
  • Comes with post mounting kit(Diameter 25 to 40mm approx): Screws, mounting plate and mounting saddle.
Specifications
Model DBPC946B
Alert Distance Outdoor 60m
Alert Distance Indoor 180m
Number Of Beams 2
Detection Mode 2 Beams blocked simultaneous
Optical Source Infrared digital pulse beam
Response Time 50-240ms (Adjustable without degree)
Power Supply DC12-24V 15W
Alarm Output Relay contact output NO. NC contact rating AC/DC 30V30mA Max
Trouble Output Relay contact output NC contact rating AC/DC 30V 30mA Max
Tamper Output Relay contact output NC contact rating DC24V 0.5A Max
Operation Temperature −25°C-55°C_
Operation Humidity 5%-95%

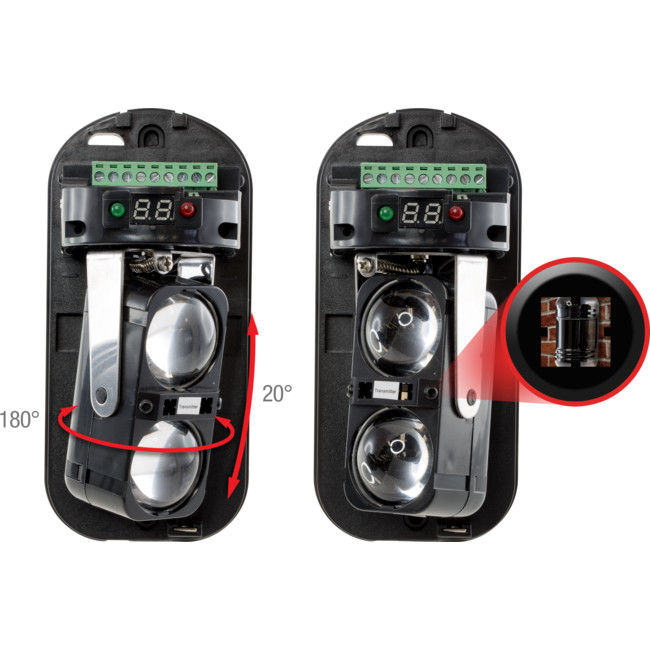

Optical axis(Horizontal) 180°(Default position±90°)
Optical axis (Vertical) 20°(Default position±10°)
Material P C resin
Net Weight 430g (Receiver+ Transmitter)
Gross Weight 790g

Weight: 1.052
