DC 12V 2 Channel DB9 Female RS232 UART Remote Control Switch Board

Image 1
Image 2
Image 3
Image 4
Image 5
$29.51

Collect 29 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Secure ways to pay at checkout
Description:

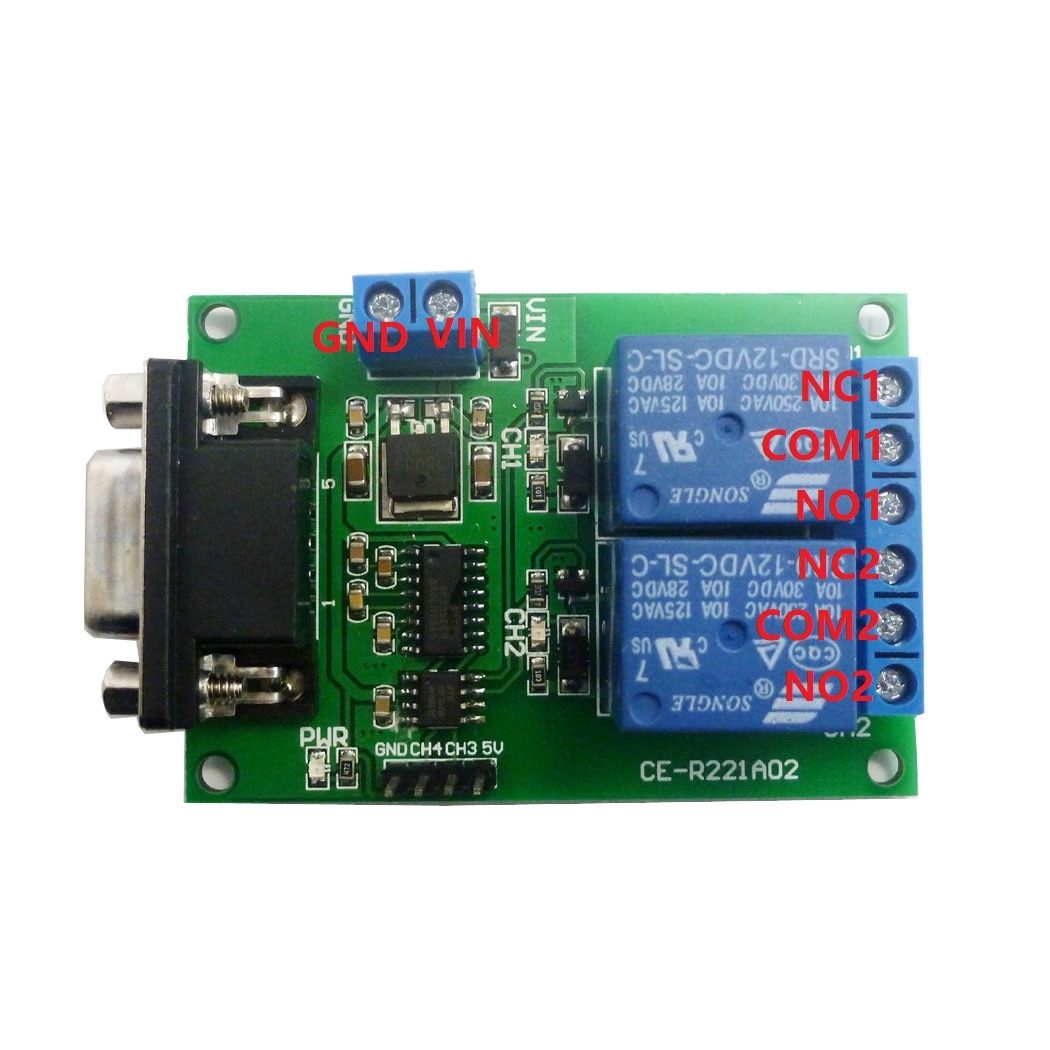

2 Channel DB9(Female )RS232 Relay Module;
Power input: DC 12V(8.5-13.5V).
PC Serial ports RS232 Control Relay;
Power indicator : LED lights;
Output indication : relay output with LED indicators,easy to see working status of the relay;
Communication protocol: UART protocol communication, baud rate 9600kpbs, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes. Two-way data transmission.
Baud rate 9600kbps, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes.
PCB Size : 71x47mm

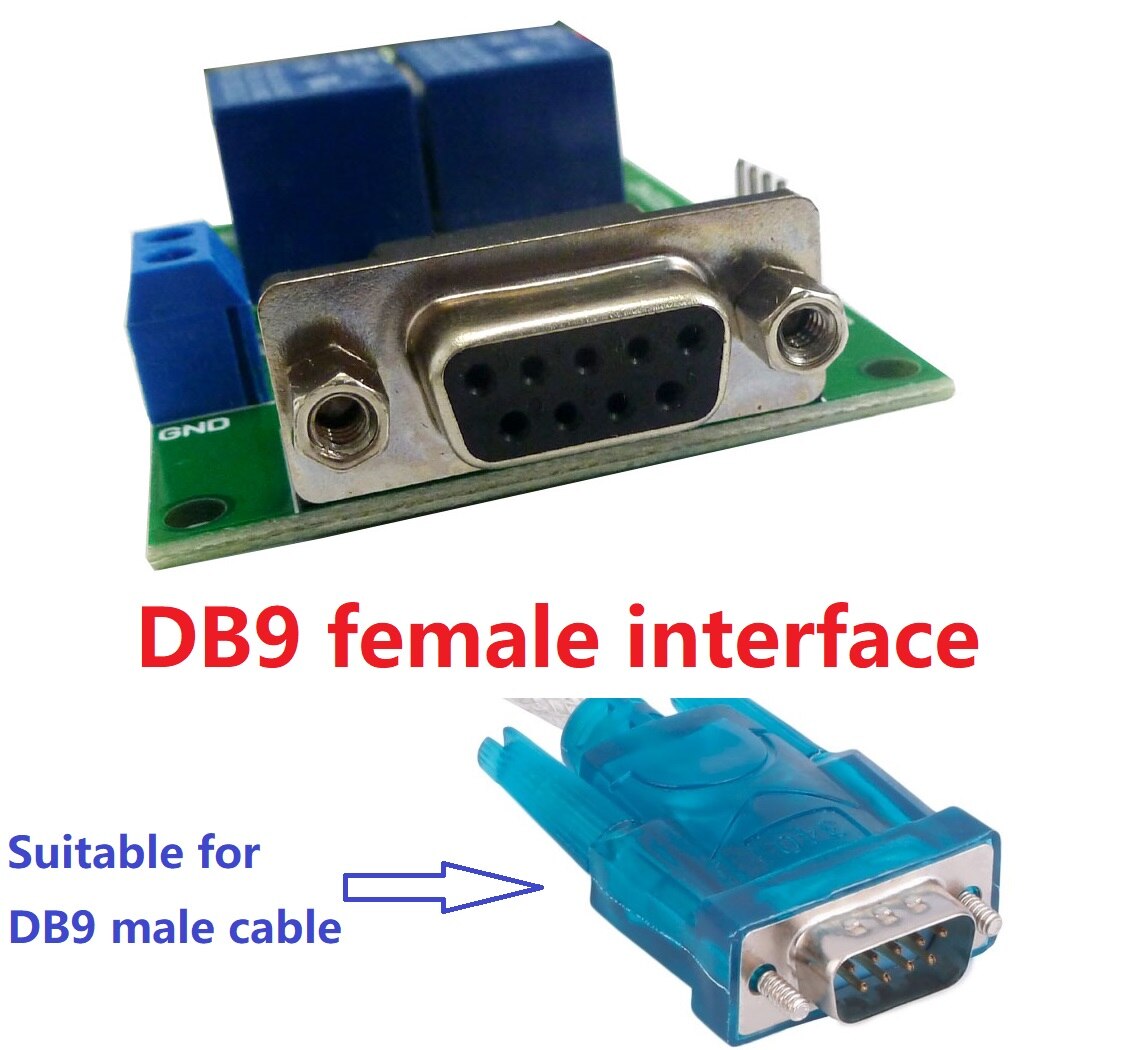

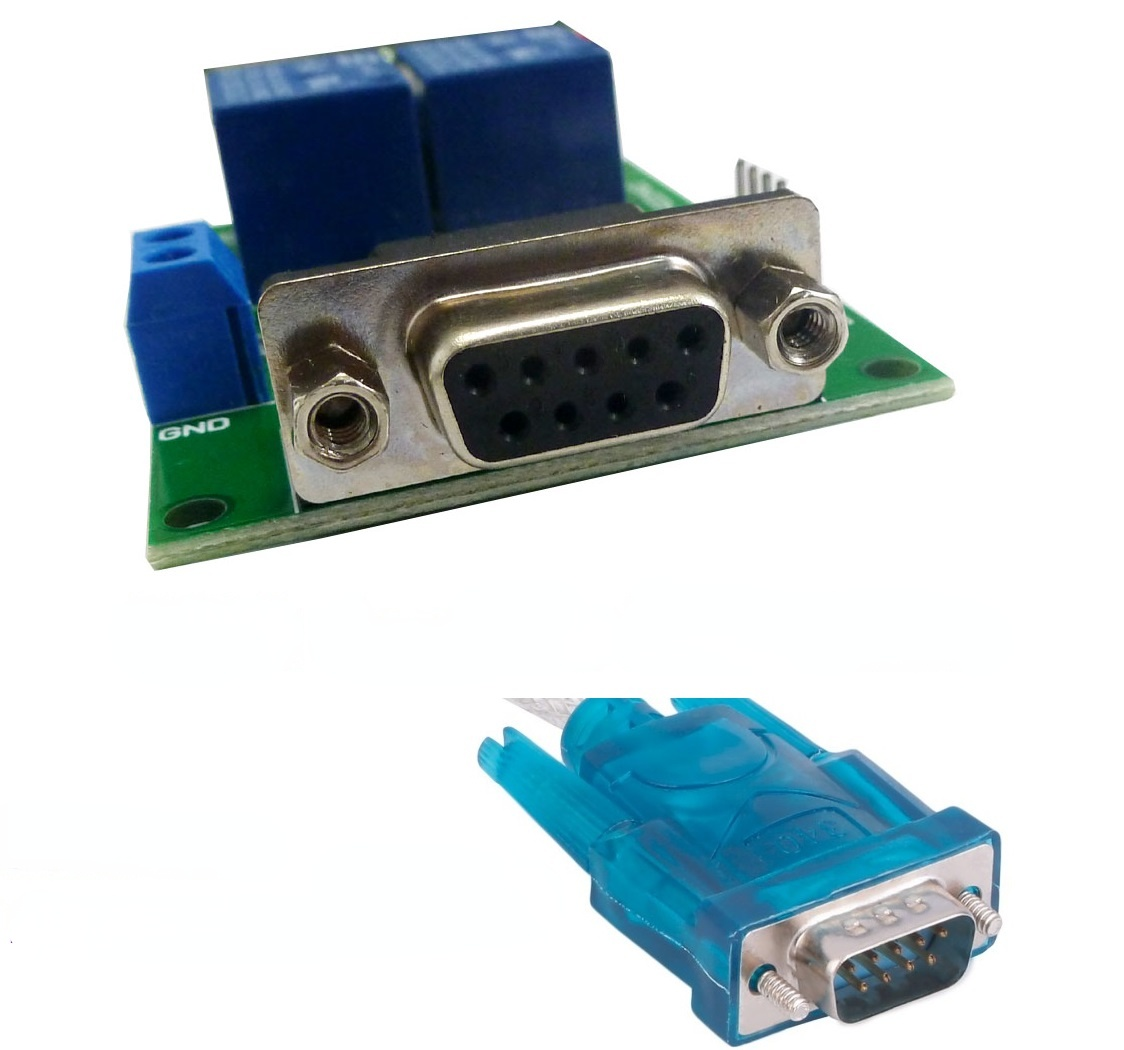

Note: There are two types of DB9 interfaces. Please choose the correct DB9 interface.

Application??

Remote control, remote measurement system;
Wireless meter;
Smart Home,Home Automation ,Wiser Home;
Access control;
Identification system;
Data collection;
IT household appliance;
Intelligence household appliance;
Baby monitoring system;

Package inlcuded:1xDC 12V 2Ch RS232 Relay Board(DB9 Female)

GTIN: 774048926614

Estimated Delivery Time Frame:12-20 business days
