DC 12V 2A Bistable Self-locking Relay Module for LED Motor Solenoid valve-2#

DC 12V 2A Bistable Self-locking Relay Module for LED Motor Solenoid valve-2#

Be the first to review this product

Price	$24.21
	Earn 3x points and collect 72 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/05/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code UMYBF

Quantity

Add to wishlist

Description:

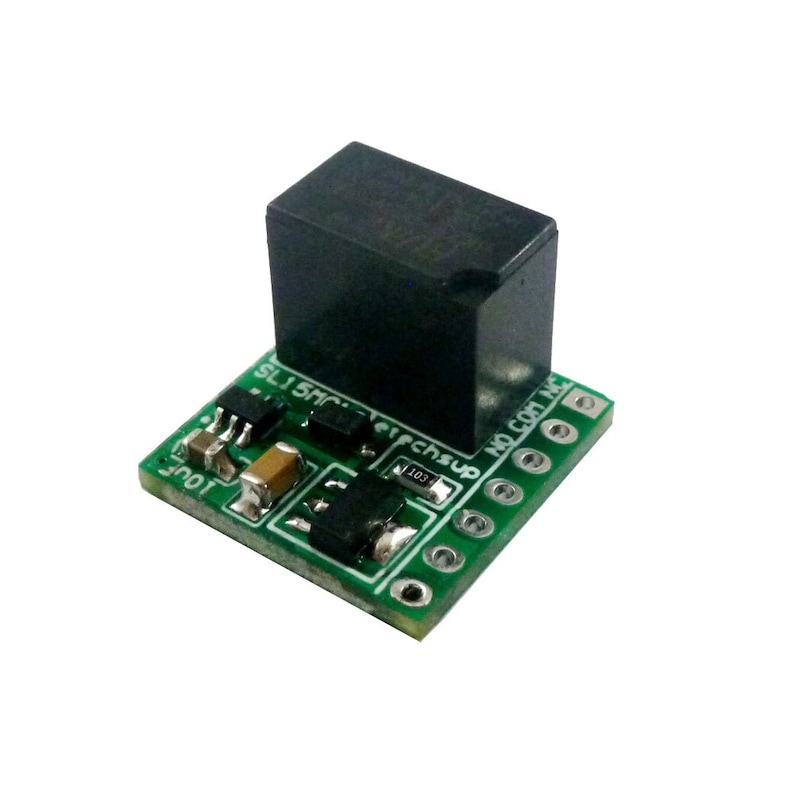

Ultra-small size self-locking relay module,Switching sound is low
Working voltage: DC 7-24V
Working current: 18-20MA
Standby current: 3UA
Load current : AC 120V/2A, DC 24V/2A
Trigger mode: Low pulse trigger

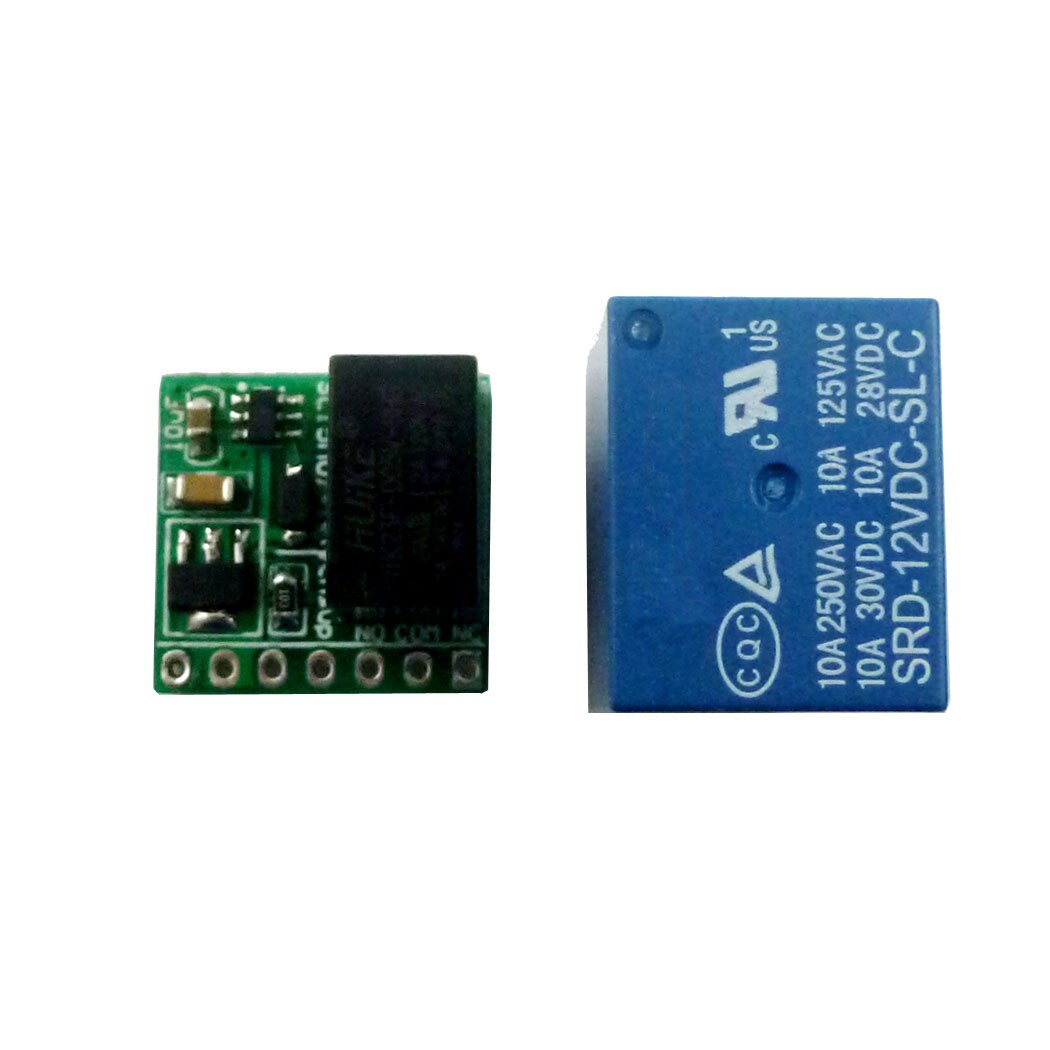

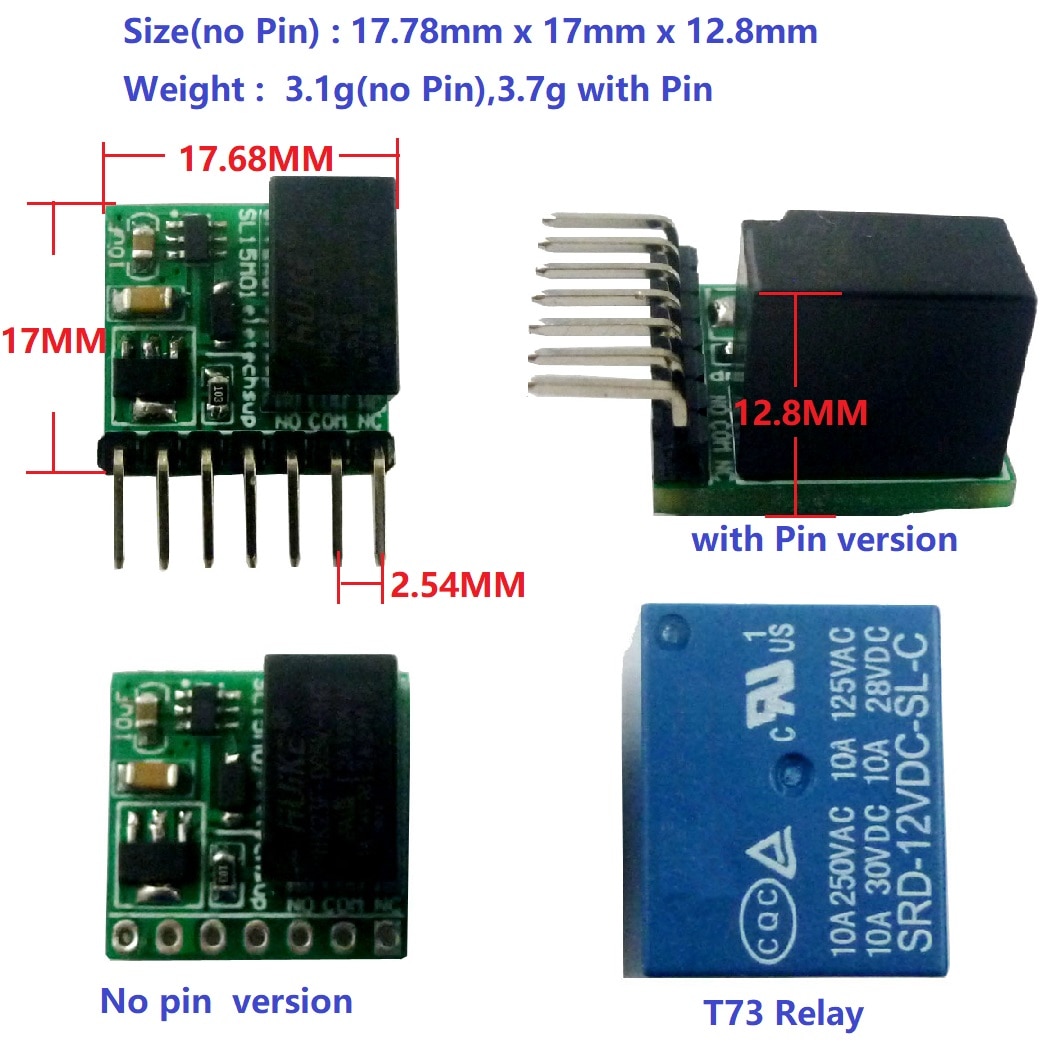

Size(no Pin) : 17.78mm x 17mm x 12.8mm(Ultra-small size)
Weight :? 3.1g(no Pin)

This is a bistable (self-locking) relay mini size module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

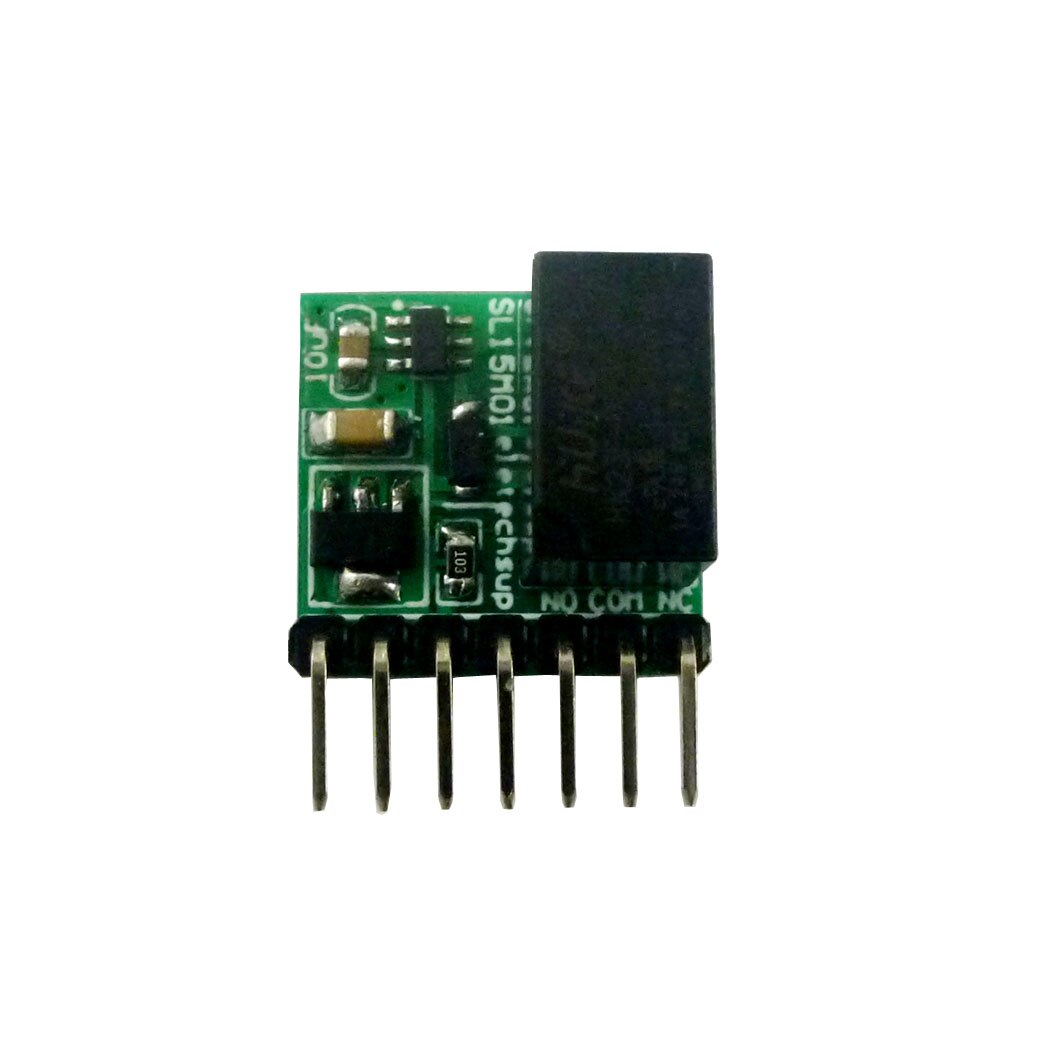

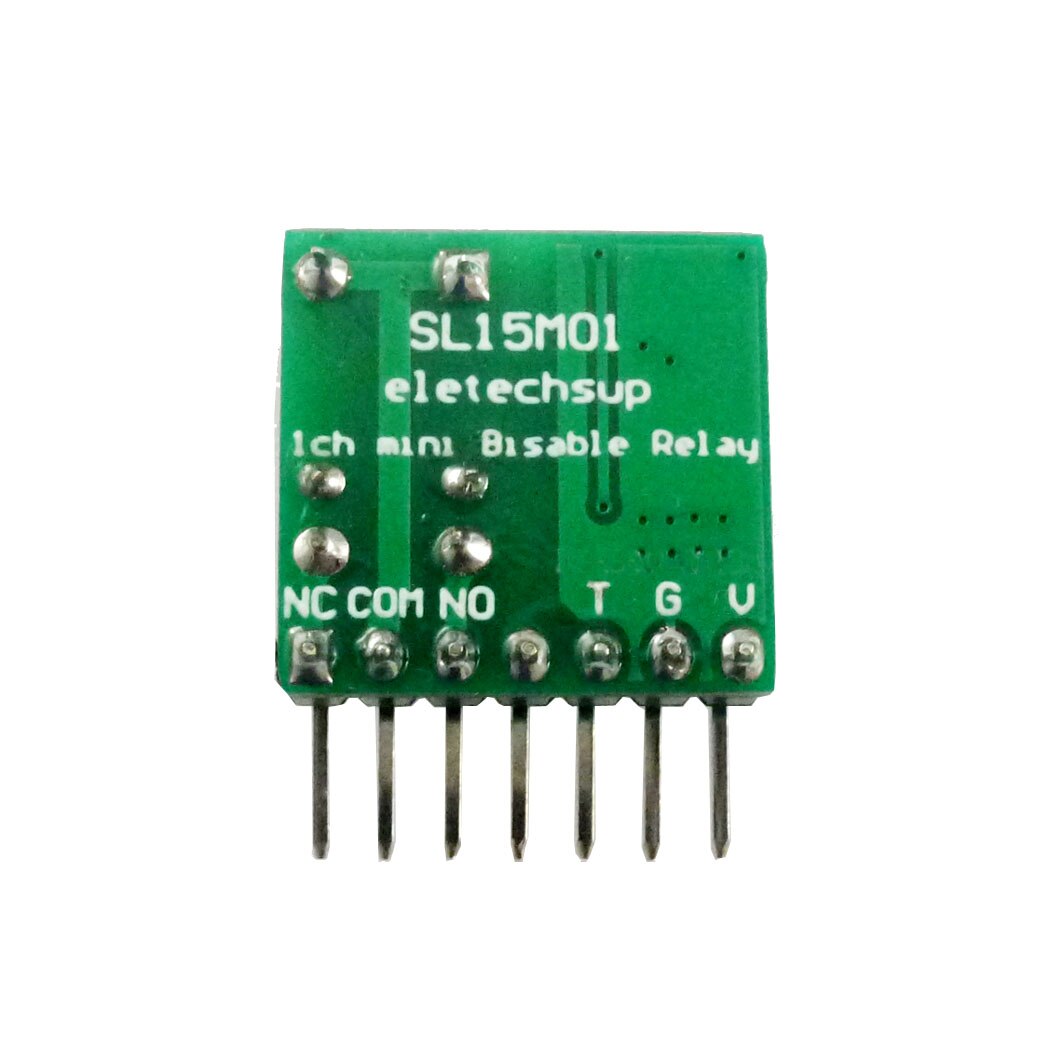

Module interface:

1. V : positive power supply (VCC)
2. G : negative power supply (GND)
3. T? : Low pulse trigger(Momentary switch or MCU IO control)

Relay outputs:

1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

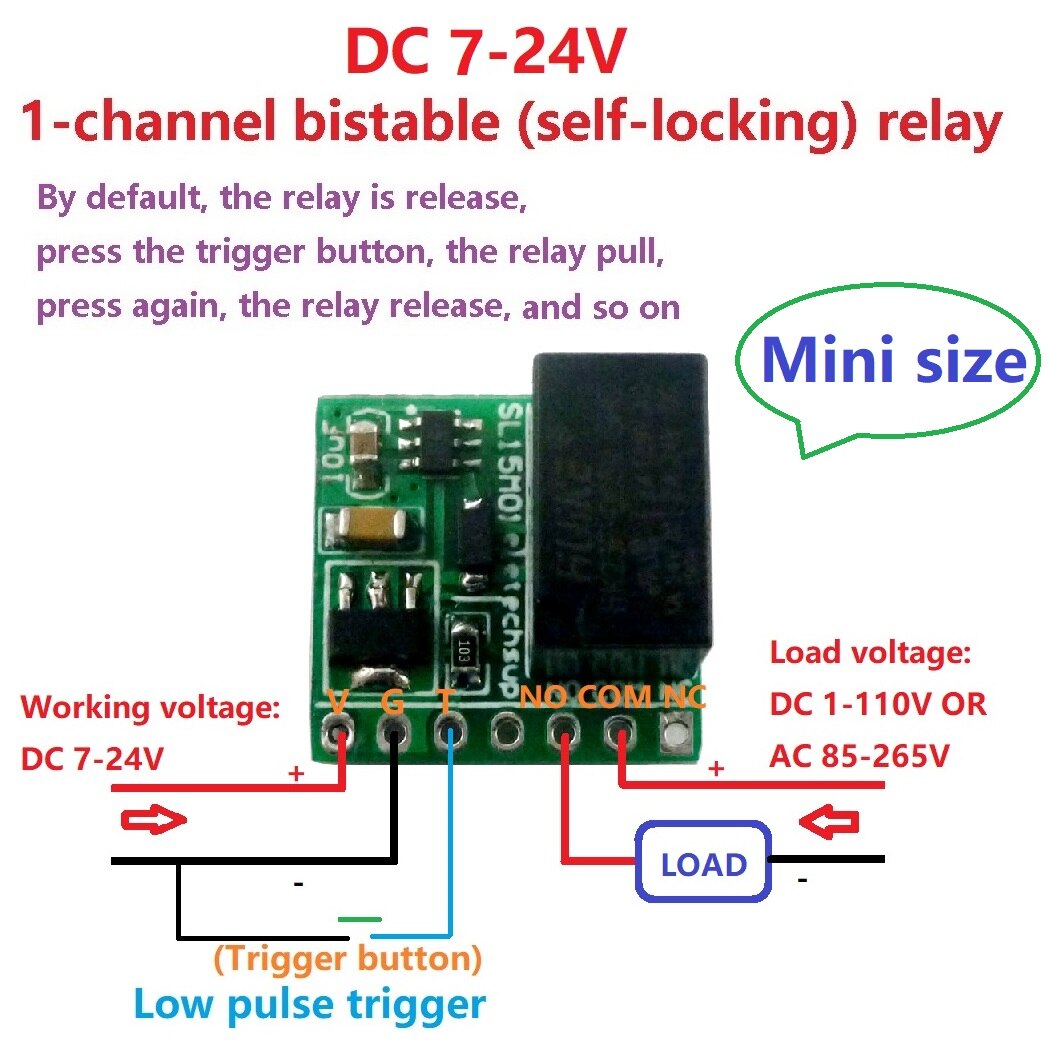

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

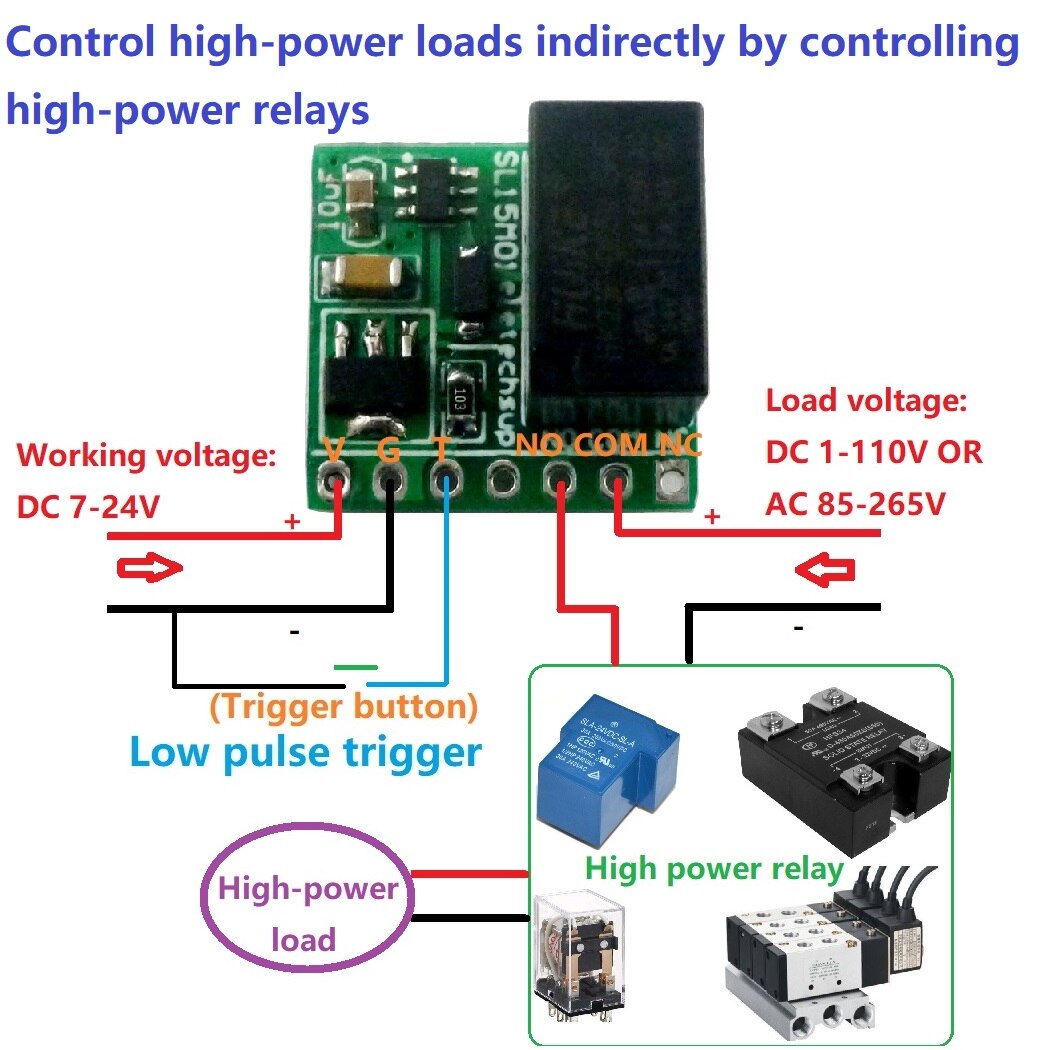

Typical applications:

Automotive electronics
Industrial equipment
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
Model airplane

Packing list:1 pcs1 ChannelminiDC7-24VSelf-lockingRelay Module
