Collect 45 Everyday Rewards points
Dispatch in 2 business days

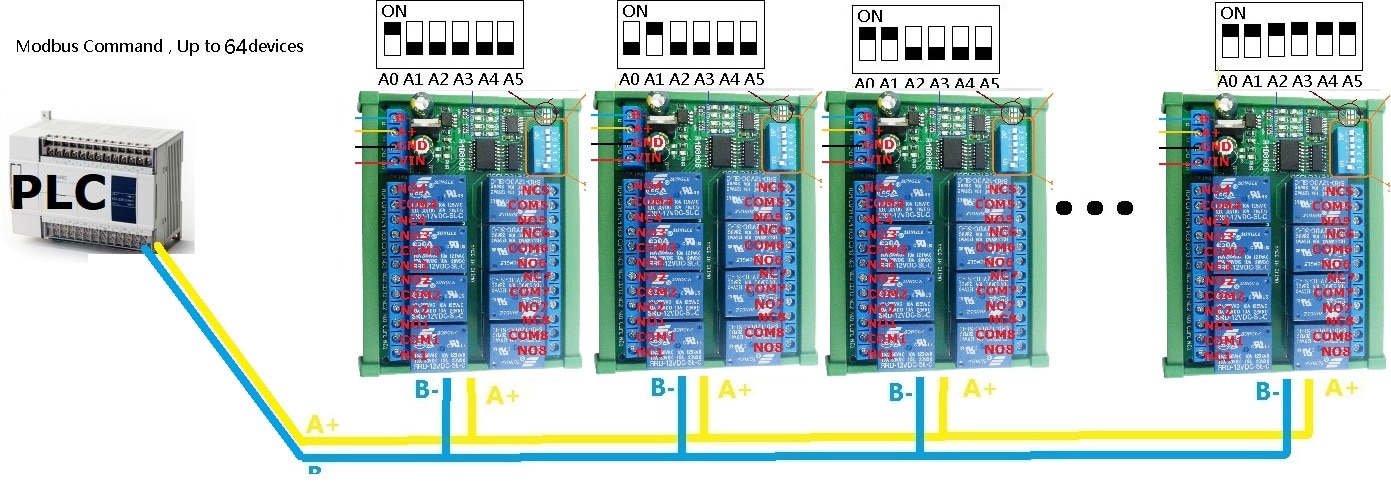

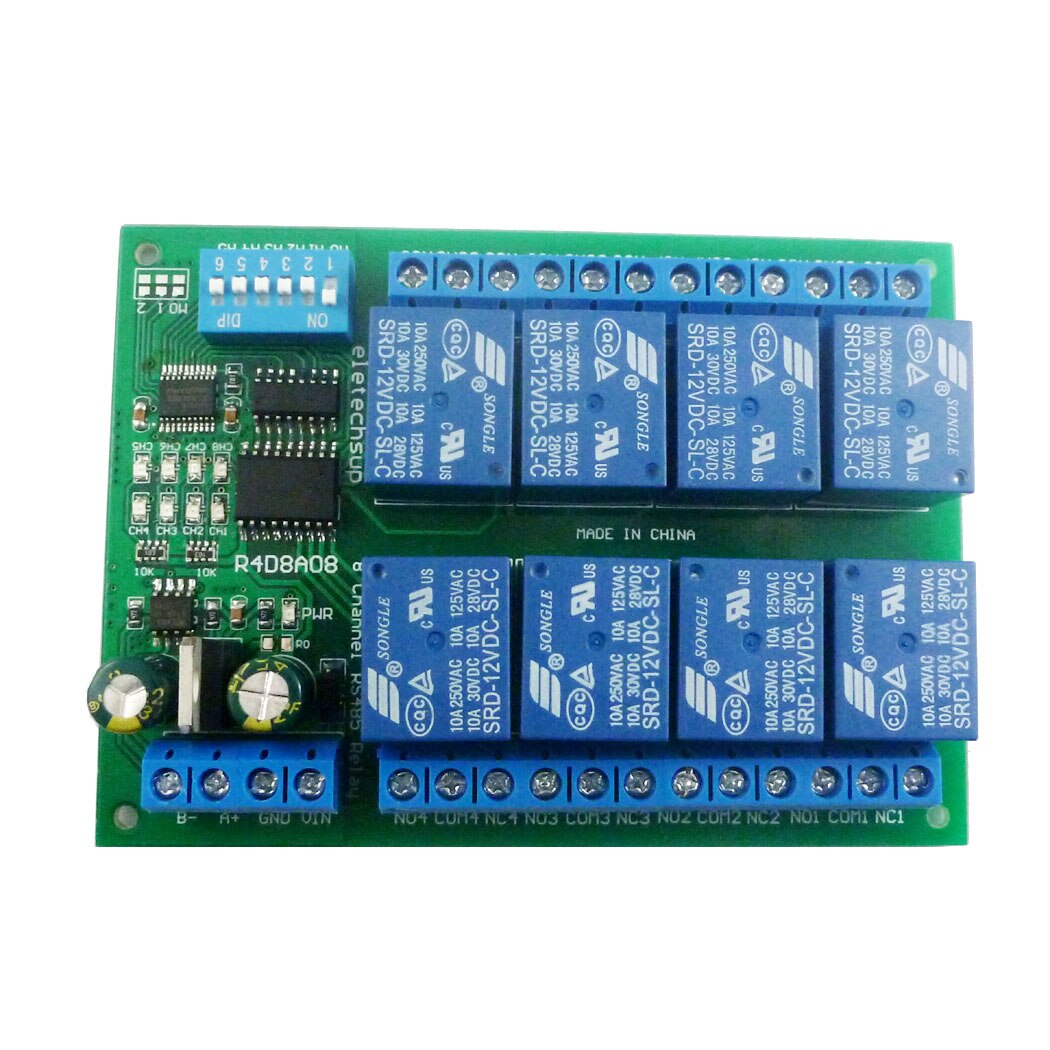

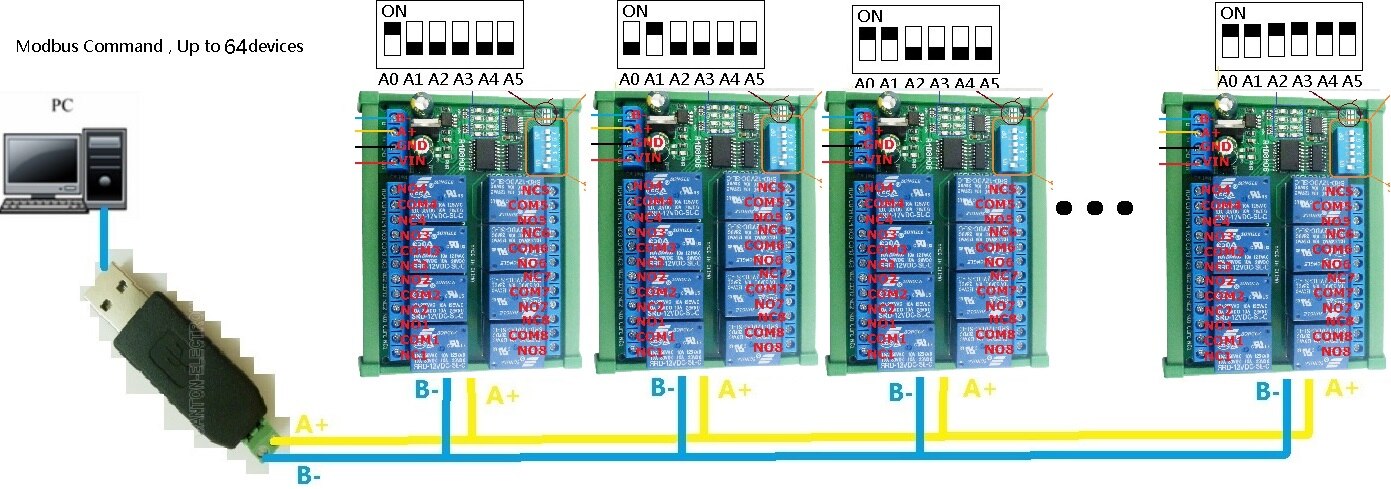

| Description: 1: DC 12V power supply 2: Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 68MA, 3 relays open 94MA,4 relays open 122MA,5 relays open 148MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 224MA 3: ''open'' ''close''? ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands 4: Two instruction-control mode : MODBUS RTU command and AT command 5: Under the ''Delay'' command ,the maximum delay is 255 seconds; Under the AT command ,the maximum delay is 9999 seconds 6 MODBUS commands can be made serial HyperTerminal (serial assistant)? OR ''Modbus Poll'' Enter; AT commands can be made serial HyperTerminal (serial assistant) Enter; 7 Under the MODBUS command mode, it can support up to 64 devices in parallel 8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS 9? Size: 100 * 72 * 20mm(Only PCB Board) 10 Weight: 120g(Only PCB Board) 11 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC DIN rail Box parameters: Product model: UM72 Color: green Width: suitable for PCB board width UM72(72mm) Insulation grade: flame-retardant VO grade Backplane length: suitable for 100 mm PCB boards Net weight: 72g Installation: DIN35 and C45 rail |
GTIN: 774048924115
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7040008
