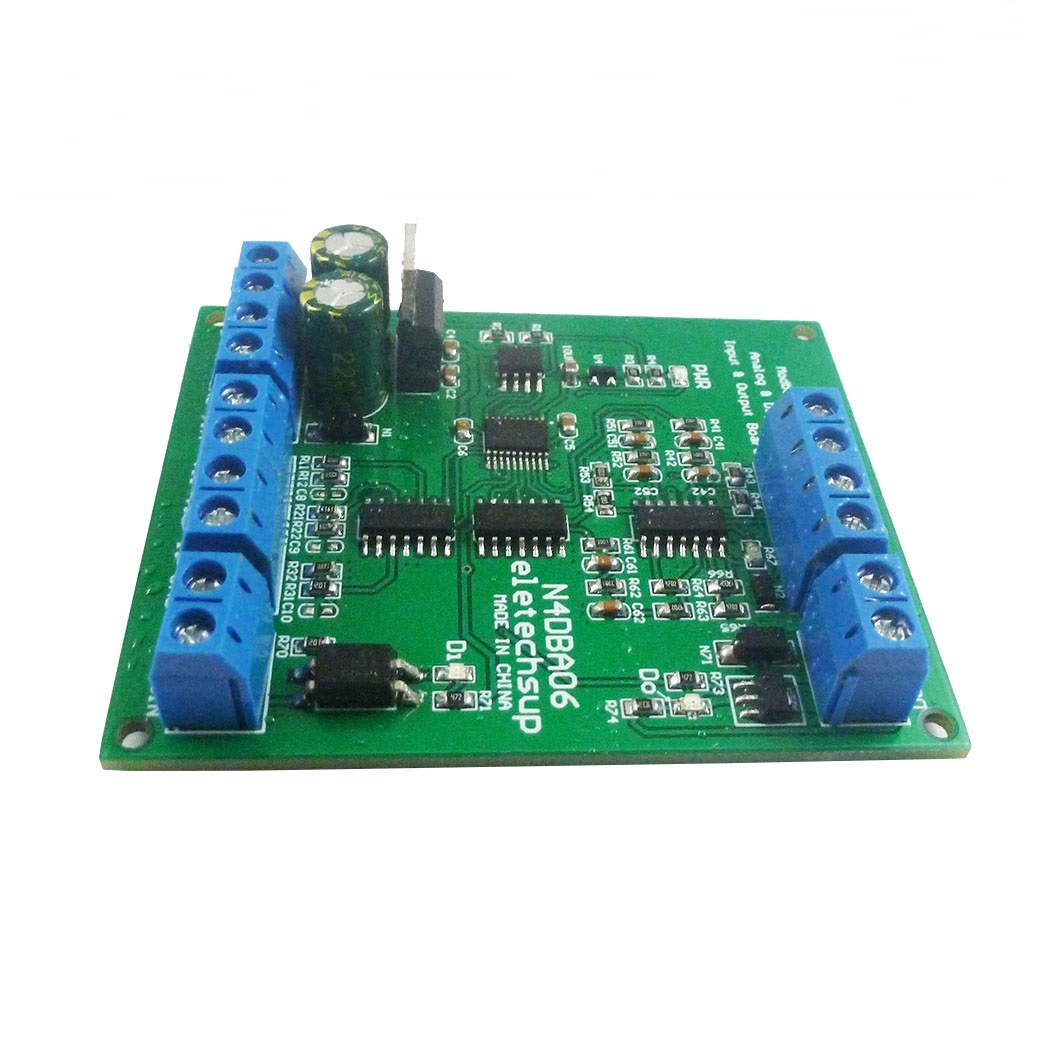

DC 12V 8CH Analog Digital Input Output Devices RTU Board

Image 1
Image 2
Image 3
Image 4
Image 5
$41.57

Collect 41 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Take 10% Off Purchases Over $29
Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/05/2025. Excludes Shipping.
Sold & shipped by Zhongshan Junchang Mould Co Ltd (Direct Import)
Secure ways to pay at checkout
Description:
?
1Working voltage: DC 12 (DC 12-25V recommended power supply with small ripple)
2 Working current: 14-34MA (Related to the output current)
3 MODBUS RTU instruction support 03 06 function code

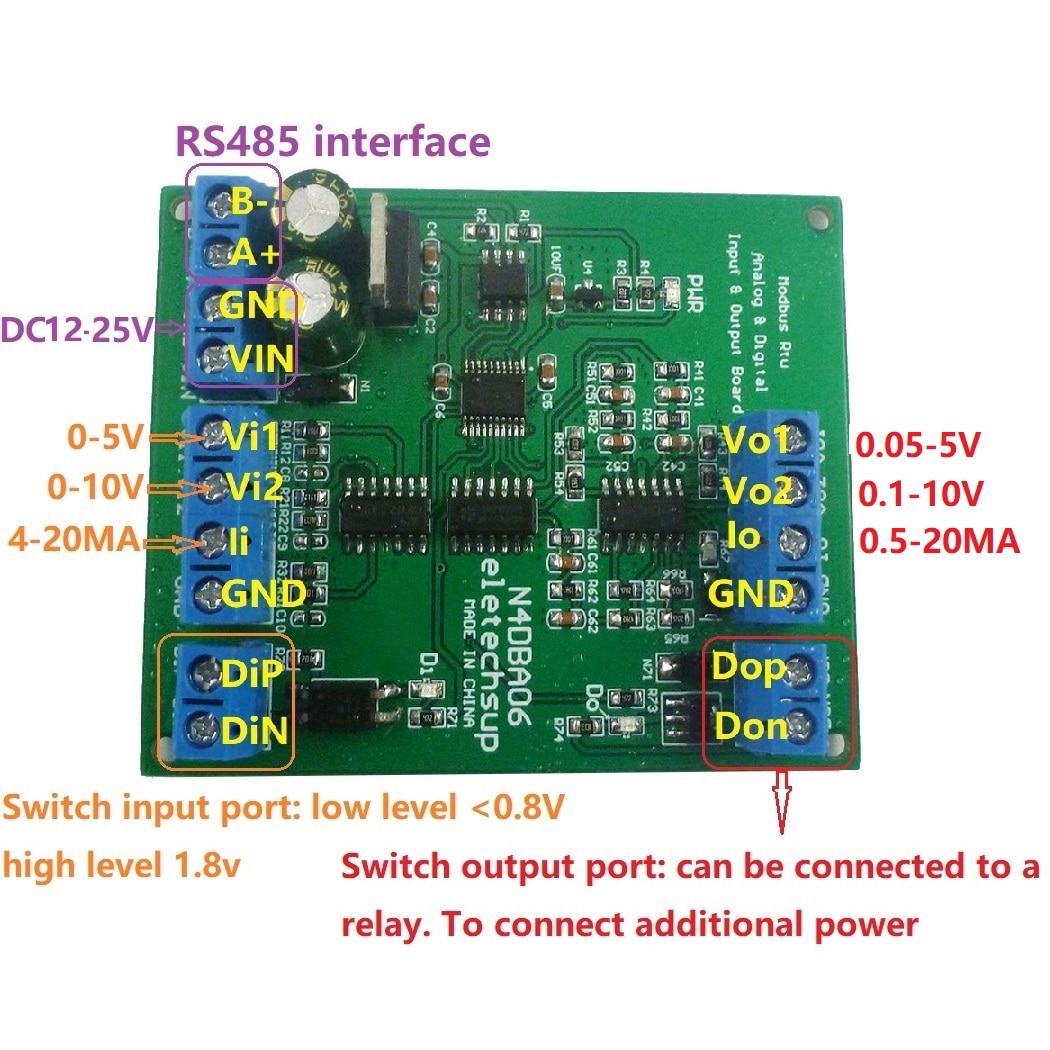

4 3 analog input channels, 1 switch input channel: Vi1 is 0-5V voltage input, Vi2 is 0-10V voltage input, Ii is 0-20MA current input; DiP DiN is switch input port (NPN/PNP Photoelectric isolation input)
5 3 analog output channels, 1 switch output channel: Vo1 is 0.05-5V voltage output (<20MA), Vo2 is 0.1-10V voltage output (<20MA), Io is 0.5-20MA current output; DoP DoN is Switch output port (maximum drive current 500MA, can directly drive relays and solenoid valves)
6 Voltage resolution is 0.01V, measurement accuracy is 1%; Current resolution is 0.01MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated

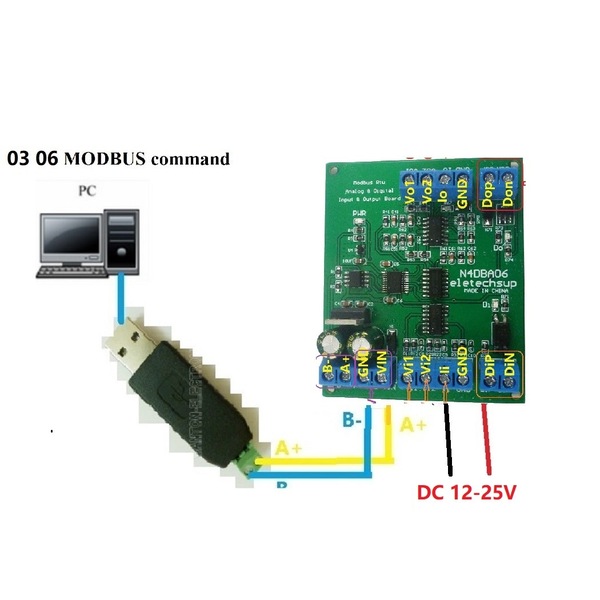

7 MODBUS commands can be made serial HyperTerminal (serial assistant)? OR PLC Enter;
8 Under the MODBUS command mode, it can support up to 247 devices in parallel

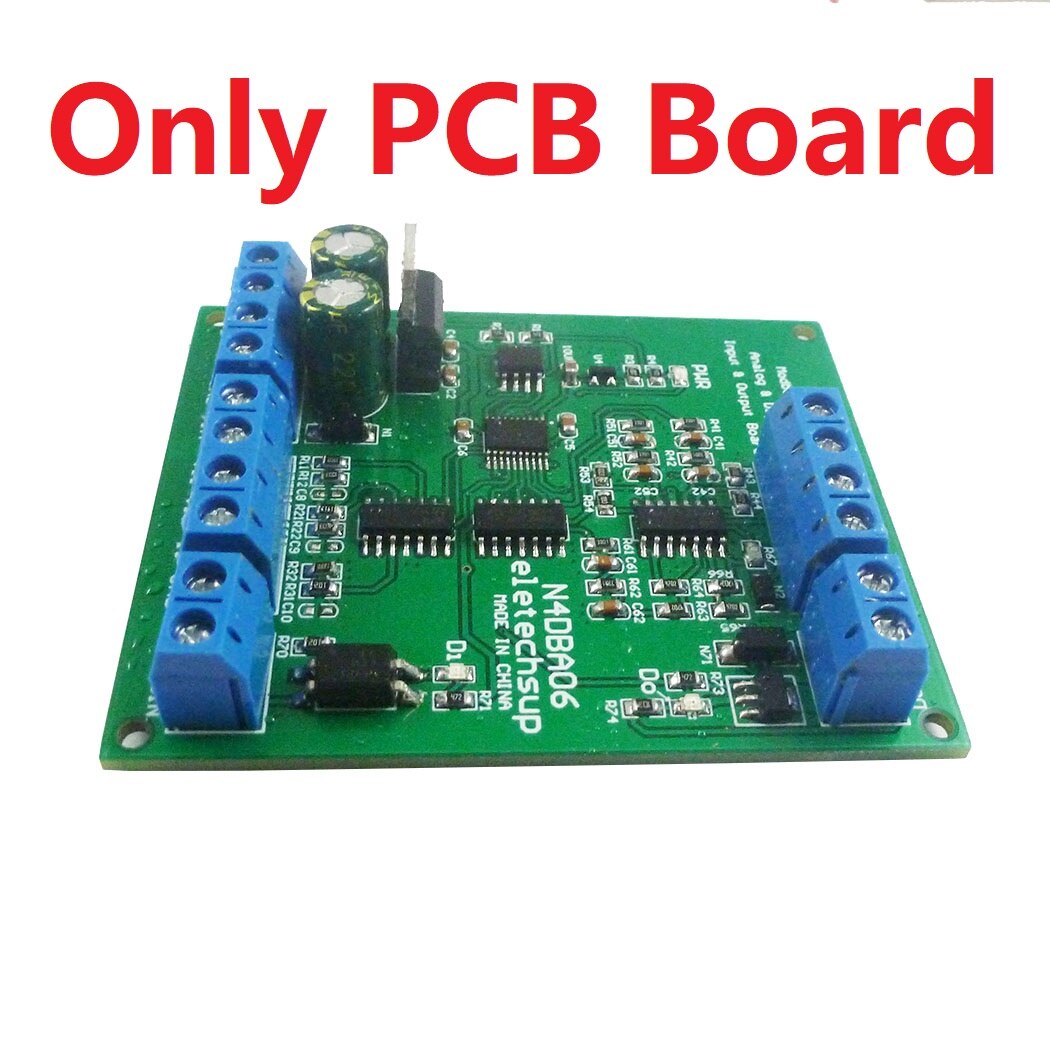

9 Size: 60 * 72 * 18mm (Only PCB Board)
10 Weight: 33g (Only PCB Board)
?
DIN rail Box parameters:

Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 60 mm PCB boards
Net weight: 52g
Installation: DIN35 and C45 rail
?
Note:
1 Channel 1 (Vo1) output voltage range is 0.05V-5V, channel 2 (Vo2) output voltage range is 0.1V-10V, channel 3 (Io) output current range is 0.5-20MA???
2 At the moment of power-on, the current and voltage output ports have 10-20MS high pulses?????

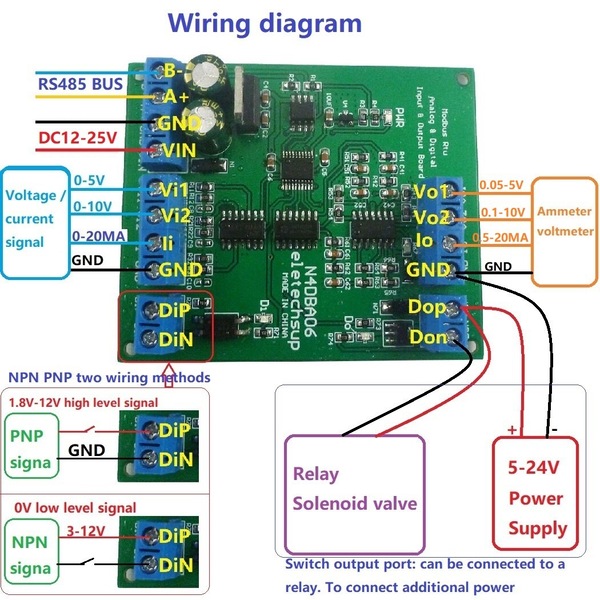

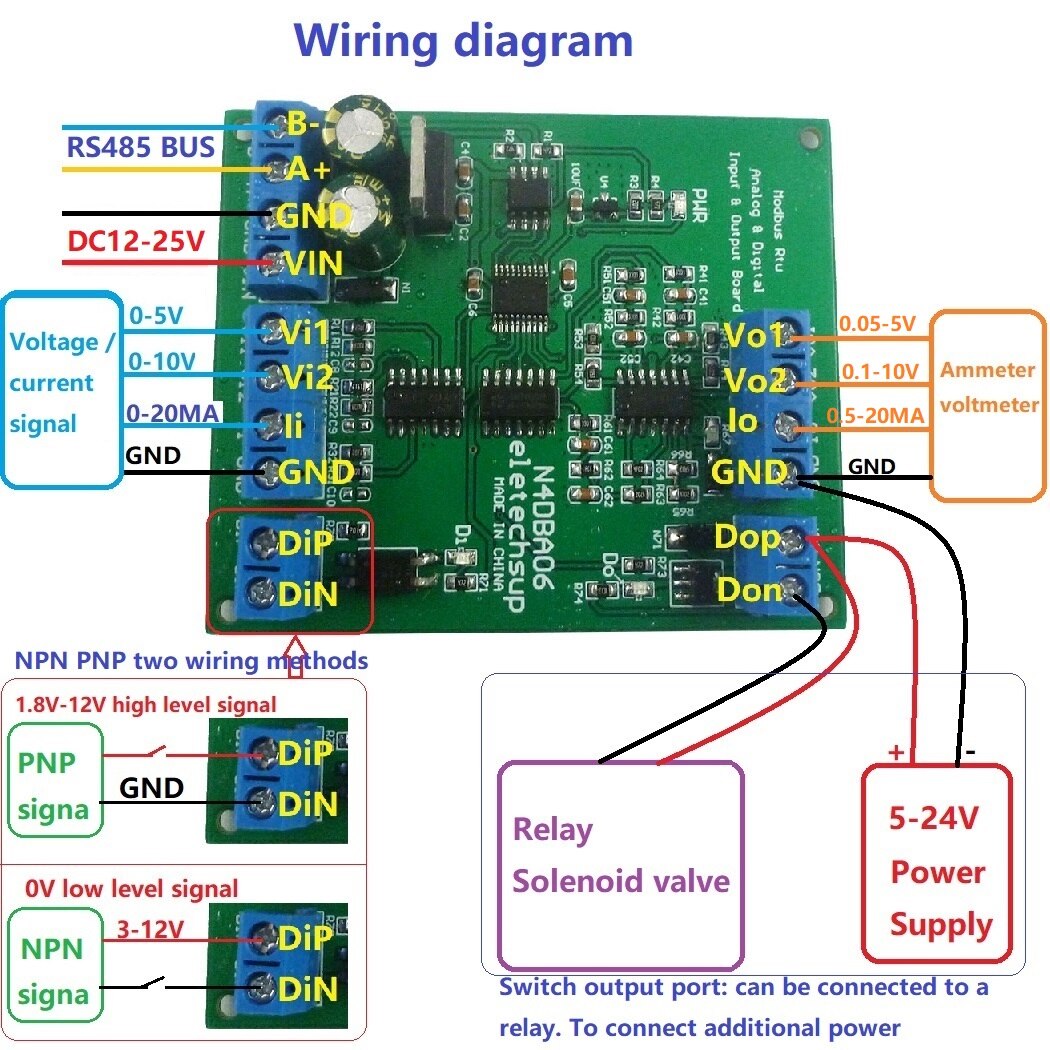

3 DiP DiN is a passive switch input port (see the figure below for wiring)???
4 DoP DoN is a passive switch output port (see the figure below for wiring)

GTIN: 774048923620

Estimated Delivery Time Frame:12-20 business days
