Collect 82 Everyday Rewards points
Dispatch in 2 business days

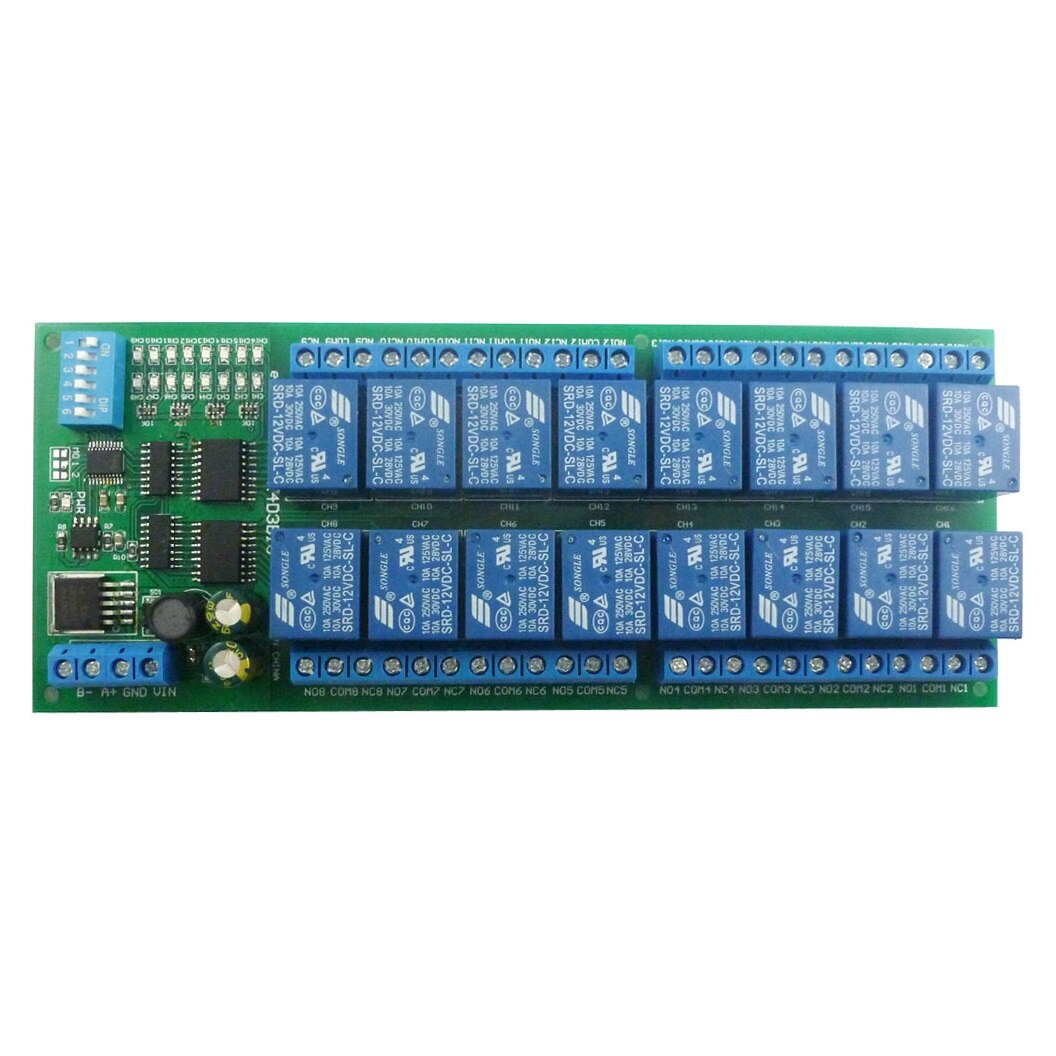

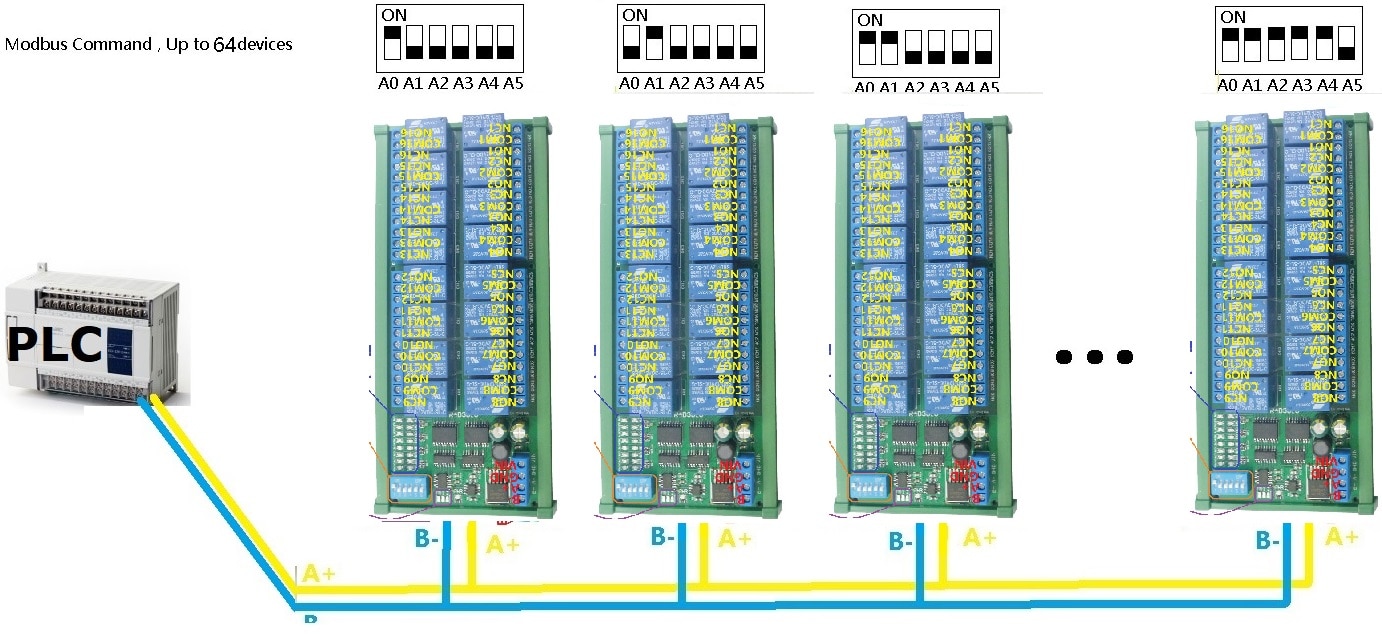

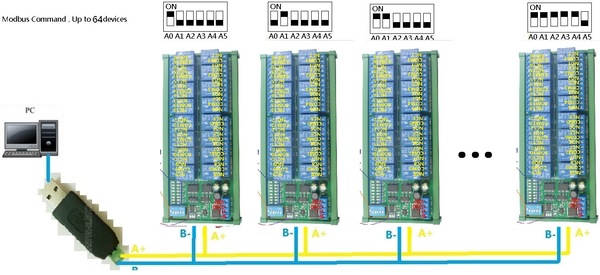

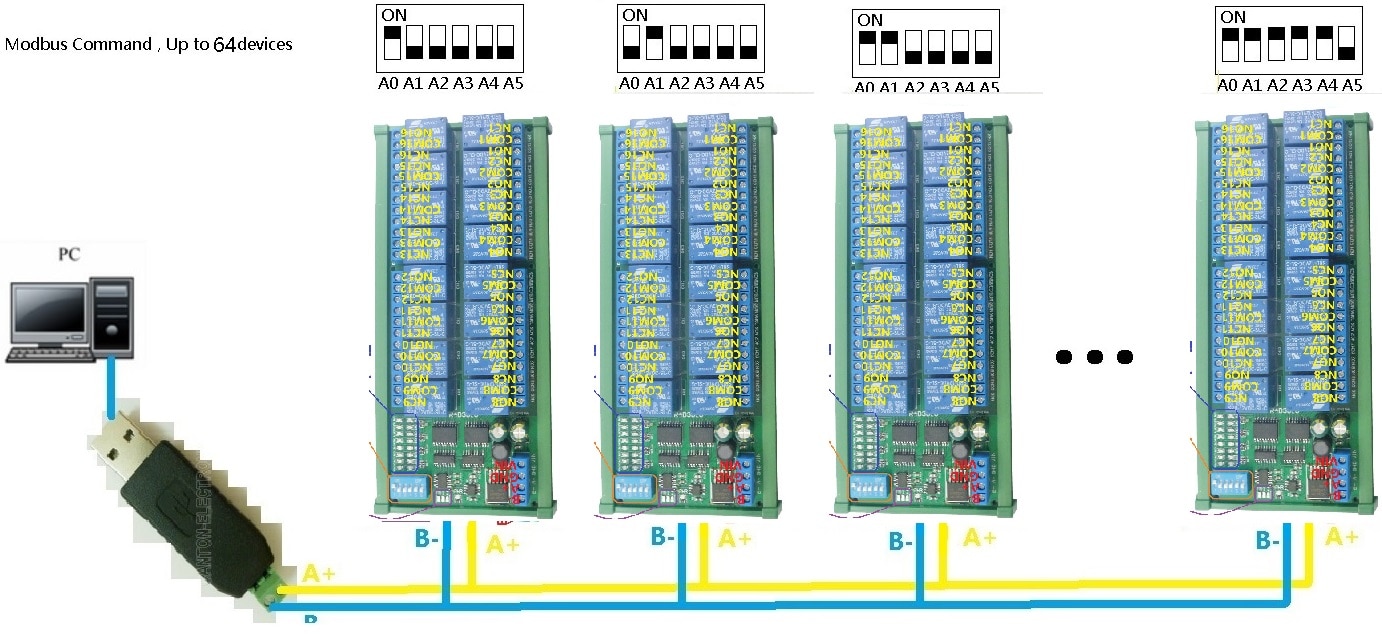

| Description: 1: DC 12V power supply 2: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 148MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA.etc 3: ''open'' ''close''? ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands 4: Two instruction-control mode : MODBUS RTU command and AT command 5: Under the ''Delay'' command ,the maximum delay is 255 seconds; Under the AT command ,the maximum delay is 9999 seconds 6 MODBUS commands can be made serial HyperTerminal (serial assistant)? OR ''Modbus Poll'' Enter; AT commands can be made serial HyperTerminal (serial assistant) Enter; 7 Under the MODBUS command mode, it can support up to 64 devices in parallel 8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS 9? Size: 180 * 72 * 20mm(Only PCB Board) 10 Weight: 230g(Only PCB Board) 11 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC DIN rail Box parameters: Product model: UM72 Color: green Width: suitable for PCB board width UM72(72mm) Insulation grade: flame-retardant VO grade Backplane length: suitable for 180 mm PCB boards Net weight: 128g Installation: DIN35 and C45 rail |
GTIN: 774048923910
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7040005
