Collect 28 Everyday Rewards points
Dispatch in 2 business days

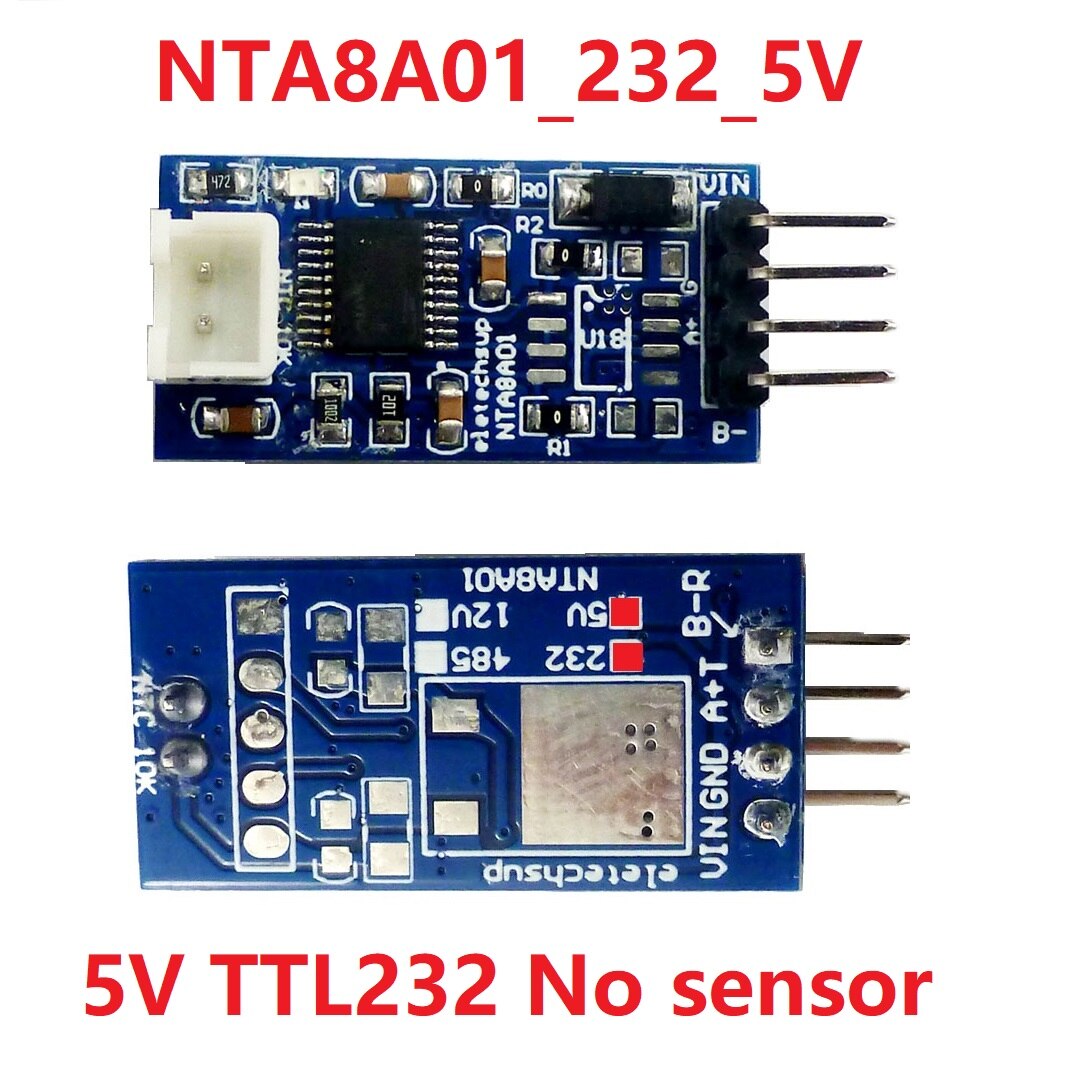

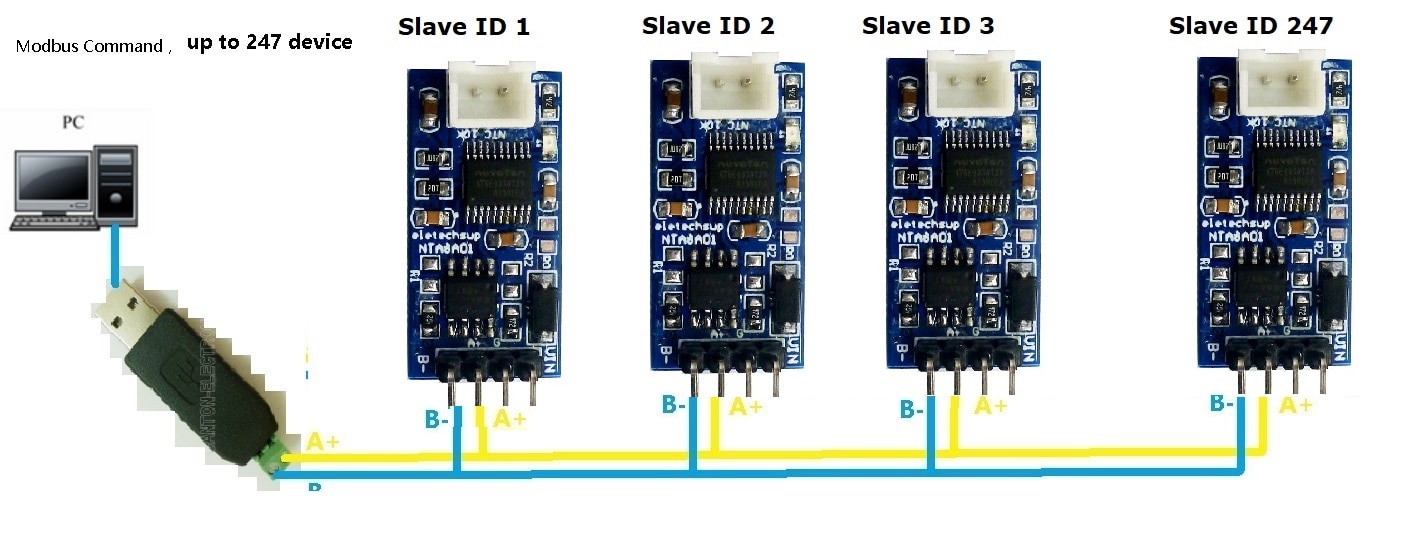

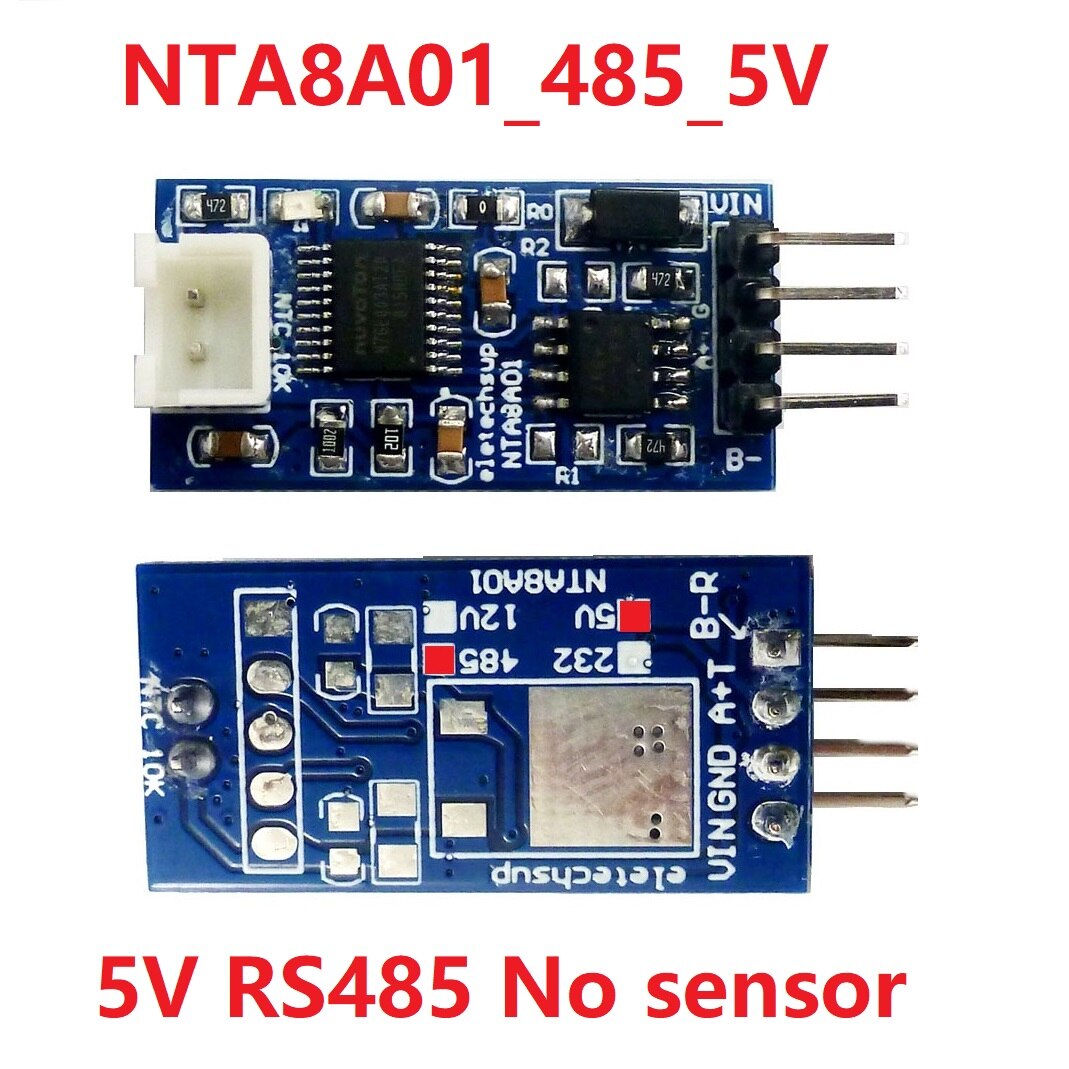

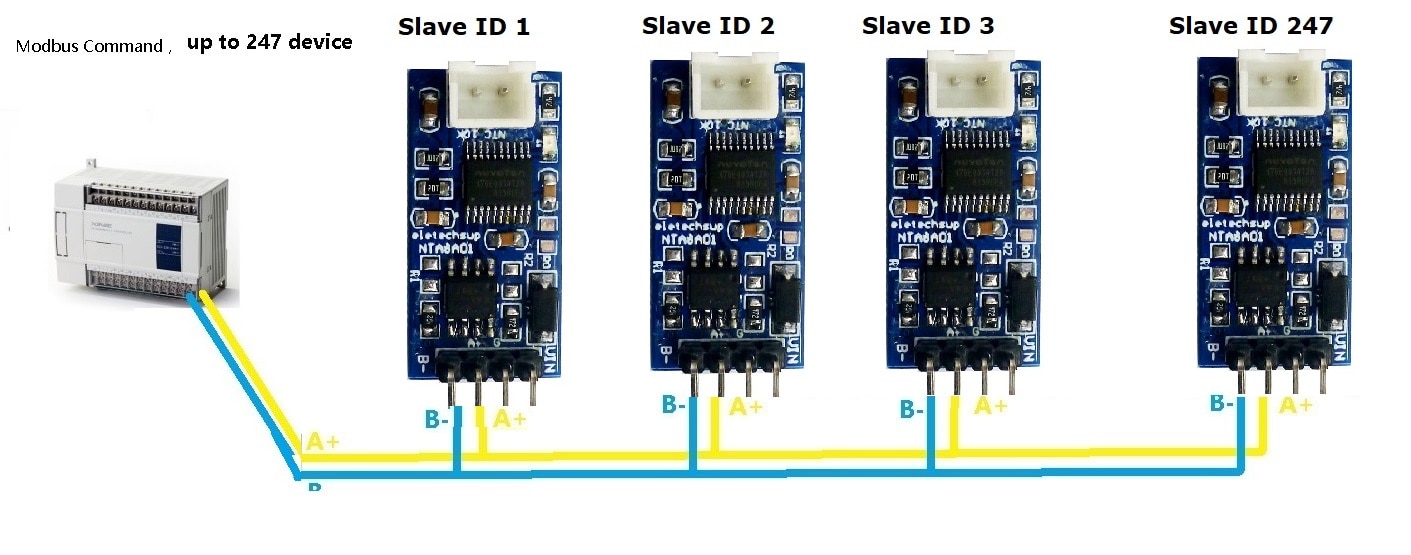

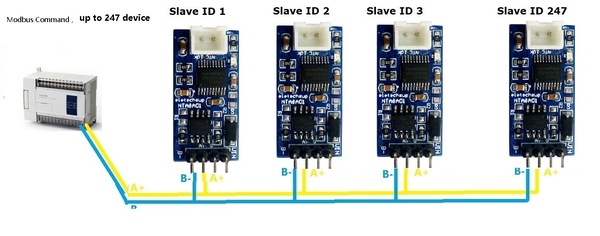

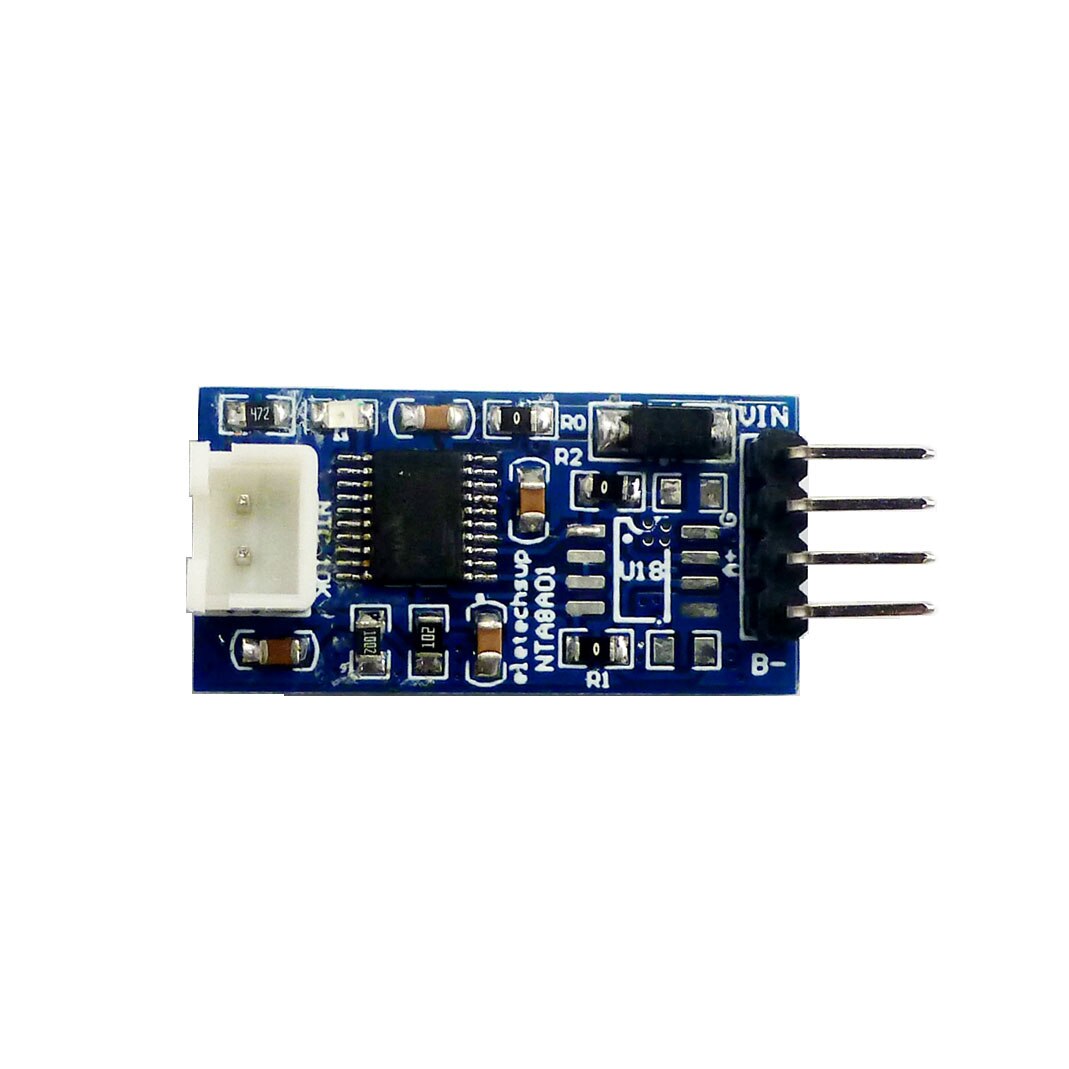

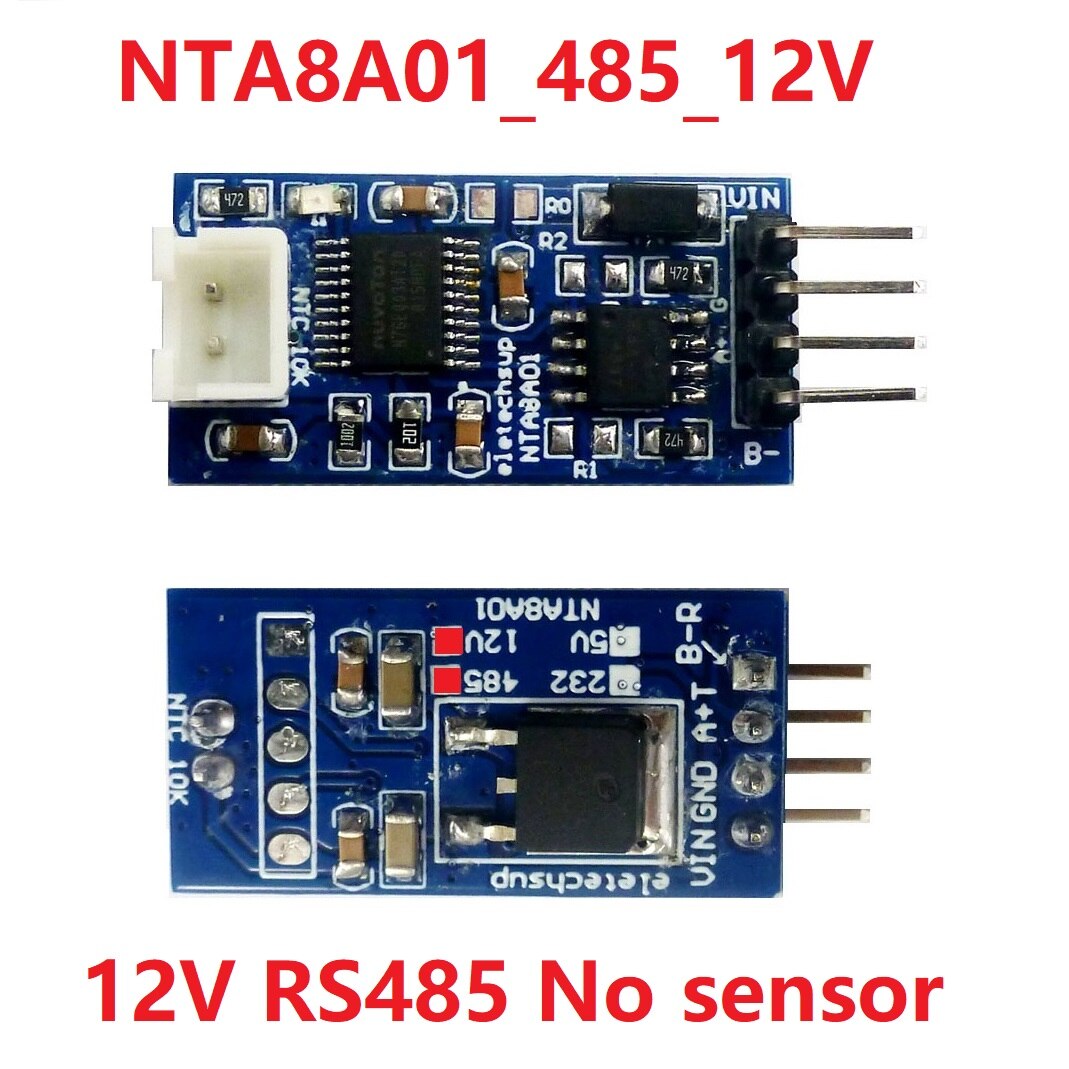

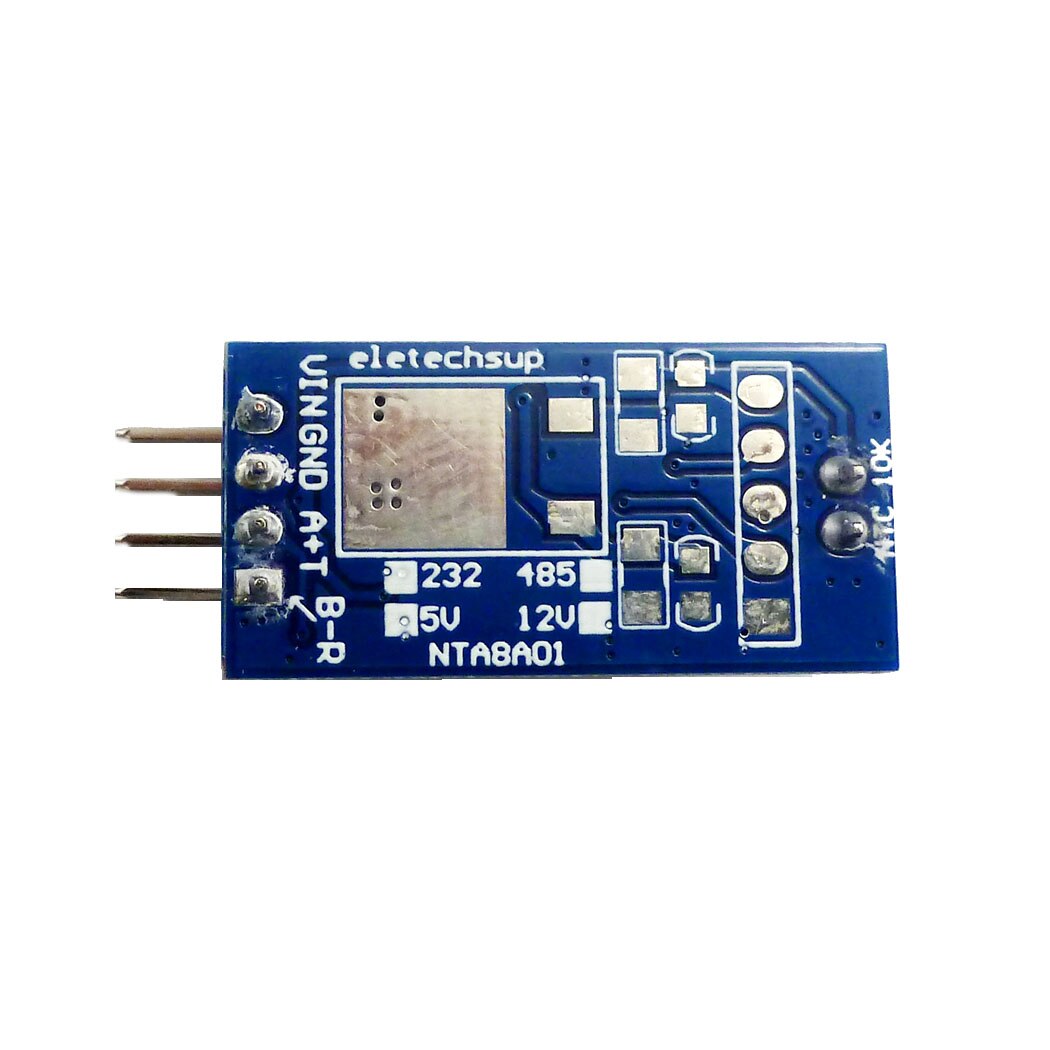

| Description: Working voltage: 5V version: DC 3.7-5.5V; 12V version: 6-25V Working current: 7-13MA MODBUS RTU protocol, 03 read command, 06 write command. Serial port baud rate: 9600 (default), N, 8, 1 By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater) Adapted sensor: B3950 10K 1% NTC thermistor Temperature measurement range (using our NTC sensor): -20 �� C to +125 �� C. Temperature measurement accuracy (using our NTC sensor): 1%. Size: 30 X 15 X 6MM Weight: 12V version 2.5g Note: 1 This module does not have an NTC sensor. The NTC sensor needs to be purchased separately (B3950 10K 1%);The module's measured resistance value is 1%, and the theoretical temperature range is -273-200��C. The final temperature measurement accuracy and temperature range are determined by NTC thermistor. 2 Be sure to use the correct sensor (B3950 10K 1% NTC), otherwise the temperature will not be accurate Typical application: PLC control system Thermostatic Controls Industrial Systems Thermometers Thermally Sensitive Systems Indoor and outdoor temperature measurement Temperature in vegetable garden Weather forecasting, and monitoring Temperature in Computer Room Warehouse temperature Packing list: 1 pcs NTA8A01 RS485? NTC Temperature converter |
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039986
