4 Digital Water Liquid Level Indicator Board Controller Sensor Switch Module-1#

4 Digital Water Liquid Level Indicator Board Controller Sensor Switch Module-1#

Be the first to review this product

Price	$24.21
	Earn 3x points and collect 72 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/05/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code UMYBF

Quantity

Add to wishlist

Description:

1 Working voltage: DC 5V
2 Working current 7-12MA
3 One power indicator light, four water level indicator lights
4 Four water level output interfaces (low level 0V, high level 3.7V),for MCU IO

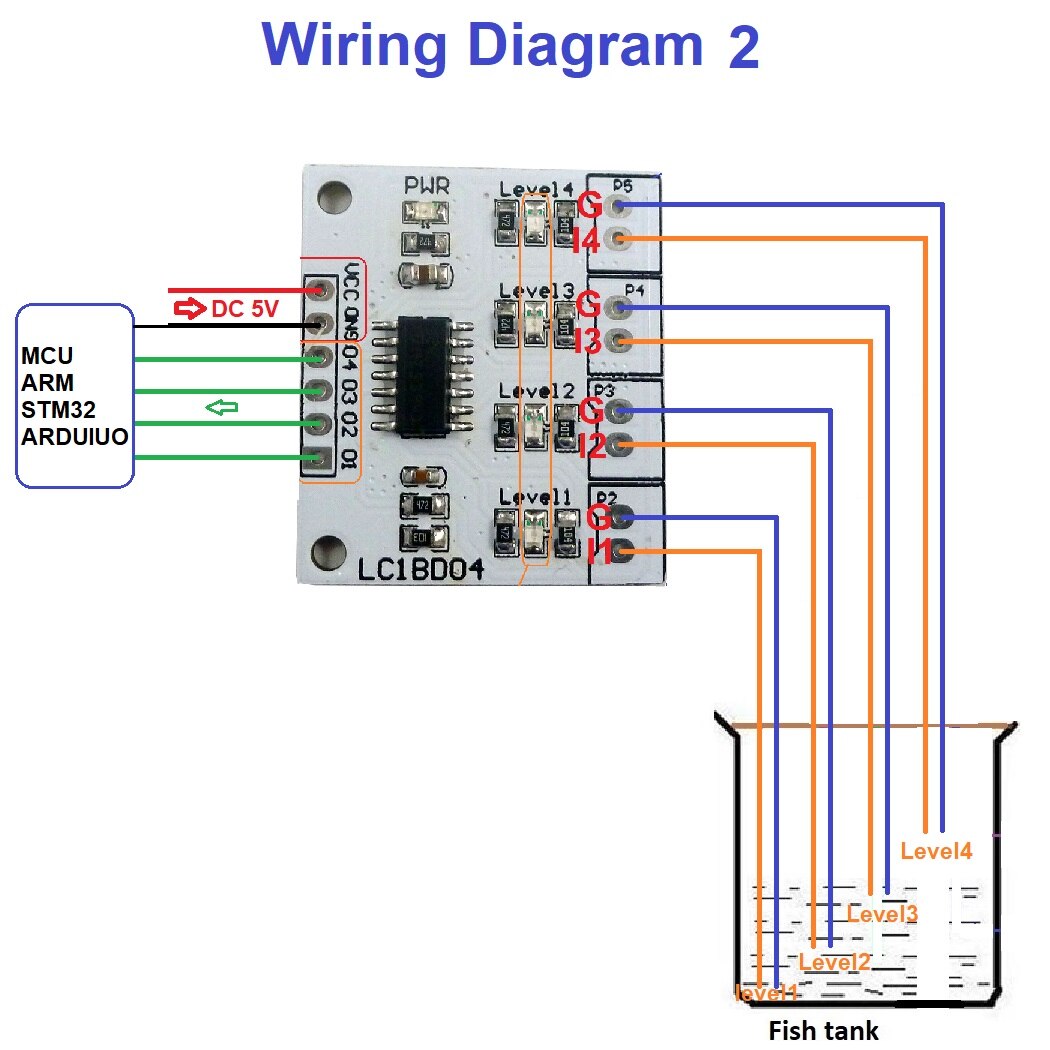

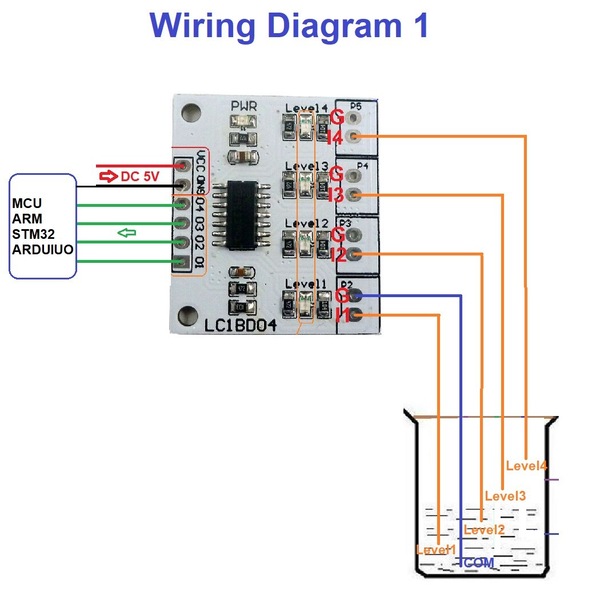

5 Four water level sensor interfaces (2P XH2.54)
6 Size: 32mm X 28mm X 11mm(With Pin)
7 Weight: 4.6g(With Pin)

Note:
1 Package does not contain probe (wire).2P Male XH2.54mm Pitch Wire Cable can be used as a probe,which can be purchased separately or prepared by yourself.
2 For safety, use an DC power supply with good isolation

Application??
for Arduino UNO MEGA2560 NANO
Home water tower automatic water supply system
Aquarium Fish tank Water Changer System
Fill the water tower automatically
Automatic pumping from water tower
Conductive liquid automatic control
Automatic feeding system for poultry and livestock
Farm automatic water supply system
And other occasions that require automatic water supply and water exchange.
Solenoid valve water pump motor automatic control

Package inlcuded:1x DC 5V 4 Outputs Water Liquid Level Indicator Board
