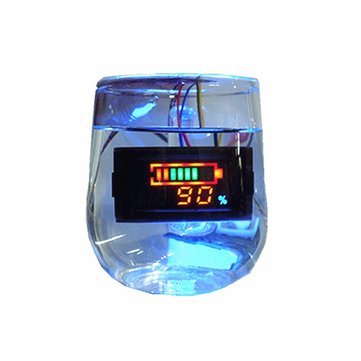

Dc6-120V Waterproof Electricity / Voltage / Temperature Three-In-One Table Vehicle Multi-Function Meter

Features:

This table can be used to set the battery type by button: lead-acid battery, lithium battery, nickel-metal hydride battery, or set the number of batteries by the button (the number of batteries in series)

It is suitable for: 12V, 24V, 36V, 48V, 56V, 60V, 64V, 72V, 84V battery car, electric car, battery pack, balance car, inverter, electric forklift, sightseeing car, electric car, car battery, battery power Used for mobile devices, etc., can also be used for other voltage and power test purposes.

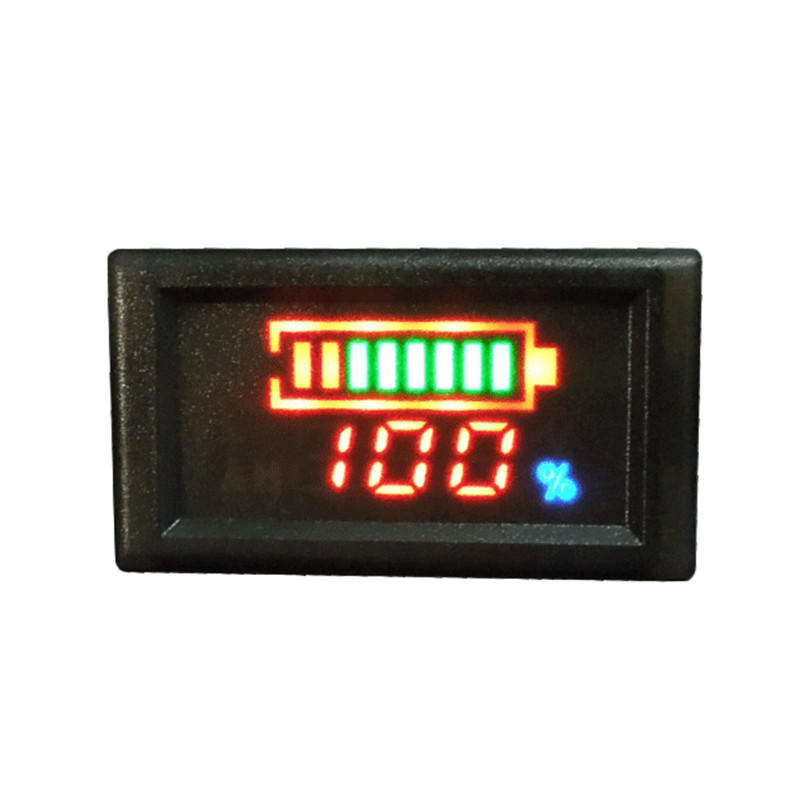

It can test the display of real-time temperature, voltage, power, and percentage of electricity.

"12 kinds" display mode is optional:

The default is: C V % loop display

C V %——F——F V——F %——F V %——V——%——V %——C——C V——C %——C V %

 C: Representation - Celsius temperature; V: Representation - Voltage; %: Representation - Percentage of electricity; F: Representation - Fahrenheit temperature

Display mode power off has memory function

Two-wire system, wide supply voltage, wide test voltage: DC6-120V, simple and convenient wiring

With reverse connection protection, reverse connection will not burn

High and low battery flashing alarm reminder function, high temperature alarm,

LED color display, high-grade atmosphere

Technical Parameters:

Supply voltage: DC6-120V (wide range), note: the maximum input voltage can not exceed 120V, otherwise there is danger of burning

Test voltage: DC6~120V (small point automatic movement)

Minimum resolution below 100V: 0.1V

Minimum resolution above 100V: 1V

Voltage measurement accuracy: 1% (±2 words)

Temperature test range:

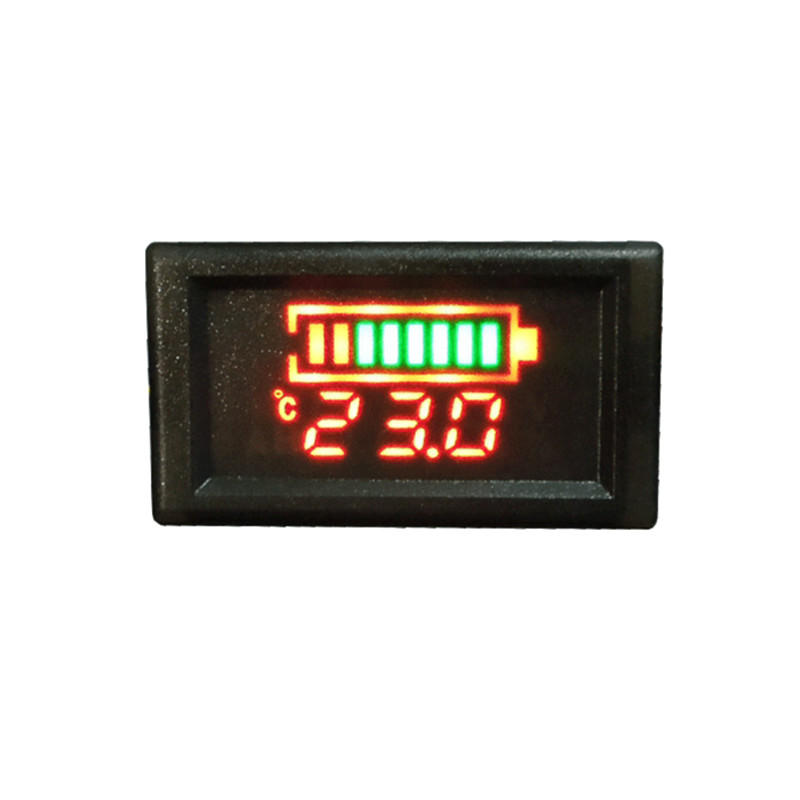

Celsius: -50 ~ +120 °C (decimal point is automatically moved)

The minimum resolution of -9.9~99.9 degrees is: 0.1 degree

The minimum resolution for other ranges is: 1 degree

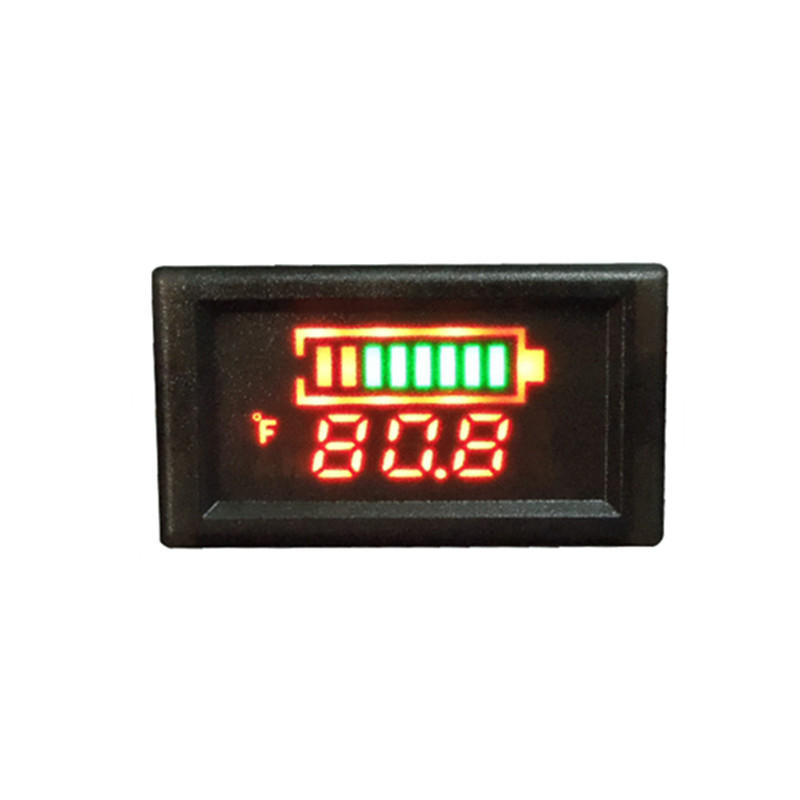

Fahrenheit: -58~245°F (decimal point automatic movement)

The minimum resolution of -9.9~99.9 degrees is: 0.1 degree

The minimum resolution for other ranges is: 1 degree

Temperature type: NTC

Temperature "air probe" line length: >120mm

Power resolution: 1%

Working current: <20mA

Display mode: LED color screen

Dimensions: L54*W30*H21mm

Installation opening: 47.2*27.3mm

Measurement rate: ≥500mS/time

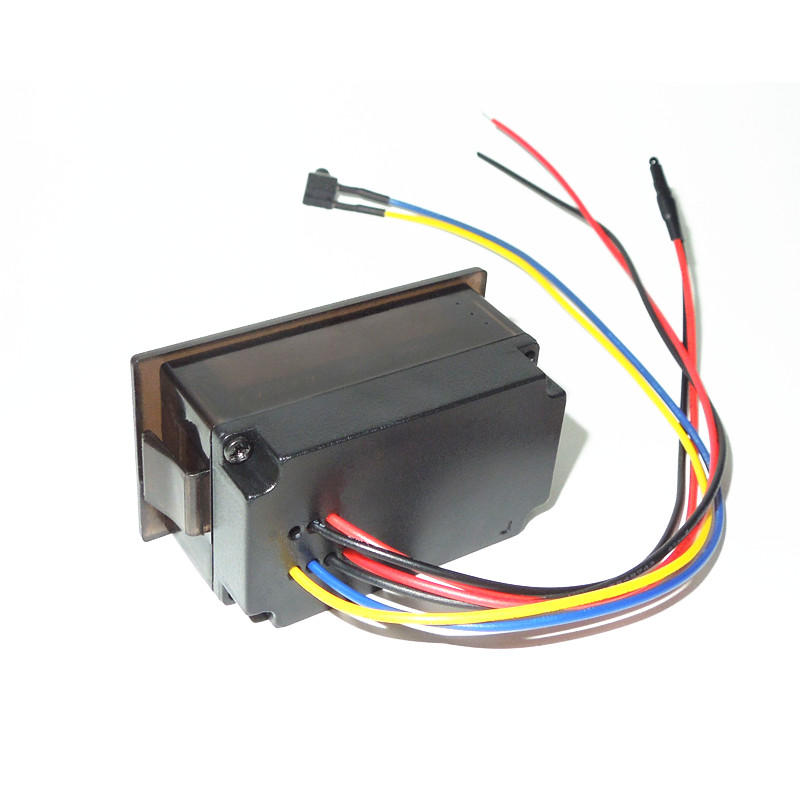

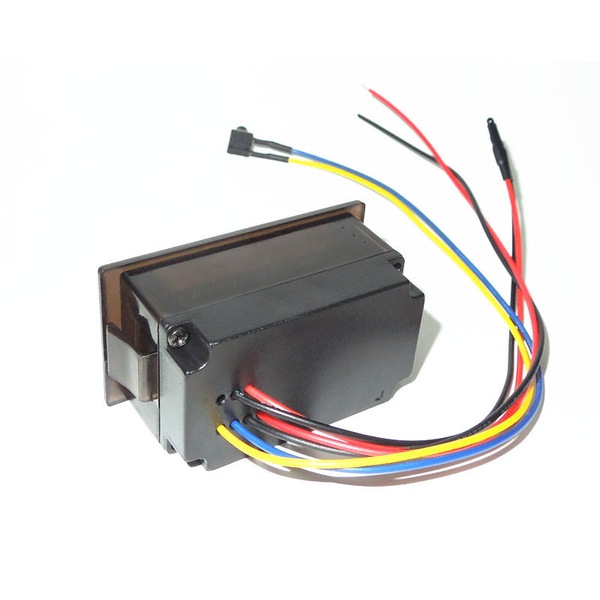

Power supply, button switch lead length: >150mm

Extreme working conditions:

Minimum supply voltage: +6 V

Maximum supply voltage: +120 V

Working temperature: -10 ~ +55

Working humidity: 10~80% (no condensation)

Working pressure: 80 ~ 106kPa

Sunlight: no direct illumination

Package Inlcudes:

1 x Voltage Meter
