DCI Heat Shield QuietSheet QS Single Layer Dimpled Thermal & Acoustic (200C) 610

Image 1
Hurry! 4 items left!
$100.50

Collect 100 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Speed Parts
Secure ways to pay at checkout

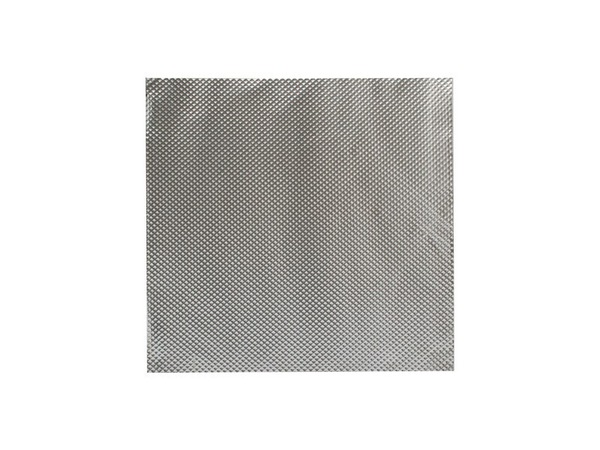

DCI Heat Shield QuietSheet QS Single Layer Dimpled Thermal & Acoustic (200C) 610x520mm DCI-QS-SLIM QuietSheet Slim offers both thermal and acoustic resistance, this all-rounder comprises of a dimpled aluminium sheet backed with a self adhesive polyester matting. Suitable for operating up to 200°C. Ideal for use on the underside of bonets and roof skins, the material aids in the reduction of noise transfer as well as heat.

Specifications:

Specifications of QuietSheet TM Slimline



Size

610 x 520 mm

Temprature Range

Minimum Continuous: 0°

Maximum Continuous: 200°C

Melting Point: 255°C



Thickness: 5.7mm Nominal

Weight: 1.50k/m2

Flexibility: Good

Flamibility: Flamible (adhesive); Polyester - Self extinguishing upon ignition

Ignition Temrature (flash point): >260°C

RoHS: Yes

Halogen Free: Yes

Toxicity: Nil

Binders: Yes - Adhesive FT5212



Acoustic Absorbtion Coefficients

Frequency (Hz) Coefficient
125 0.09
250 0.12
500 0.25
1000 0.32
2000 0.71
4000 0.97



Thermal Performance

Temrature Before (°C) Temrature After (°C)
100 20.3
125 20.6
150 20.7
175 21.0
200 21.5
225 22.5
250 23.5
275 25.4
300 27.5
325 55.1




GTIN: 9342597000300
