Collect 26 Everyday Rewards points
Dispatch in 2 business days

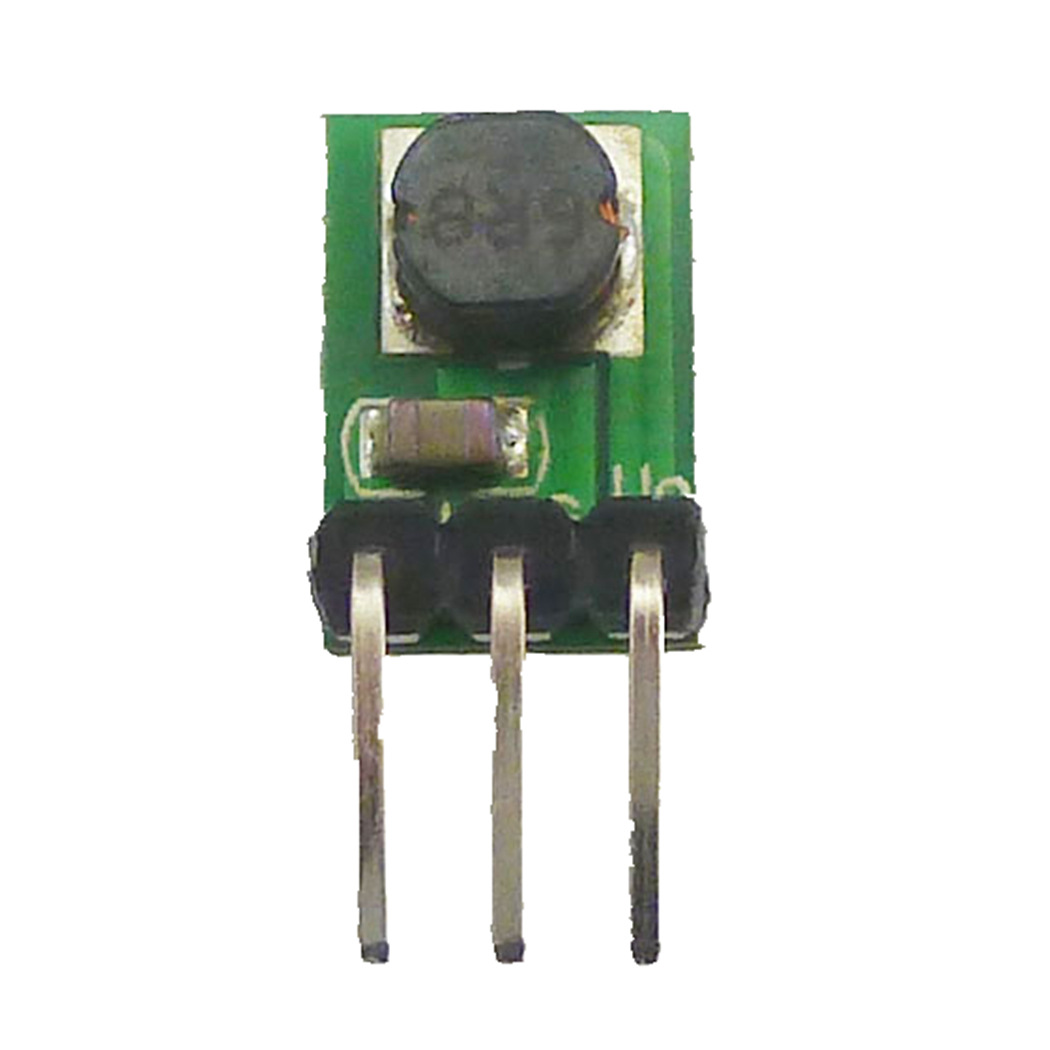

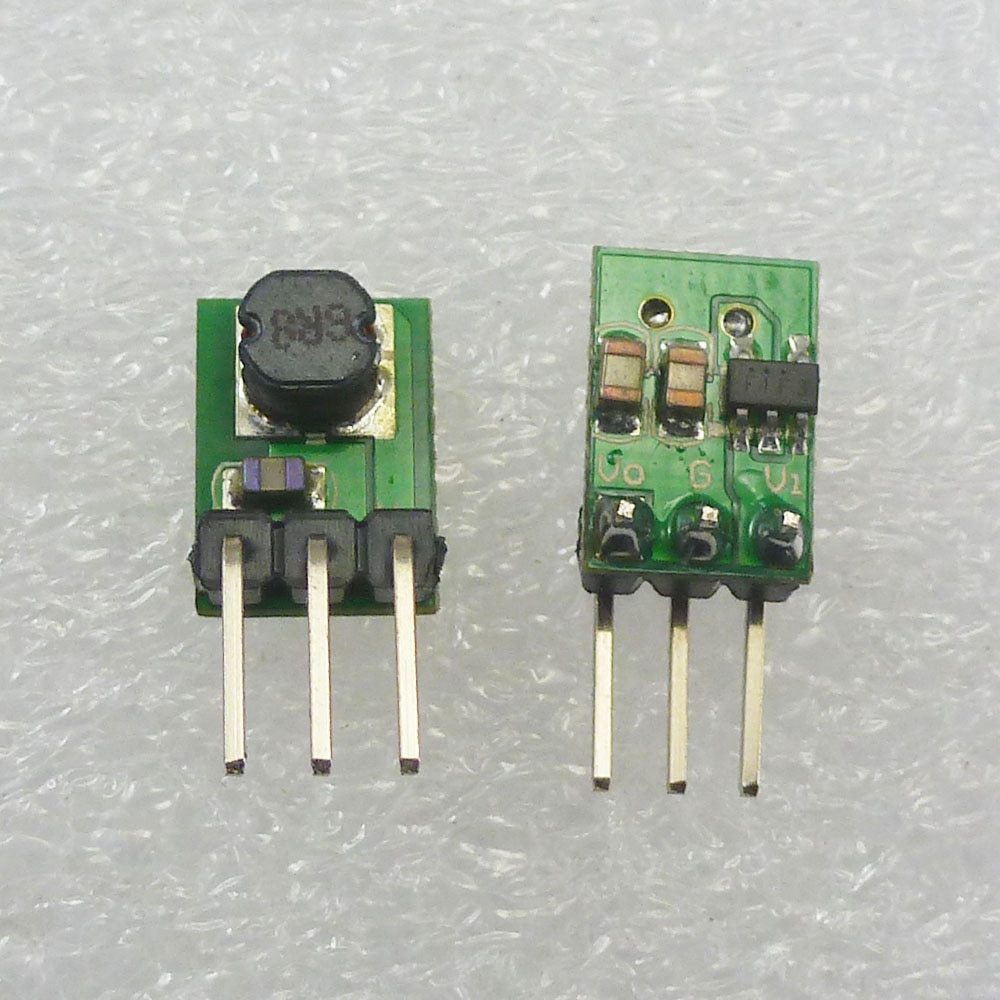

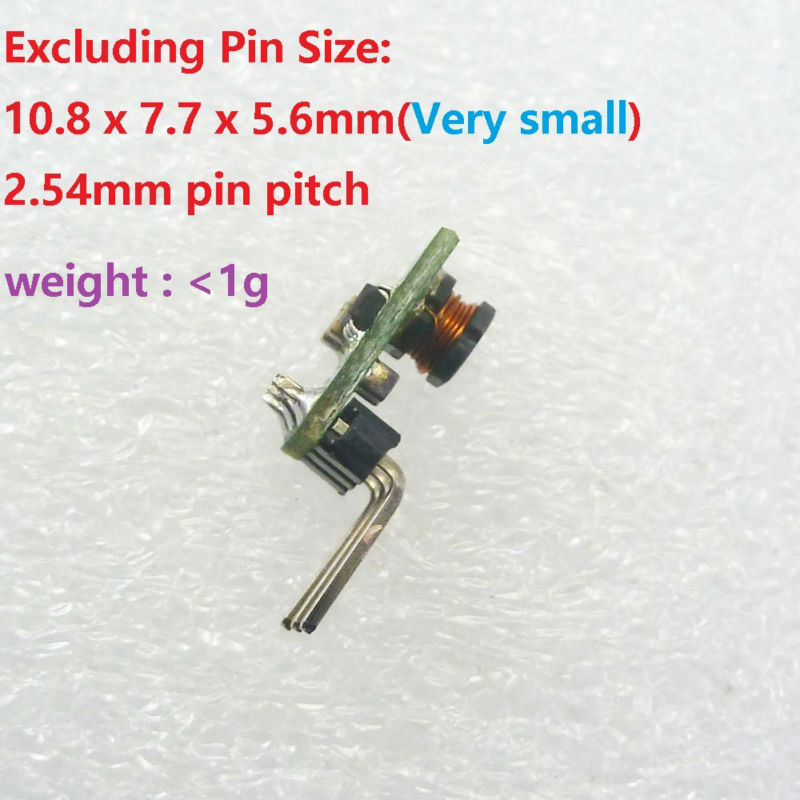

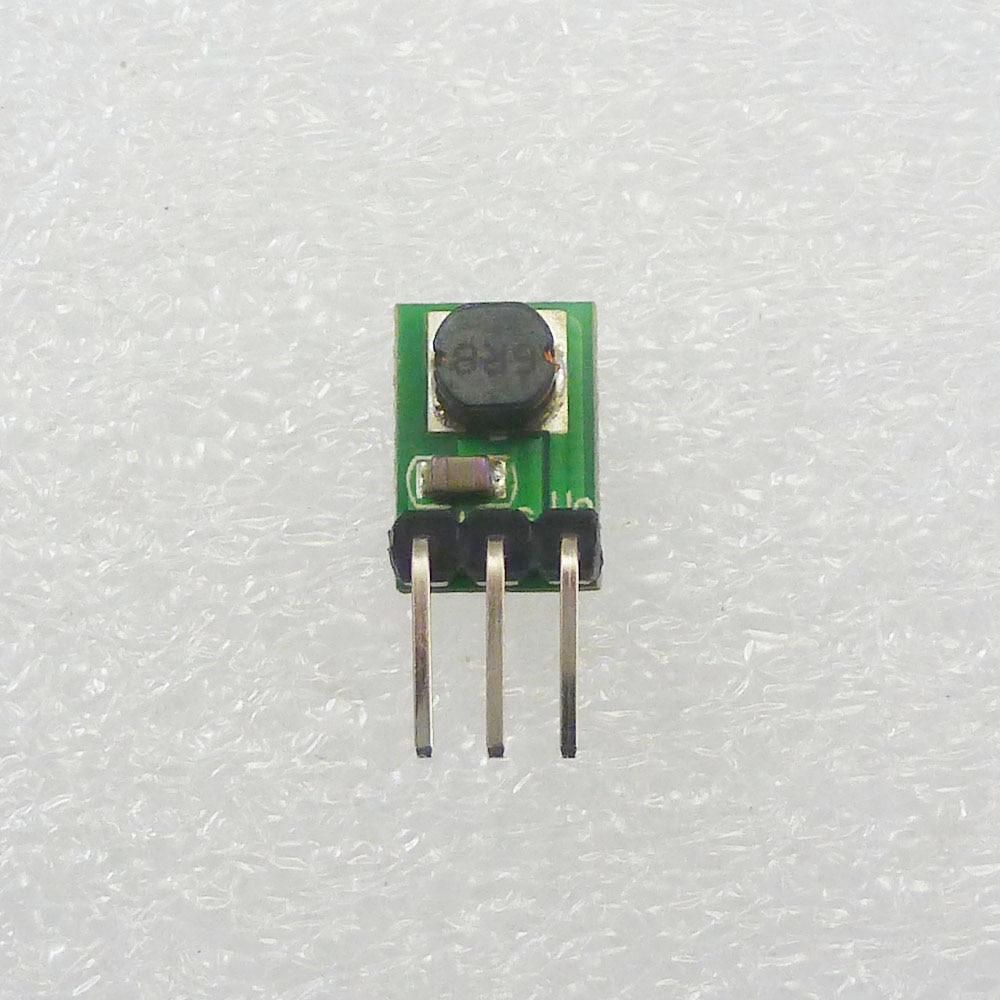

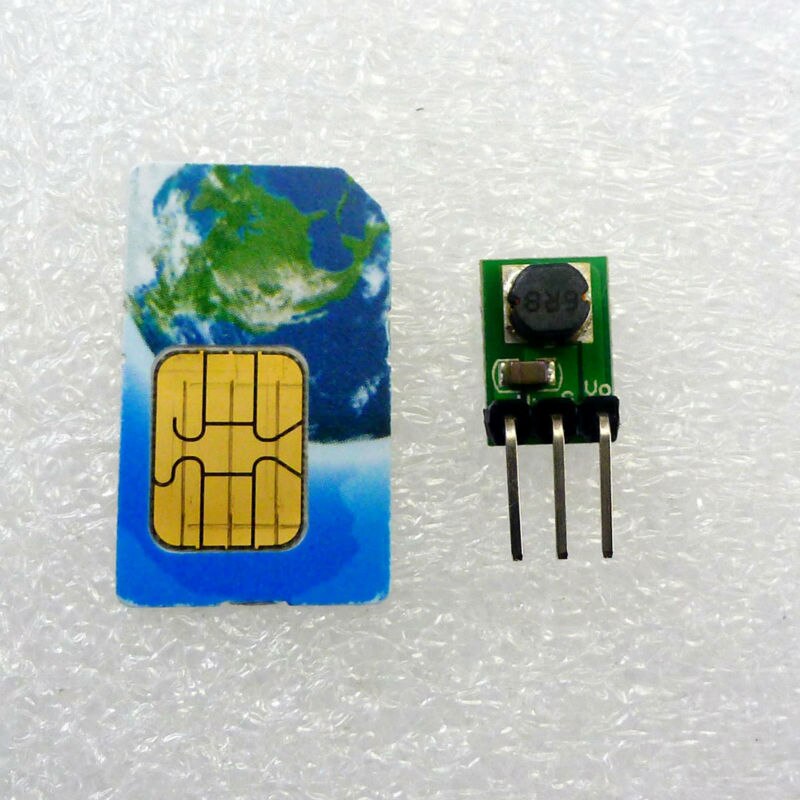

| Description: ? Input voltage 3.3-6V, output 3.3V (deviation +-5%) Long time maximum output current 500mA Short time maximum output current 700mA Conversion efficiency : 80-93% The maximum input voltage can not exceed 6.5V INPUT 3.7V/600MA;? OUTPUT? 3.3V/550MA INPUT 4V/600MA;??? OUTPUT? 3.3V/610MA INPUT 4.2V/580MA;? OUTPUT? 3.3V/600MA INPUT 4.5V/550MA;? OUTPUT? 3.3V/620MA INPUT 5V/470MA;??? OUTPUT? 3.3V/590MA INPUT 6V/370MA;??? OUTPUT? 3.3V/550MA DC-DC Buck Step-down module working frequency 1.2MHZ. Operating ambient temperature : -40~+85 Degrees Celsius 2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/CPLD? Development Board friendly. Excluding Pin Size 10.8mm x 7.7mm x 5.6mm(Very small) Weight : <1g(Very light) ? Applications: ? Wifi Module:ESP8266 Bluetooth module : HC-05 HC-06 Wireless UART module : HC-11 HC-12 wireless module : CC1101 CC2500 Nrf24l01+ 3-3.5V led lights 3.3V Development Board: ARM FPGA/CPLD MSP430 ? Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself Packing list:2 PCS mini 500mA DC DC Converter Step Down 3.3V-6V to 3.3V |
GTIN: 774048925952
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039873
