DC 0.9-6V to 3V Step-UP Step-Down Converter Board Power Supply Module

DC 0.9-6V to 3V Step-UP Step-Down Converter Board Power Supply Module

Be the first to review this product

Price	$23.57
	Earn 3x points and collect 69 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/05/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code UMYBF

Quantity

Add to wishlist

Description:

Input voltage DC 0.9 ~ 6V, output DC 3V(+-5%)
The maximum input voltage can not exceed 6.5V
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% .
Operating temperature range : -25~+85 Degrees Celsius
Storage temperature range : -45~+125 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.

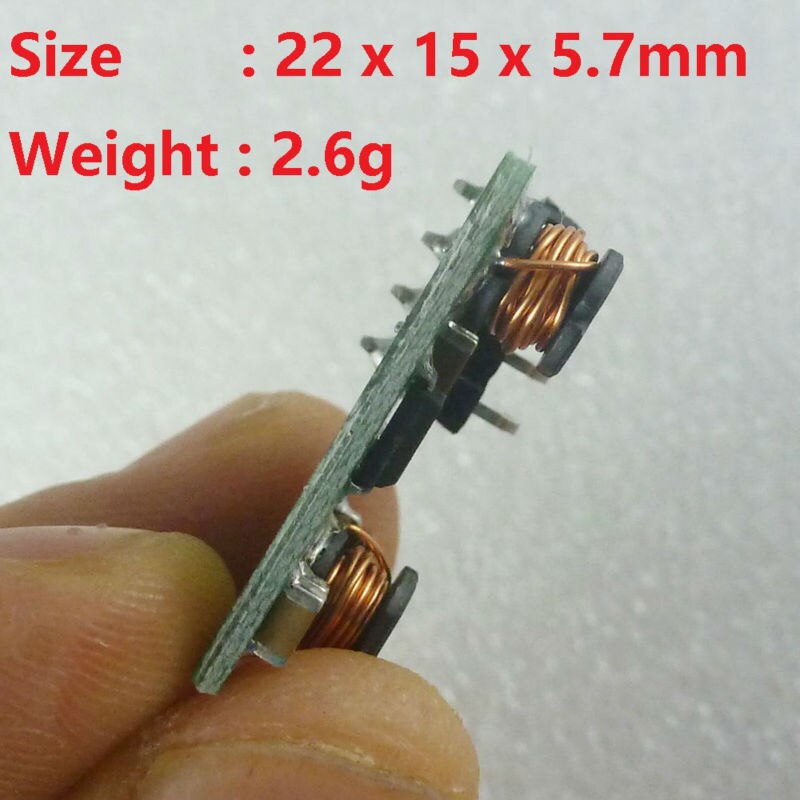

Size : 22mm x 15mm x 5.7mm(Very small)
Weight : 2.6g(Very light)

Applications

Battery powered equipment
MCU Breadboard Power Supply
electrical tools
Small power motors
Camera, Video camera
Toy car
power bank
LED Lighting
Wireless communication equipment
Audio equipment

Attention :
?
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
?

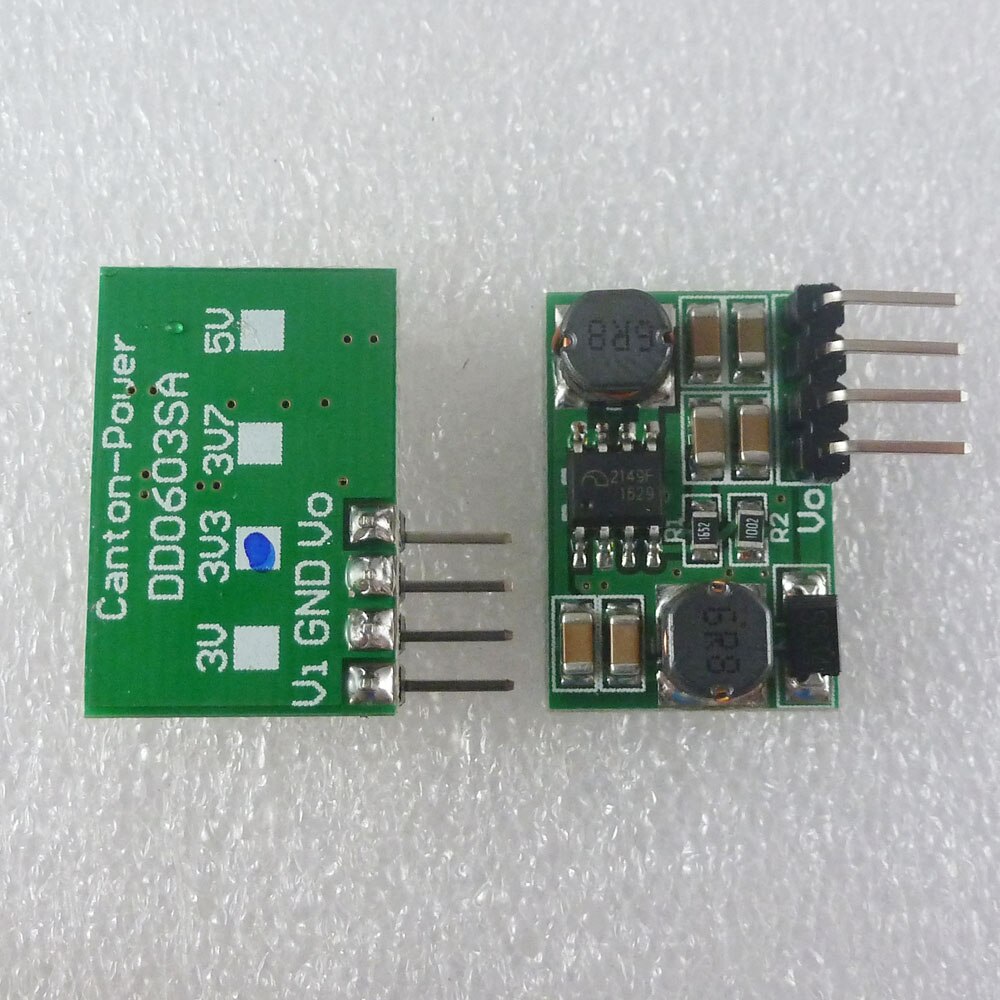

Packing list:1 PCS DD0603SA_3V 0.8-6V TO 3V DC DC Boost-Buck Converter Module
Estimated delivery time??About 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak.

GTIN: 774048925037
