Collect 25 Everyday Rewards points
Dispatch in 2 business days

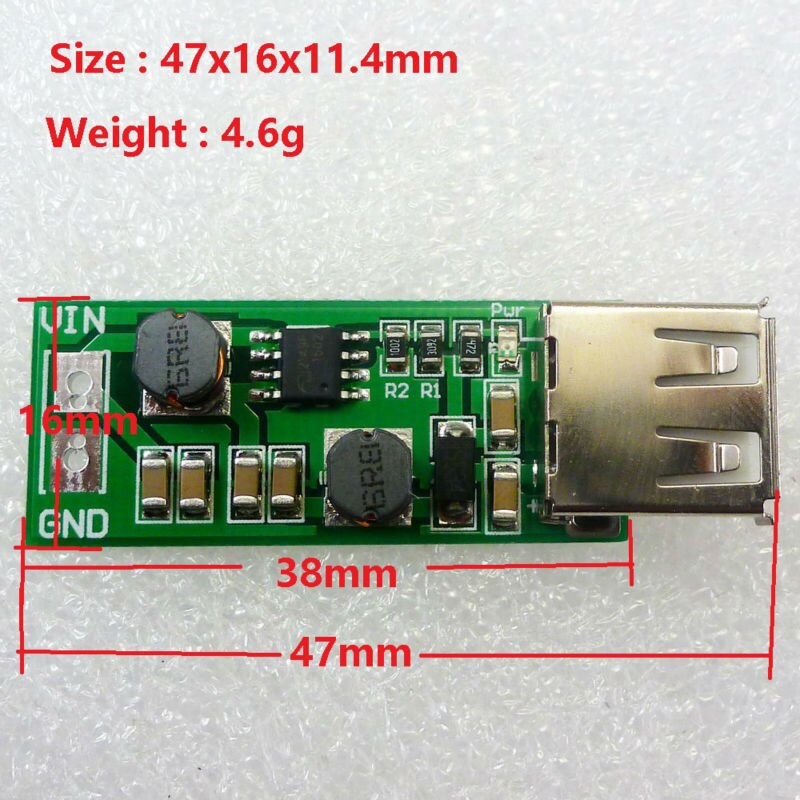

| Description: Input voltage DC 1 ~ 6V, output DC 5V(+-6%) The maximum input voltage can not exceed 6.5V Short-term maximum output current : 12000mA Long time maximum output current: 1000mA Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% . Operating temperature range : -25~+85 Degrees Celsius Storage temperature range : -45~+125 Degrees Celsius ?Size : 47mm x 16mm x 13.7mm Weight : 4.6g Applications: Battery powered equipment Wireless Module,NRF24L01 CC1101 CC2500 etc. MCU Development Board,AVR PIC FPGA/CPLD STM32 Arduiuo uno mega2560 due Breadboard Raspberry Pi LED Lighting Wireless communication equipment Audio equipment Digital cameras,GPS,wireless transceiver Portable devices ? Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself Q & A: Q : Why output voltage is less than the nominal voltage A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low Packing list 1 pcs USB Auto buck-boost Voltage regulator (input DC 1-6.2V , output DC 5V+-6%) ; |
GTIN: 774048925969
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039882
