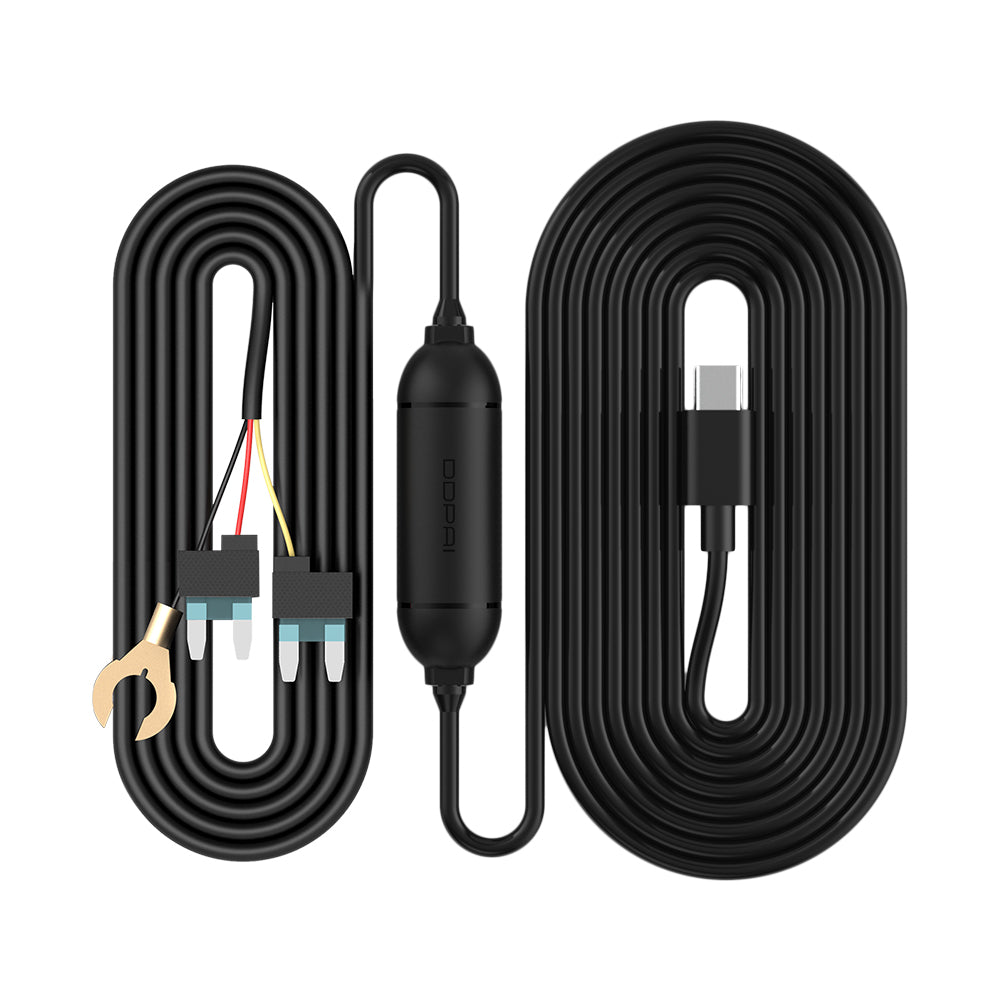

DDPAI Hardwire Kit for Z50 Dual GPS Dash Cam

Natural Fit

Product Description:

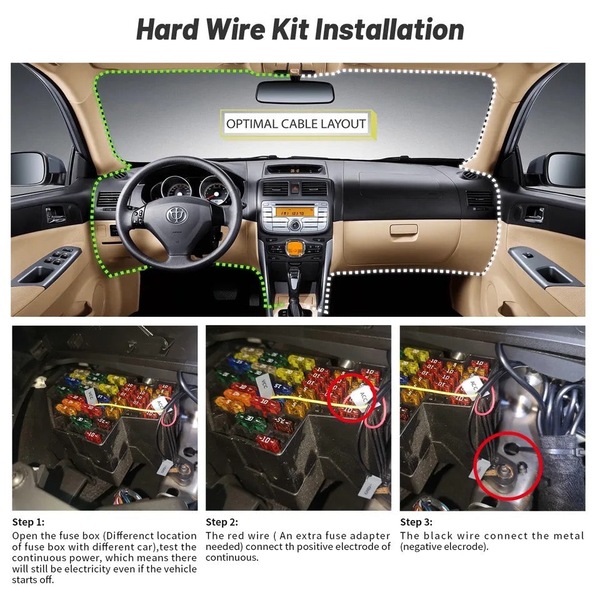

Hardwire kit for Z50 is a power cable specially designed for Z50 to connect to the car fuse box to draw power. There are three wires: red, yellow and black. After connecting to the fuse box, the dashcam can be powered while parked. It supports low voltage protection and can be set to protect 11.8V, 12V, and 12.4V. When the car battery voltage is lower than the set value, the dashcam will be automatically powered off.

Selling Points:

. Intelligent Recognition of Vehicle Status

Intelligent recognition of vehicle status for better 24-hour parking monitoring.

. 5 Layers of Protection for Reliable Recording

5 layers of protection greatly improves the self-defense ability of the hardwire kit and can intelligently protect the dashcam and car battery. *

. 3 Levels of Protection Voltage Optional

Support 11.8V/12V/12.4V 3-level protection voltage.

. High Flame Retardant and Thick Cable, High and Low Temperature Resistance

Disclaimers:

*5 Layers of Protection for Reliable Recording Include:

. Overload Protection

When the current exceeds the pre-set current, the dashcam will be automatically shut off

. Low Voltage Protection

Set up low battery voltage according to the car battery condition. When the battery voltage is too low, the dashcam power is automatically cut off to effectively protect the battery.

. Short-circuit Protection

Built-in output short-circuit protection unit. When the output port is short-circuited, it will be automatically cut off to prevent dashcam damage and will automatically recover when the fault is removed.

. Over Current Protection

Auto-distribution of current prevents damage to the recorder from high currents.

. Anti-reverse Connection Protection

Built-in anti-reverse connection device, when the line is connected incorrectly, it will automatically cut off the segment to prevent equipment damage, and automatically recover after the fault is resolved.

Specifications

Product name: Hardwire kit

Product model: A_HC12

Input voltage: DC12V-24V

Output Voltage: 5V/2A

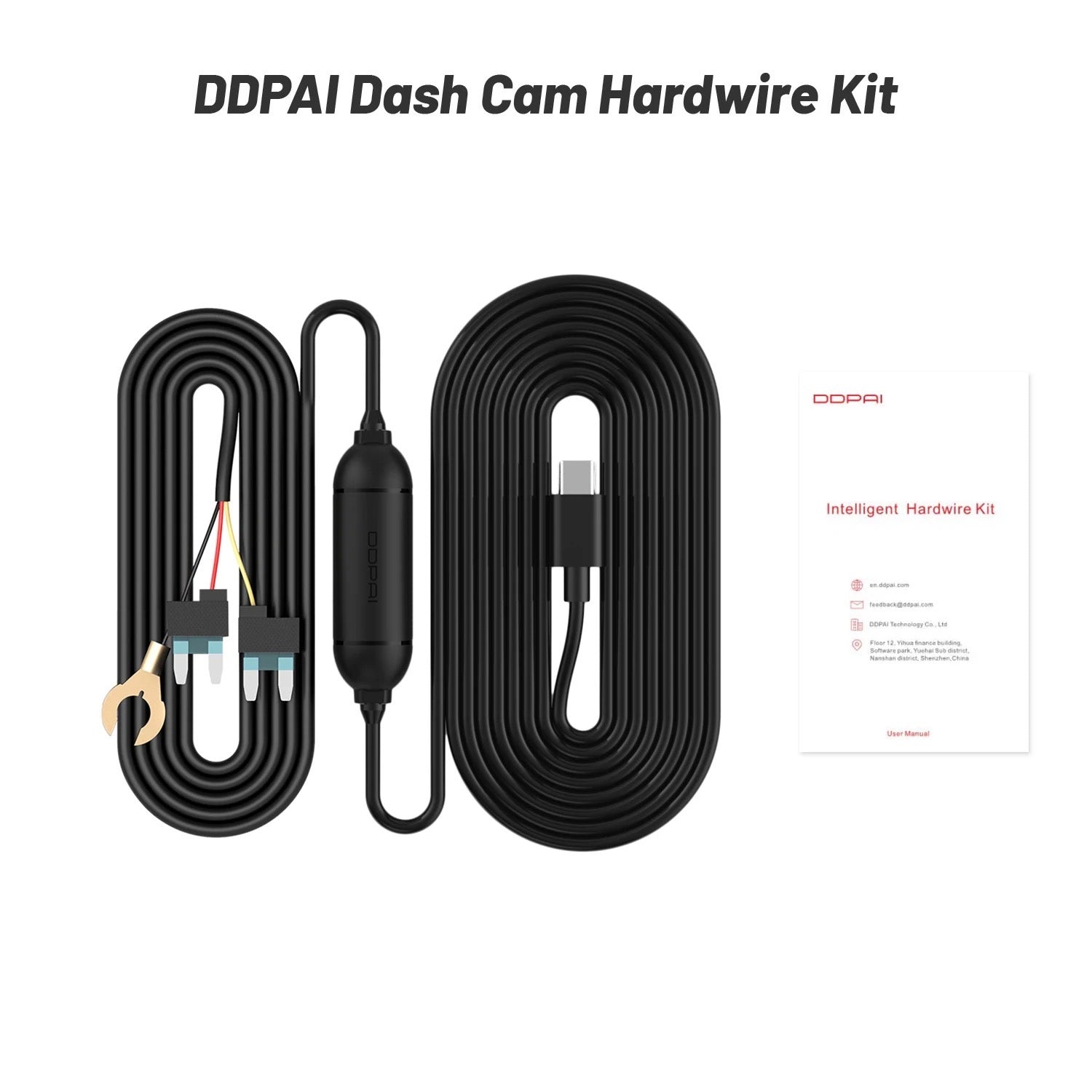

Whats In The Box:

Hardwire Kit *1

User Manual*1
