DE01ERK DVI Over Single Cat5 Extender Up To 50M 1080P 70M 1080I Connect Devices Using Thin, Long,

DE01ERK DVI Over Single Cat5 Extender Up To 50M 1080P 70M 1080I Connect Devices Using Thin, Long,

Hurry! 9 items left!

$106

Collect 106 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

The DE01ERK DVI Extender allows transmission of DVI signals up to a distance of 70m over CAT5 UTP Cable. This allows the user to connect devices using thin, long, flexible, cost effective CAT5e/6 cables rather than short, bulky and expensive DVI Cables. With he embedded EDID in theTransmitting adaptor, the PC will still send the digital video even when the monitor is disconnected or off. The usercan then relocate the monitor without the need to reboot thesystem or source device. This means set-up is a breeze.

Resolution	Distance
1024x768	70
1280x1024	50
1440x900	50
1600x900	50
1920x1200	50

*Transmission distance will be affected by Source & Monitor devices and cable quality

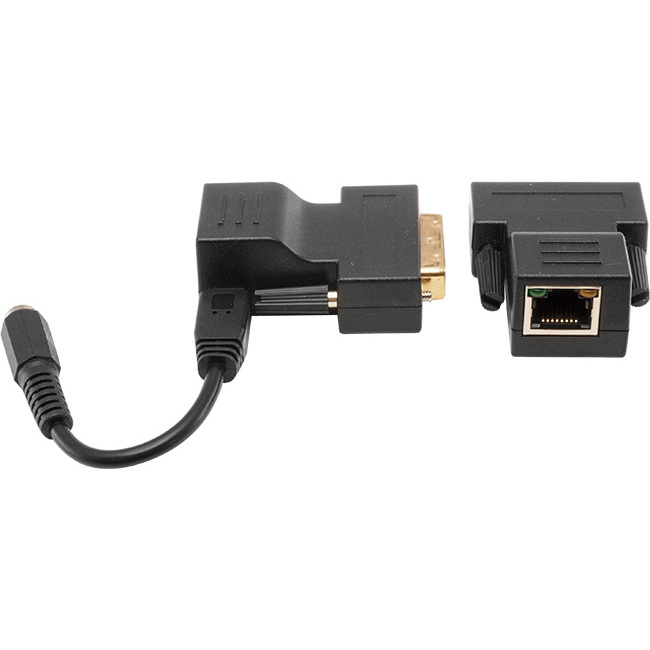

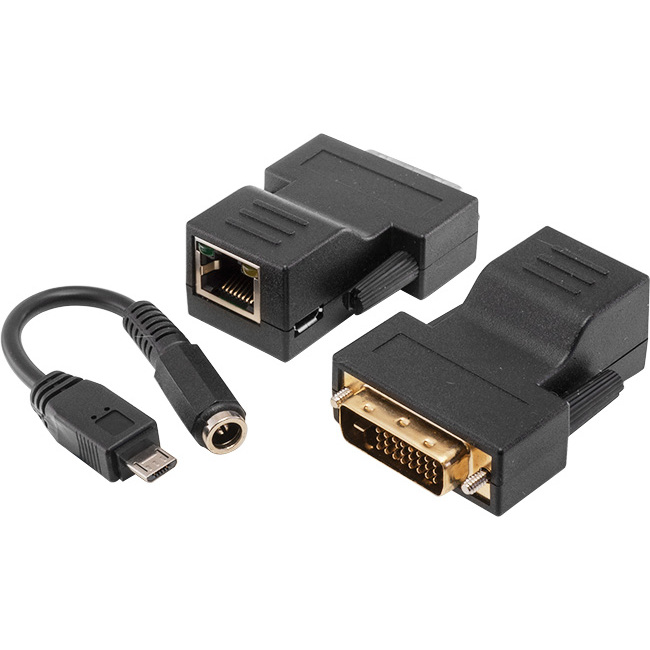

Includes DE01ET transmitter and DE01ER Receiver,
Used and supplied in pairs
Receiver gets power from Transmitter
Transmitter provides power from DVI Source, or Micro USB input when DVI Source is insufficient
Built-in LED indication
Supports resolutions up to 1920x1200
Supports up to 70m transmission of 1024x768 signals

Specifications

Video Bandwidth	1.65 Gbps ( DVI 1.1)
Resolution	Up to 1920 x 1200 @60hz
Input TMDS Video Signal	1.2 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Link Cable Distance	1024x 768@70M 1920x1200@50M
DVI Connector	DVI-D 29-pin
Link Connector	RJ-45 Shielded x1
Power Supply	none
Temperature	Operation: 0 to 55°C, Storage: -20 TO 85°C, Humidity: up to 95%
Dimensions (W x H x D mm)	DE01ERK 40 x 56 x 24.5
Weight g	DE01ERK: 50g

Weight: 0.086
