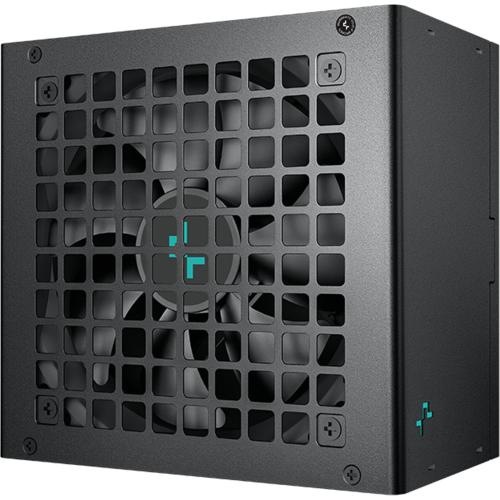

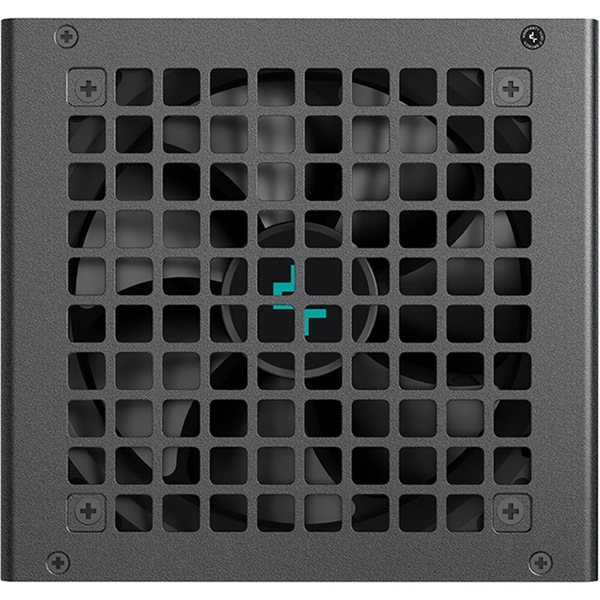

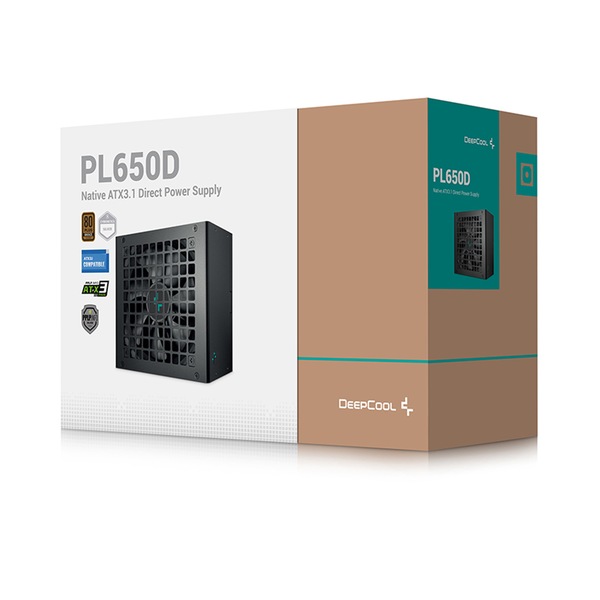

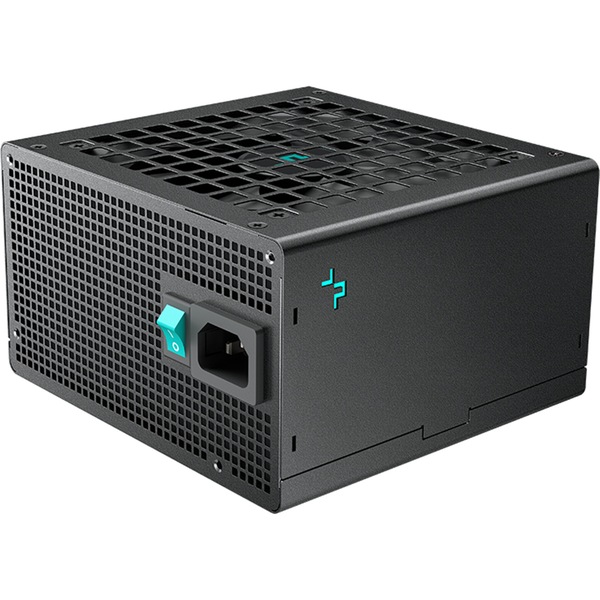

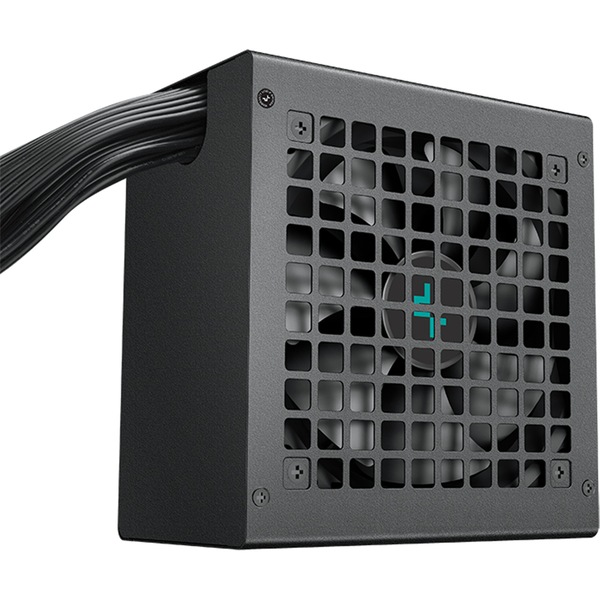

DEEPCOOL PL650D 650W Power Supply 80 Plus Bronze - MEPS Ready - 5 Years Warranty

PL650D - Native ATX3.1 Power Supply
The PL650D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.


NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL650D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 300 watts.


PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to = 16 ms under full load (100%), and they can easily handle power outages.


ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.


PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.


BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).


PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- Surge & Inrush Protection
- No Load Operation

Type
ATX12V V3.1

Product Dimensions
150×140×86mm (W x L x H)

Efficiency certification
80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II

Fan Size
120mm

Fan Bearing
HYB(Hydro Bearing)

Topology
Active PFC+DC to DC

Capacitors
Chinese Electrolytic Capacitors

Power Good Signal
100-150ms

Hold Up Time
=16ms

Efficiency
=85% Under Typical Load(50% Loading)

Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature
0 - 40?

Regulatory
CE/FCC/CCC/RCM/EAC/BIS/CAN ICES-003(B)/NMB-003(B) /TUV-RH

Erp Regulation
ErP 2014

Environment Protection
WEEE/RoHS/Triman/P65

MTBF
100,000 Hours
- MPN: R-PL650D-FC0B-AU-V2

GTIN: 6933412721147
