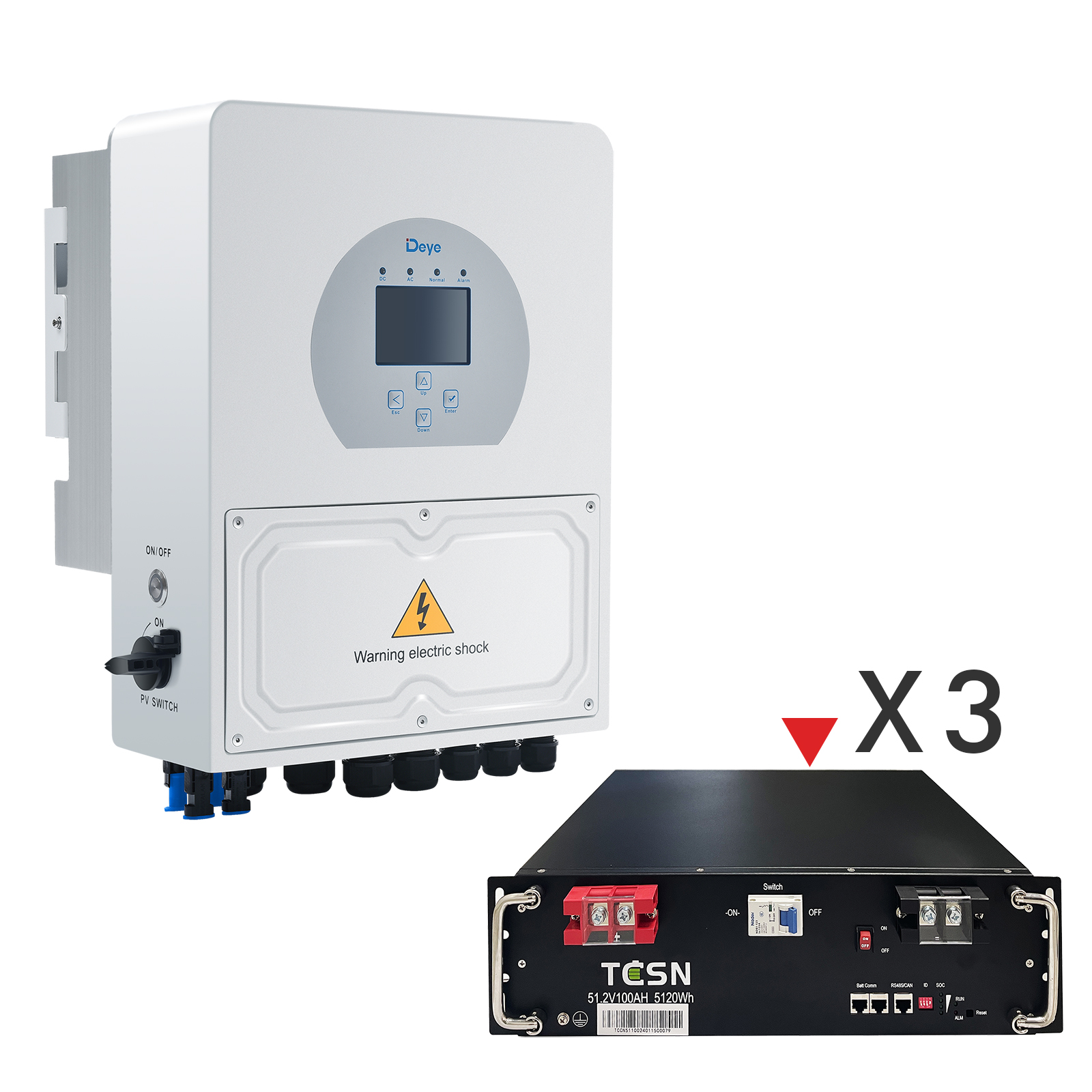

Deye 5KW Hybrid Solar Inverter MPPT Charger Regulator 3PCS 5120Wh 51.2V 100Ah Lithium Battery Module

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 1 items left!
$8599

Collect 8599 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

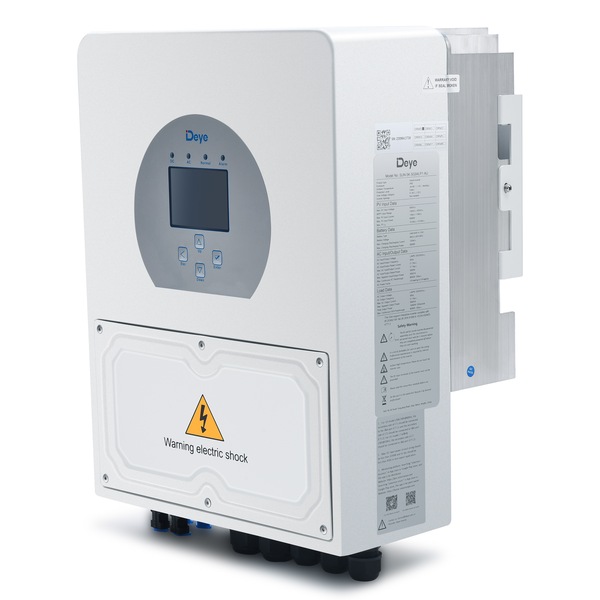

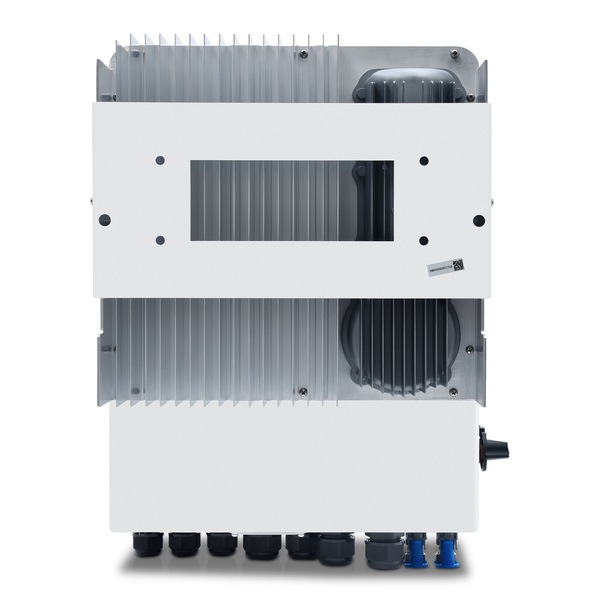

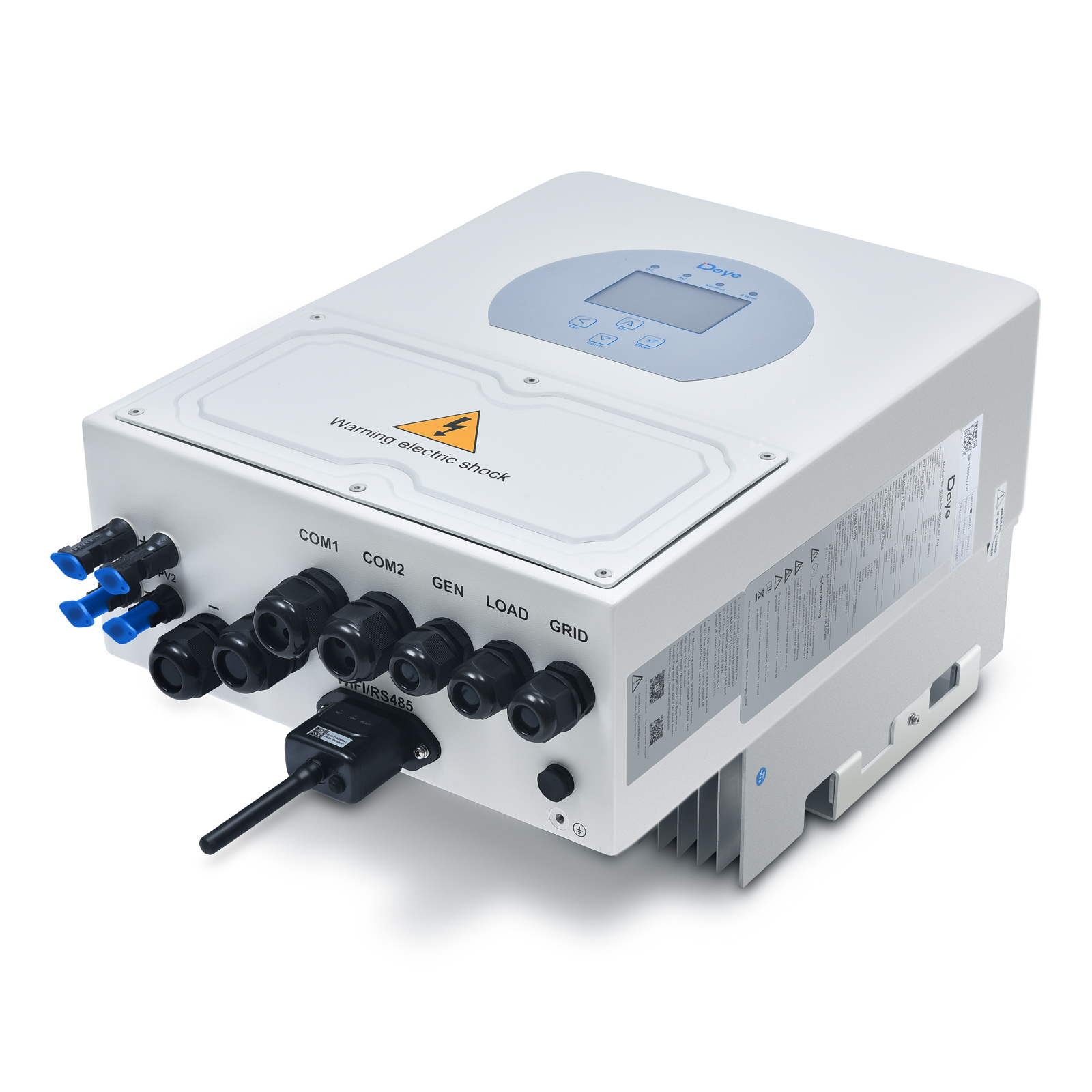

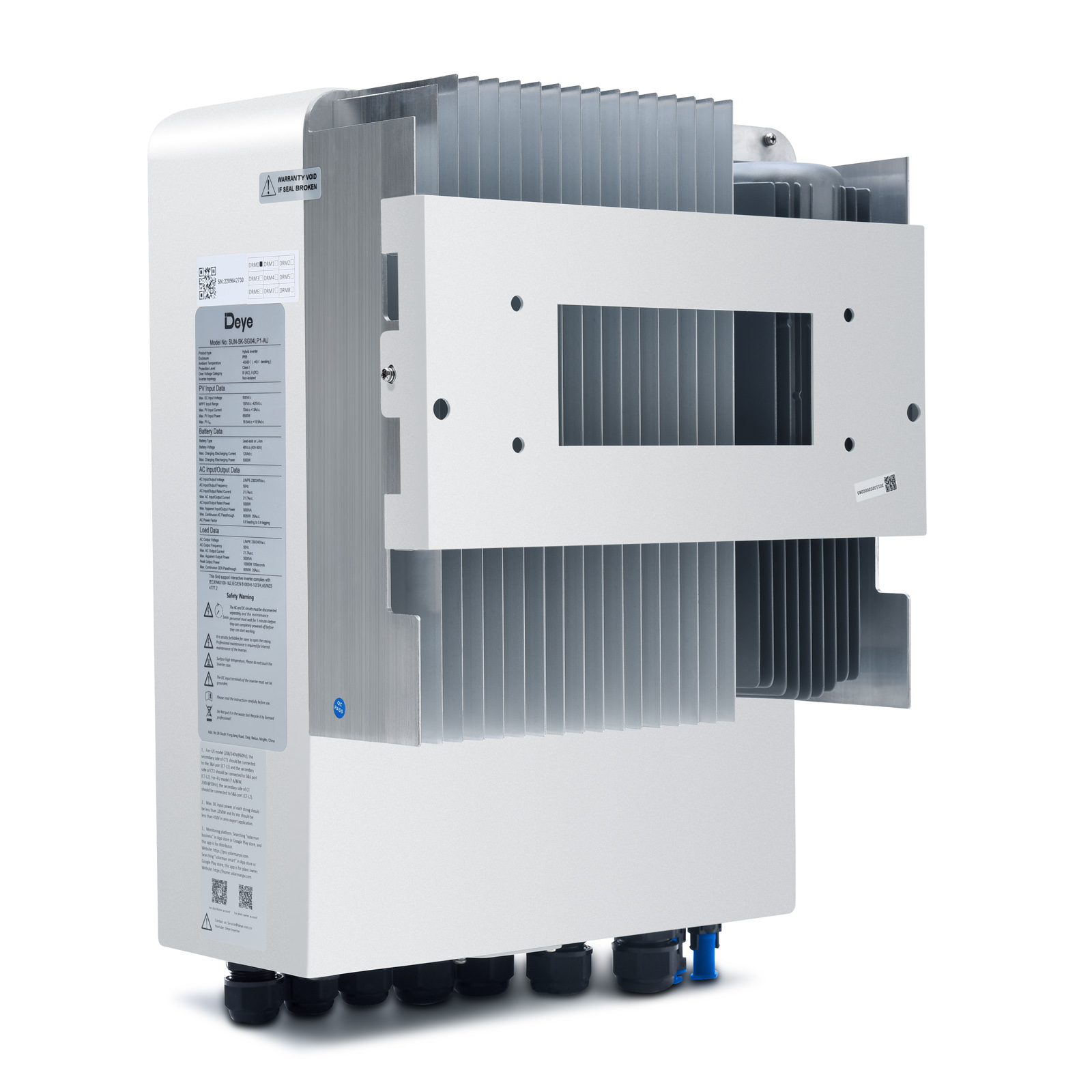

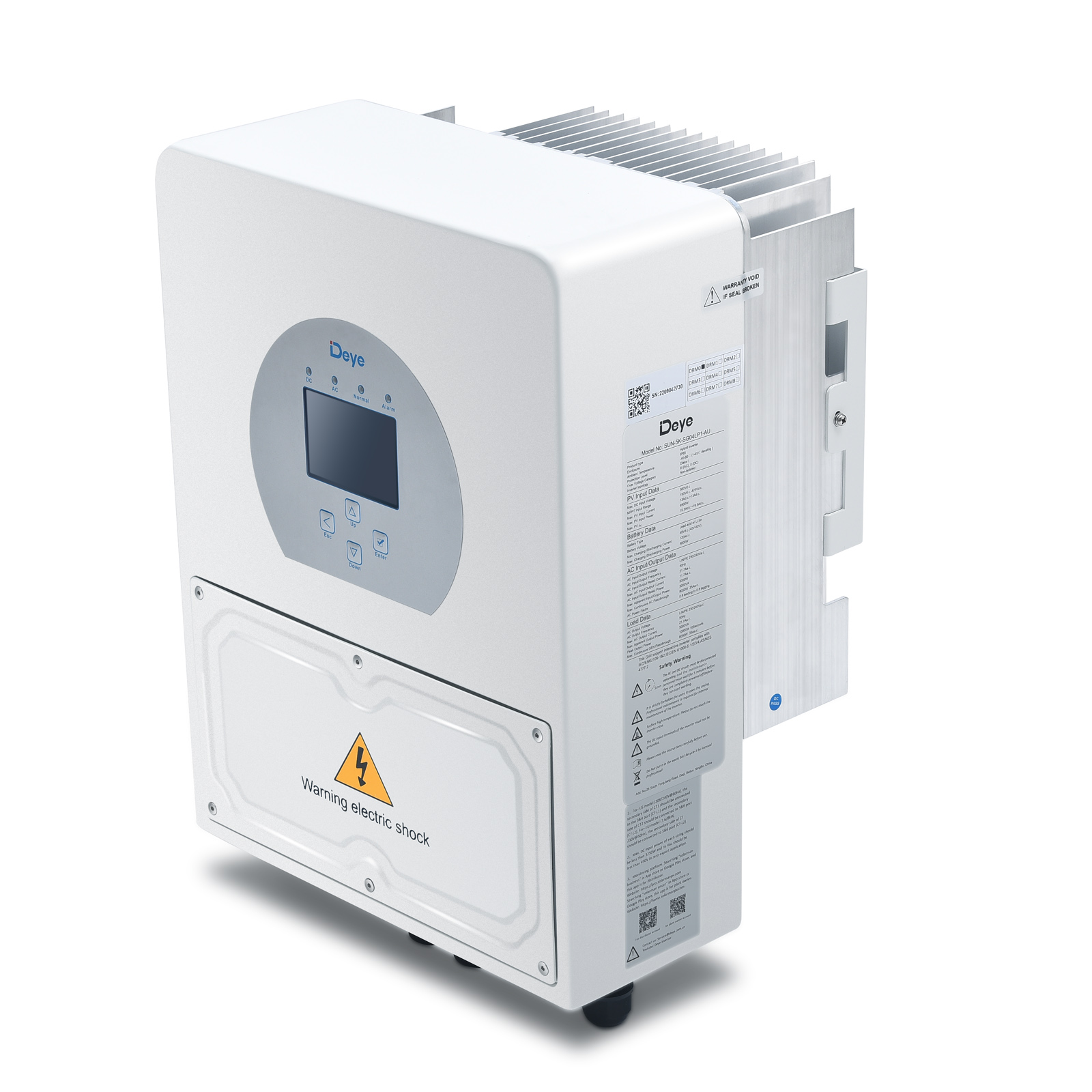

Product 1: Deye 5kW Hybrid Inverter

  • Battery Input Data

    • Battery Type: Lead-acid or Lithium-ion
    • Battery Voltage Range (V): 40~60
    • Max. Charging Current (A): 120
    • Max. Discharging Current (A):120
    • Charging Curve: 3 Stages / Equalization
    • External Temperature Sensor:Yes
    • Charging Strategy for Li-Ion Battery: Self-adaption to BMS

  • PV String Input Data

    • Max. DC Input Power (W):6500
    • Rated PV Input Voltage (V):370 (100~500)
    • Start-up Voltage (V):125
    • MPPT Voltage Range (V):125-425
    • Full Load DC Voltage Range (V):240-425

  • AC Output Data

    • Rated AC Output and UPS Power (VA): 5000
    • Max. AC Output Power (W): 5000
    • AC Output Rated Current (A):21.7
    • Max. AC Current (A):21.7
    • Max. Continuous AC Passthrough (A):35
    • Peak Power (off grid) :2 time of rated power, 10 S
    • Power Factor:0.8 leading to 0.8 lagging
    • Grid Type: Single Phase
    • DC injection current (mA):THD<3% (Linear load<1.5%)
    • Efficiency:
    • Max. Efficiency:97.60%
    • Euro Efficiency:97.00%
    • MPPT Efficiency: 99.90%

  • General Data

    • Operating Temperature Range (°C):-40~60°C, >45°C derating
    • Cooling : Nature Cooling
    • Noise (dB): <30 dB
    • Communication with BMS:RS485; CAN
    • Protection Degree: IP65
    • Installation Style: Wall-mounted
    • Warranty: 10 Years

  • Dimensions & Weight

    • Weight (kg):15.1
    • Size (mm):330W x 433H x238D

  • Package List

    • 1 x 5KW Hybrid Inverter
    • 1 x Wall Mounting Bracket
    • 1 x Set of Stainless Steel Anti-collision Bolt M6 x60 x4
    • 1 x Set of Stainless Steel Mounting Screws M4 x12 x2
    • 1 x Parallel Communication Cable
    • 1 x L-type Hexagon Wrench
    • 1 x Wi-Fi Plug
    • 1 x Battery Temperature Sensor
    • 1 x Sensor Clamp
    • 1 x User Manual

    Product 2: 5120Wh Lithium Battery Module

  • Specifications

    • Capacity: 100 Ah
    • Energy: 5120 Wh
    • Nominal Voltage: 51.2 V
    • Balancing Voltage: >54.4V
    • Cell: Square LFP 100Ah
    • Cycle Life: 4000times(80%DOD)
    • Rated Discharge Current: 100A
    • Short Circuit Current: Approx.2000A
    • Rated Discharge Cut-off Voltage: 44.8V
    • Min. Discharge Cut-off Voltage: >40V
    • Self Discharge: <=2%/Month
    • Pulse Current: 600A(5S)

    • Rated Charge Current: 50A
    • Max. Charge Current: 100A
    • Rated Charge Voltage: 54.4 - 55.2V
    • Charge Cut-off Voltage: 58.4V
    • Storage Temp: -5°C to 35°C
    • Discharge Temp: -20°C to 60°C
    • Charge Temp: 0°C to 45°C
    • Certifications: CE/UN38.3/UL1642/IEC62619
    • IP Grade: IP21
    • Terminal: M8

  • Dimensions & Weight

    • Product Size: 442 x 420 x 130 mm
    • Package Size: 550 x 525 x 180mm
    • Product Weight: 42kg
    • Package Weight: 42.6kg

  • 3x Package List

    • 1x Battery Module
    • 1x User Manual

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348082777

    Estimated Delivery Time Frame:3-12 business days
