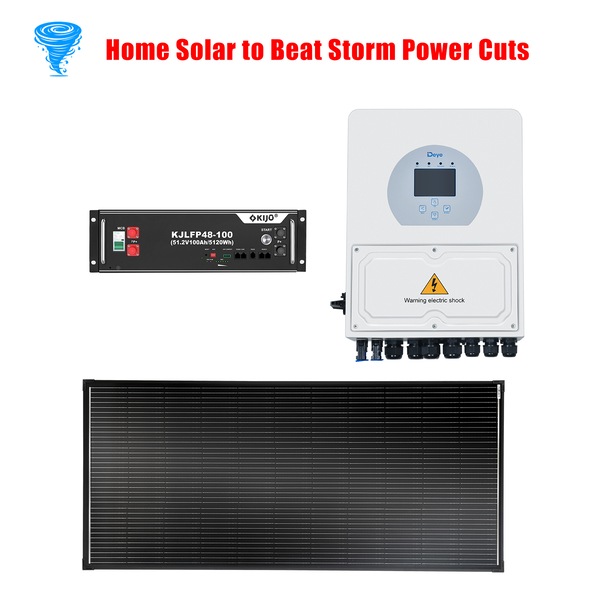

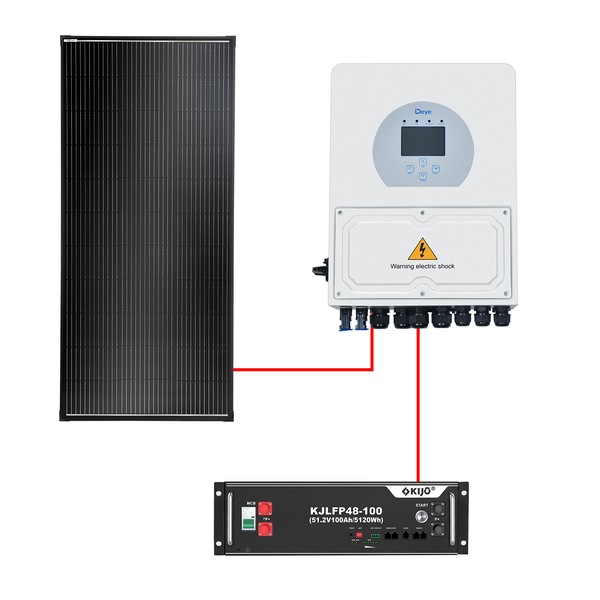

Deye 5KW Inverter + KIJO 5120Wh Lithium Battery Module + VoltX 12V 200W Fixed Solar Panel

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 3 items left!
$4899

Collect 4899 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
5kW Inverter + 48V 100Ah Lithium Battery, Stable Power Supply for Your Home! We’re Your Reliable Support!

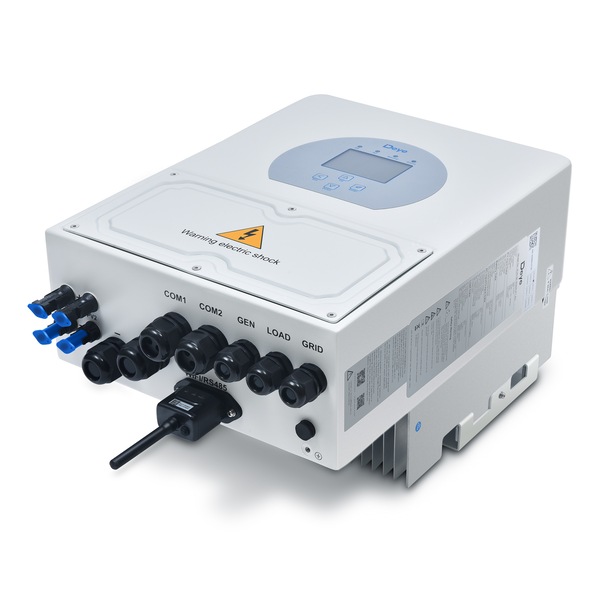

MODEL1: 1* Deye 5KW Hybrid Inverter
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40~60
Max. Charging Current (A): 120
Max. Discharging Current (A):120
Charging Curve: 3 Stages / Equalization
External Temperature Sensor:Yes
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W):6500
Rated PV Input Voltage (V):370 (100~500)
Start-up Voltage (V):125
MPPT Voltage Range (V):125-425
Full Load DC Voltage Range (V):240-425
PV Input Current (A):13+13
Max. PV ISC (A): 17+17
Number of MPPT / Strings per MPPT: 2/1+1
AC Output Data
Rated AC Output and UPS Power (VA): 5000
Max. AC Output Power (W): 5000
AC Output Rated Current (A):21.7
Max. AC Current (A):21.7
Max. Continuous AC Passthrough (A):35
Peak Power (off grid) :2 time of rated power, 10 S
Power Factor:0.8 leading to 0.8 lagging
Output Frequency and Voltage:50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V
Grid Type: Single Phase
DC injection current (mA):THD<3% (Linear load<1.5%)
Efficiency:
Max. Efficiency:97.60%
Euro Efficiency:97.00%
MPPT Efficiency: 99.90%
Protection: PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
Output Over Voltage Protection: DC Type II/AC Type III
Certifications and Standards
Grid Regulation : AS/NZS 4777.2
Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (°C):-40~60°C, >45°C derating
Cooling : Nature Cooling
Noise (dB): <30 dB
Communication with BMS:RS485; CAN
Weight (kg):15.1
Size (mm):330W x 433H x238D
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 Years

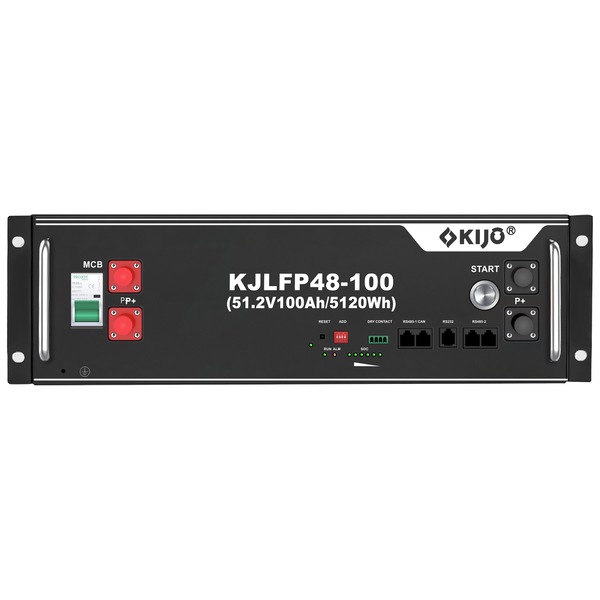

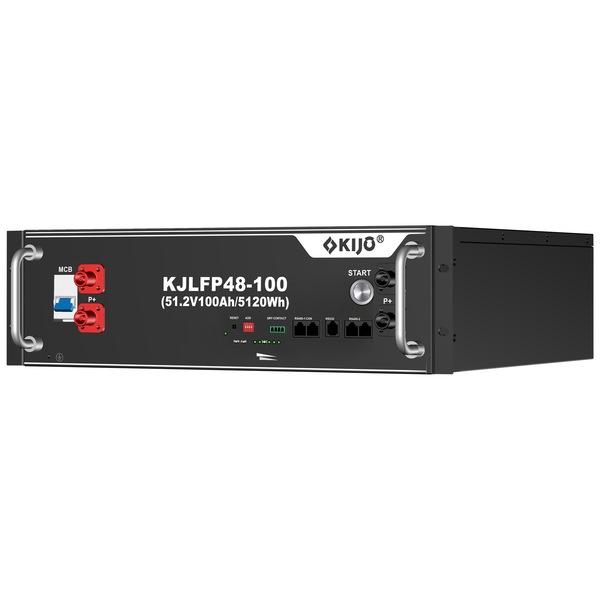

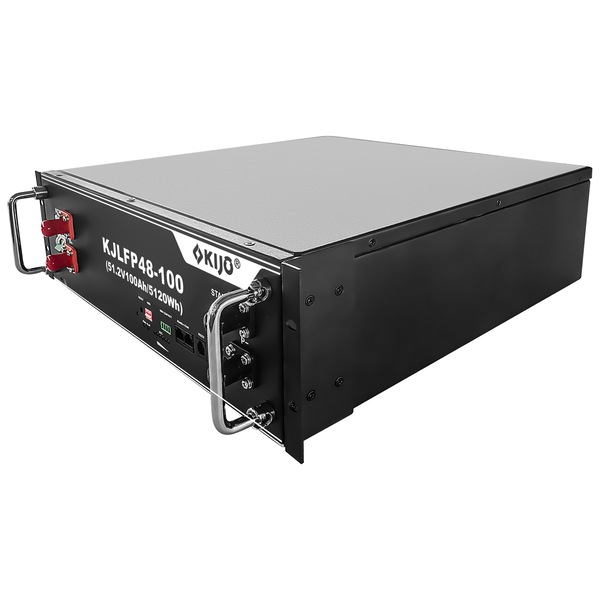

MODEL2: 1* KIJO 5120Wh Lithium Battery Module
32 years Old company, CEC approved Battery
Nominal capacity: 100Ah
Nominal voltage: 51.2VDC
Maximum continuous charging current: 95A
Maximum continuous discharge current: 95A
Voltage range: 40-58.4V
Total power consumption during operation: ≤20mA
Voltage acquisition accuracy: ≤±10mV
Current acquisition accuracy: ≤±2%
Temperature acquisition accuracy: ±2°C
Is there a balanced current: Possess
Two SOC measurement errors: ≤5%
Protection and alarm: Including: individual overvoltage, undervoltage, overall overvoltage, undervoltage, overcurrent, over temperature, short circuit protection, etc., and the protection settings can be set
Communication: RS485/RS232/CAN
Product dimension: 430*442*132mm
Package dimension: 514*504*172mm
Net weight: 44.5kg
Gross weight: 50kg
Warranty: 10 years

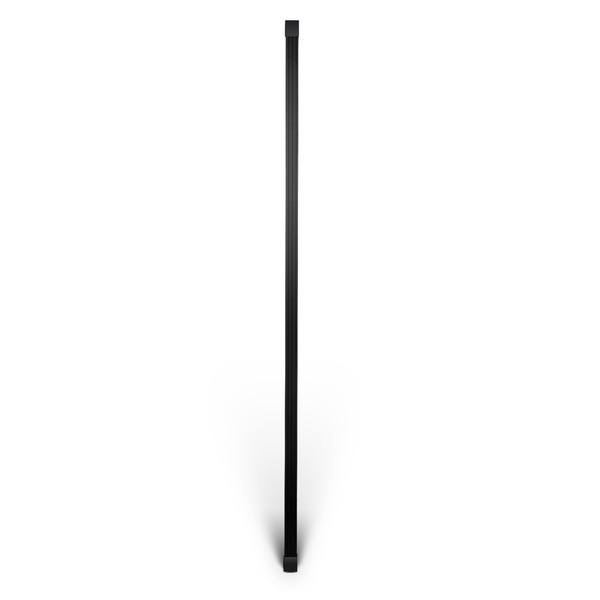

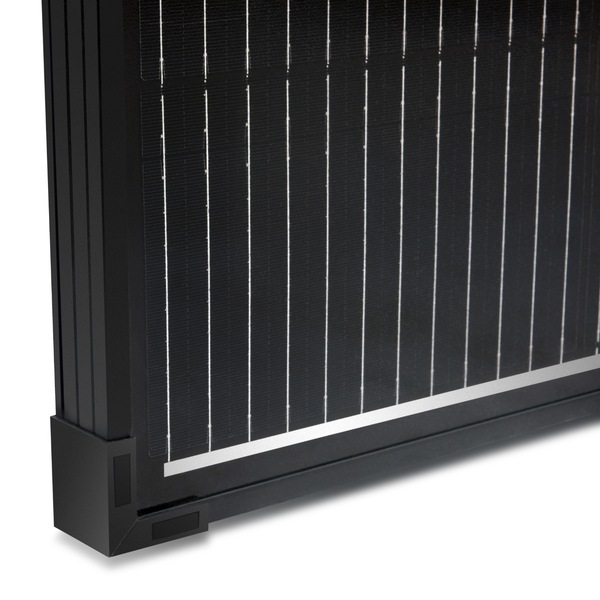

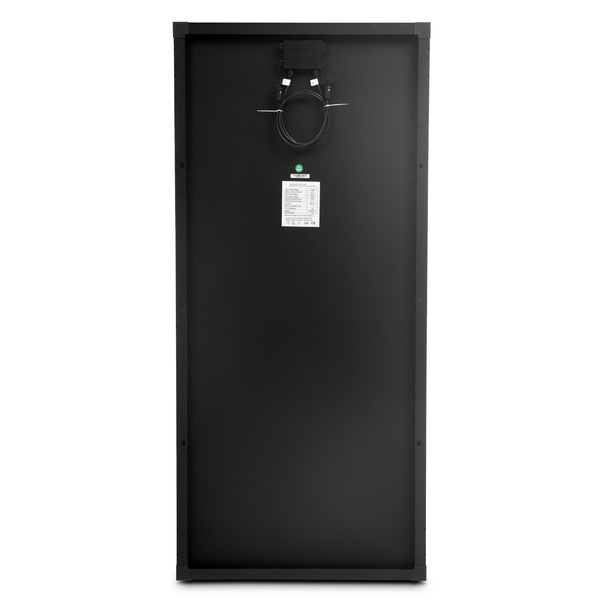

MODEL3: 1* VoltX 200W Fixed Solar Panel
Open-Circuit Voltage (Voc): 22.86V
Maximum Power Voltage (Vmp): 18.74V
Module Efficiency STC (%): 19.66%
Maximum System Voltage: 1000V
Power Tolerance: 0-5W
Operating Temperature Min: -40°C
Operating Temperature Max: 85°C
Temperature Coefficients of Pmax: -0.34%°C
Temperature Coefficients of Voc: -0.28%°C
Temperature Coefficients of lsc: +0.05%°C
Nominal Operating Cell Temperature (NOCT): 45±2°C
Cell: Mono grade A
Cell Tech: PERC
Module Application Class: A
Cell Efficiency: ≥23%
IP level: IP65
Product Size(mm): 1480*670*35mm
Box Size (mm): 1500*690*50mm
N.W(KG): 11KG
G.W(KG): 11.9KG
Certifications: CE/ISO
Warranty: 5 years
Solar Panel Size(mm): 1480*670*35mm
Solar Panel Box Size(mm): 1500*690*50mm

GTIN: 9355348087017
