Deye 12KW 12000W Hybrid Solar Inverter MPPT Charger Regulator 48V Low Voltage

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 1 items left!
$6699

Collect 6699 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
The Deye 12kW Hybrid Solar Inverter MPPT Charge Controller is ideal for anyone looking for dependable access to off-grid or on-grid solar power.

Whether you want to keep your appliances running during a power outage or reduce your monthly energy bills with less grid dependence, this is the best pair to any solar & battery storage system.

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. It also boasts a triple function: inverter, solar charger, and battery charger.

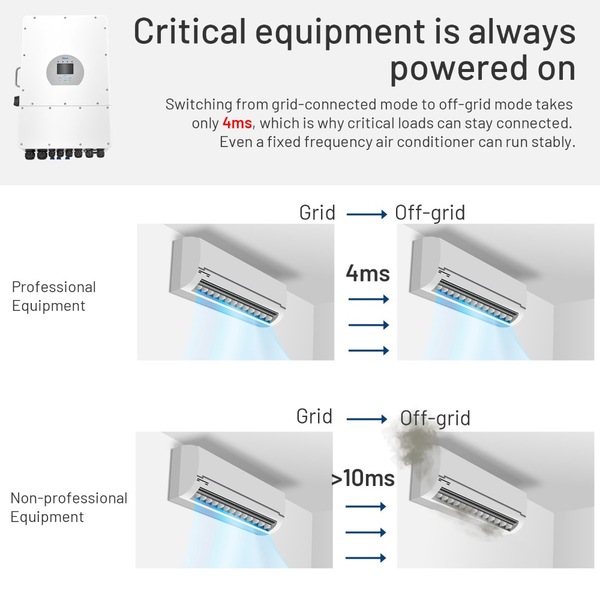

This is a real win in efficiency with an overall rating of up to 97.06%. Experience industry-leading power output, an unrivalled versatility that supports storing energy from a diesel generator, and a super fast 4ms transfer from on-grid to off-grid mode in one easy-to-operate device.

Stop wasting money on inefficient, overpriced inverters. Invest in one of our versatile and effective hybrid solar inverters today!

Features:
  • Parallel-capable up to 16pcs
  • 6 time periods for battery charging/discharging

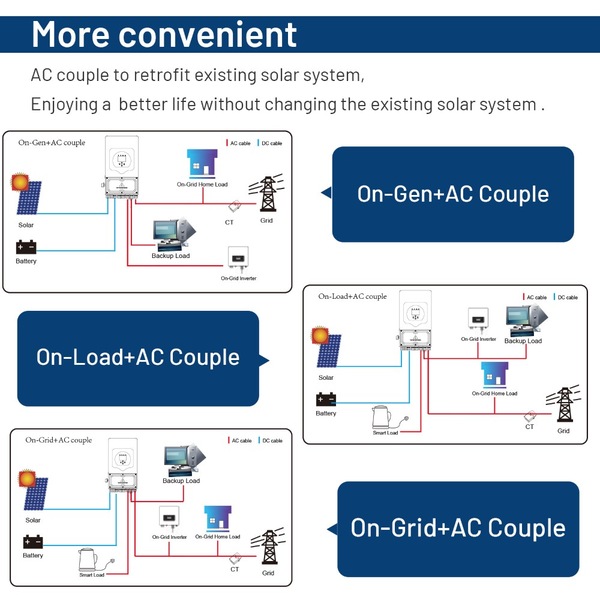

  • DC couple and AC couple to retrofit existing solar system
  • IP65 waterproof rating
  • 48V low voltage battery, safe and reliable


  • Battery Input Data
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range (V): 40~60
  • Max. Charging Current (A): 240
  • Max. Discharging Current (A):240
  • Charging Curve: 3 Stages / Equalization
  • External Temperature Sensor:Yes
  • Charging Strategy for Li-Ion Battery: Self-adaption to BMS


  • PV String Input Data
  • Max. DC Input Power (W):15600
  • Rated PV Input Voltage (V):550 (160~800)
  • Start-up Voltage (V):160
  • MPPT Voltage Range (V):200-650
  • Full Load DC Voltage Range (V):350-650
  • PV Input Current (A):26+13
  • Max. PV ISC (A): 39+19.5
  • Number of MPPT / Strings per MPPT: 2/2+1


  • AC Output Data
  • Rated AC Output and UPS Power (VA): 12000
  • Max. AC Output Power (W): 12000
  • AC Output Rated Current (A):17.4
  • Max. AC Current (A):17.4
  • Max. Continuous AC Passthrough (A):45
  • Peak Power (off grid) :2 time of rated power, 10 S
  • Power Factor:0.8 leading to 0.8 lagging
  • Output Frequency and Voltage:50Hz; 3L/N/PE 400V/340V-440V 415V/353V-456.5V
  • Grid Type: Three Phase
  • DC injection current (mA):THD<3% (Linear load<1.5%)
  • Efficiency:
  • Max. Efficiency:97.60%
  • Euro Efficiency:97.00%
  • MPPT Efficiency: 99.90%


  • Certifications and Standards
  • Grid Regulation : AS/NZS 4777.2
  • Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


  • General Data
  • Operating Temperature Range (°C):-40~60°C, >45°C derating
  • Cooling : Smart Cooling
  • Noise (dB): <45 dB
  • Communication with BMS:RS485; CAN
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
  • Warranty: 10 Years


  • Dimensions & Weight
  • Weight (kg):33.6
  • Size (mm):422W x 702H x281D


  • If that's not enough, check out "Deye Hybrid Inverter.pdf" to find out more about this Hybrid Inverter.

    Deye Hybrid Inverter.pdf
