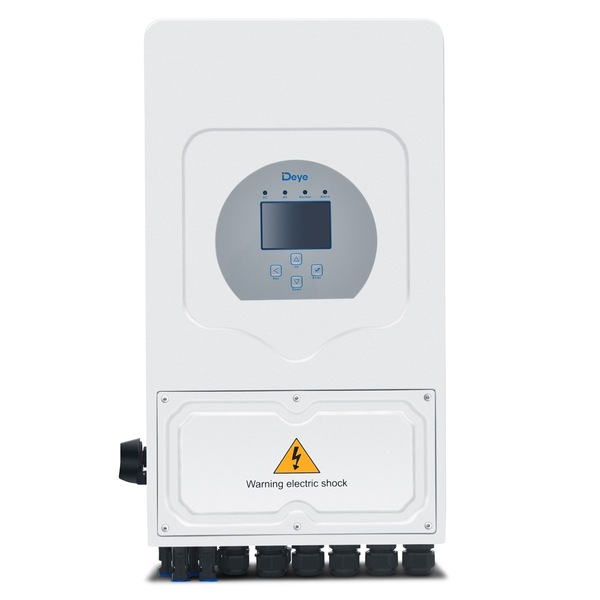

Deye 8KW Inverter Charger Regulator 8KW Hybrid Solar Inverter Off-Grid

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 19 items left!
$3899

Collect 3899 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size and make the most of your solar system.

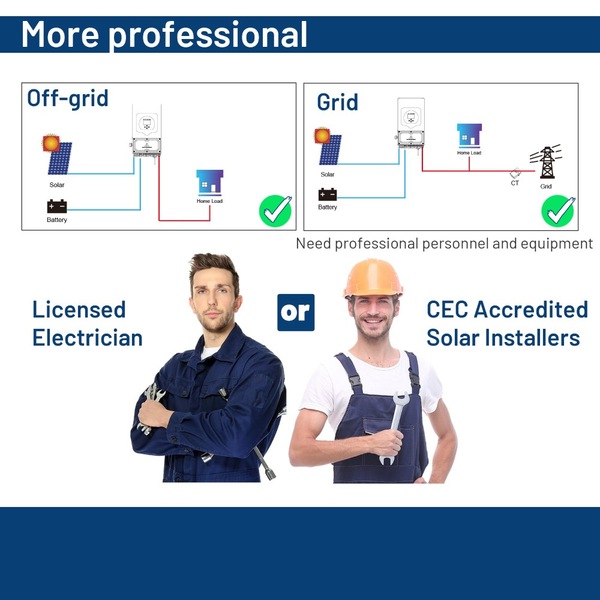

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Stop wasting money on inefficient, overpriced inverters. Invest in one of the most versatile and effective solar power management systems out there today. Our hybrid inverters are next-level and truly worth of your purchase.

Features:

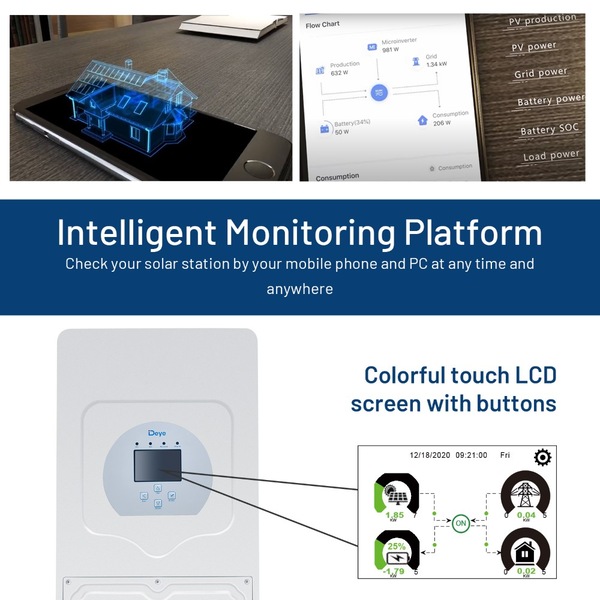

  • Colorful touch LCD, IP65
  • 6 time periods for battery charging/discharging
  • Max.16pcs parallel

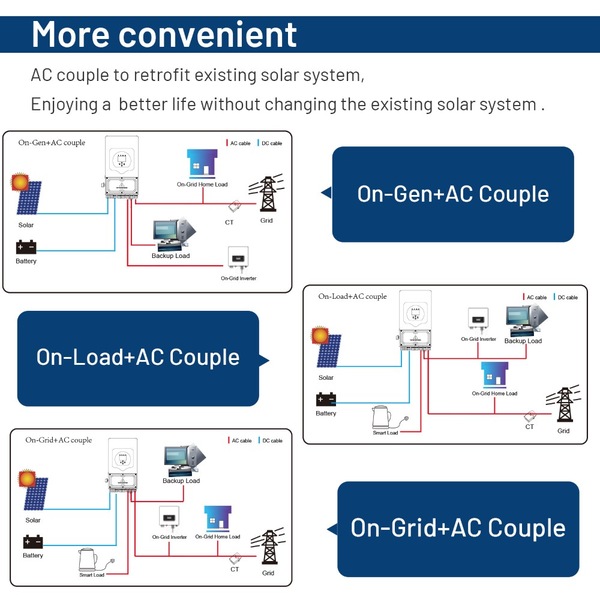

  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • 48V low voltage battery, safe and reliable

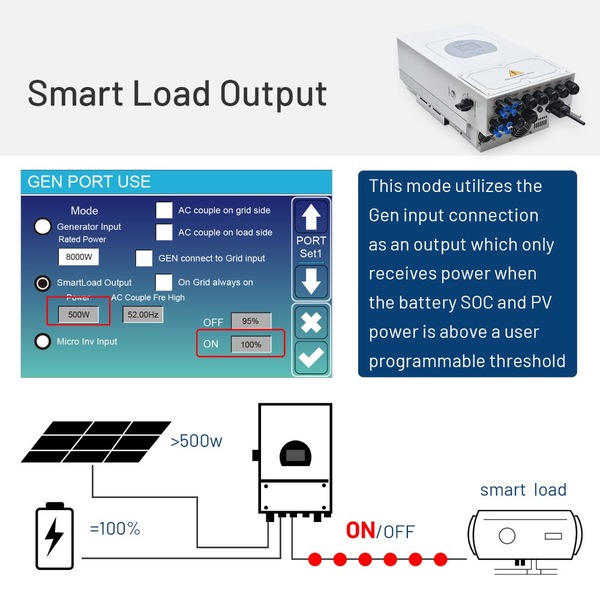

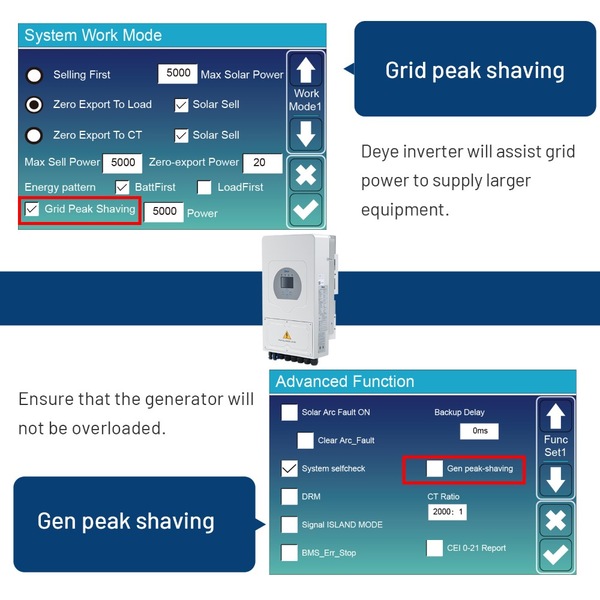

  • Unique Smart Load application and Grid peak shaving function
  • 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well


  • Battery Input Data
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range (V): 40~60
  • Max. Charging Current (A): 190
  • Max. Discharging Current (A):190
  • Charging Curve: 3 Stages / Equalization
  • External Temperature Sensor:Yes
  • Charging Strategy for Li-Ion Battery: Self-adaption to BMS

  • PV String Input Data
  • Max. DC Input Power (W):10400
  • Rated PV Input Voltage (V):370 (125~500)
  • Start-up Voltage (V):125
  • MPPT Voltage Range (V):150-425
  • Full Load DC Voltage Range (V):200-425
  • PV Input Current (A):26+26
  • Max. PV ISC (A): 34+34

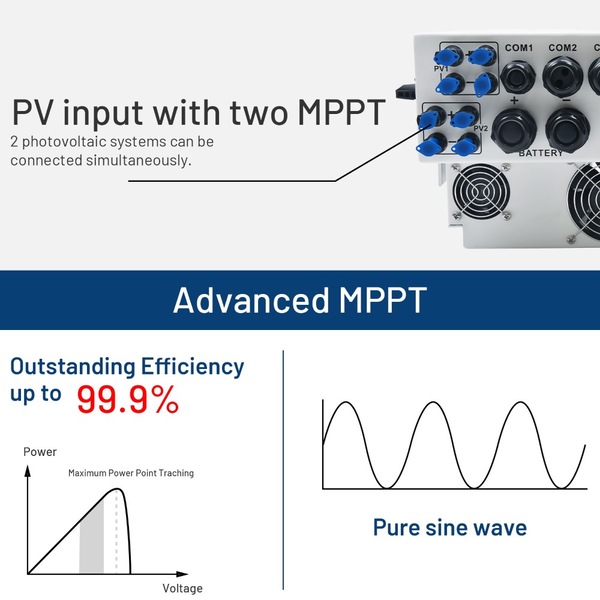

  • Number of MPPT / Strings per MPPT: 2/1+1

  • AC Output Data
  • Rated AC Output and UPS Power (VA): 8000
  • Max. AC Output Power (W): 8000
  • AC Output Rated Current (A):34.8
  • Max. AC Current (A):34.8
  • Grid Type: Single Phase
  • Efficiency:
  • Max. Efficiency:97.60%
  • Euro Efficiency:97.00%
  • MPPT Efficiency: 99.90%

  • General Data
  • Operating Temperature Range (°C):-40~60°C, >45°C derating
  • Cooling : Nature Cooling
  • Noise (dB): <30 dB
  • Communication with BMS:RS485; CAN
  • Weight (kg):24
  • Size (mm):330W x 580H x237D
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
  • Warranty: 10 Years


  • Dimensions & Weight:
  • Weight (kg):24
  • Size (mm):330W x 580H x237D


  • Package:
  • 1 x Hybrid Inverter
  • 1 x Wall Mounting Bracket
  • 1 x Set of Stainless Steel Anti-collision Bolt M6 x60 x4
  • 1 x Set of Stainless Steel Mounting Screws M4 x12 x2
  • 1 x Parallel Communication Cable
  • 1 x L-type Hexagon Wrench
  • 1 x Wi-Fi Plug
  • 1 x Battery Temperature Sensor
  • 1 x Sensor Clamp
  • 1 x User Manual


  • If that's not enough, check out "Deye Hybrid Inverter.pdf" to find out more about this Hybrid Inverter.

    Deye Hybrid Inverter.pdf

    GTIN: 702658798130
