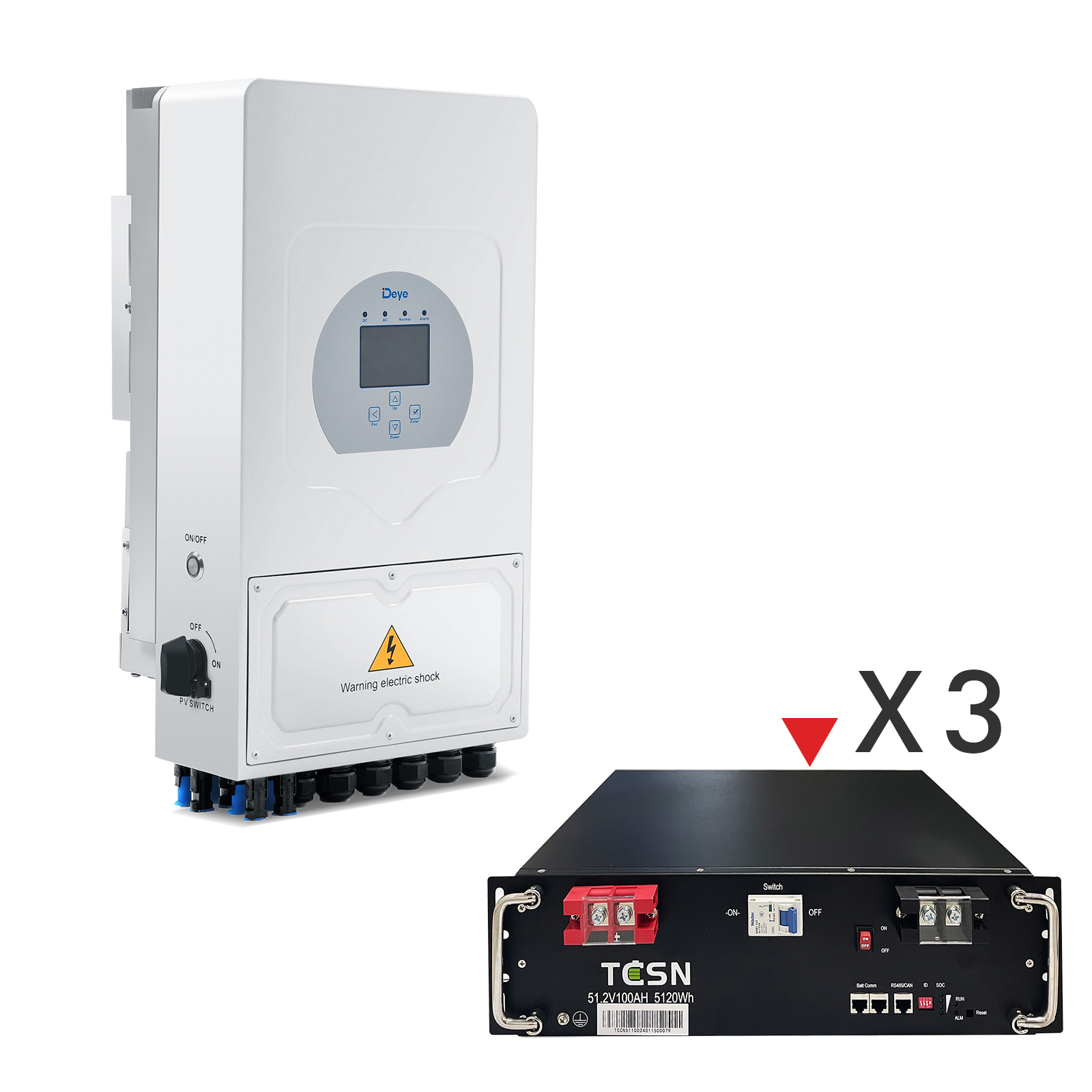

Deye VoltX 8KW Hybrid Solar Inverter MPPT Charger 3PCS 5120Wh 51.2V 100Ah Lithium Battery Module

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 16 items left!
$9559

Collect 9559 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Ultimate Backup Power: Hybrid Inverter + 5120Wh Battery Module - Reliable energy for home, RVs, and off-grid setups. Extended Runtime: High-capacity battery ensures long-lasting power. Versatile Solution: Perfect for backup, solar integration, and mobile power needs!

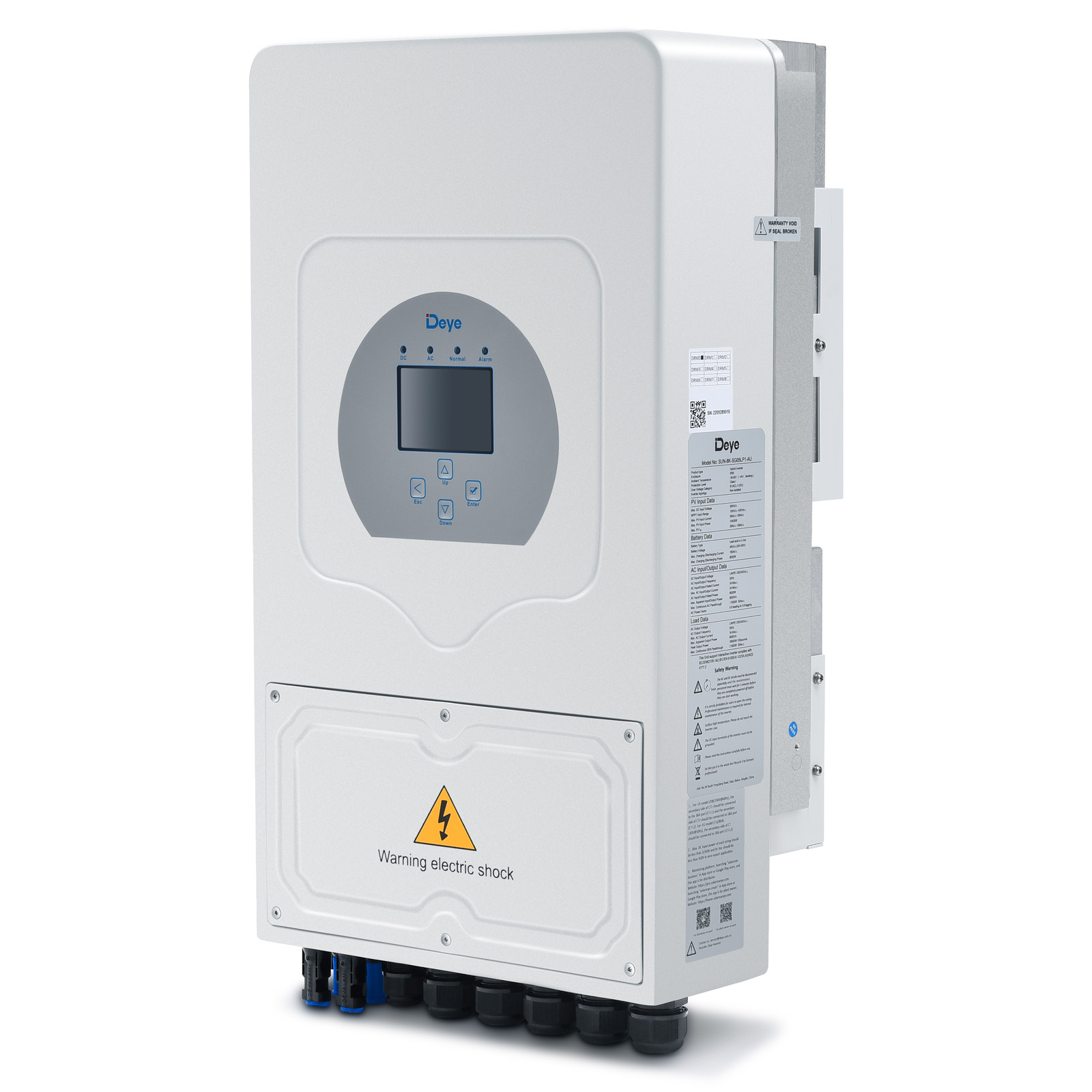

MODEL1: 1* 8KW Hybrid Inverter
Specification
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40~60
Max. Charging Current (A): 190
Max. Discharging Current (A):190
Charging Curve: 3 Stages / Equalization
External Temperature Sensor:Yes
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W):10400
Rated PV Input Voltage (V):370 (125~500)
Start-up Voltage (V):125
MPPT Voltage Range (V):150-425
Full Load DC Voltage Range (V):200-425
PV Input Current (A):26+26
Max. PV ISC (A): 34+34
Number of MPPT / Strings per MPPT: 2/1+1
AC Output Data
Rated AC Output and UPS Power (VA): 8000
Max. AC Output Power (W): 8000
AC Output Rated Current (A):34.8
Max. AC Current (A):34.8
Max. Continuous AC Passthrough (A):50
Peak Power (off grid) :2 time of rated power, 10 S
Power Factor:0.8 leading to 0.8 lagging
Output Frequency and Voltage:50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V
Grid Type: Single Phase
DC injection current (mA):THD<3% (Linear load<1.5%)
Efficiency:
Max. Efficiency:97.60%
Euro Efficiency:97.00%
MPPT Efficiency: 99.90%
Protection: PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
Output Over Voltage Protection: DC Type II/AC Type III
Certifications and Standards
Grid Regulation : AS/NZS 4777.2
Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (°C):-40~60°C, >45°C derating
Cooling : Nature Cooling
Noise (dB): <30 dB
Communication with BMS:RS485; CAN
Weight (kg):24
Size (mm):330W x 580H x237D
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 Years

Package List
Hybrid inverter x1
Wall mounting bracket x1
Stainless steel anti-collision bolt M6*60 x4
Stainless steel mounting Screws M4*12 x2
Parallel communication cable x1
L-type Hexagon wrench x1
Wi-Fi Plug x1
Battery temperature sensor x1
User Manual x1
Sensor Clamp x1

MODEL2: 3* 5120Wh Lithium Battery Module
Specification
Capacity: 100 Ah
Nominal Voltage: 51.2 V
Energy: 5120 Wh
Weight: 42 kg
Dimensions: 442*420*130 mm
Storage Temp: -5°C to 35°C
Discharge Temp: -20°C to 60°C
Charge Temp: 0°C to 45°C
Certifications: CE/UN38.3/UL1642/IEC62619
Cell: Square LFP 100Ah
Terminal: M8
IP Grade: IP21
Self Discharge: ≤2%/Month
Cycle Life: 4000times(80%DOD)
Rated Charge Current: 50A
Max. Charge Current: 100A
Rated Charge Voltage: 54.4~55.2V
Charge Cut-off Voltage: 58.4V
Balancing Voltage: >54.4V
Rated Discharge Current: 100A
Pulse Current: 600A(5S)
Rated Discharge Cut-off Voltage: 44.8V
Min. Discharge Cut-off Voltage: >40V
Short Circuit Current: Approx.2000A

Package List x3
1* battery module

GTIN: 9355348082869
