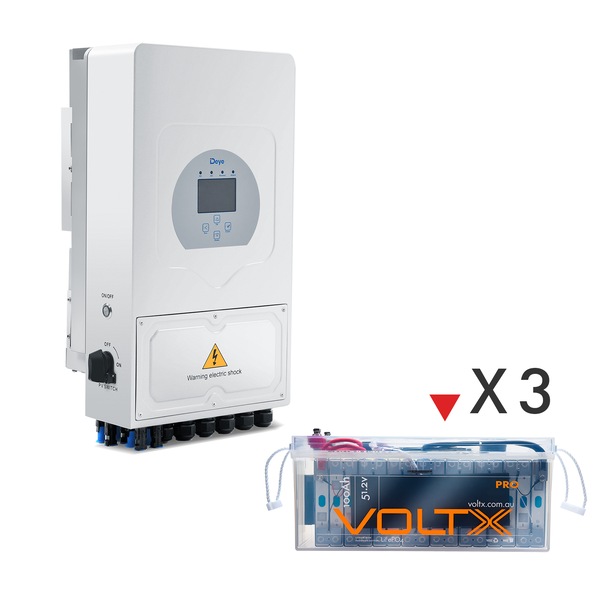

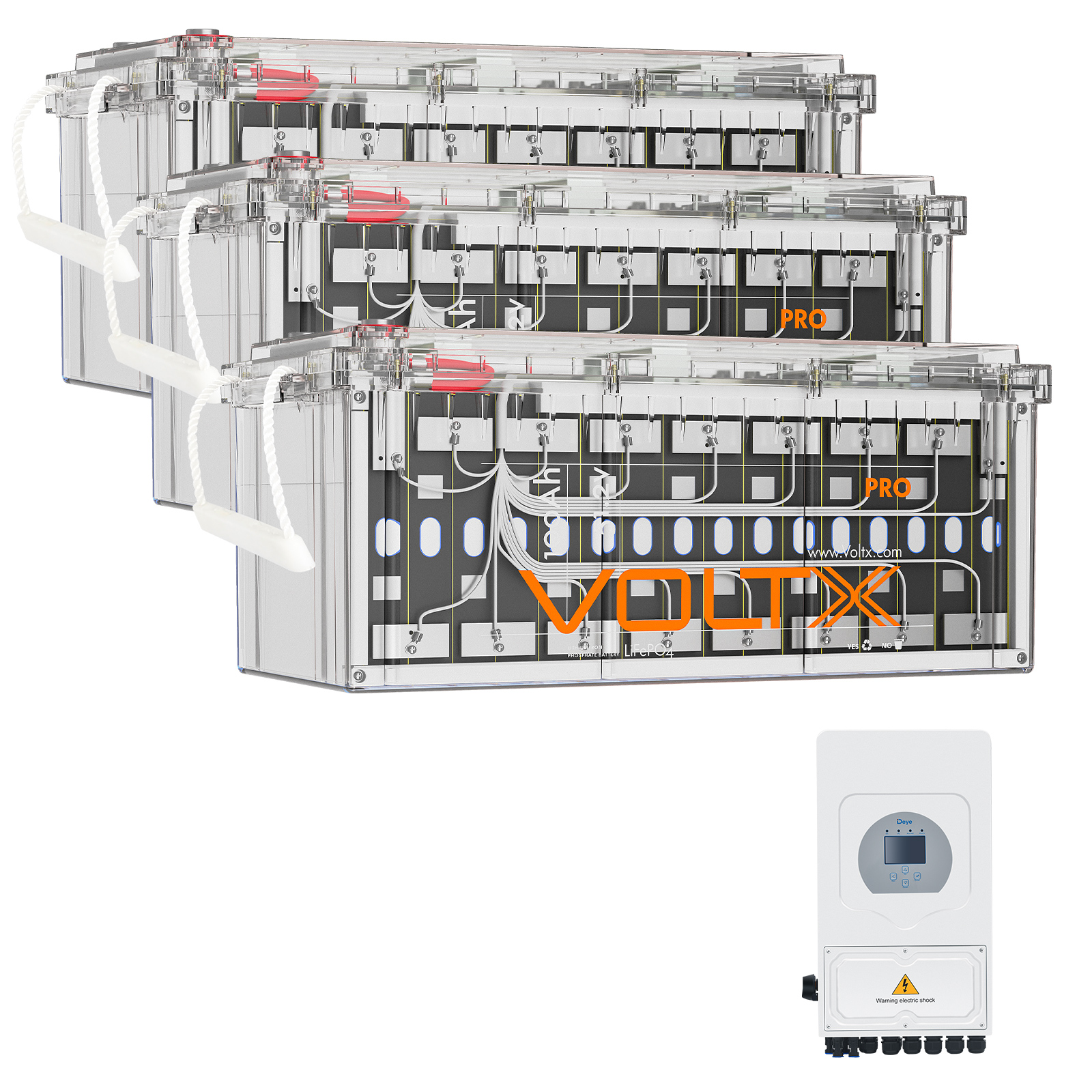

Deye VoltX 8KW Hybrid Solar Inverter MPPT Charger 3PCS VoltX 48V 100Ah Lithium Battery LiFePO4

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 12 items left!
$8629

Collect 8629 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

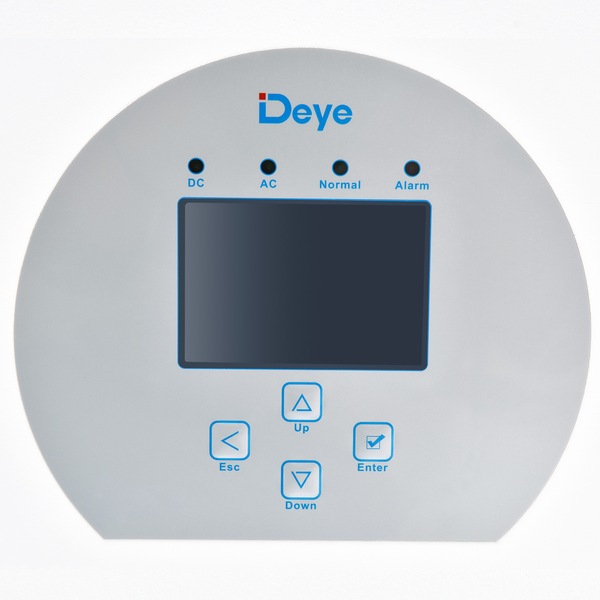

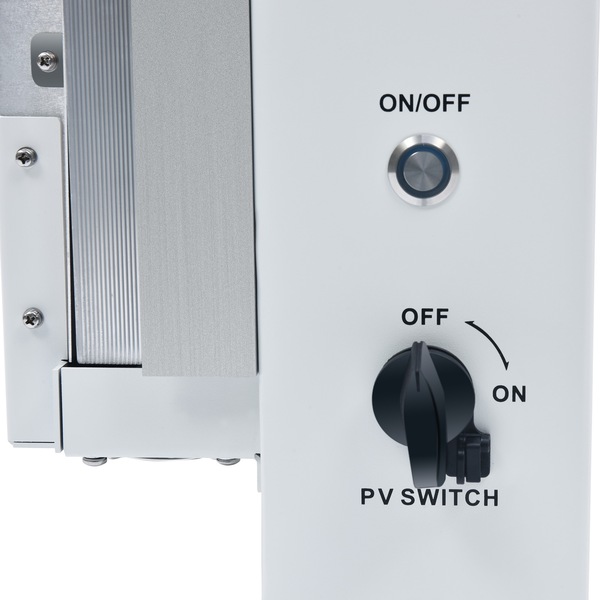

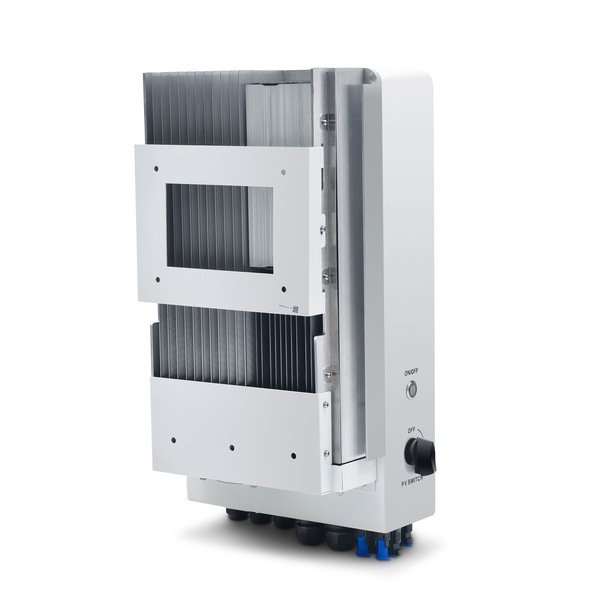

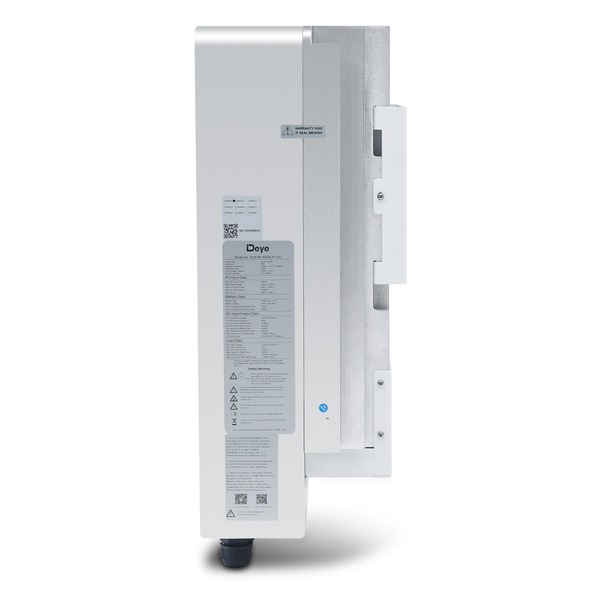

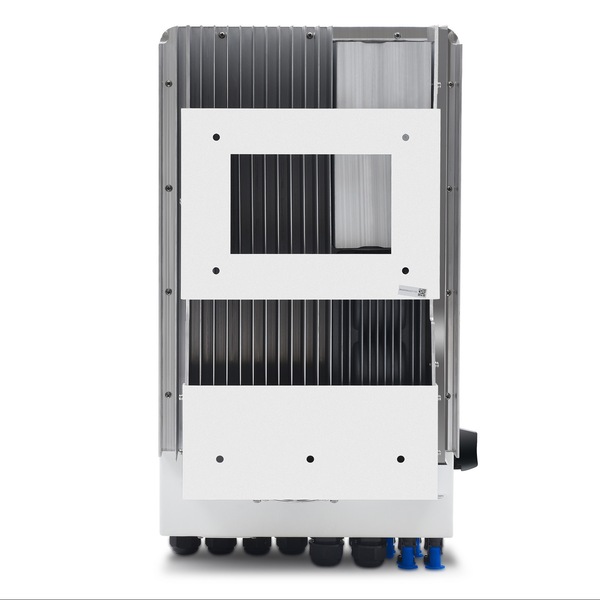

Product 1: Deye 8kW Hybrid Inverter

  • Battery Input Data

    • Battery Type: Lead-acid or Lithium-ion
    • Battery Voltage Range (V): 40~60
    • Max. Charging Current (A): 190
    • Max. Discharging Current (A):190
    • Charging Curve: 3 Stages / Equalization
    • External Temperature Sensor:Yes
    • Charging Strategy for Li-Ion Battery: Self-adaption to BMS

  • PV String Input Data

    • Max. DC Input Power (W):10400
    • Rated PV Input Voltage (V):370 (125~500)
    • Start-up Voltage (V):125
    • MPPT Voltage Range (V):150-425
    • Full Load DC Voltage Range (V):200-425
    • PV Input Current (A):26+26
    • Max. PV ISC (A): 34+34
    • Number of MPPT / Strings per MPPT: 2/1+1

  • AC Output Data

    • Rated AC Output and UPS Power (VA): 8000
    • Max. AC Output Power (W): 8000
    • AC Output Rated Current (A):34.8
    • Max. AC Current (A):34.8
    • Grid Type: Single Phase
    • Efficiency:
    • Max. Efficiency:97.60%
    • Euro Efficiency:97.00%
    • MPPT Efficiency: 99.90%

  • General Data

    • Operating Temperature Range (°C):-40~60°C, >45°C derating
    • Cooling : Nature Cooling
    • Noise (dB): <30 dB
    • Communication with BMS:RS485; CAN
    • Weight (kg):24
    • Size (mm):330W x 580H x237D
    • Protection Degree: IP65
    • Installation Style: Wall-mounted
    • Warranty: 10 Years

  • Dimensions & Weight

    • Weight (kg):24
    • Size (mm):330W x 580H x237D

  • Package List

    • 1 x 8KW Hybrid Inverter
    • 1 x Wall Mounting Bracket
    • 1 x Set of Stainless Steel Anti-collision Bolt M6 x60 x4
    • 1 x Set of Stainless Steel Mounting Screws M4 x12 x2
    • 1 x Parallel Communication Cable
    • 1 x L-type Hexagon Wrench

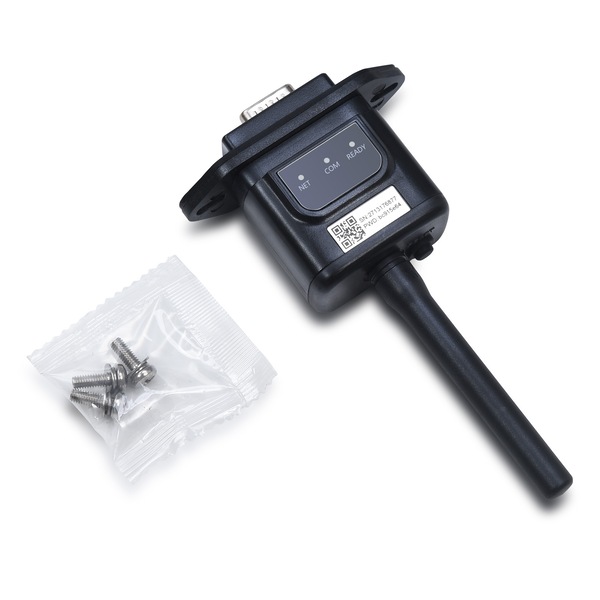

    • 1 x Wi-Fi Plug

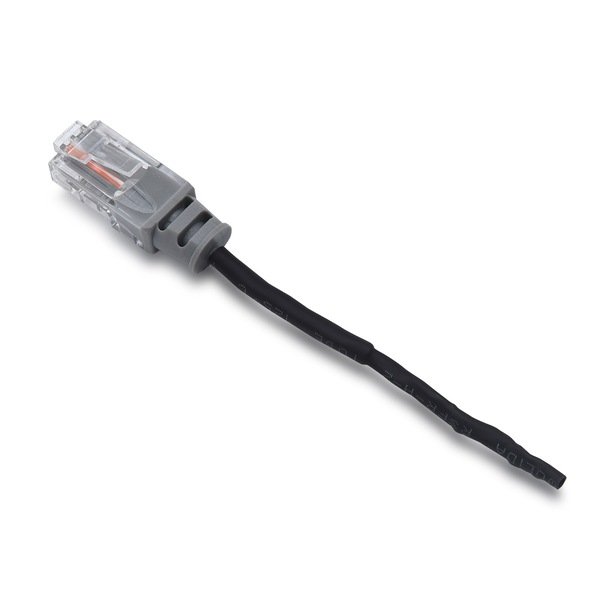

    • 1 x Battery Temperature Sensor
    • 1 x Sensor Clamp
    • 1 x User Manual

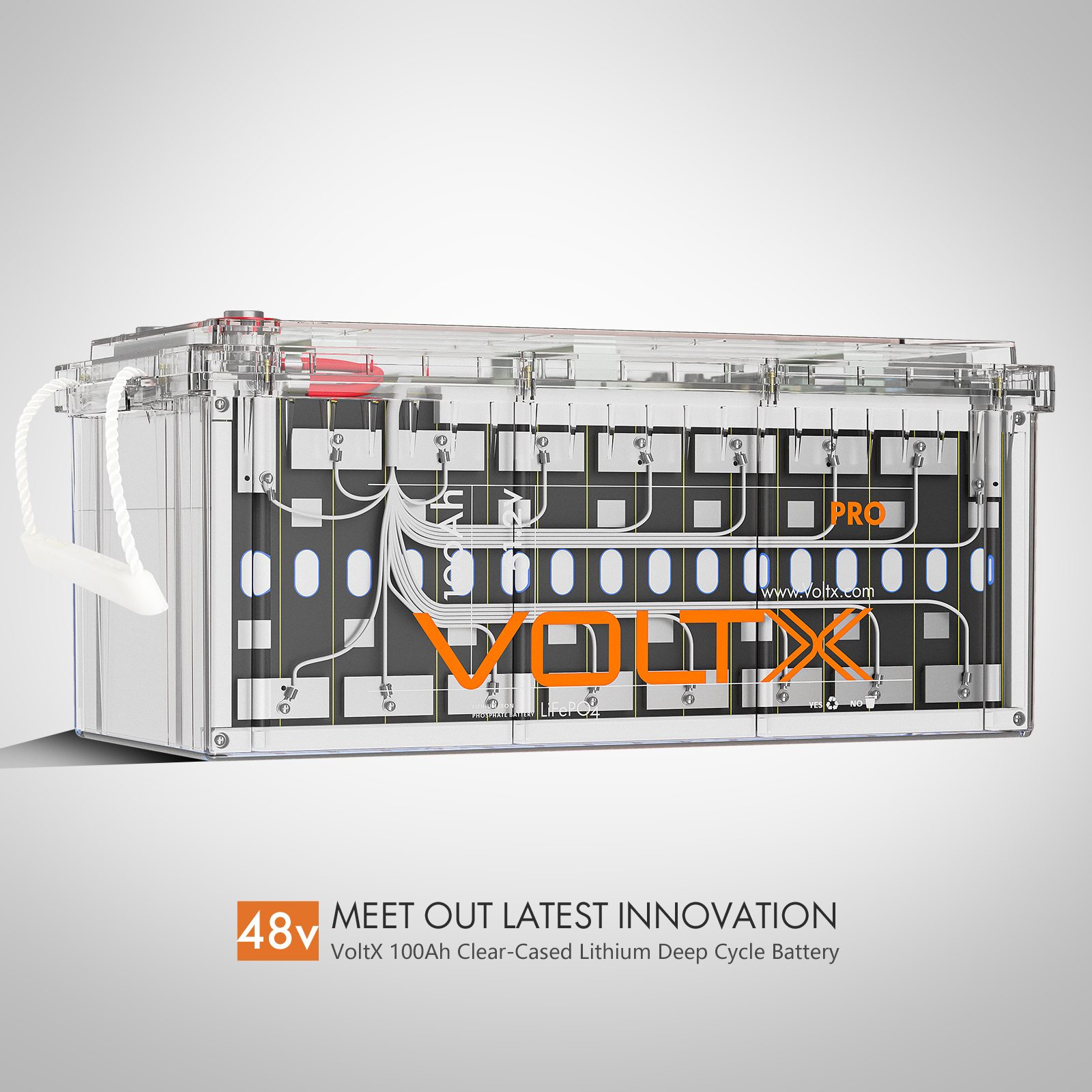

    Product 2: 48V 100Ah Lithium Battery

  • Specifications

    • Brand: VoltX
    • Nominal Voltage: 51.2V
    • Nominal Capacity: 100Ah
    • Rated Energy: 5120Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 57.6V/50A
    • Charging Voltage: 54.4-55.2V
    • Absorption Voltage: 57.6V
    • Float Voltage: 55.2V
    • Overcharge Protection: 58.4V
    • Overcharge Recovery: 56.8V
    • Overdischarge Protection: 40V
    • Overdischarge Recovery: 42.4V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -5°C to 35℃
    • Charge Method: CC/CV

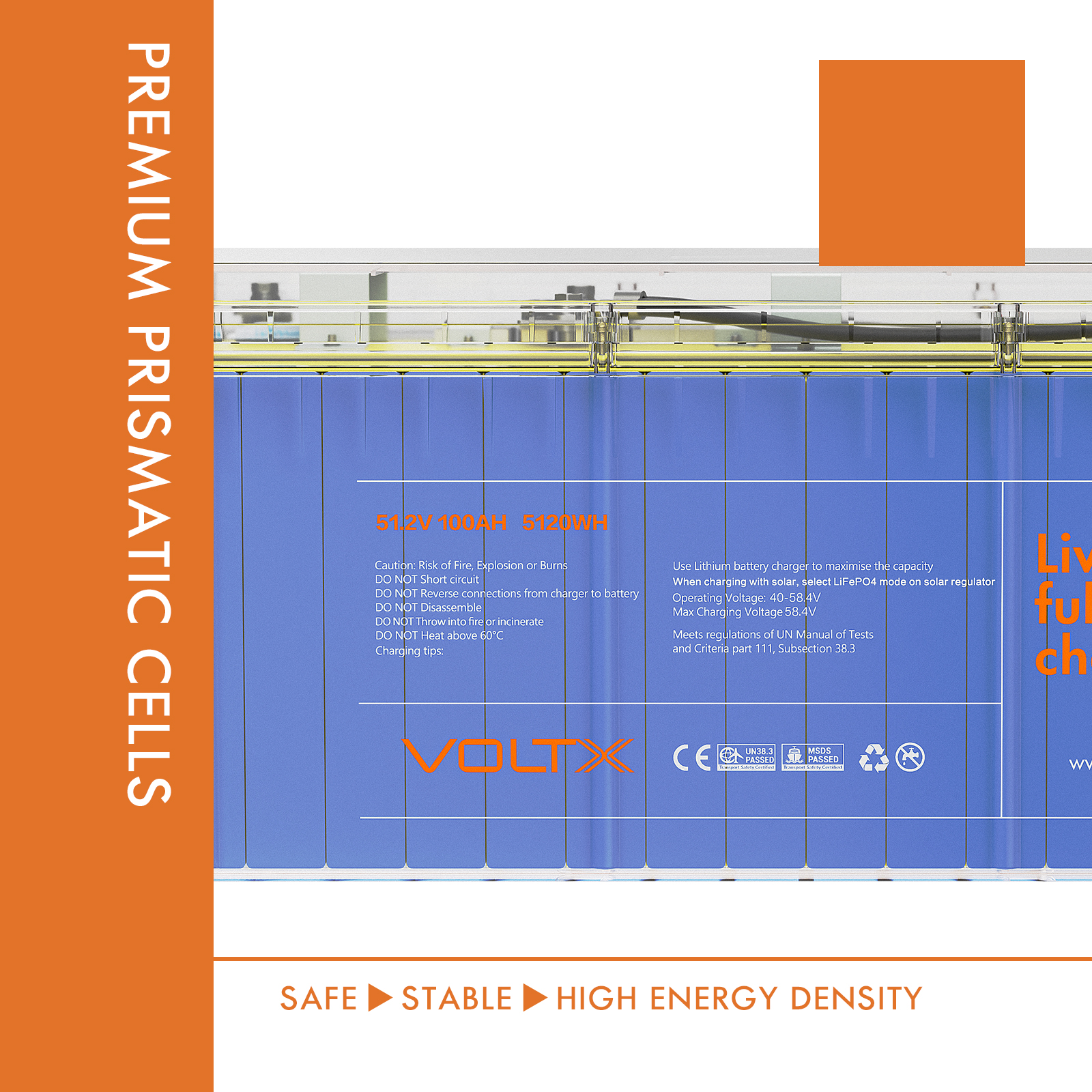

    • Battery Cells: Prismatic
    • Cell Grouping: 16S1P
    • Parallel Connection: 4
    • Series Connection: 1
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Pro 100Ah
    • Certifications: CE/UN38.3

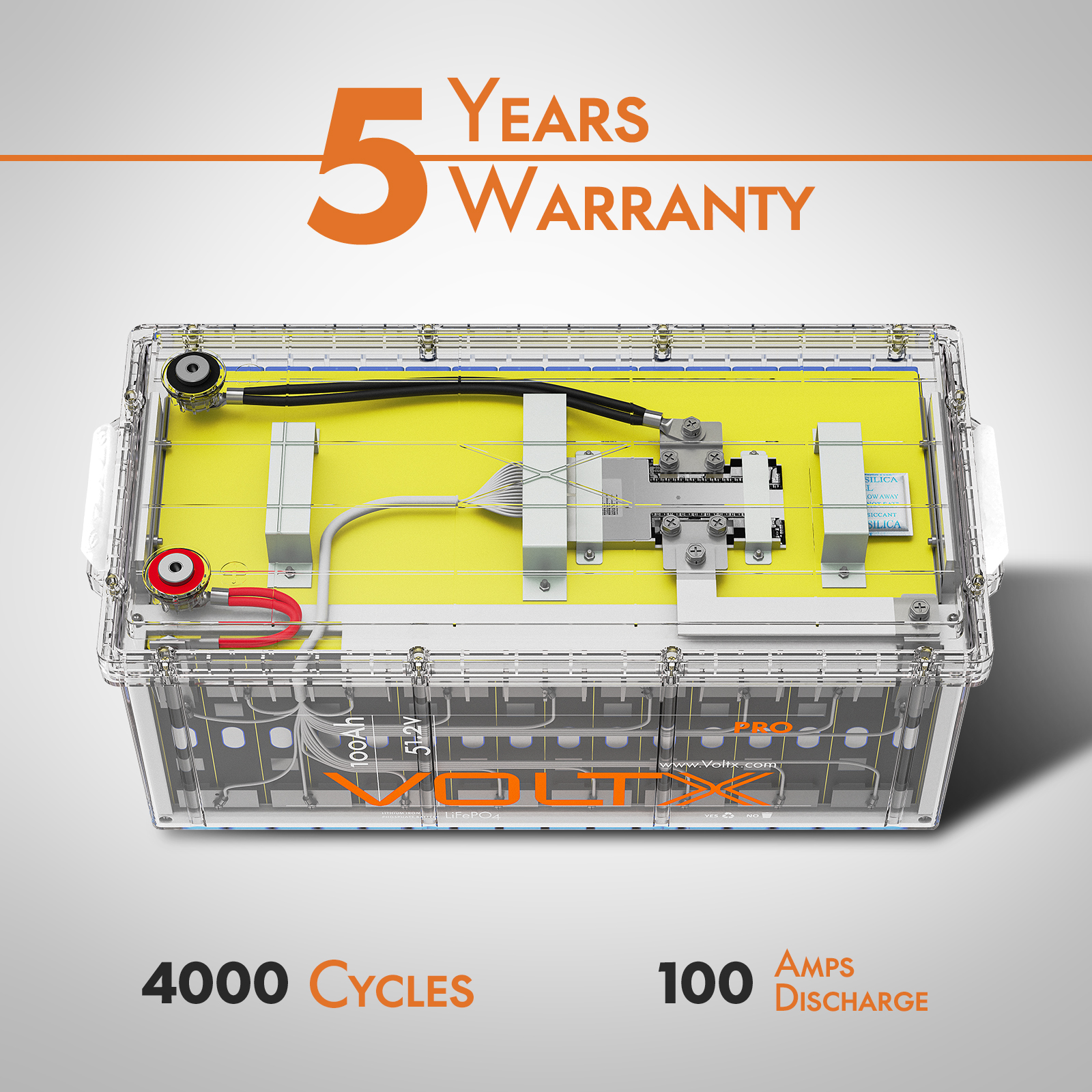

    • Warranty in Years: 5

  • Dimensions & Weight

    • Product Size: L522 x W238 x H223mm
    • Package Size: L595 x W310x H303mm
    • Net Weight: 37.7kg
    • Gross Weight: 39.4kg

  • 3x Package List

    • 1x VoltX 48V 100Ah Lithium Battery

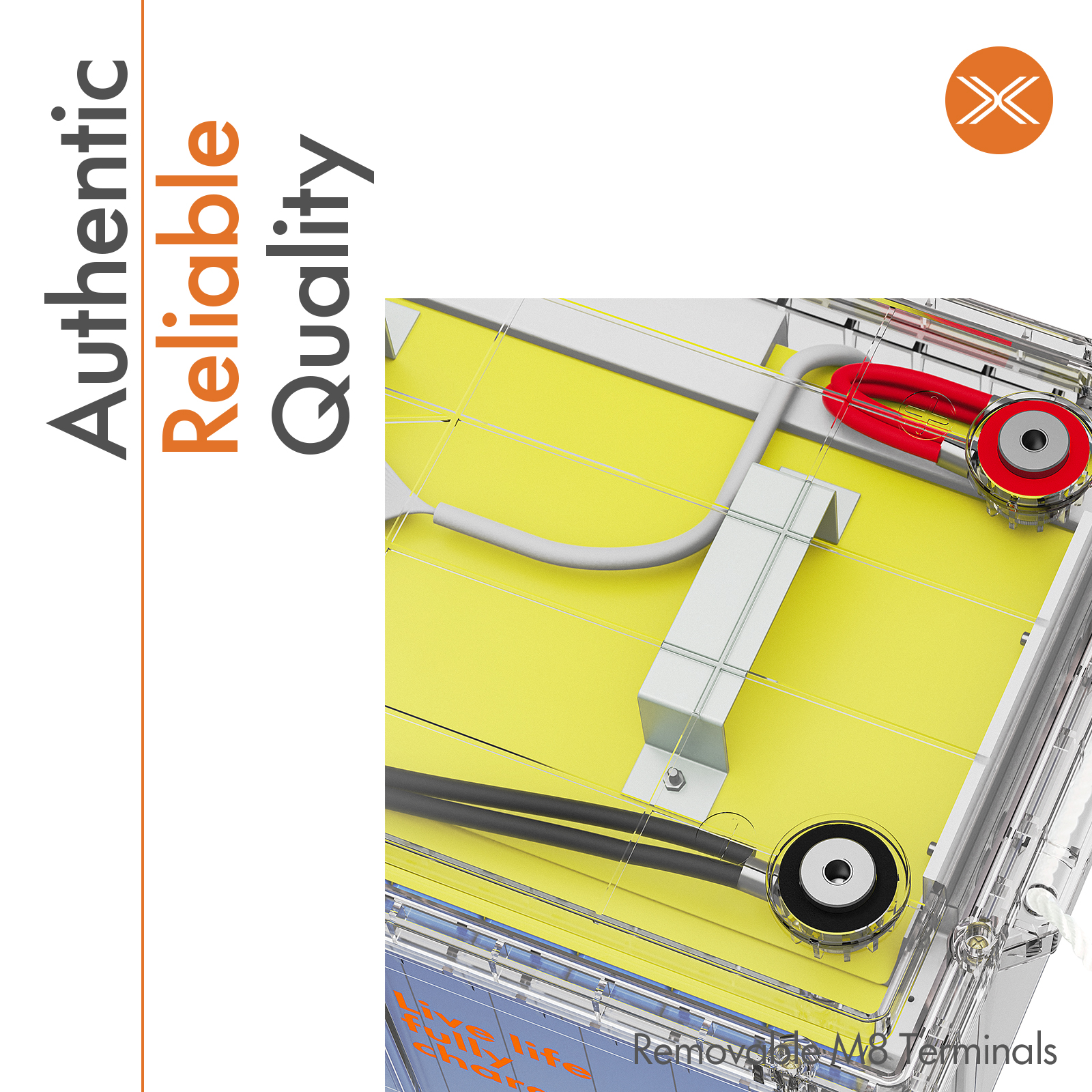

    • 2x Terminal Bolts M8*16
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
