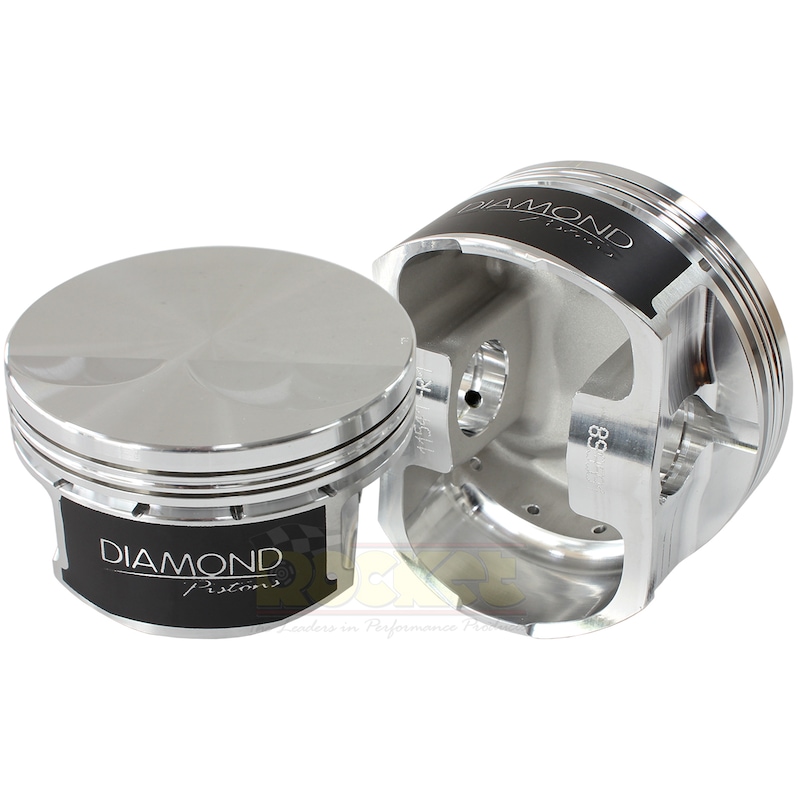

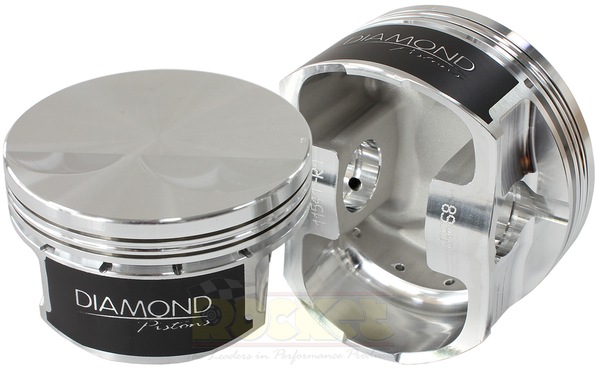

Diamond Pistons LS3/L92 V8 Flat Top Forged Piston Kit 4.065" bore 3.622" stroke

Image 1
Best Price in the Last 14 Days
Hurry! 4 items left!
$2404.87
You save $254.63Was $2659.50

Collect 2404 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Speed Parts
Secure ways to pay at checkout
Piston Specifications:

Block: LS3/L92
Bore: 4.065"
Stroke: 3.622"
Rod: 6.125"
Comp Heigh: 1.304"
Weight: 457
Pin: .927 x 2.500"
CC's: Flat Top -2.0cc
Comp Ratio With 62cc Head: 11.5
Comp Ratio With 70cc Head: 10.4
Comp Ratio With 76cc Head: 9.8
Ring Set: 09454065

Piston Features:

3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most aftermarket cylinder heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250"
Ratios figured for .040 head gasket
Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.176" intake and .105" exhaust
2618 material for High HP-NOS-Boost applications

Specifications:

Diamond Pistons LS3/L92 V8 Flat Top Forged Pistons With Rings 4.065" bore, 3.622" stroke, 6.125" rod length, -2cc dome volume D11543-R1-8

GTIN: 193564373984
