Diy Automatic Irrigation Module Kit With Soil Moisture Sensor Detection Watering Pumping Graphite Black Other Sensors
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Sold by HOD HEALTH AND HOME Australia
Free Shipping on all purchases. Your parcel will also be fully insured and trackable

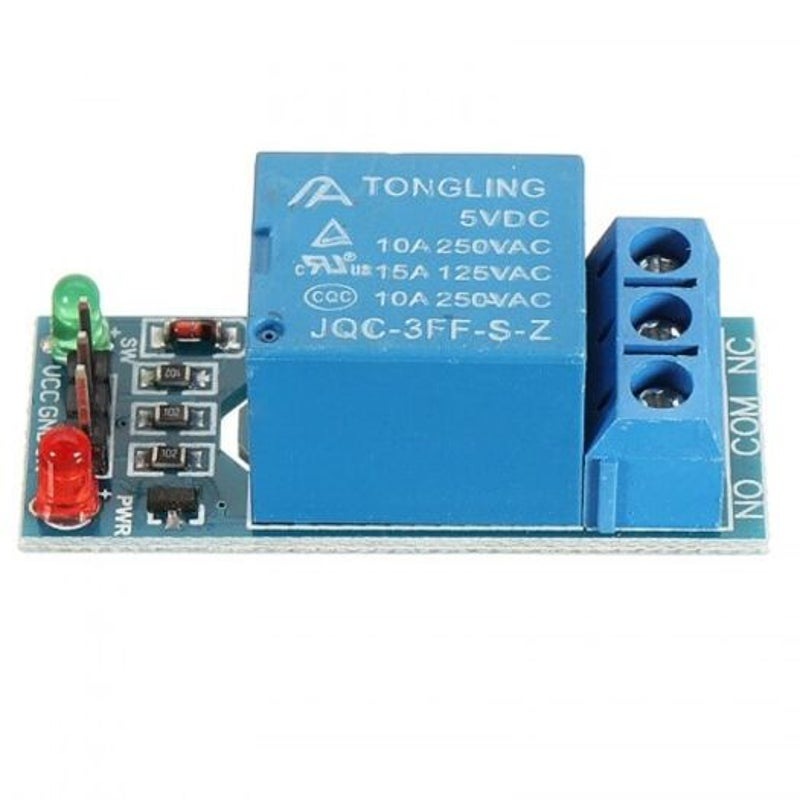

Test The Relay Module: Connect The Relay Module Vcc To 5V Gnd To Ground In To Gnd The Relay Jumps And When In Is Suspended The Relay Recovers So You Can Hear The RelayBr> Sound Repeatedly;

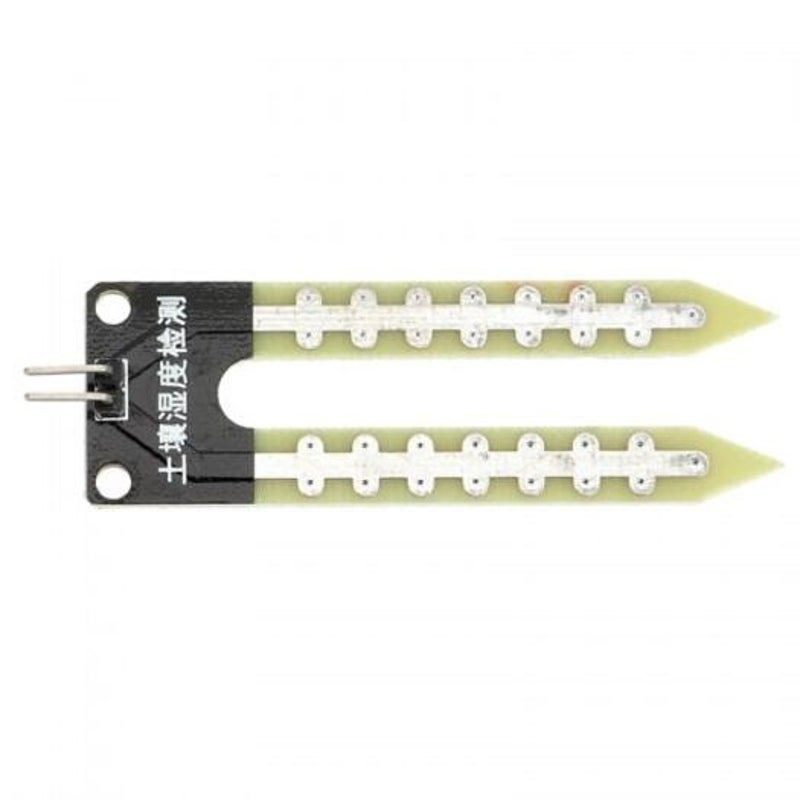

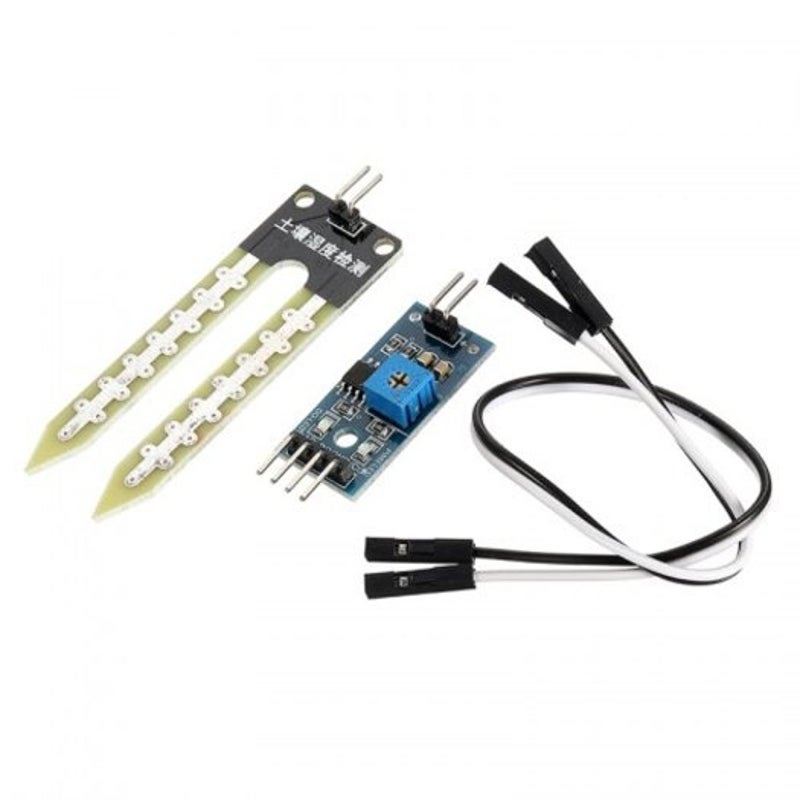

Test The Soil Moisture Sensor Module: Connect The Fork Probe And Transmitter Module With Two Dupont Wires The Transmitter Module Vcc Is Connected To 5V Gnd Is Grounded JustBr>After Power-On The Red Power Light Is Always On Green ( Blue ) Color Indication The Lamp Flashes Faintly Once; The Fork Probe Is Directly Inserted Into The Water And The Green ( Blue )Br>Light Is On;
Connect The Red Line Of The Pump To 5V The Black Line Is Grounded The Pump Works Pay Attention To The Test For 1 Second And It Is Not Allowed To Work In The Air For A Long Time;
Assemble It According To The Schematic Diagram.
Material: Fiber ComponentsDiv>Specification
Dimensions And Weight

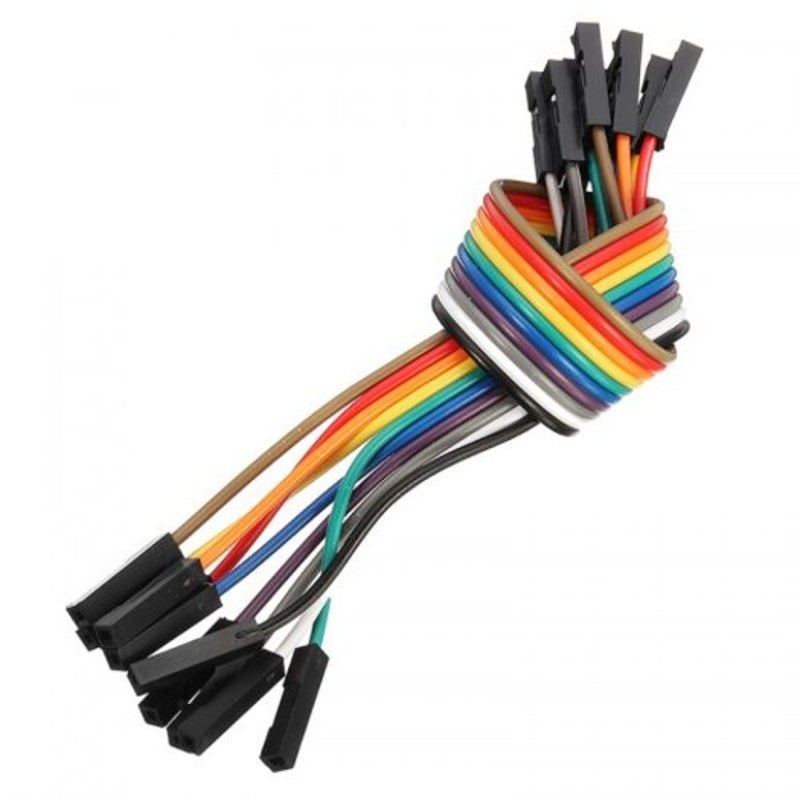

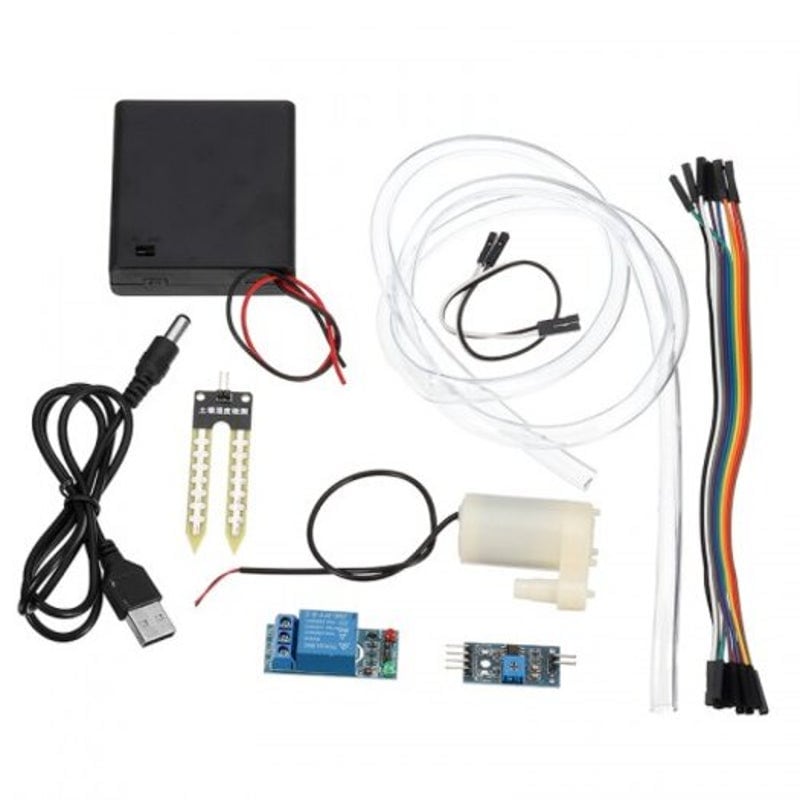

Product Weight: 0.1400 KgBr> Package Weight: 0.1500 KgP>You Will Receive You Will Receive: 1 X Relay Module 1 X Soil Moisture Probe + Comparison Module 1 X Small Water Pump 1 X Battery Case 1 X Usb Power Cord 1 X Silicone Hose 10 X Dupont Line/P>SKU: 6610030814447
Reference ID: 11355471
